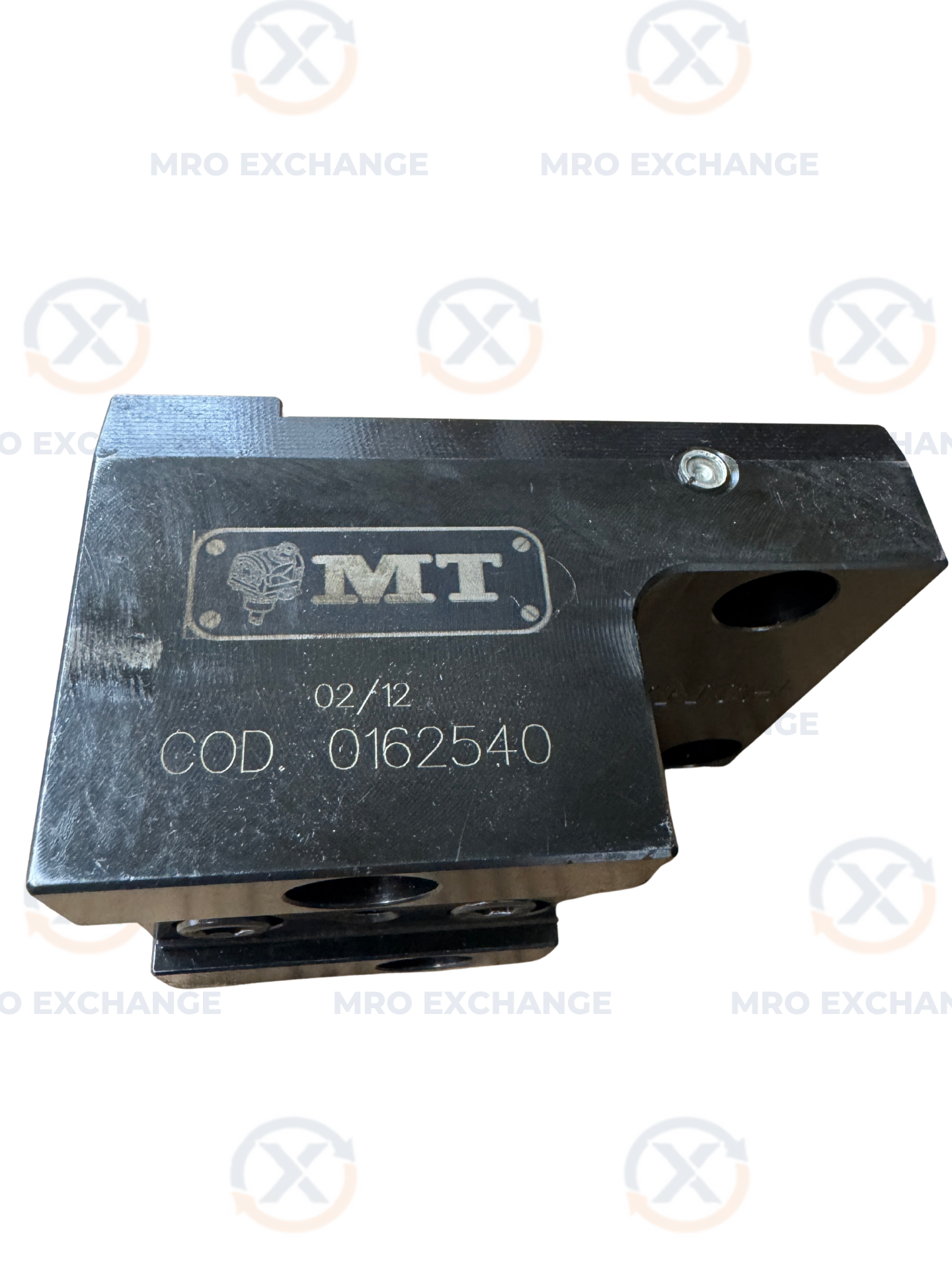

MT Marchetti Radial Double Turning Tool Holder COD 0162540 | 1 In. x 1 In. Square Shank | Orientation: Radial

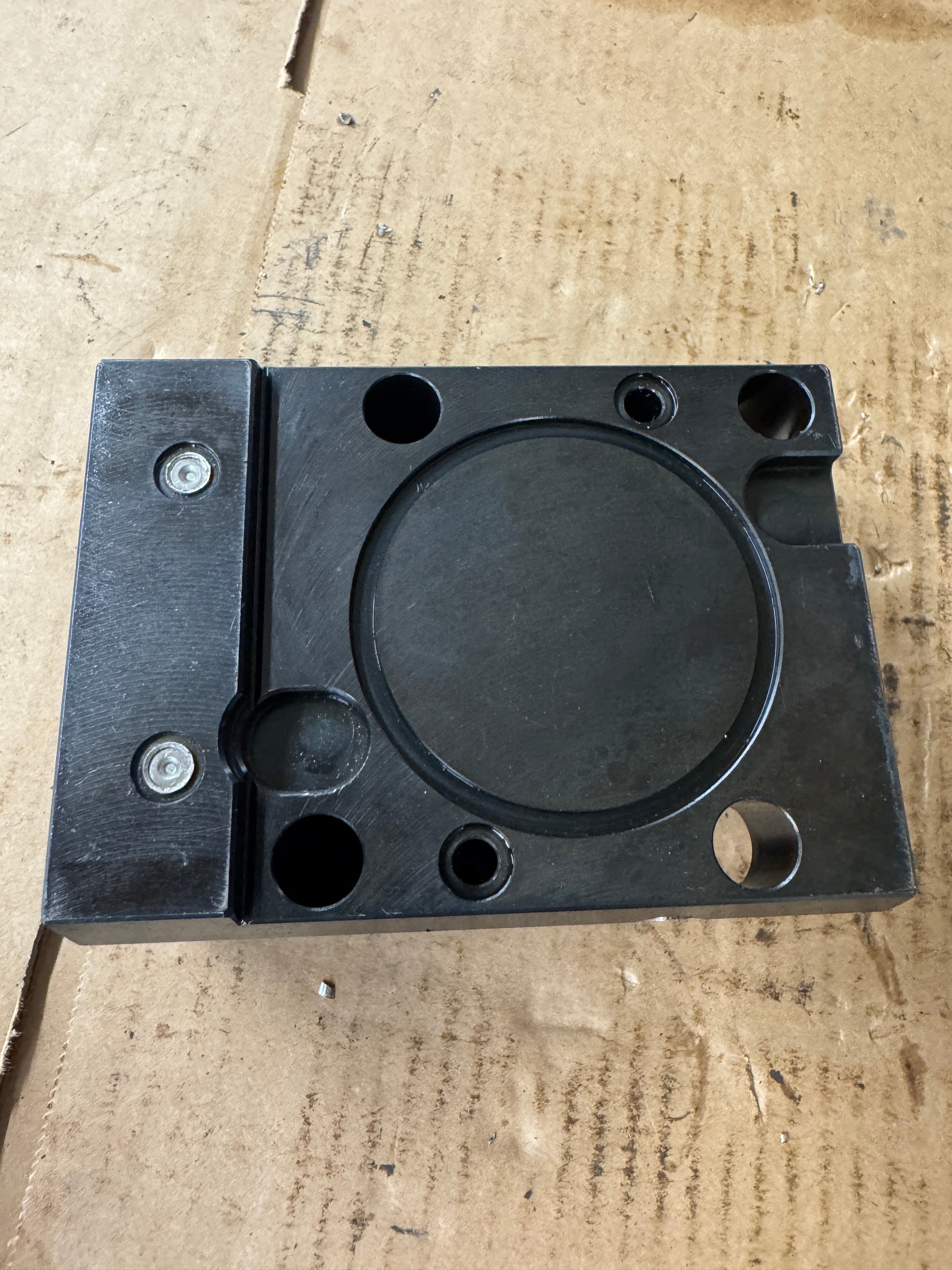

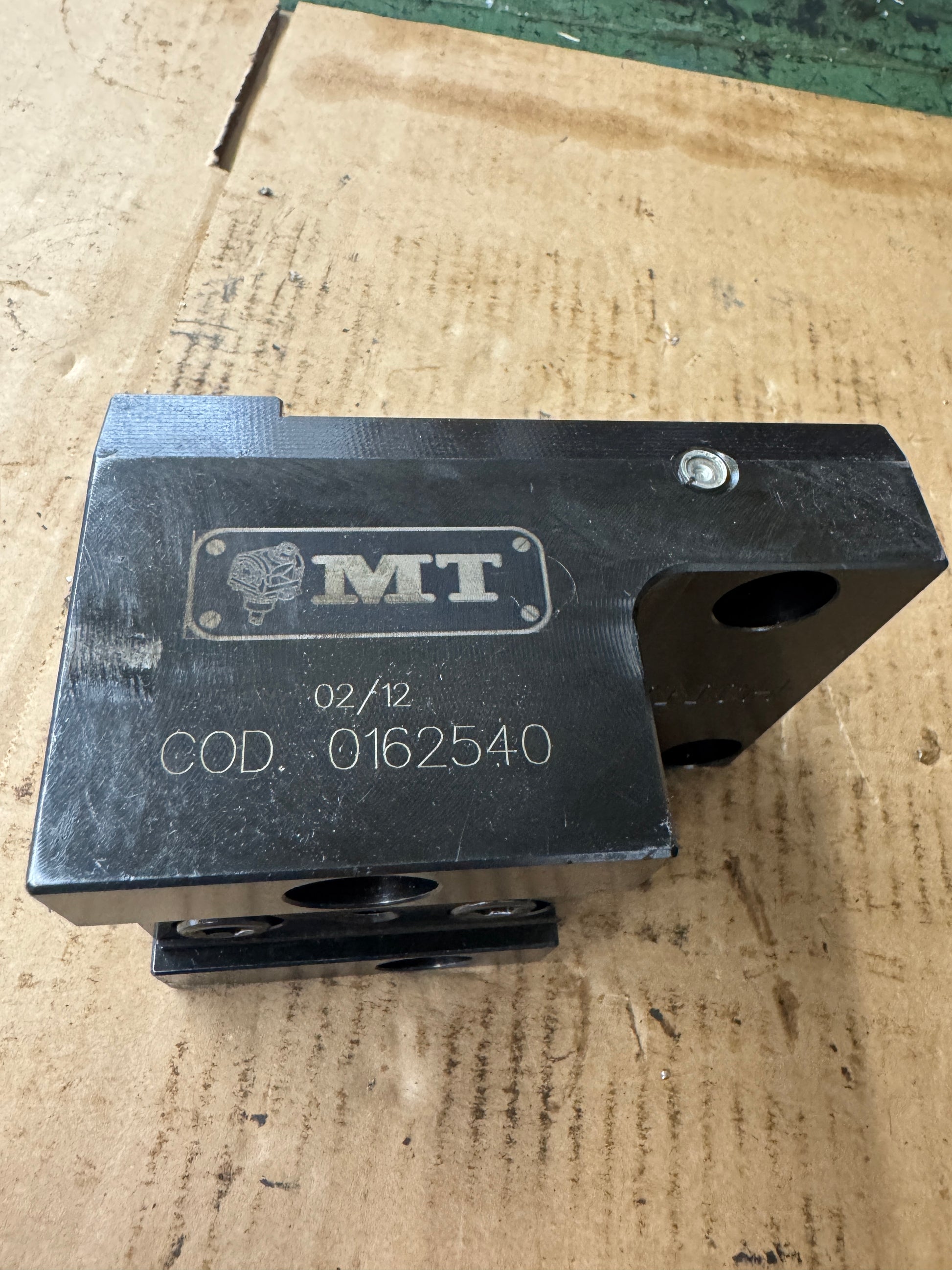

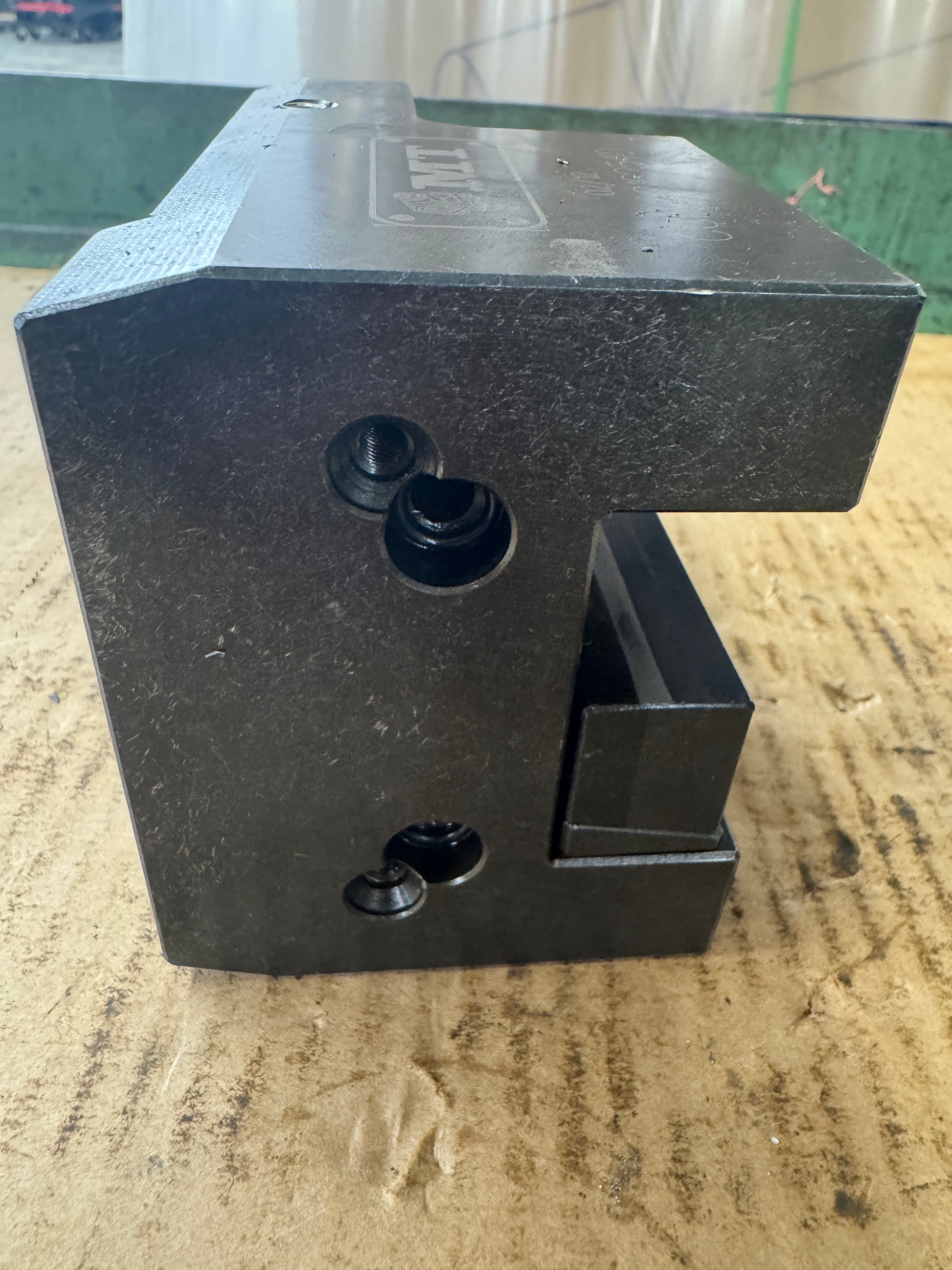

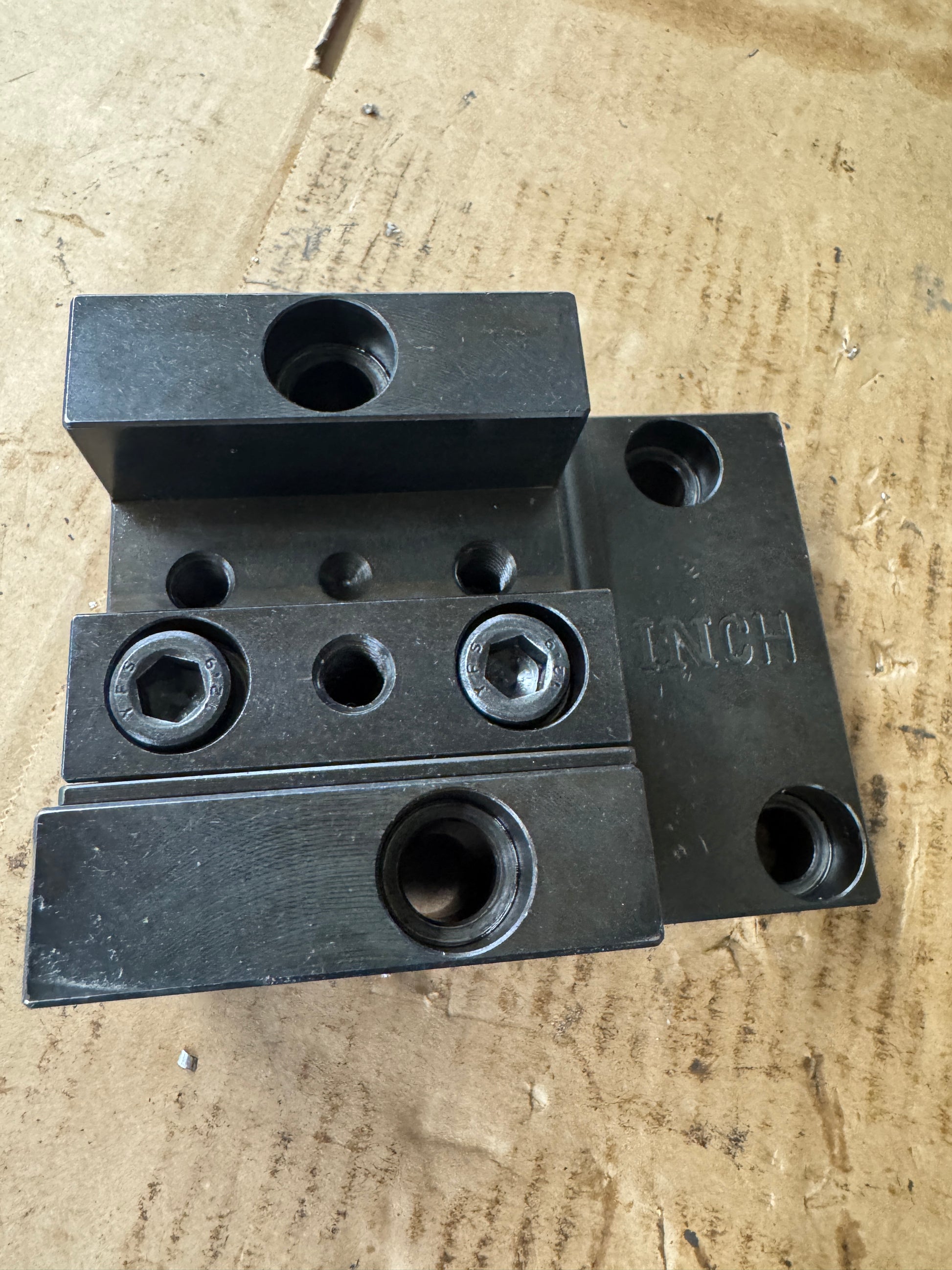

M.T. Marchetti COD. 0162540 is an Italian-made radial live tool holder for CNC turning centers, date-coded 02/12 and marked for inch-standard tooling. M.T. Marchetti, manufactured in Italy, is recognized as a premium producer of driven and static toolholders for CNC lathes, with MD Tooling serving as the exclusive North American distributor. The unit features a solid black-oxide steel body with a BMT-style bolt-on mounting face, four-bolt attachment pattern, and locating key provisions visible on the front face, consistent with the rigid, high-repeatability characteristics of the BMT toolholder family. The radial output configuration allows milling, drilling, and cross-machining operations to be performed on the turning center without workpiece repositioning. The body incorporates an integral collet-nose bore for driven tool engagement, with the "INCH" designation confirming compatibility with inch-dimension tooling. The date code of 02/12 indicates manufacture in February 2012. The specific turret interface size has not been confirmed from visible evidence and should be verified against the machine turret before installation. Serial number and additional configuration details are not visible on the available nameplate. The item is sold as-is, removed from service.

Stock # 0426-01233
