Neugart Planetary Gearbox PLE 80-5/OP2+6 | Art.Nr. 602-2354

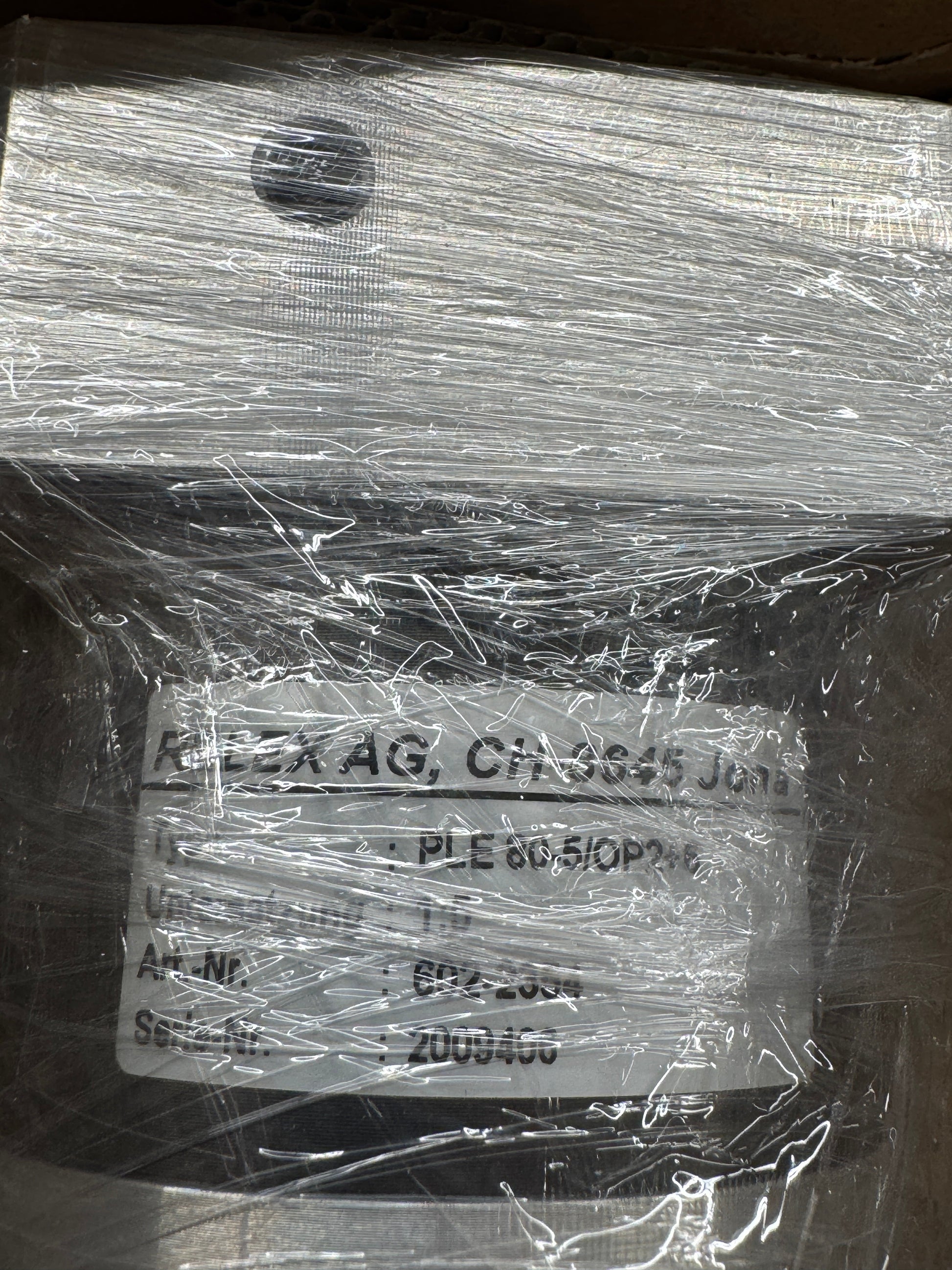

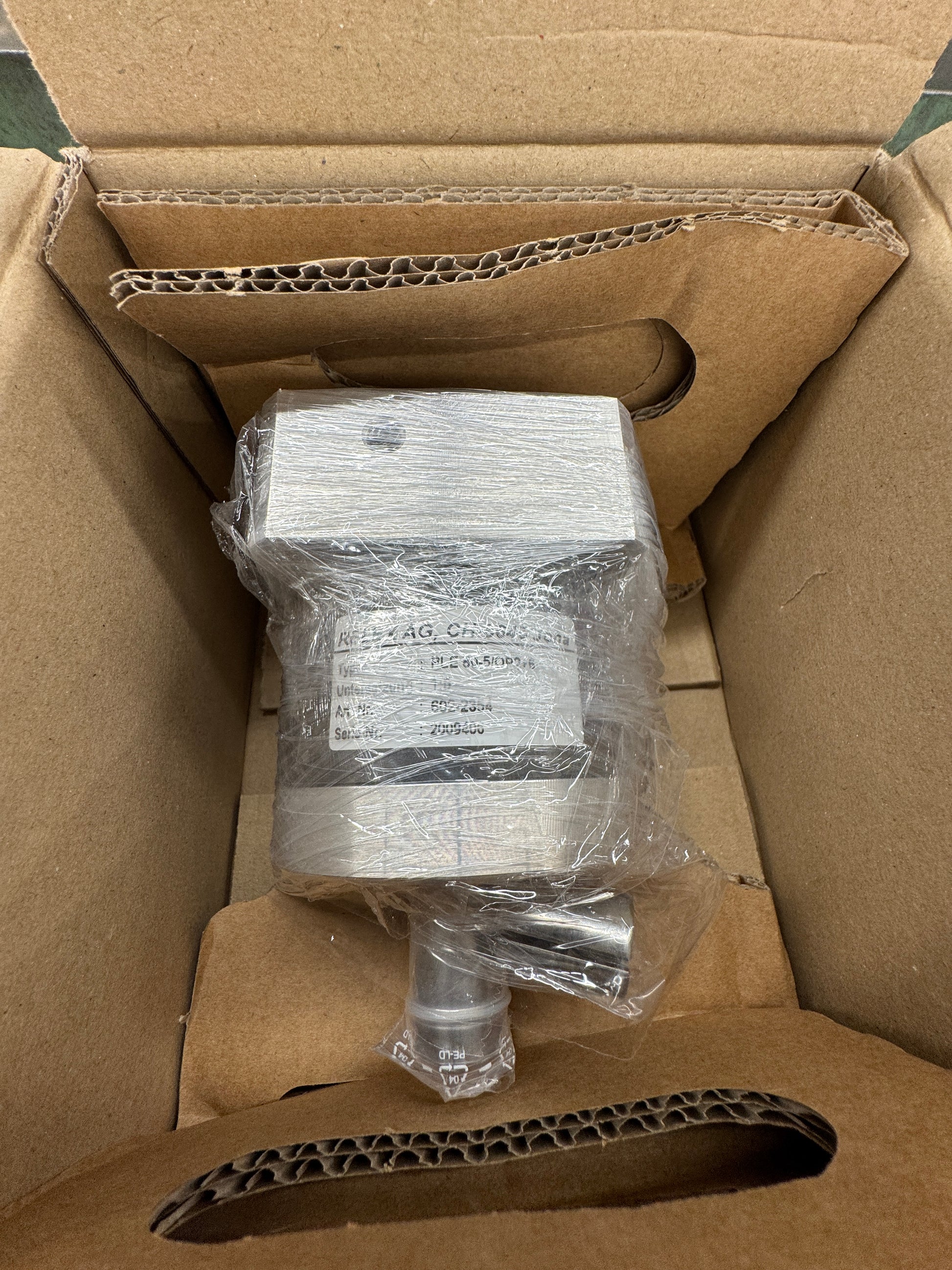

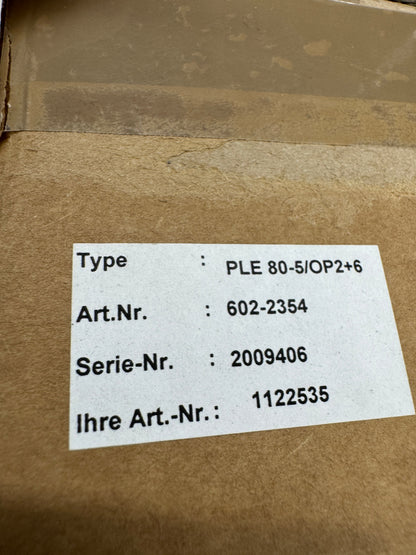

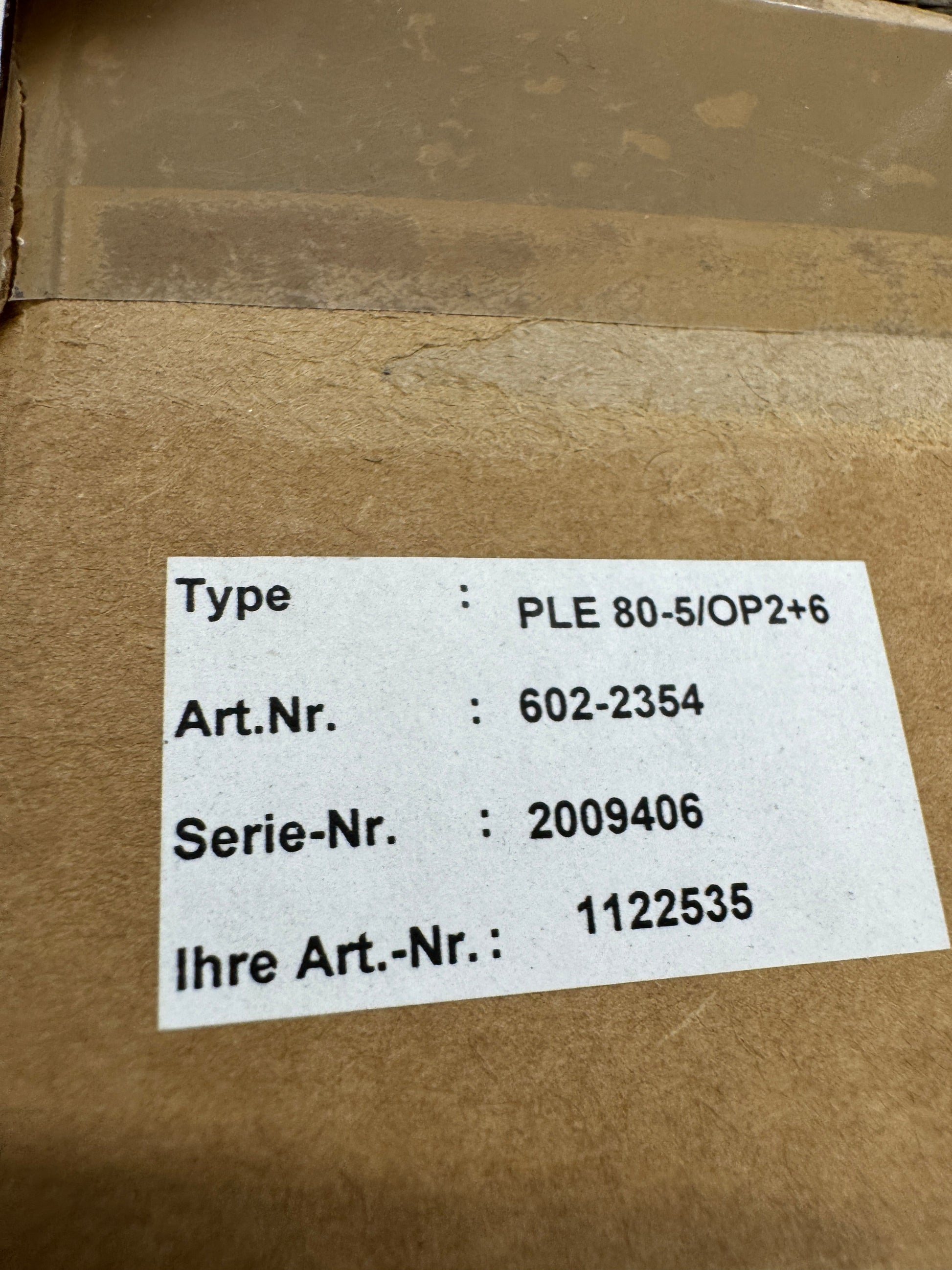

Used in servo motor drive systems and precision automation equipment, the Neugart PLE 80-5/OP2+6 is an 80 mm frame size planetary gearbox with a 5:1 reduction ratio. Neugart's PLE series is engineered for high torque density in a compact inline form factor, combining low-friction deep groove ball bearings with spur planetary gearing for efficient power transmission across demanding duty cycles. The unit carries IP54 protection and is rated across a wide operating temperature range of -25 degrees C to 90 degrees C with standard lubrication. Mounting is flexible in any orientation. The "/OP2+6" suffix designates the output configuration, specifying a two-part motor adaptation flange and a clamping system bore of 6 mm, as confirmed by the Neugart nomenclature convention for this series. Article number 602-2354 and serial number 2009406 are confirmed on the box label, along with a customer reference number of 1122535. Country of manufacture is Germany. The unit is presented in the original Neugart corrugated box with plastic wrap intact on the gearbox body, consistent with new or new-surplus condition. Frame size 80 corresponds to the second-largest standard offering in the PLE range, providing nominal output torque up to 800 Nm depending on configuration. This gearbox is compatible with a broad range of servo and stepper motor flanges through Neugart's modular input adaptation system.

Stock # 0326-1078
