Nexen Group, Inc. Spring Engaged Brake 806000 0.875 in. Bore, 6.62 in. OD x 3.44 in. Body Length, 143TC/145TC NEMA Frame
Nexen Group, Inc. Spring Engaged Brake 806000 0.875 in. Bore, 6.62 in. OD x 3.44 in. Body Length, 143TC/145TC NEMA Frame
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 806000
Stock #: 0226-00661

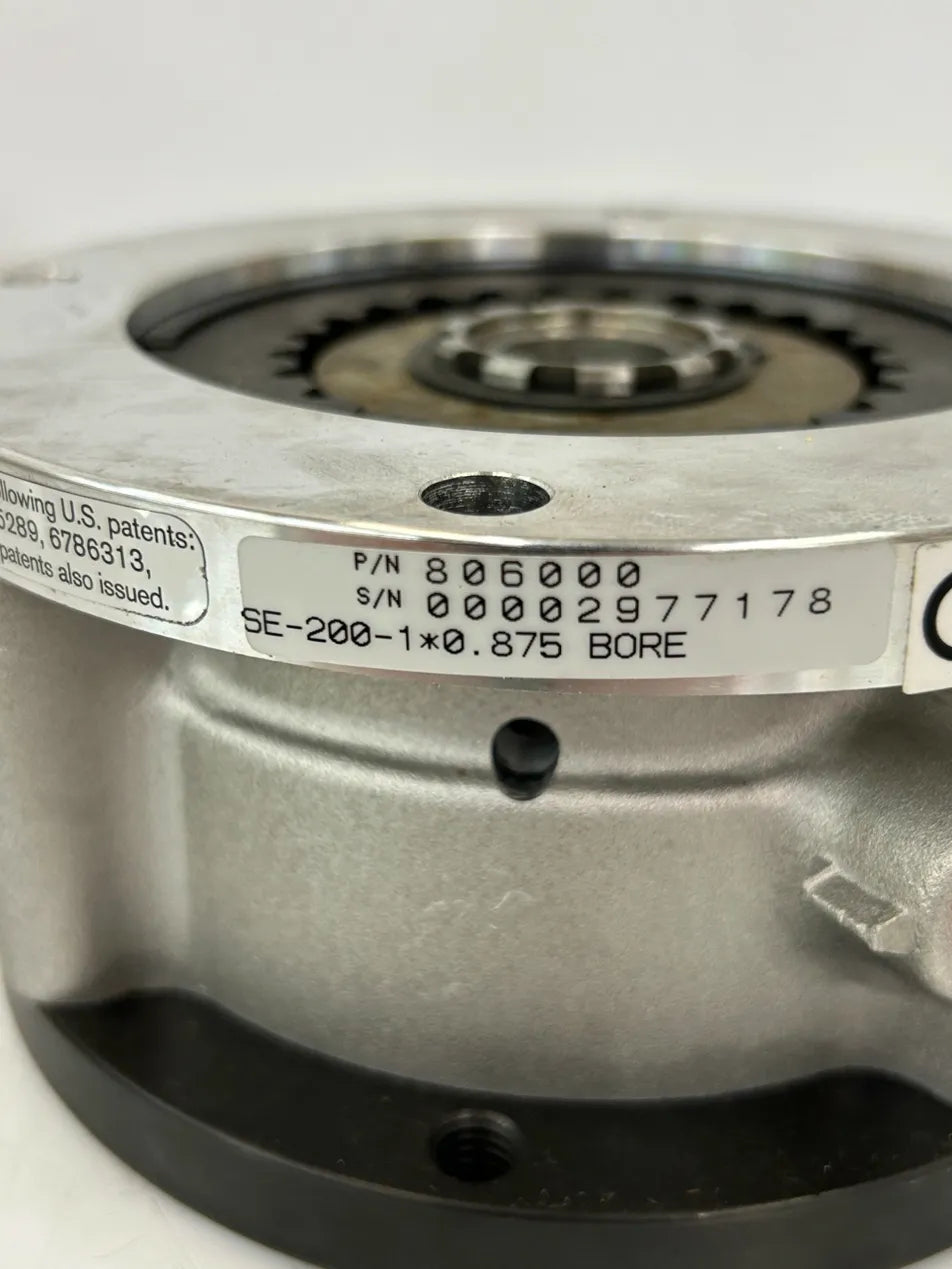

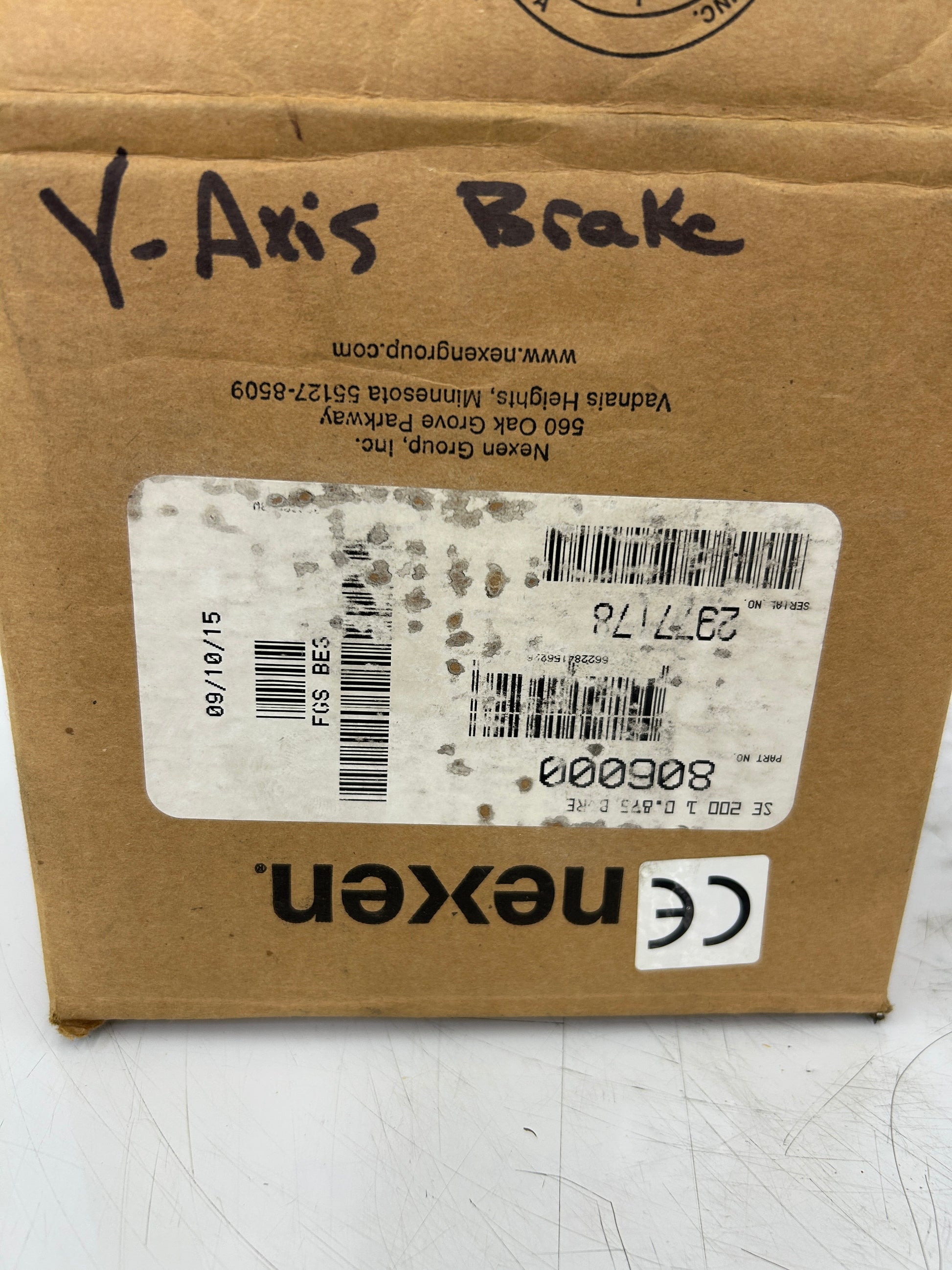

Used in motor braking applications where spring engagement and air release are required for non-cyclic stopping and holding, the Nexen 806000 is a flange-mounted SE-200 series friction brake with a 7/8 in. (0.875 in.) machined bore with keyway. The unit is spring actuated and air released, designed for NEMA C-face or shaft mounting on 143TC and 145TC frame motors. Published specifications for this MPN include a maximum static brake torque of 225 in-lb, a maximum operating speed of 1,800 RPM, and a maximum air pressure of 80 psi with a 1/8 NPT port. Peak thermal input is rated at 7.00 hp. The brake features only three moving parts and includes a restrictor valve to control exhausted air during engagement for smooth deceleration. A manual release mechanism is incorporated into the design. The brake facing edge color is red. Overall dimensions per published data are 6.62 in. OD by 3.44 in. body length, with a black oxide finish. The item is identified by part number 806000 and model designation SE-200-1, with serial number 00002977178 visible on the nameplate. Original Nexen Group packaging is present, labeled with a manufacture date of 09/10/15.
Stock # 0226-661
