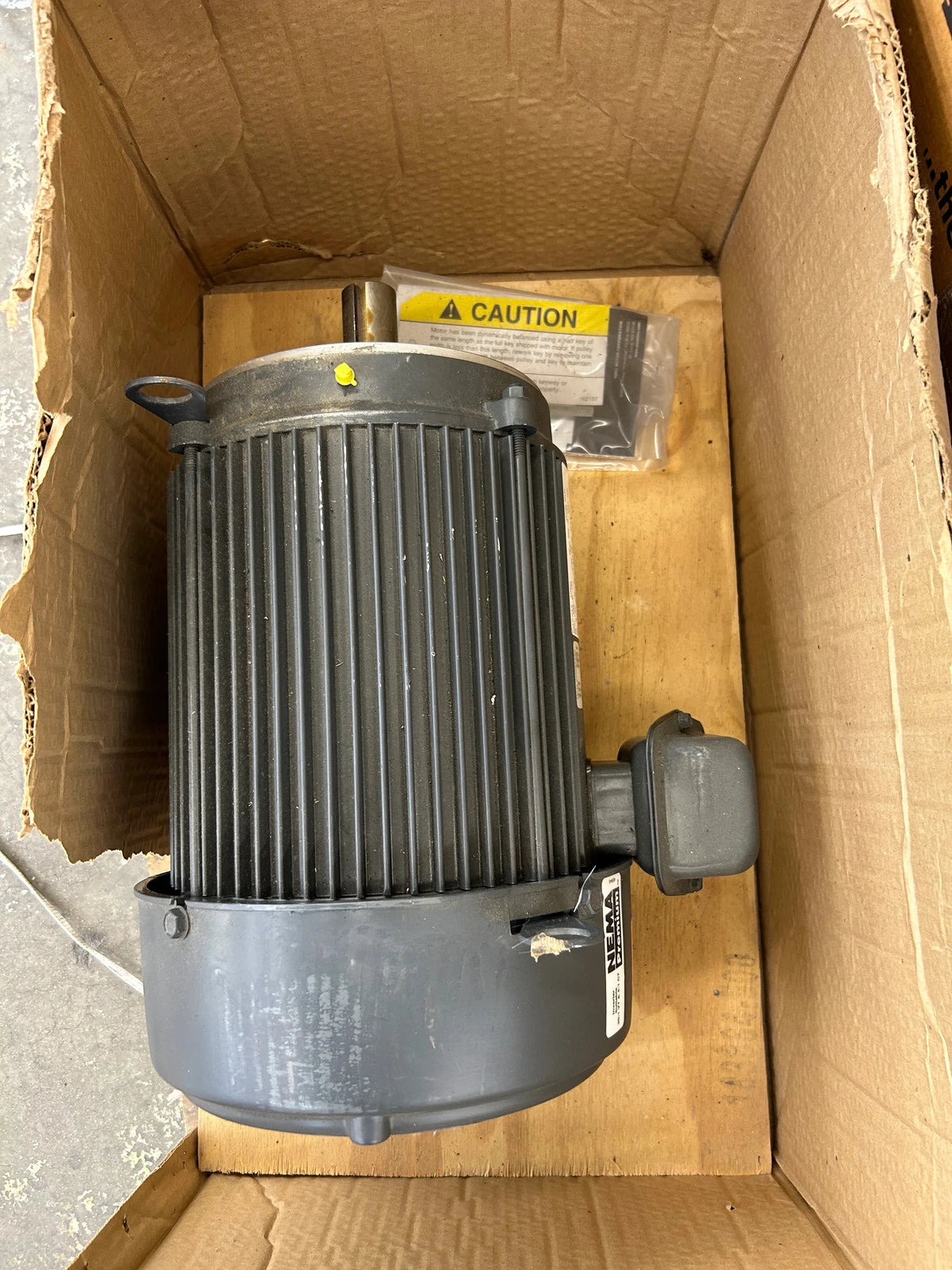

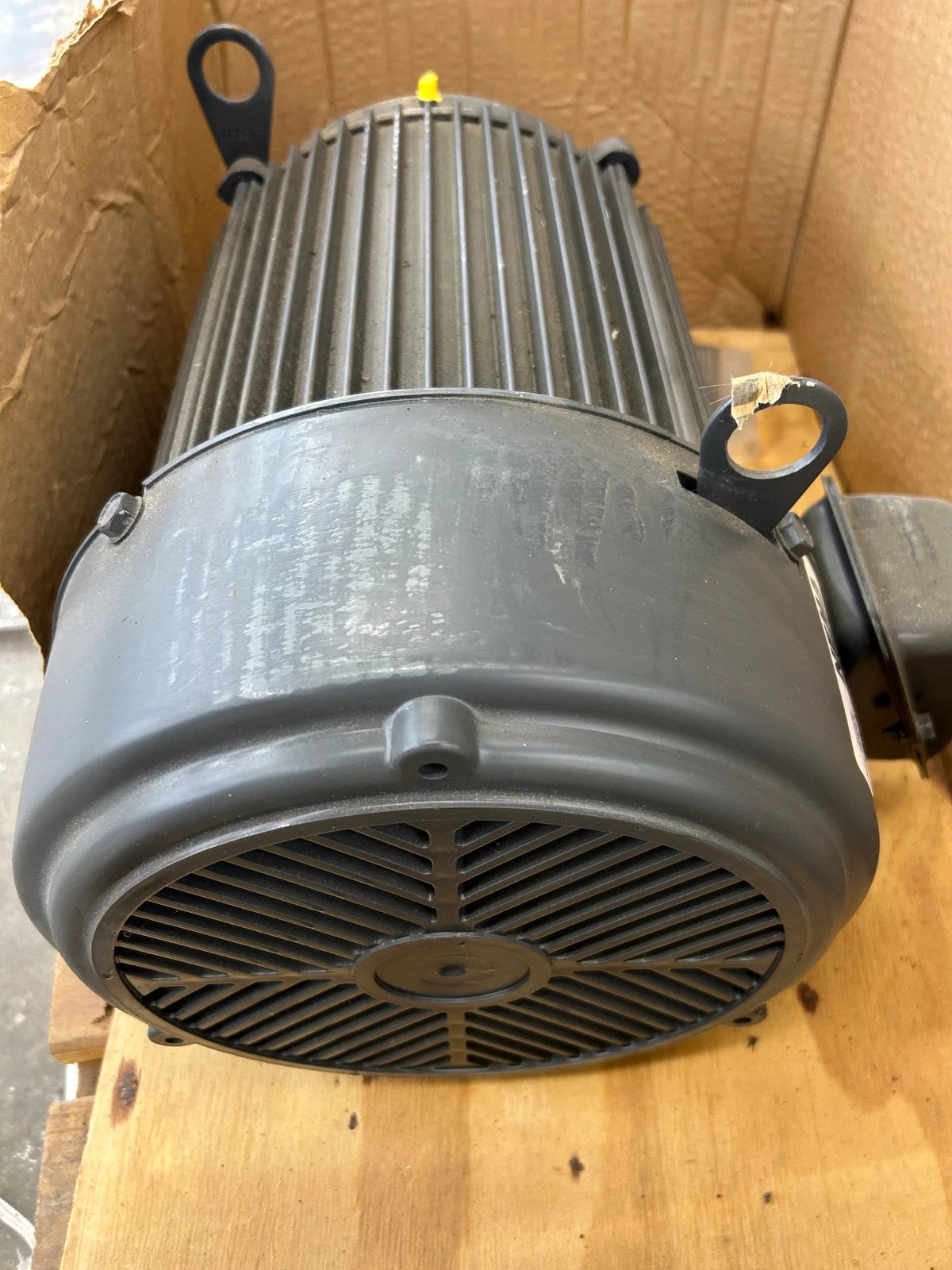

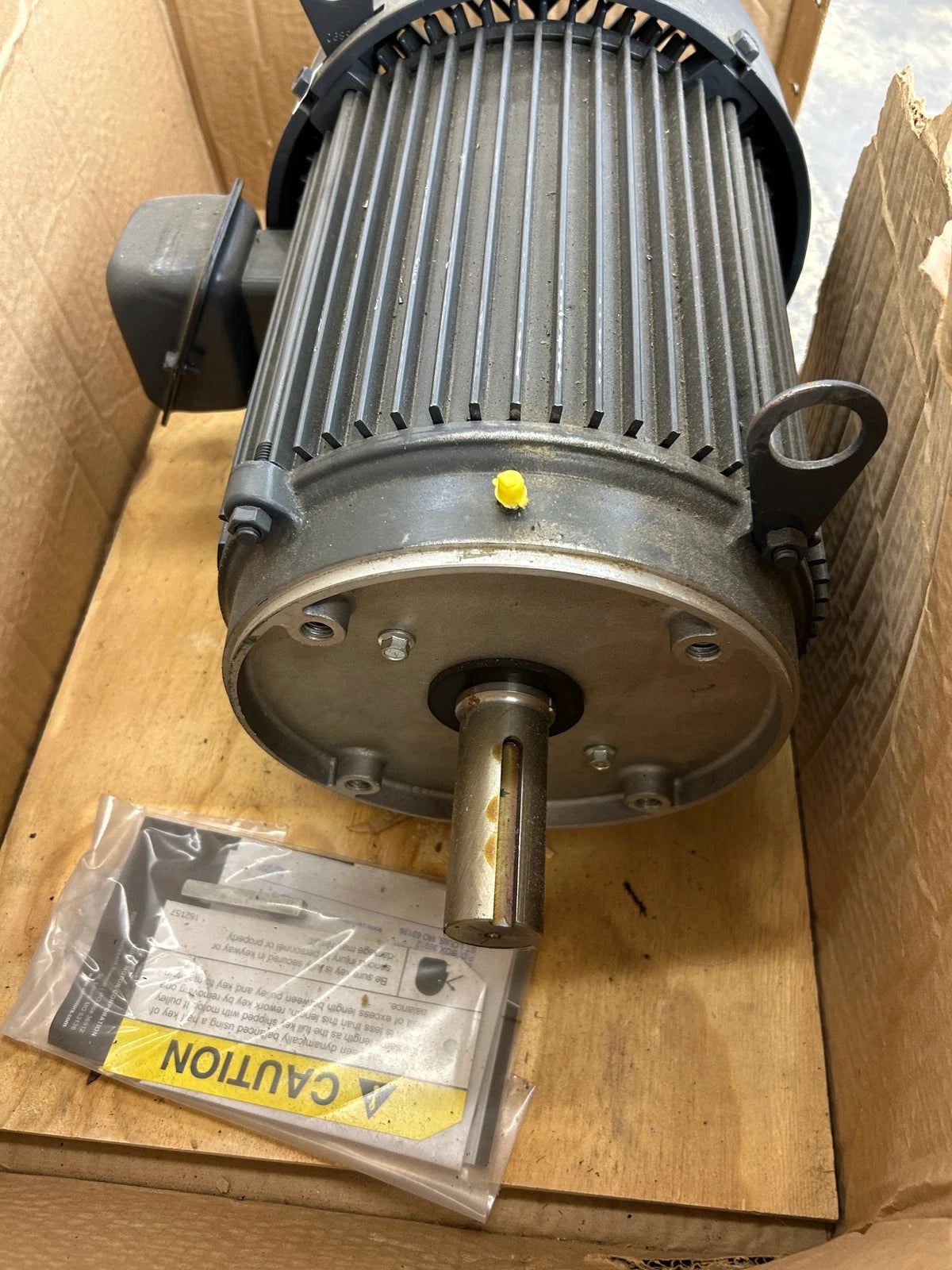

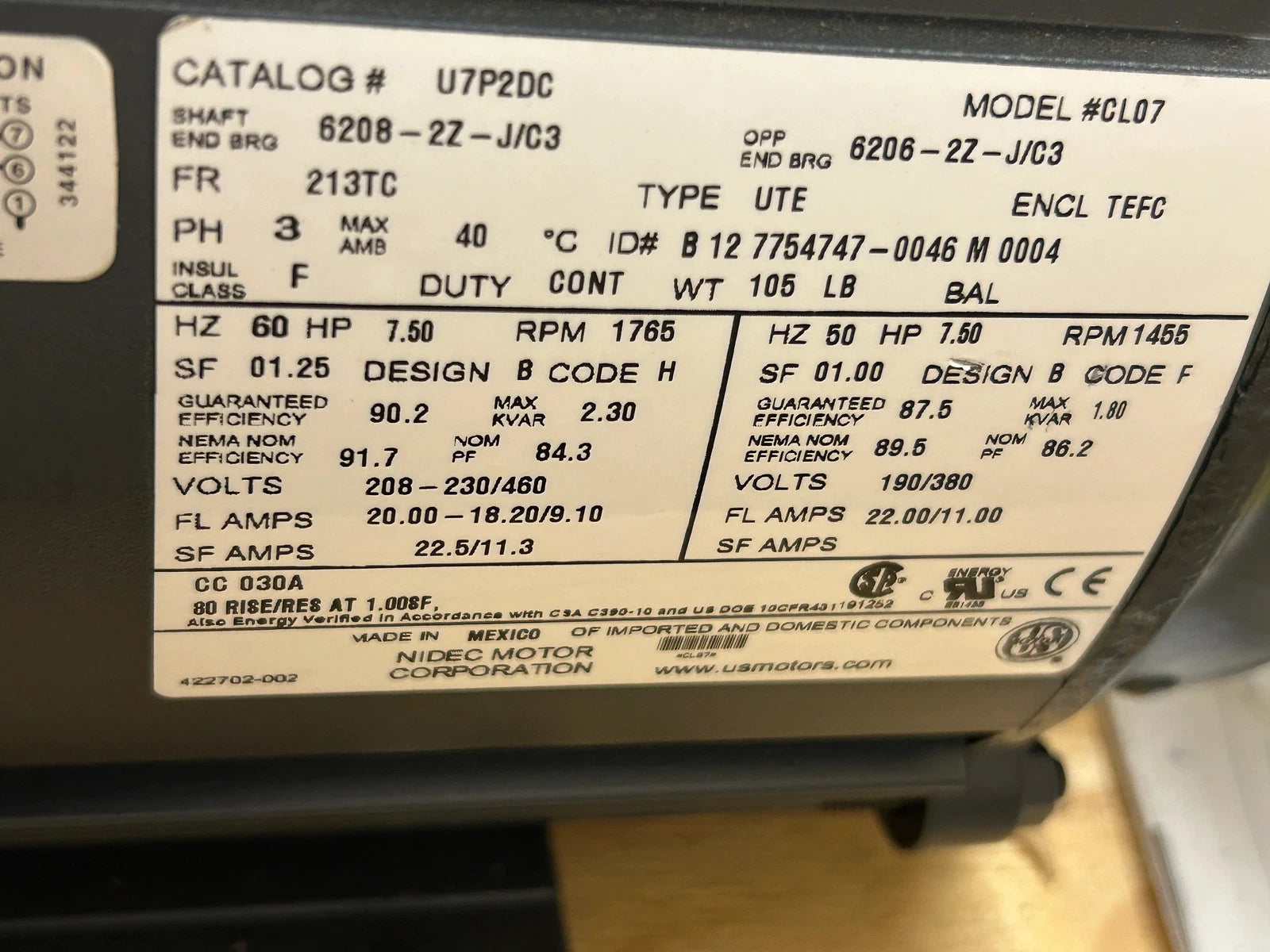

This Nidec Motor Corporation Model CL07 is a three phase AC motor designed for continuous duty industrial applications. The nameplate identifies Catalog Number U7P2DC, frame size 213TC, and Totally Enclosed Fan Cooled enclosure type. The motor is rated 7.50 HP at 60 Hz with a full load speed of 1765 RPM. Service factor is 1.25 under 60 Hz operation. Voltage ratings are 208 to 230/460 VAC with corresponding full load amperage of 20.0 to 18.20/9.10 amps. Insulation class is F with 40°C maximum ambient temperature. NEMA design is B with code H at 60 Hz.
At 50 Hz, the motor is rated 7.50 HP at 1455 RPM, 190/380 VAC, with full load amps of 22.00/11.00 and service factor 1.00. Bearings are specified as 6208-2Z-J/C3 (shaft end) and 6206-2Z-J/C3 (opposite end). Nameplate weight is 105 lb. Efficiency values listed are 91.7 percent nominal at 60 Hz and 89.5 percent nominal at 50 Hz. Manufactured in Mexico. This motor is suitable for applications requiring a 213TC frame with standard NEMA performance characteristics.
