Pacific Ozone Power Supply Board Assembly W3T512161 15V DC output, 10W

$1,999.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

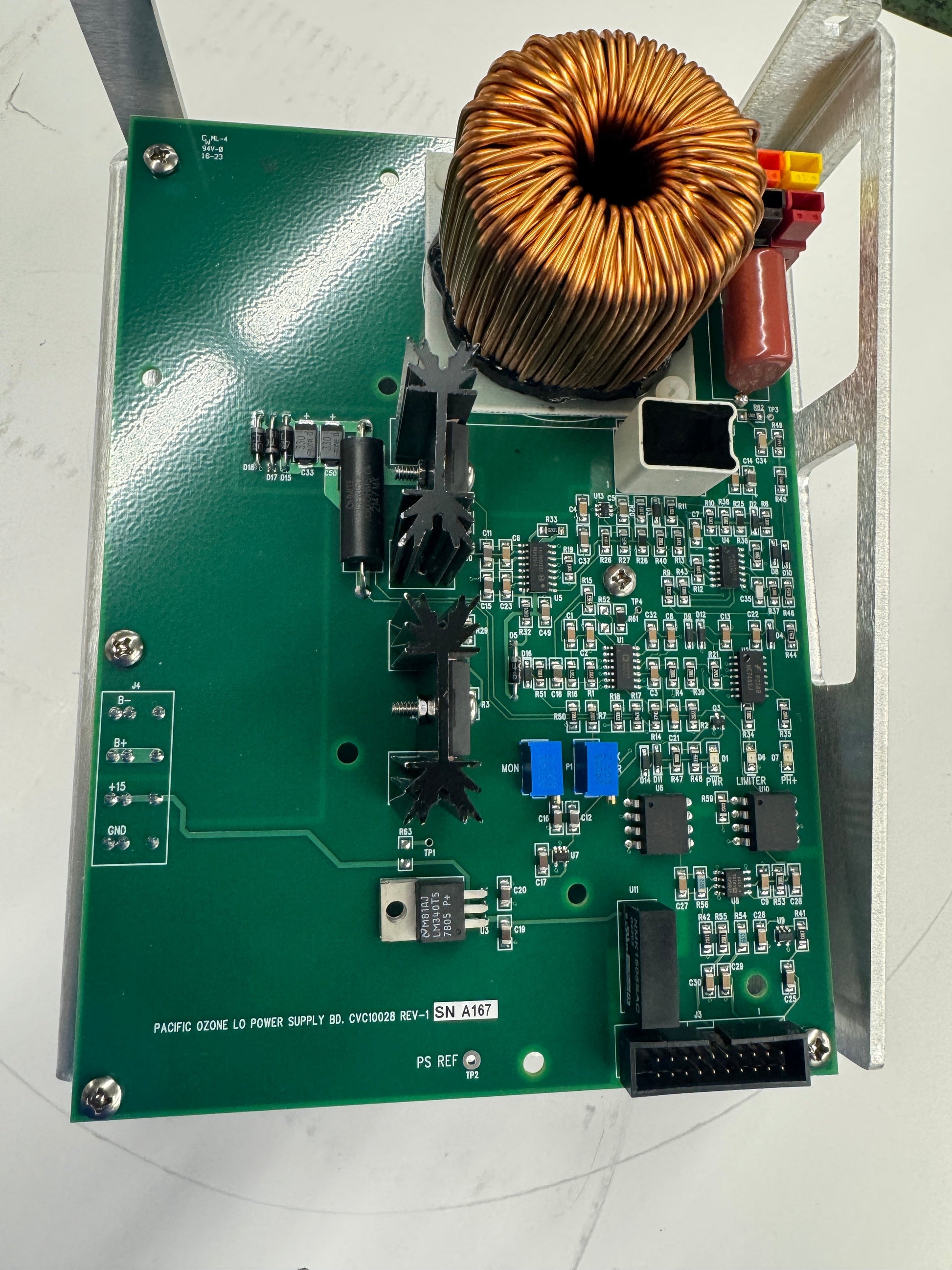

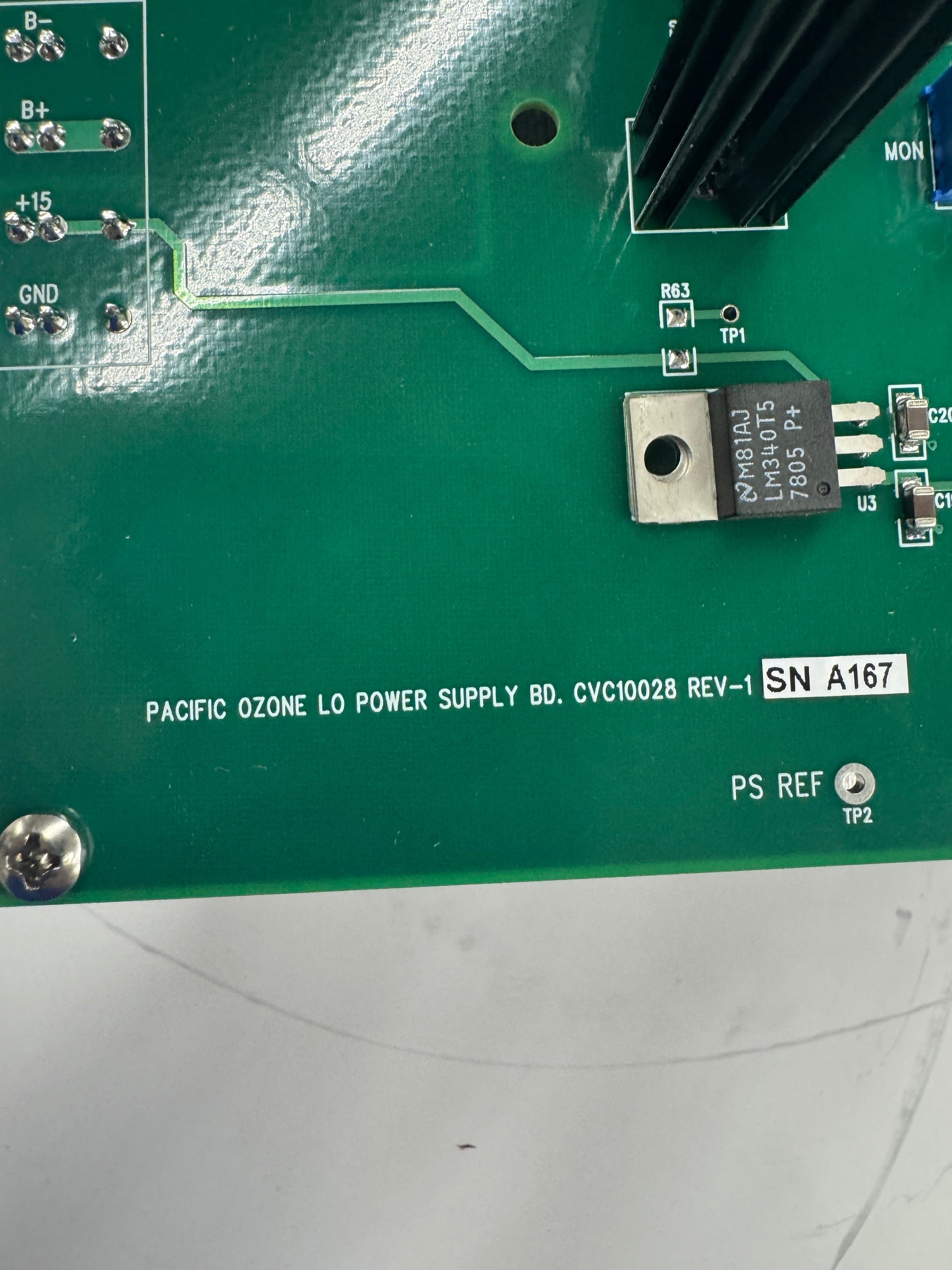

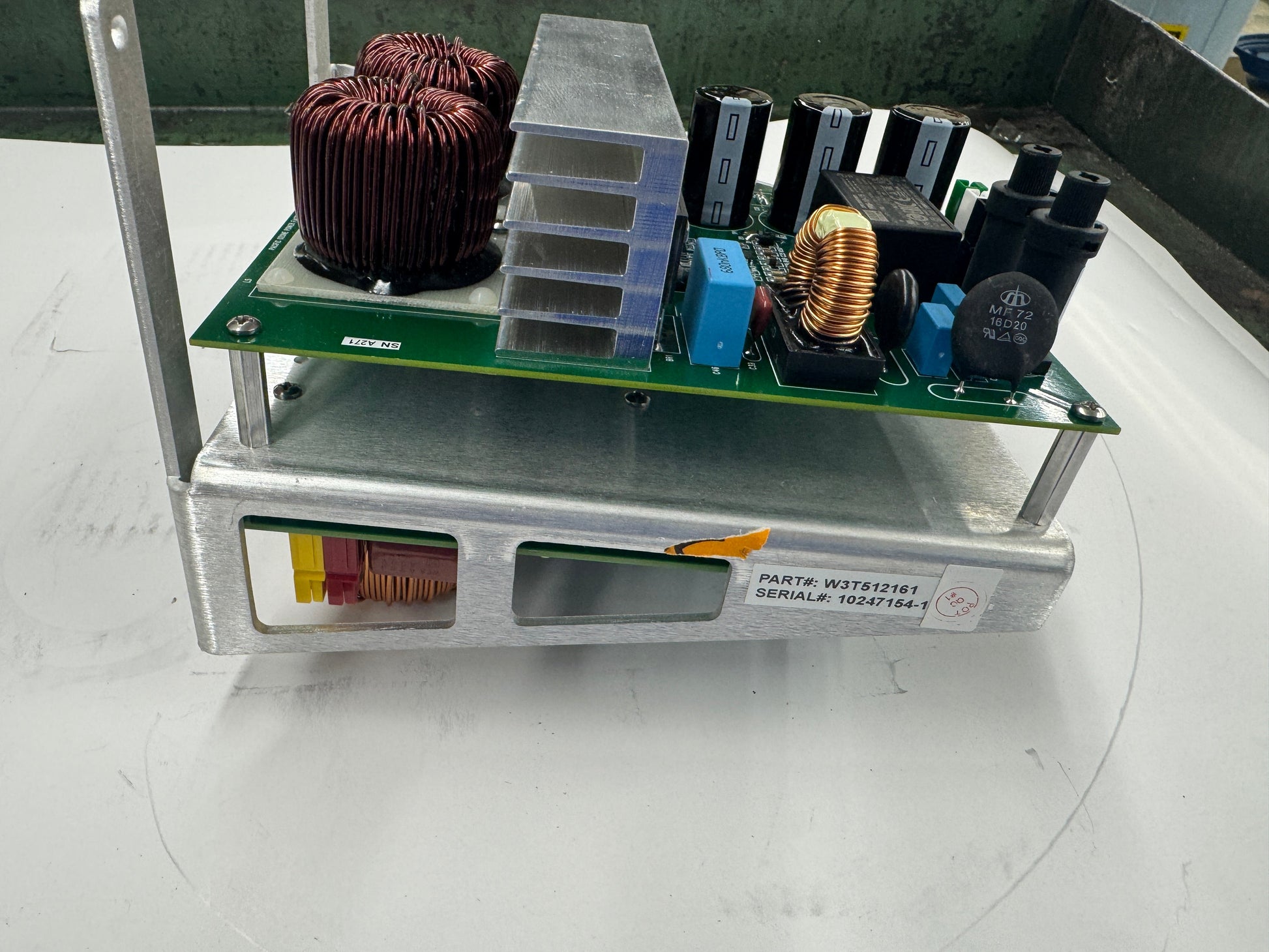

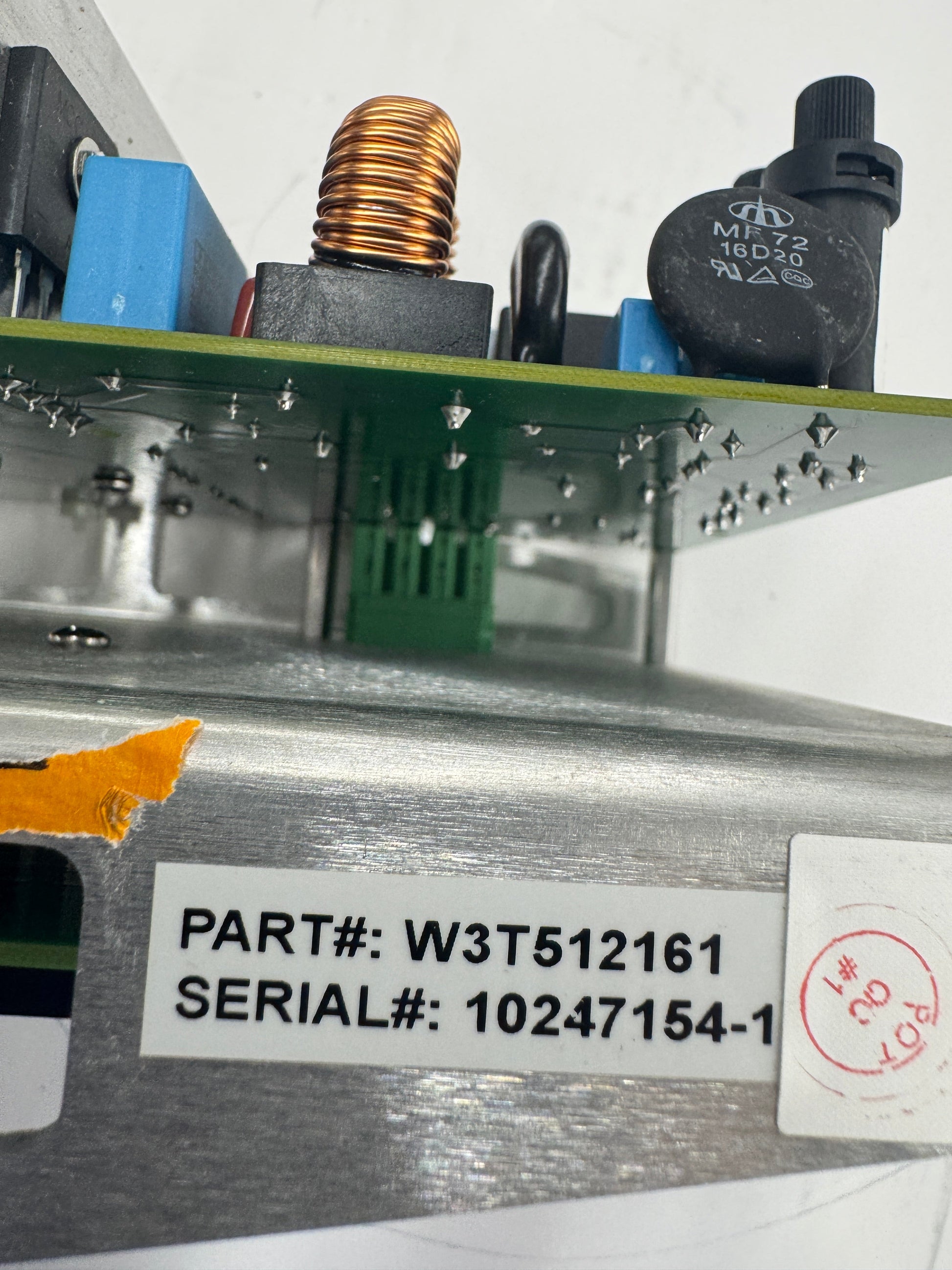

Pacific Ozone part number W3T512161 is an OEM power supply board assembly designed for use in Pacific Ozone industrial ozone generator systems. The assembly consists of two PCBs mounted within an aluminum extrusion chassis: the Lo Power Supply Board (PCB silkscreen: PACIFIC OZONE LO POWER SUPPLY BD. CVC10028 REV-1, serial SN A167) and a Power Factor Correction Board (PCB silkscreen: POWER CORRECTION BD. CYC10091 REV-0, serial SN A271). The serial number on the external chassis label reads 10247154-1.

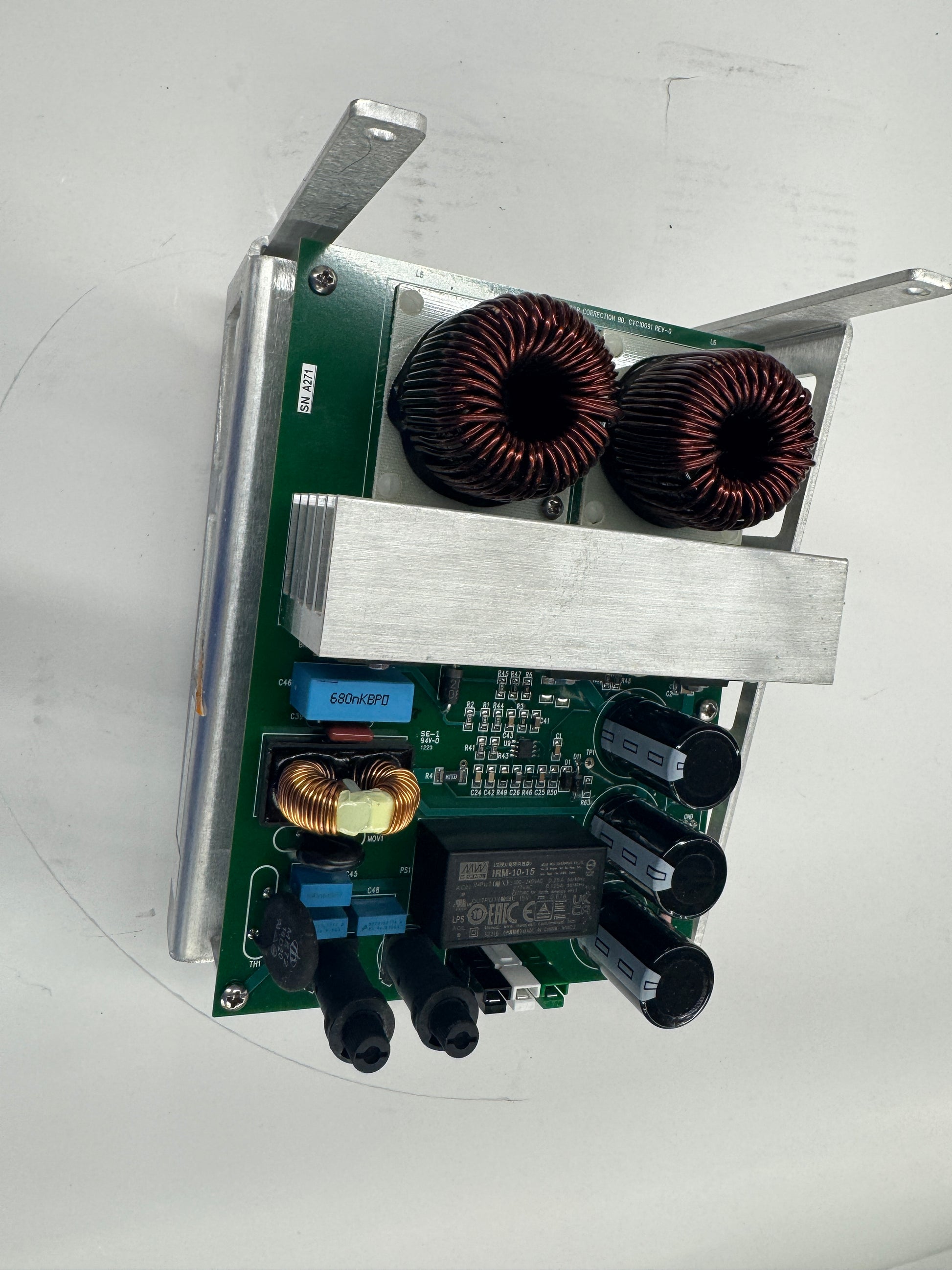

The assembly features substantial power conversion components including dual toroidal inductors, electrolytic capacitors, a finned aluminum heat sink, a MEAN WELL IRM-10-15 encapsulated power module, and a varistor marked MF72 16D20. Output terminal connections on the Lo Power Supply Board are labeled B, B+, +15, and GND. Board-level test point references include PS REF and MON designators. PCB compliance markings include 94V-0. Connector interfaces include a multi-pin ribbon connector and multi-pin plug-in terminal blocks.

Pacific Ozone, now part of Xylem, is a leading manufacturer of air-cooled corona discharge ozone generators for food, beverage, pharmaceutical, aquaculture, and water treatment applications. This board assembly is a direct OEM replacement spare for Pacific Ozone generator systems using this power supply architecture. All identifiers are sourced from visible nameplate labels and PCB silkscreen markings.

Stock # 0326-1147
