Payne Sparkman Metal Halide Crane Ballast CL400H-M-RR-JB

$250.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

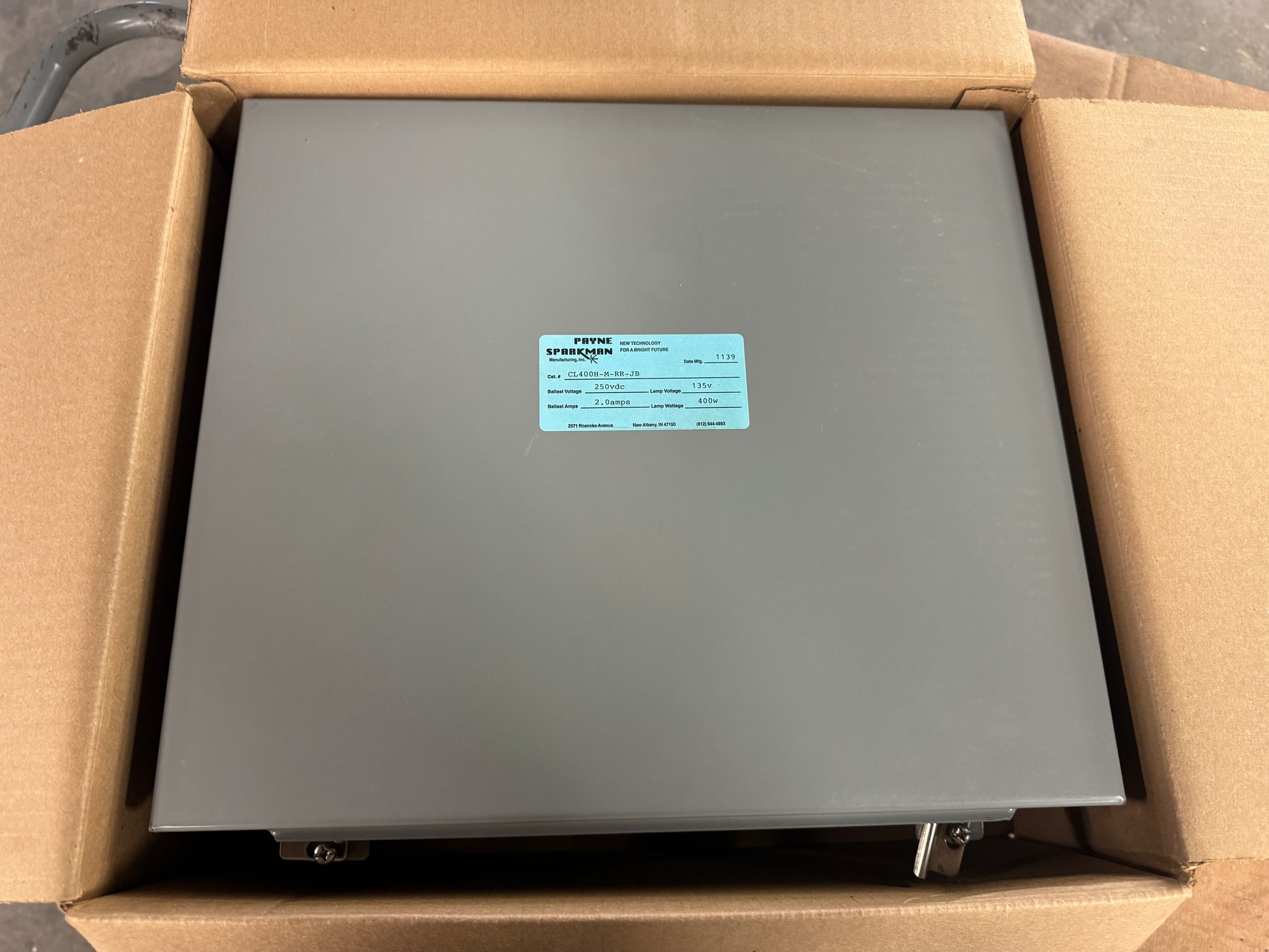

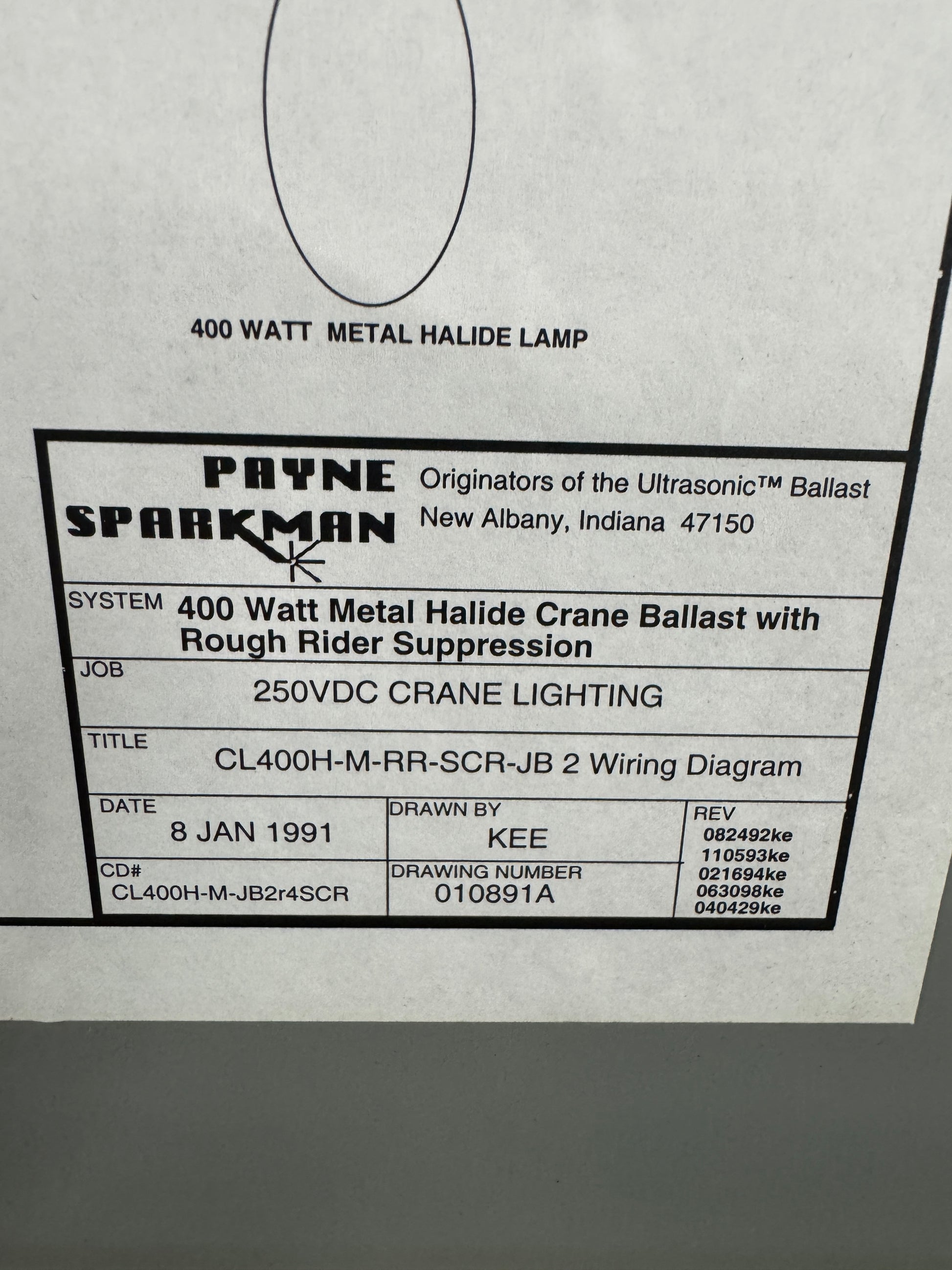

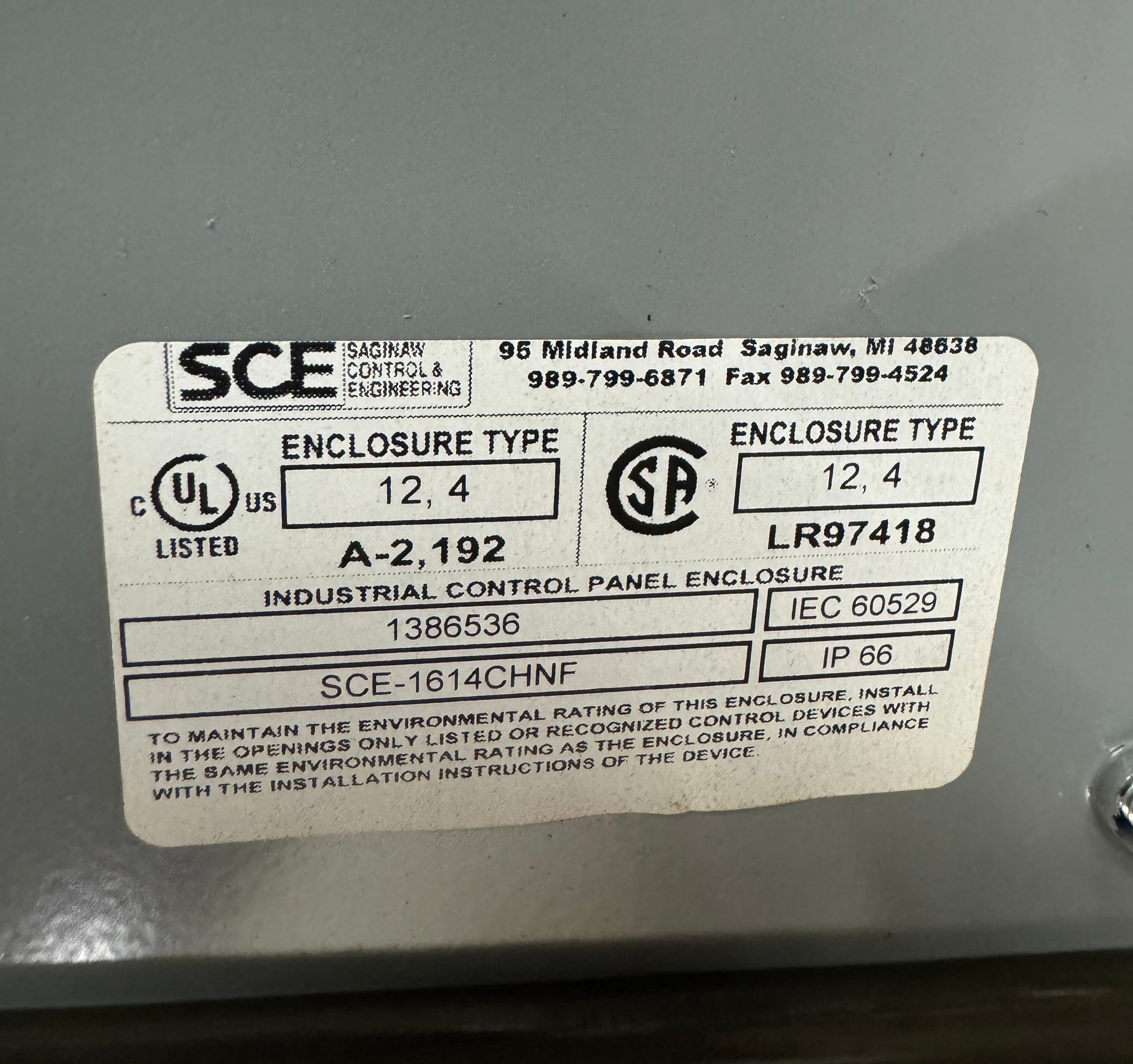

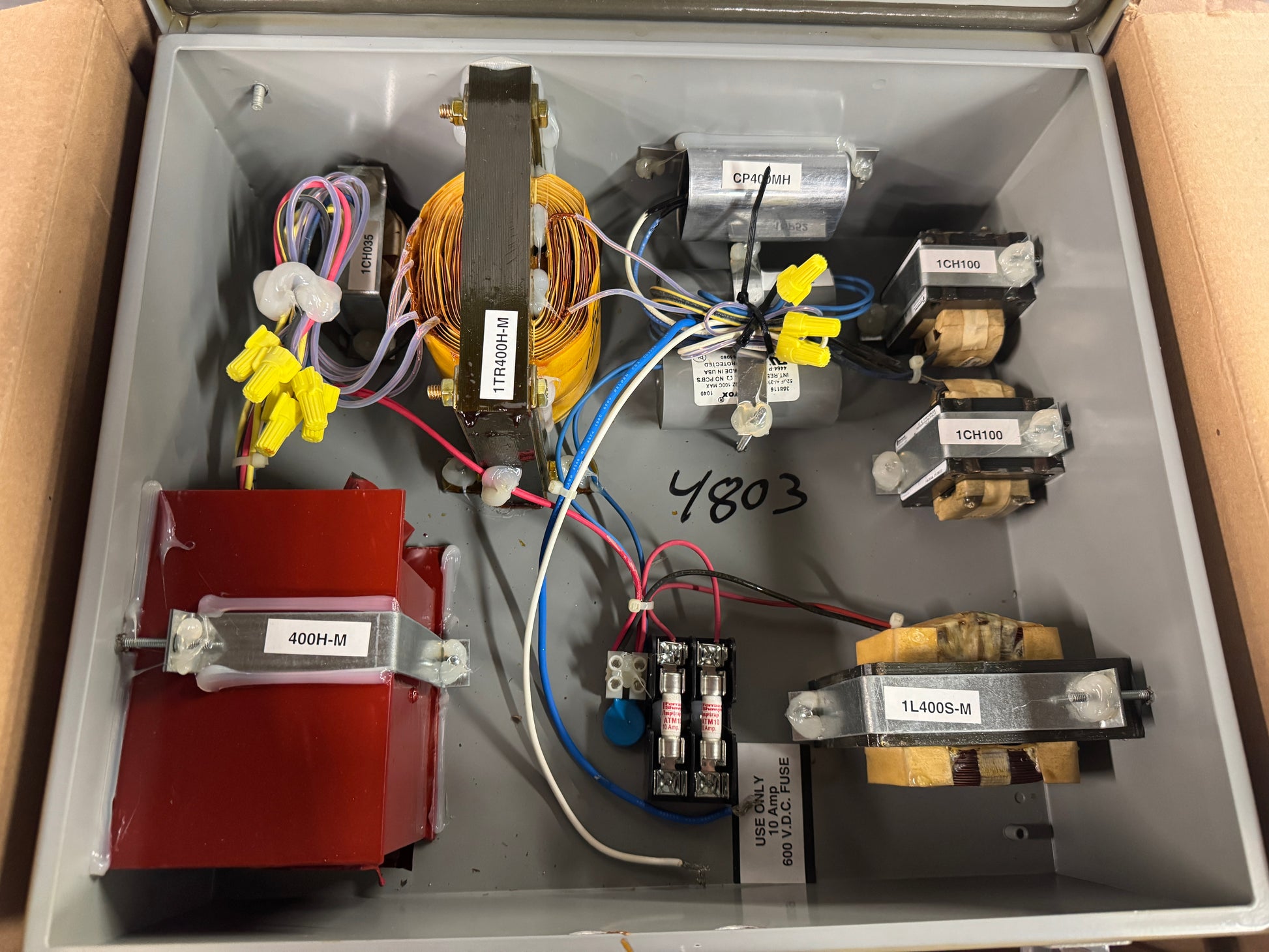

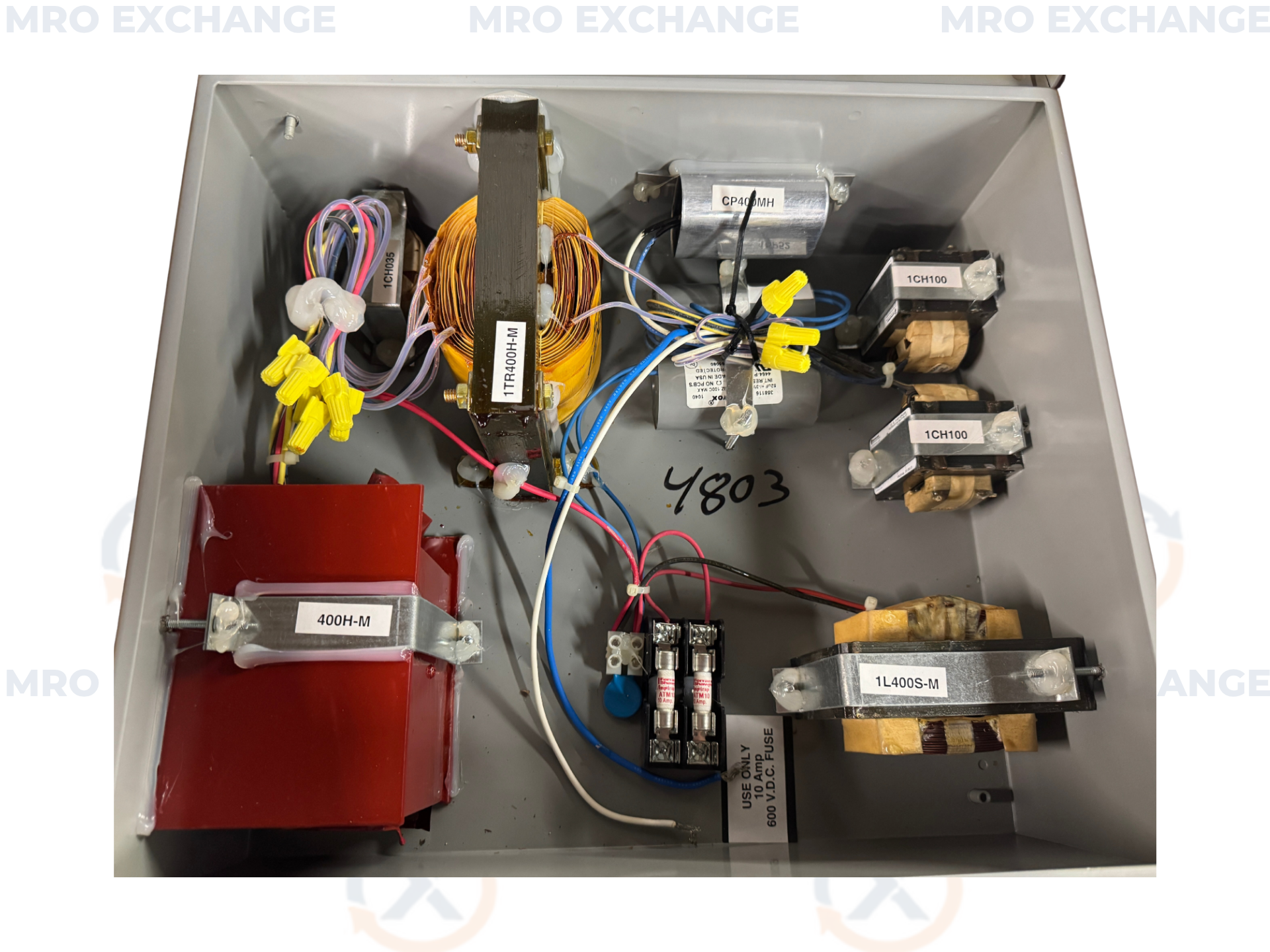

Used in overhead bridge crane and hot metal facility lighting systems, the Payne Sparkman CL400H-M-RR-JB is a 400 Watt metal halide crane ballast assembly with Rough Rider suppression, housed in a NEMA 12/4 rated industrial enclosure manufactured by Saginaw Control and Engineering (SCE), model SCE-1614CHNF, serial number 1386536. The enclosure carries UL listing (A-2,192) and CSA certification (LR97418), rated Enclosure Type 12 and 4, IP 66 per IEC 60529. Ballast input is 250VDC with 2.0 amp ballast current. Lamp voltage is rated at 135V and lamp wattage is 400W. Date of manufacture is noted as 1139 on the nameplate label. Internal components visible include a toroidal inductor assembly labeled 1TR400H-M, capacitor labeled CP400MH, power transformer labeled 400H-M, secondary inductor labeled 1L400S-M, two choke coils labeled 1CH100, a choke coil labeled 1CH035, and a fused terminal block rated for a 10 Amp 600V DC fuse (ATM type). A wiring diagram for the CL400H-M-RR-SCR-JB 2 configuration is included with the unit, drawing number 010891A. The assembly appears to be new in its original shipping carton. Payne Sparkman Manufacturing, located in New Albany, Indiana, specializes in DC and AC HID lamp ballasts and crane lighting systems for industrial environments including steel mills, paper mills, and heavy manufacturing facilities.

Stock # 0526-2439
