Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 6MD400P5
Stock #: Stock # 0626-01665
Product Specifications
- Manufacturer: Reliance Electric
- Catalog Number: 6MD400P5
- Model Number: 6MDDN-1P4101
- Product Type: AC Drive (VFD)
- Motor Rating: 0.4 kW / 0.5 HP
- Input: 3 Phase, 380 to 480V, 48 to 63Hz
- Input AC Voltage Range: 342 to 528V
- Input Amps: 1.8
- Output: 3 Phase, 0 to 240Hz
- Output AC Voltage Range: 0 to 460V
- Continuous Output Amps: 1.4
- 60 Sec Overload Amps: 2.1
- Short Circuit Current Rating: 100kA
- Enclosure Rating: IP20 / UL Open Type (IP30 / NEMA 1 / UL Type 1 with top cover and optional conduit box kit)
- Firmware (FRN): 4.02
- Series: A
- Serial Number: DN1P401W6450111
Product Description
Reliance Electric AC drive, catalog number 6MD400P5, model 6MDDN-1P4101, rated for a 0.4 kW / 0.5 HP motor. This variable frequency drive accepts a 3 phase input of 380 to 480V at 48 to 63Hz, with an input AC voltage range of 342 to 528V and an input current of 1.8 amps. Output is 3 phase, 0 to 240Hz, with an AC voltage range of 0 to 460V, a continuous output current of 1.4 amps, and a 60 second overload rating of 2.1 amps.

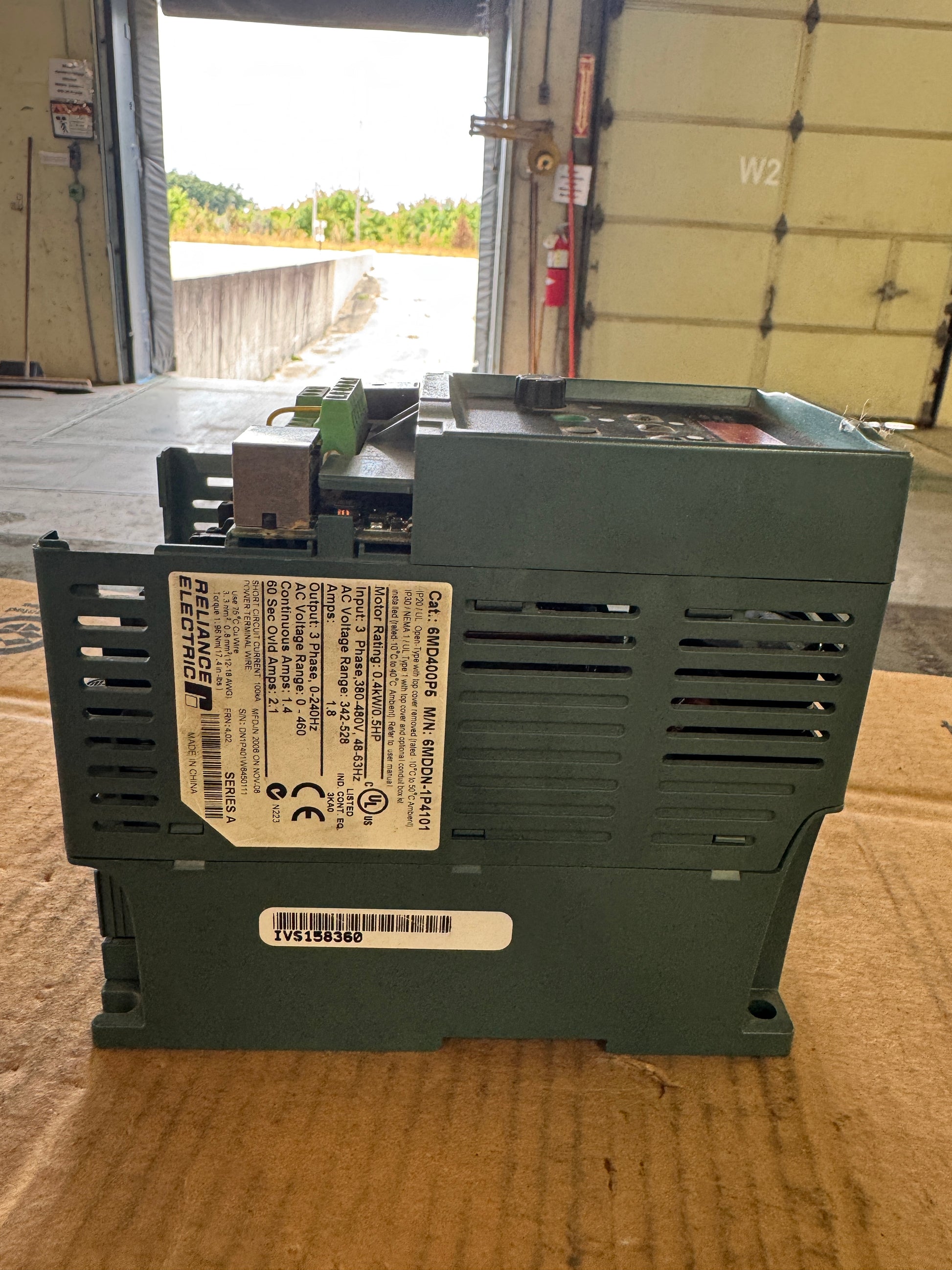

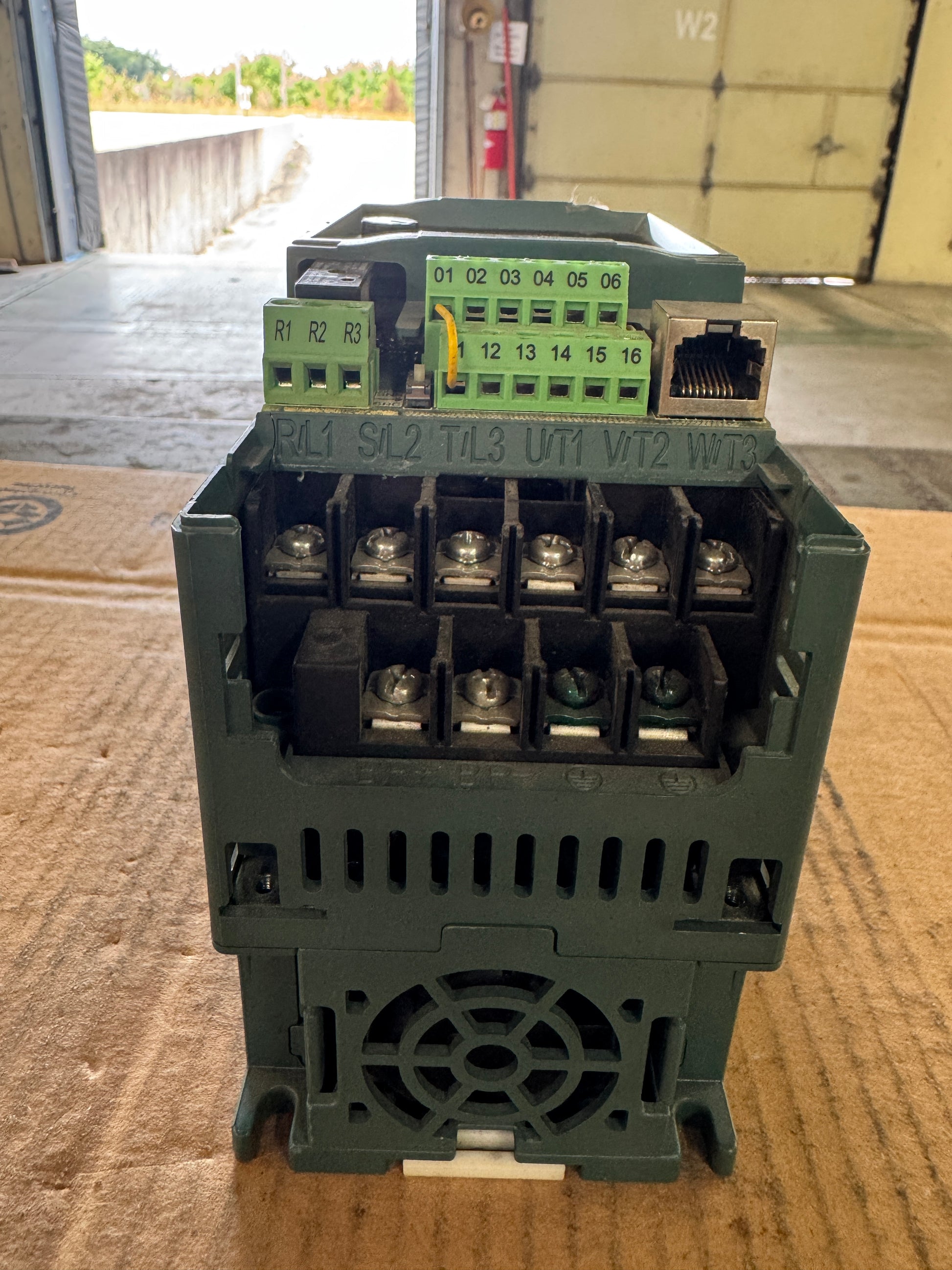

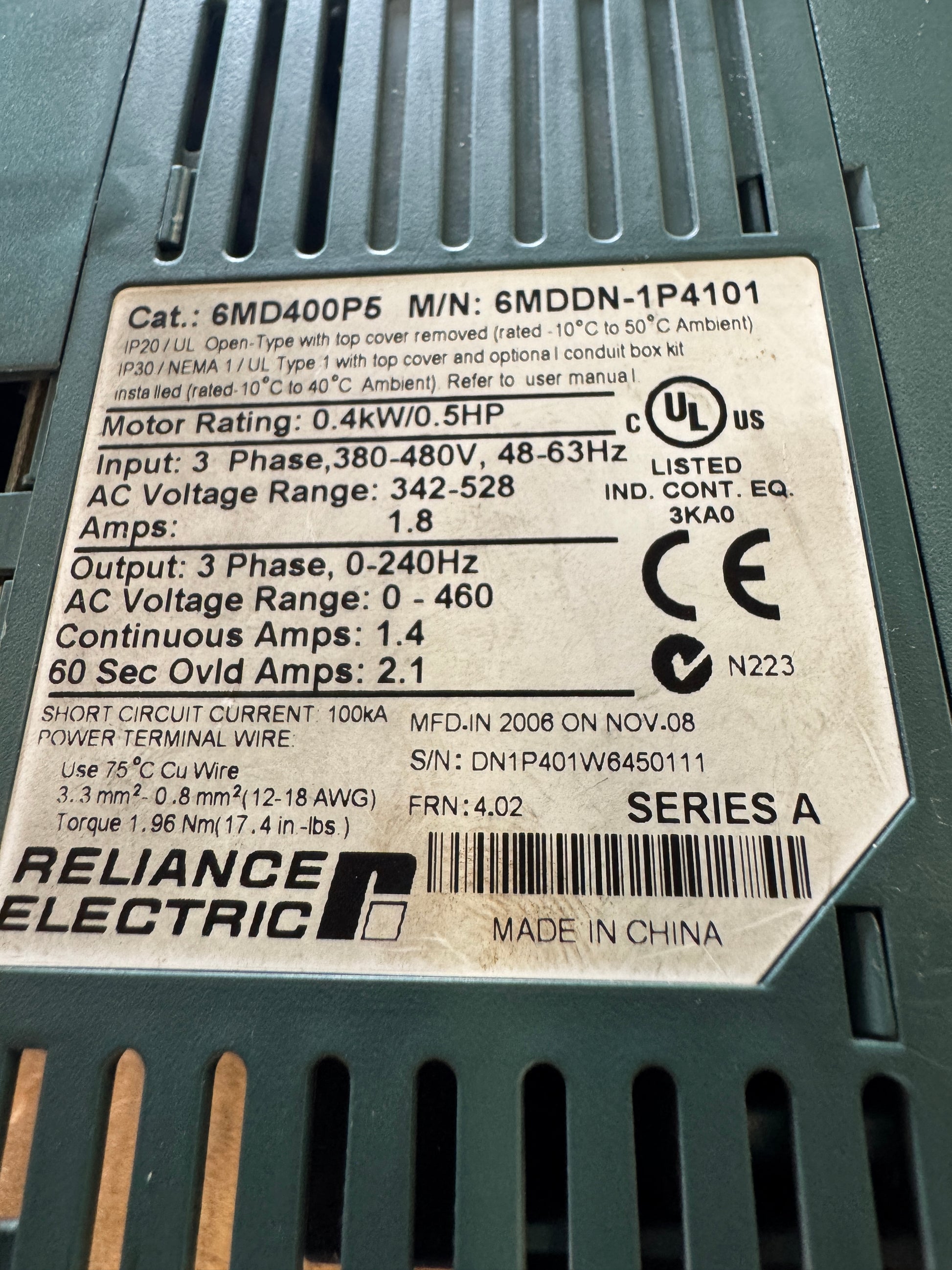

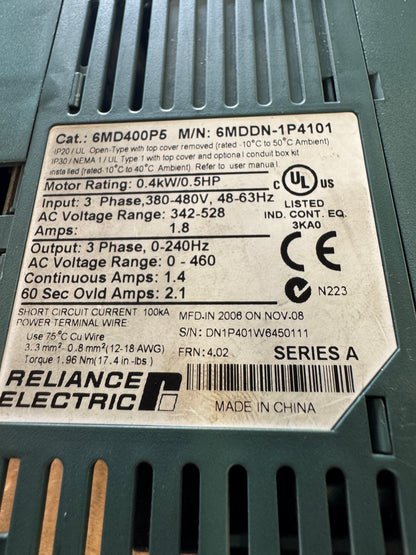

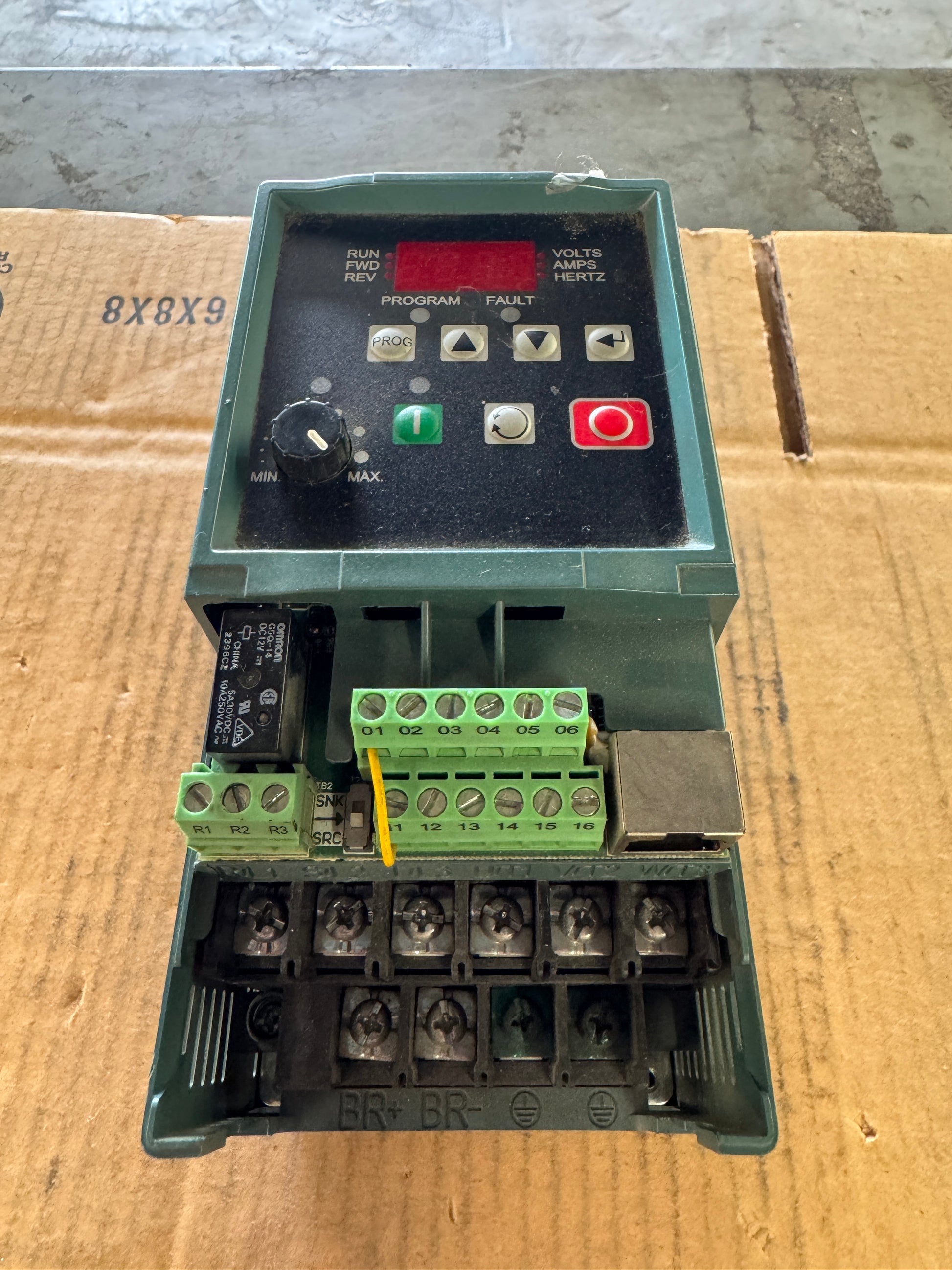

The unit carries a 100kA short circuit current rating and is rated IP20 / UL Open Type, or IP30 / NEMA 1 / UL Type 1 when the top cover and optional conduit box kit are installed. It is a Series A unit with firmware FRN 4.02 and serial number DN1P401W6450111. The drive includes an integrated keypad with potentiometer, RUN/FWD/REV and VOLTS/AMPS/HERTZ indicators, terminal blocks marked R/L1, S/L2, T/L3, U/T1, V/T2, W/T3, plus BR+ and BR- braking terminals, control terminals 01 through 06 and 11 through 16, R1/R2/R3 relay terminals, an RJ45 port, and an SNK/SRC selector. Buyers matching an exact Reliance Electric catalog number for replacement, spare inventory, or maintenance sourcing can use the visible nameplate data and model number to confirm fit against existing equipment.
