Rotary Index Table 60 in x 96 in T-Slotted Work Surface, 019-45623-00

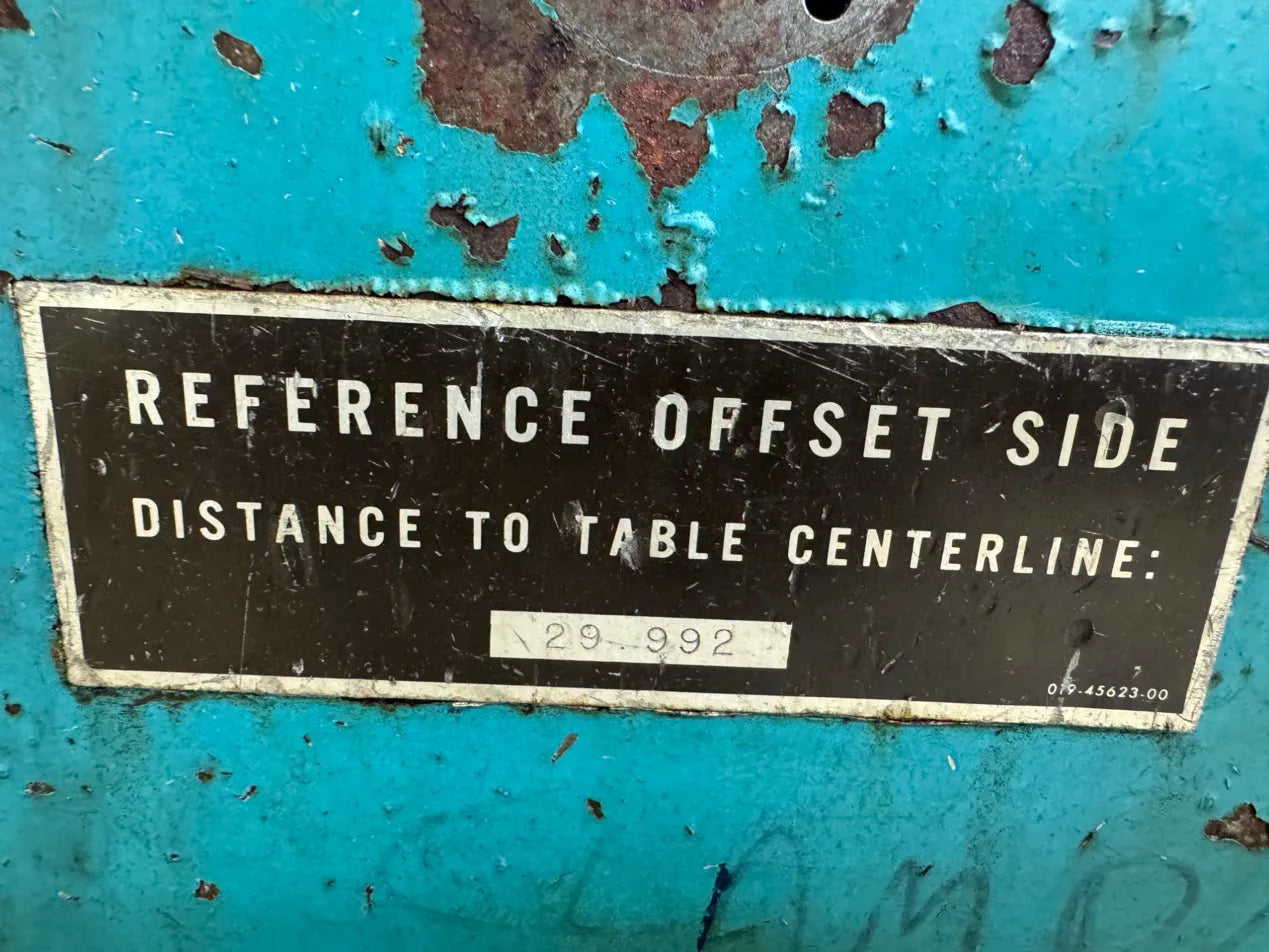

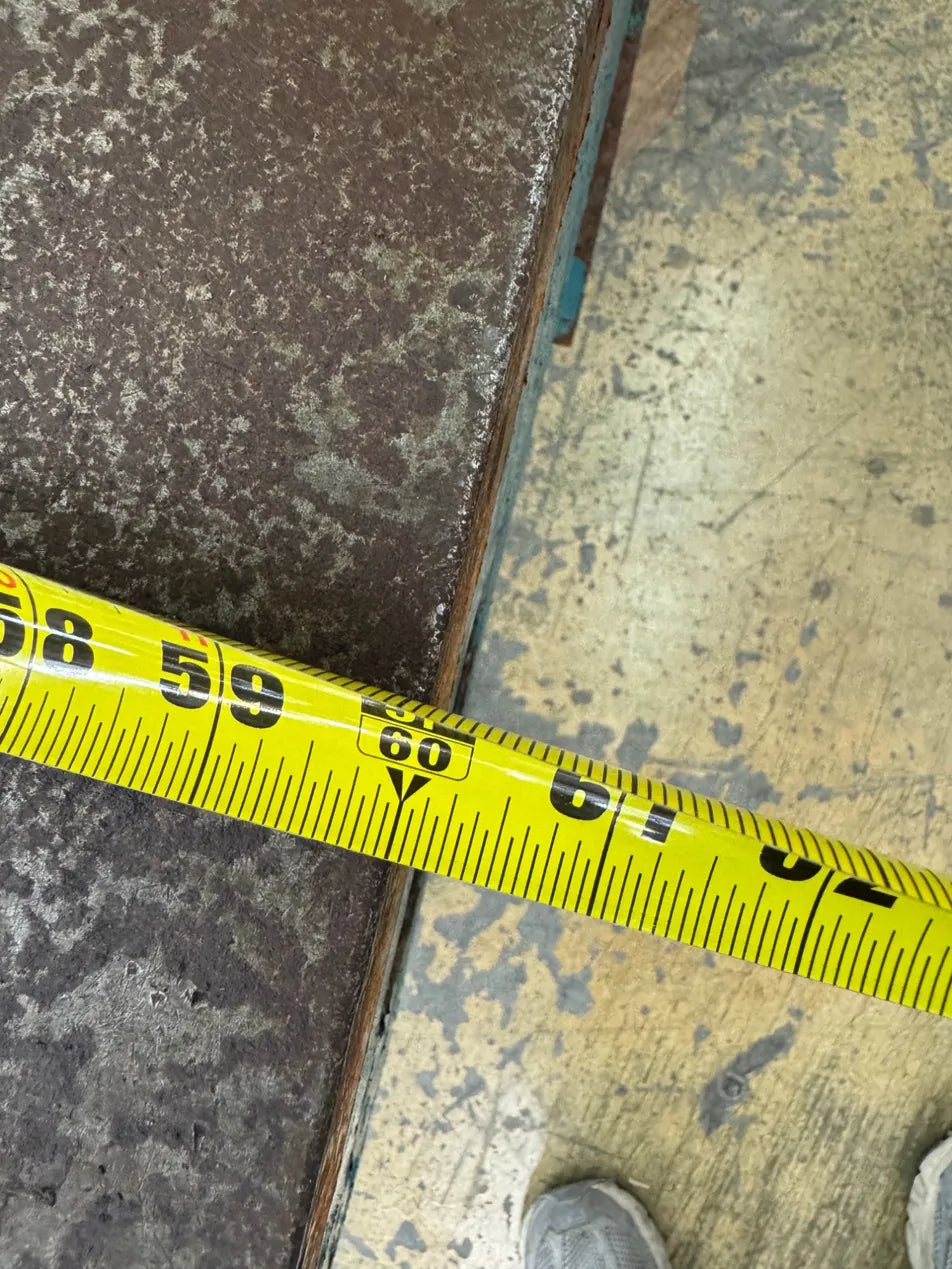

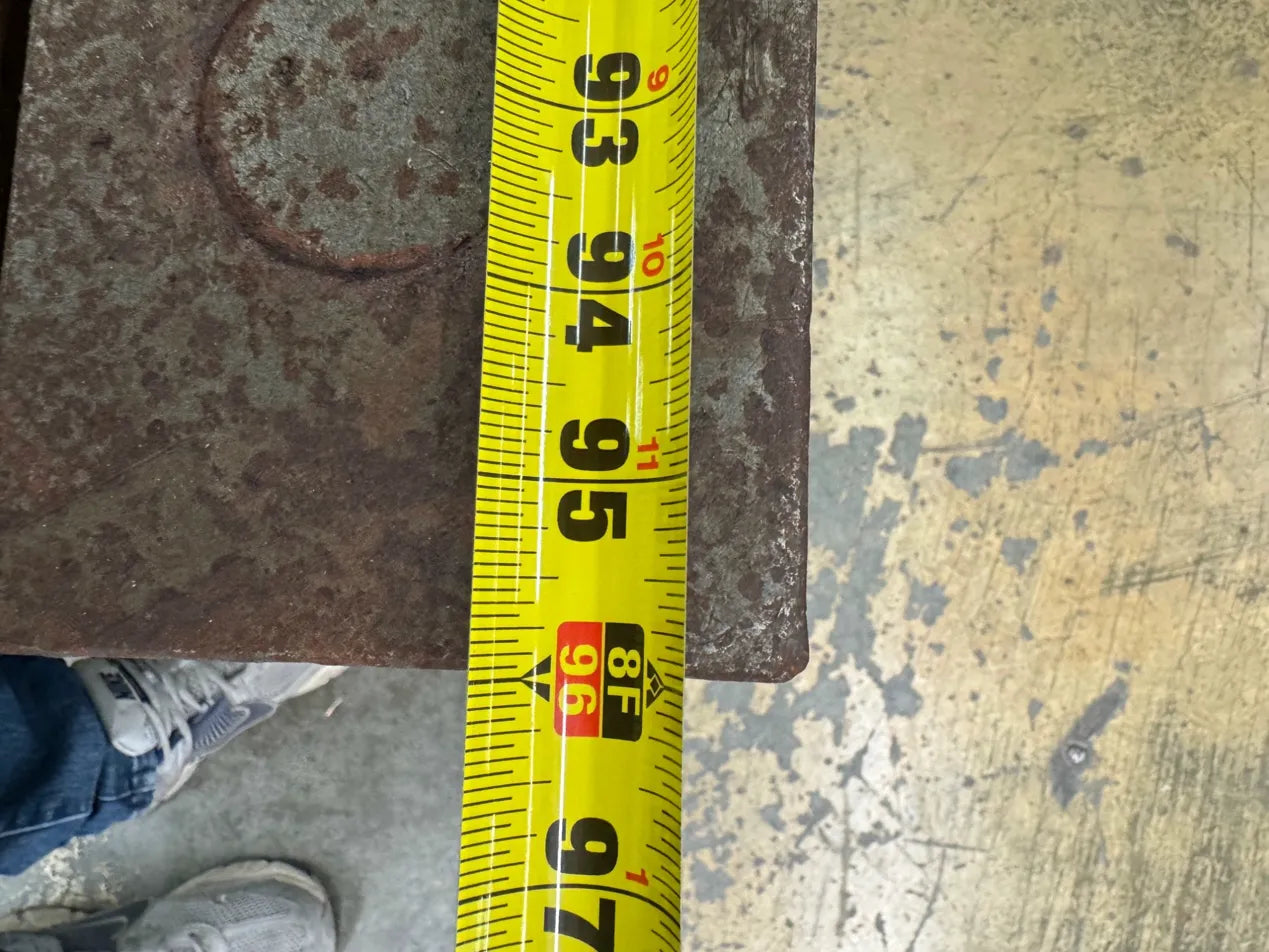

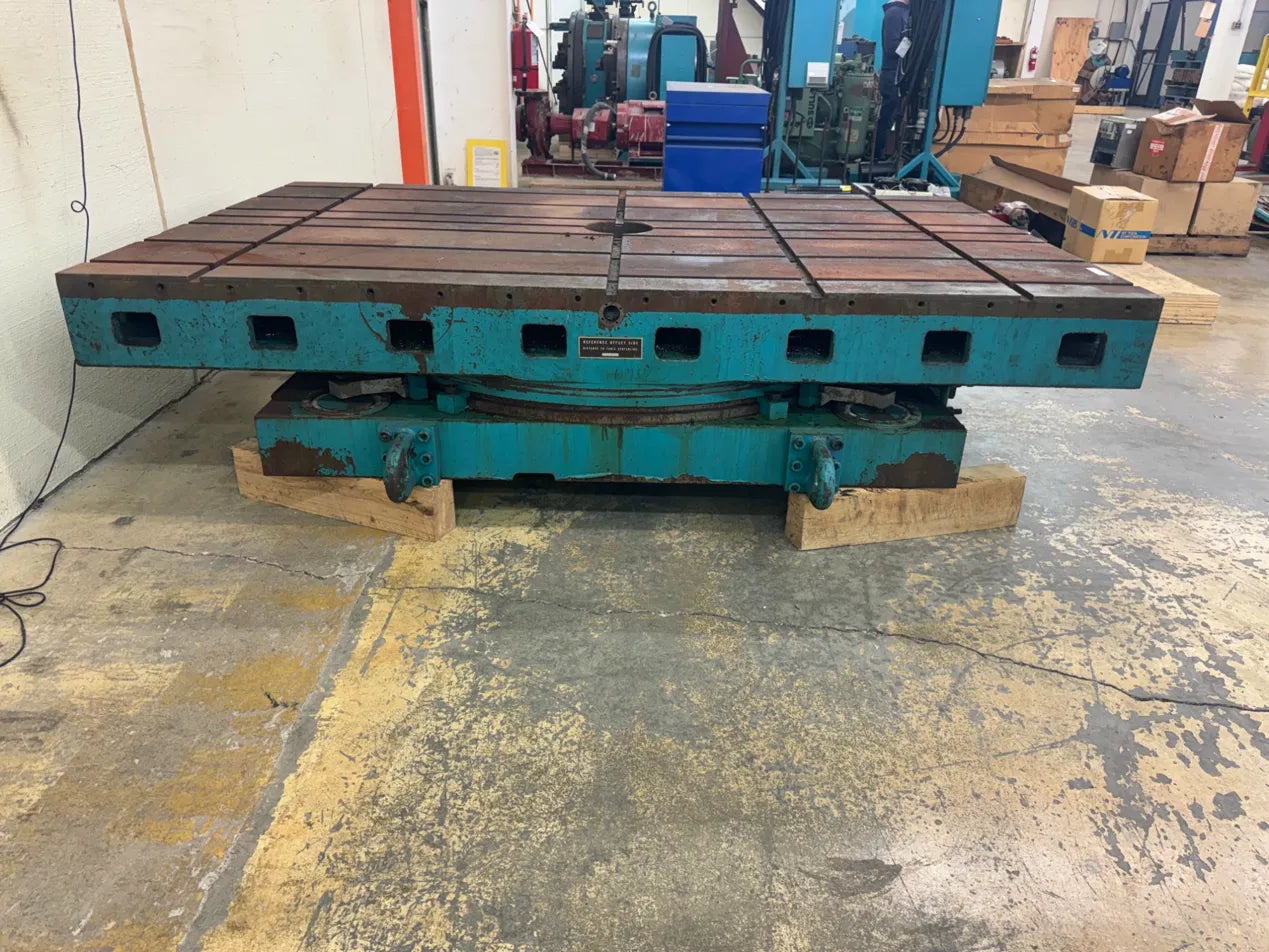

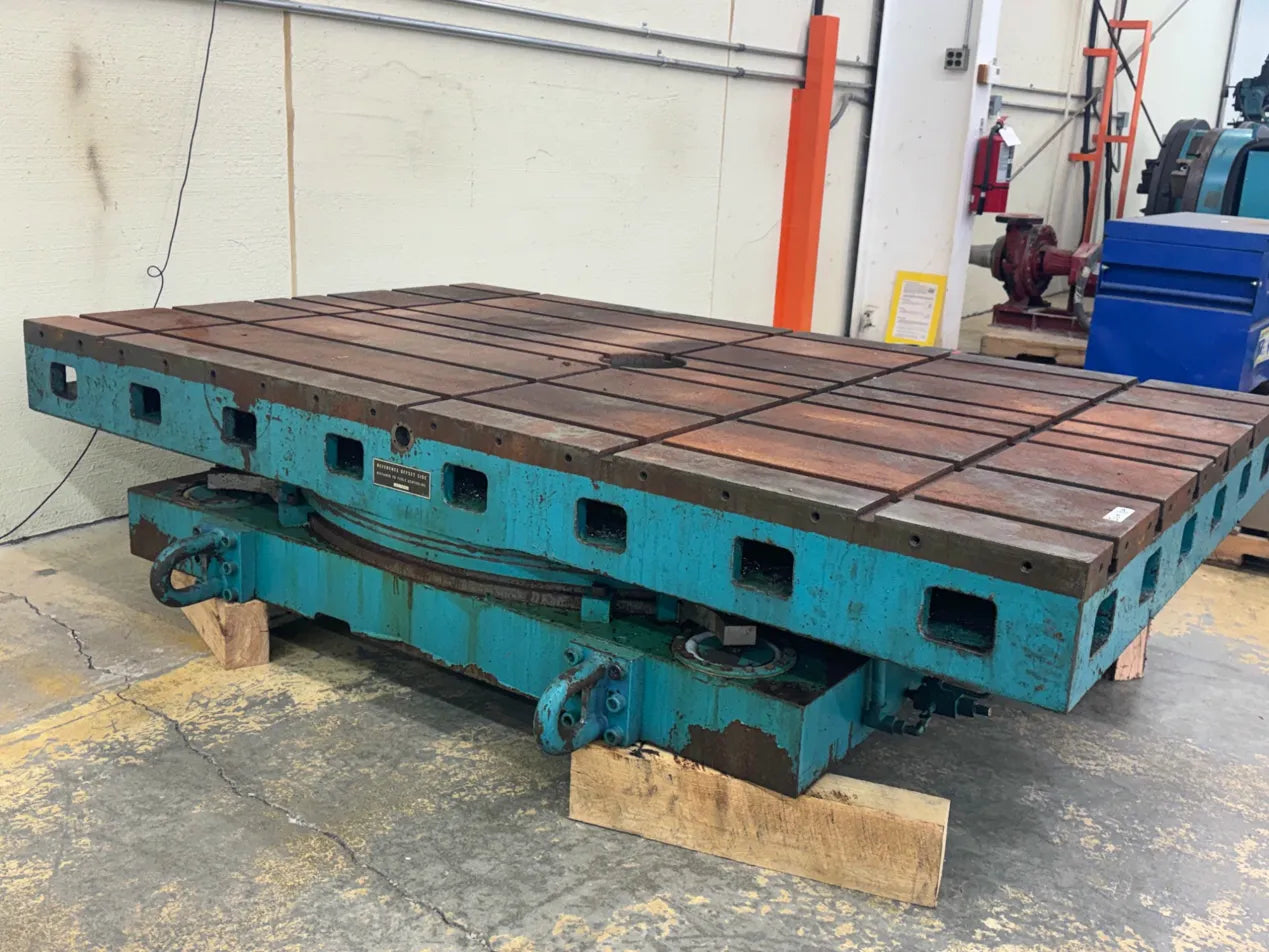

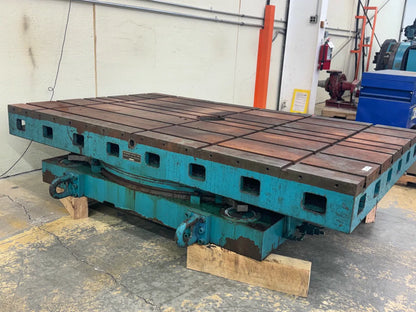

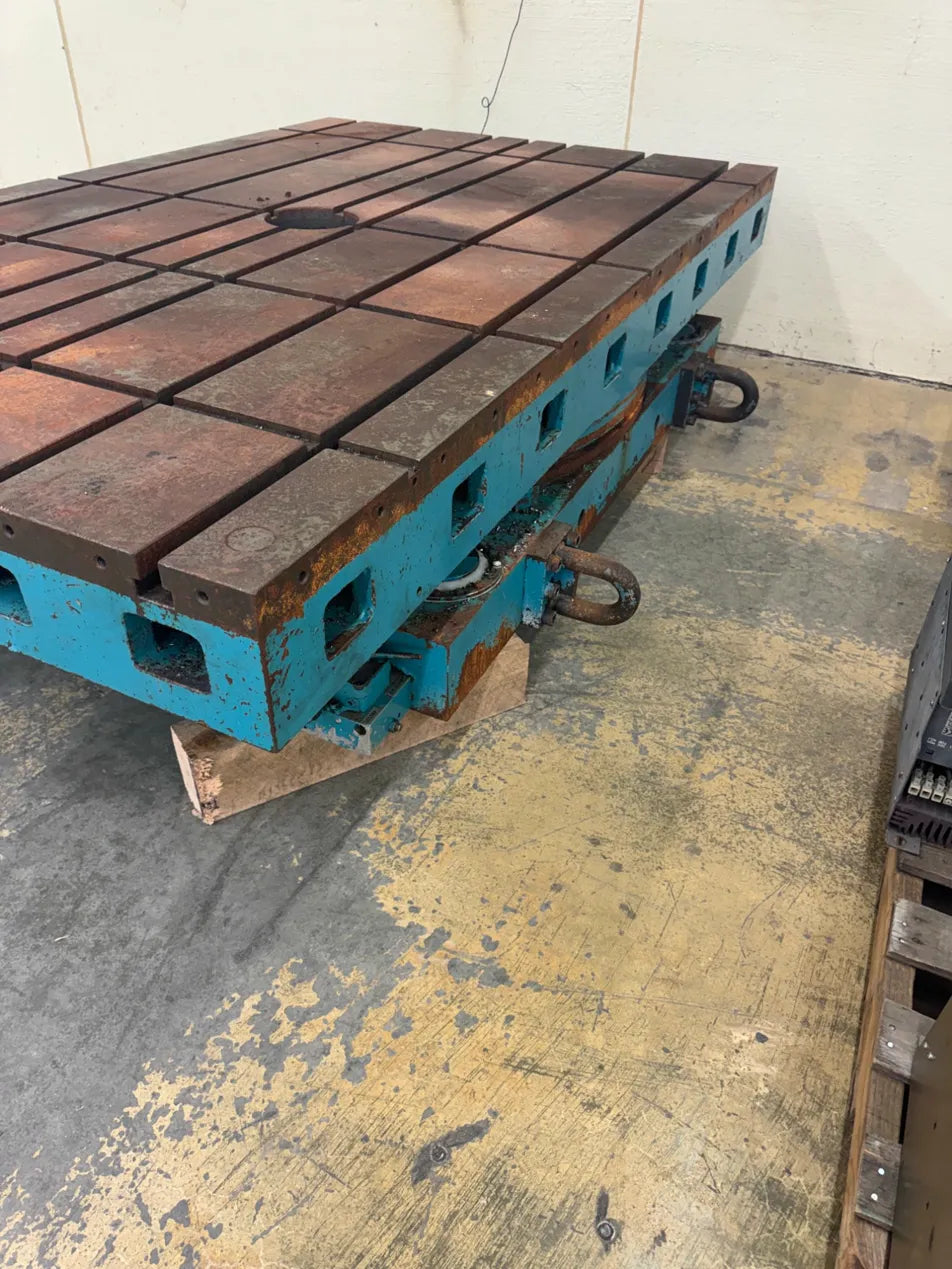

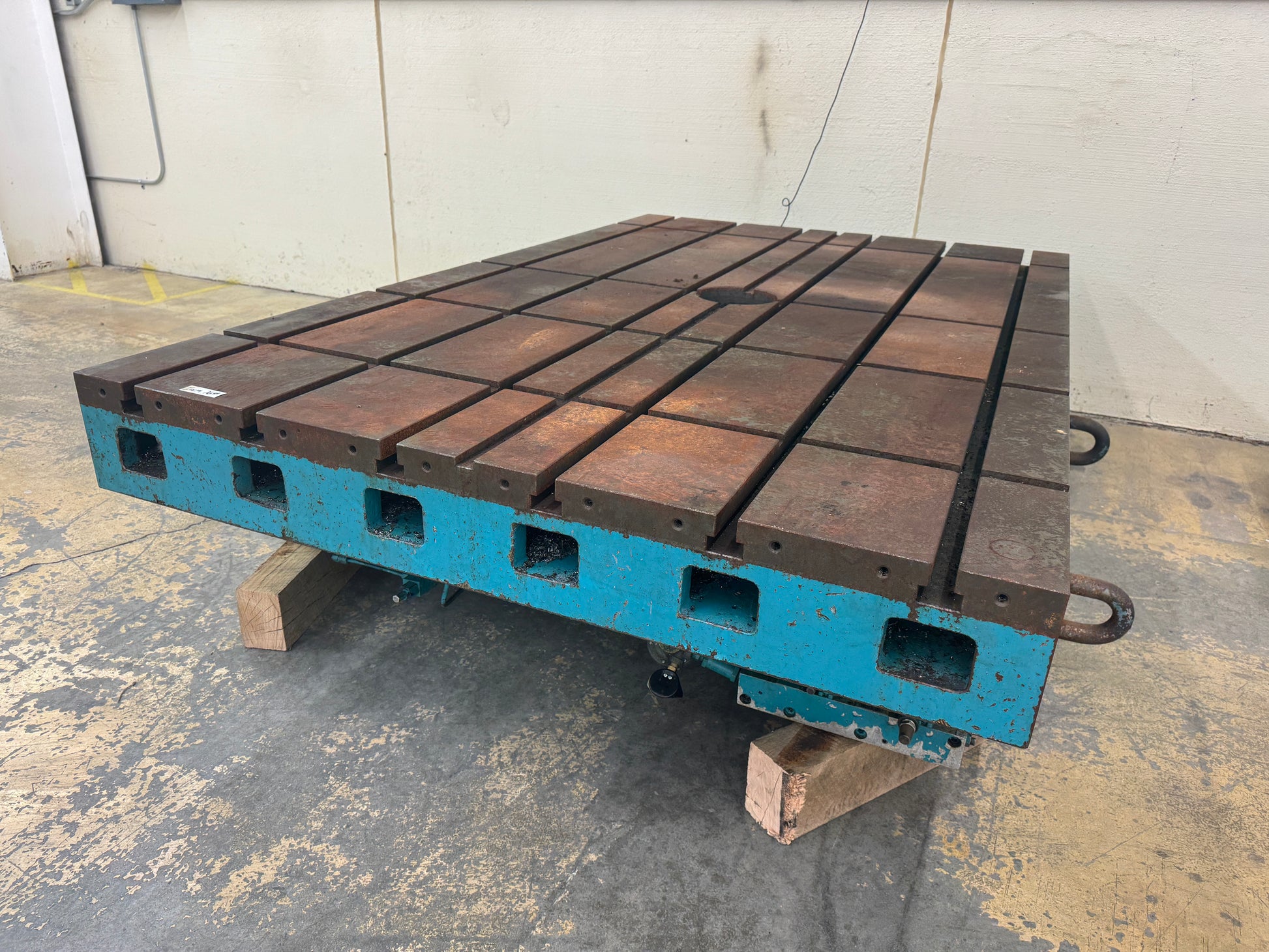

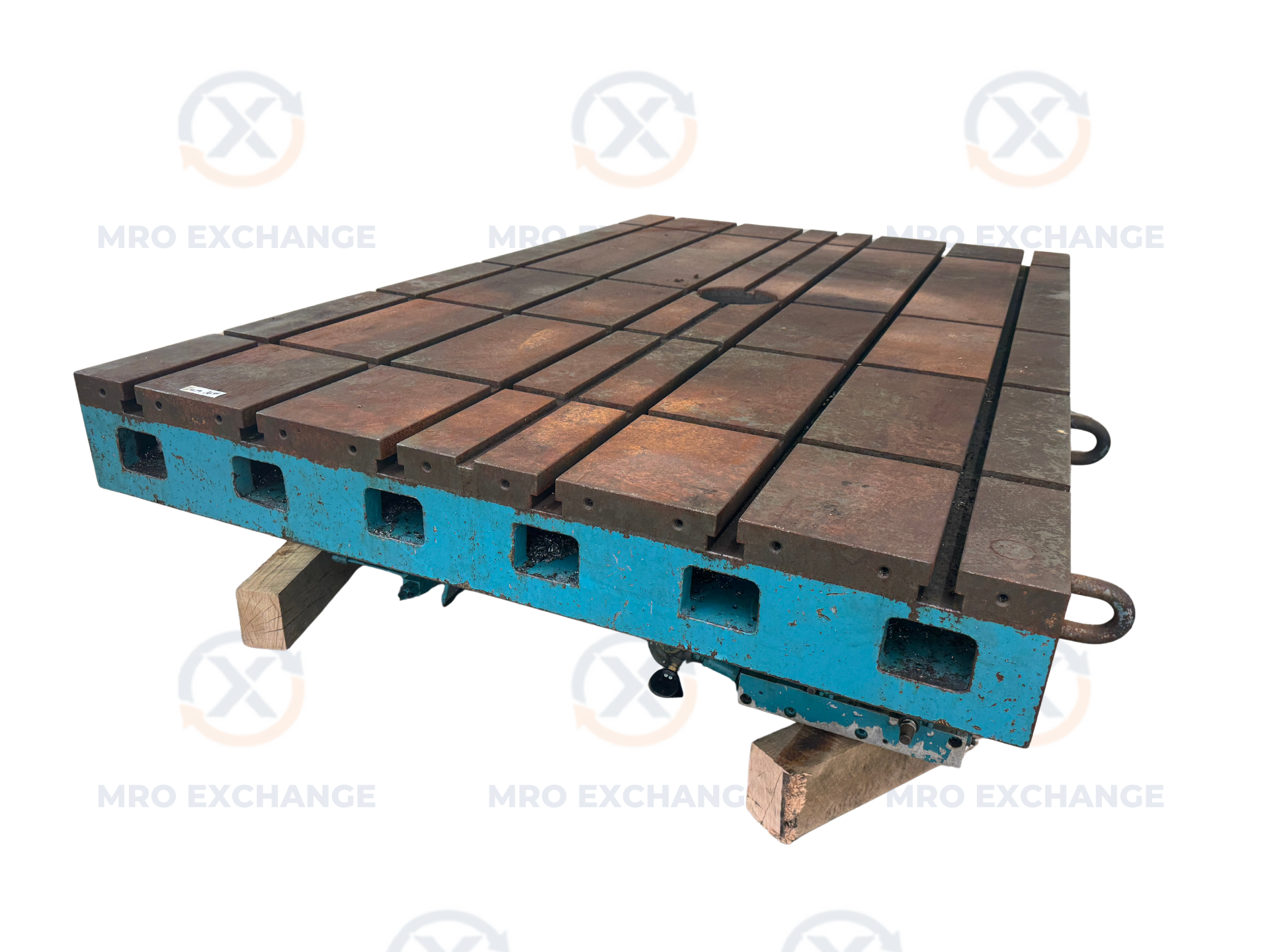

Used on horizontal boring mills, large machining centers, and heavy-duty manufacturing cells, a large-format T-slotted rotary index table of this type provides a stable, repositionable work surface for oversized or high-mass workpieces. The table measures approximately 60 in. x 96 in. across the T-slotted platen, confirmed by tape measure in the provided photos. The air-lift rotation mechanism allows the platen to be repositioned manually with reduced friction, and four-position 90-degree shot pin indexing provides repeatable positioning at each quadrant. The reference offset plate visible on the side apron reads "Distance to Table Centerline: 29.992," with a reference plate number of 019-45623-00. The cast iron platen features multiple longitudinal T-slots providing numerous fixturing locations across the full working surface. Square lightening pockets are cast into the apron perimeter. A large central rotation bearing is visible beneath the platen, supported by a heavy base casting painted blue. Lifting eyes are present on the base casting for rigging. This size class of rotary index table is typically associated with large-bore horizontal milling and boring operations where full 360-degree manual table rotation with positive-stop indexing is required. Manufacturer identification is pending verification based on construction details and reference plate format consistent with known heavy-duty index table builders.

Stock # 0226-764
