Saftronics VFD CIMR-PCU23P7 - 5 HP Variable RPM
Saftronics VFD CIMR-PCU23P7 - 5 HP Variable RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: CIMR-PCU23P7
Stock #: 0626-01478
Product Specifications
- Manufacturer: Saftronics
- MPN / Model: CIMR-PCU23P7
- Spec Code: 23P7N1
- Product Type: VFD / Inverter
- Series: PC3 Inverter
- Input: 3PH 200 to 230VAC, 50/60Hz, 19.3A
- Output: 3PH 0 to 230VAC MAX., 0 to 400Hz, 6.7kVA, 5HP, 17.5A
- Digital Operator: JVOP-114
- Serial Number (Nameplate): EPC21085-213
- Serial Number (Unit Label): 174258
- PRG: 8002
- File No: E131457
- Mass: 3.3 kg
- Certifications: CSA (LR106357), UL
Product Description

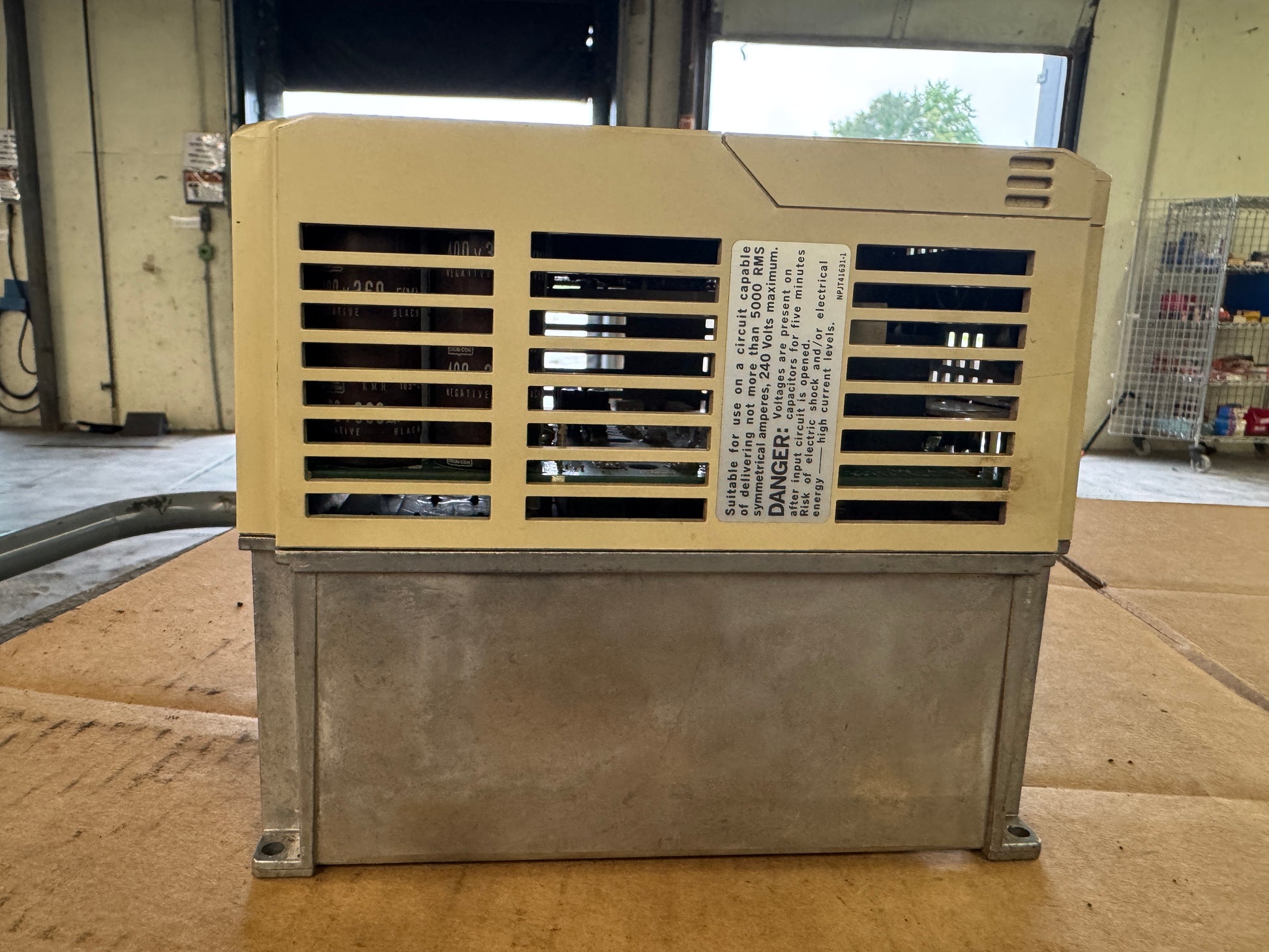

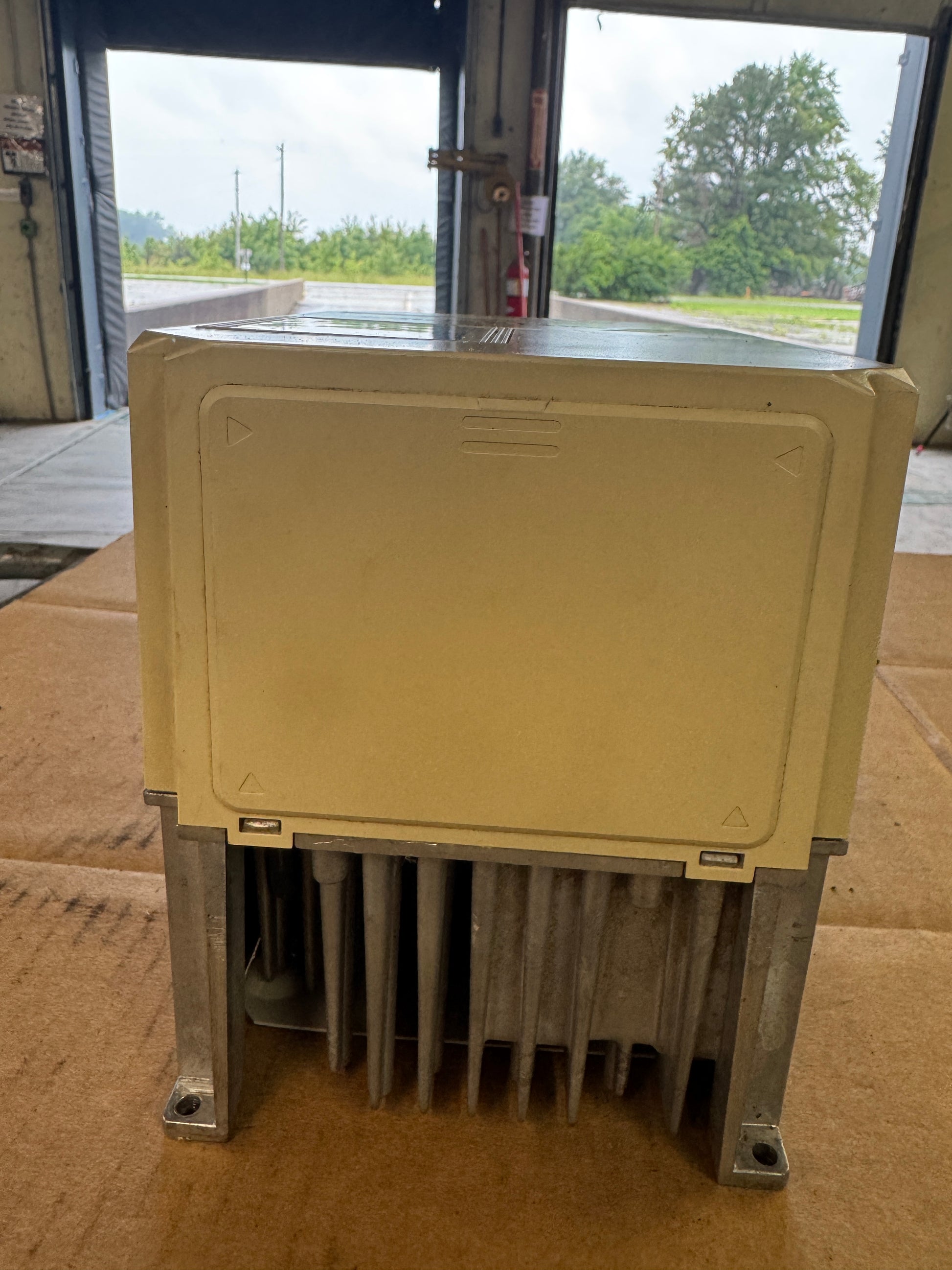

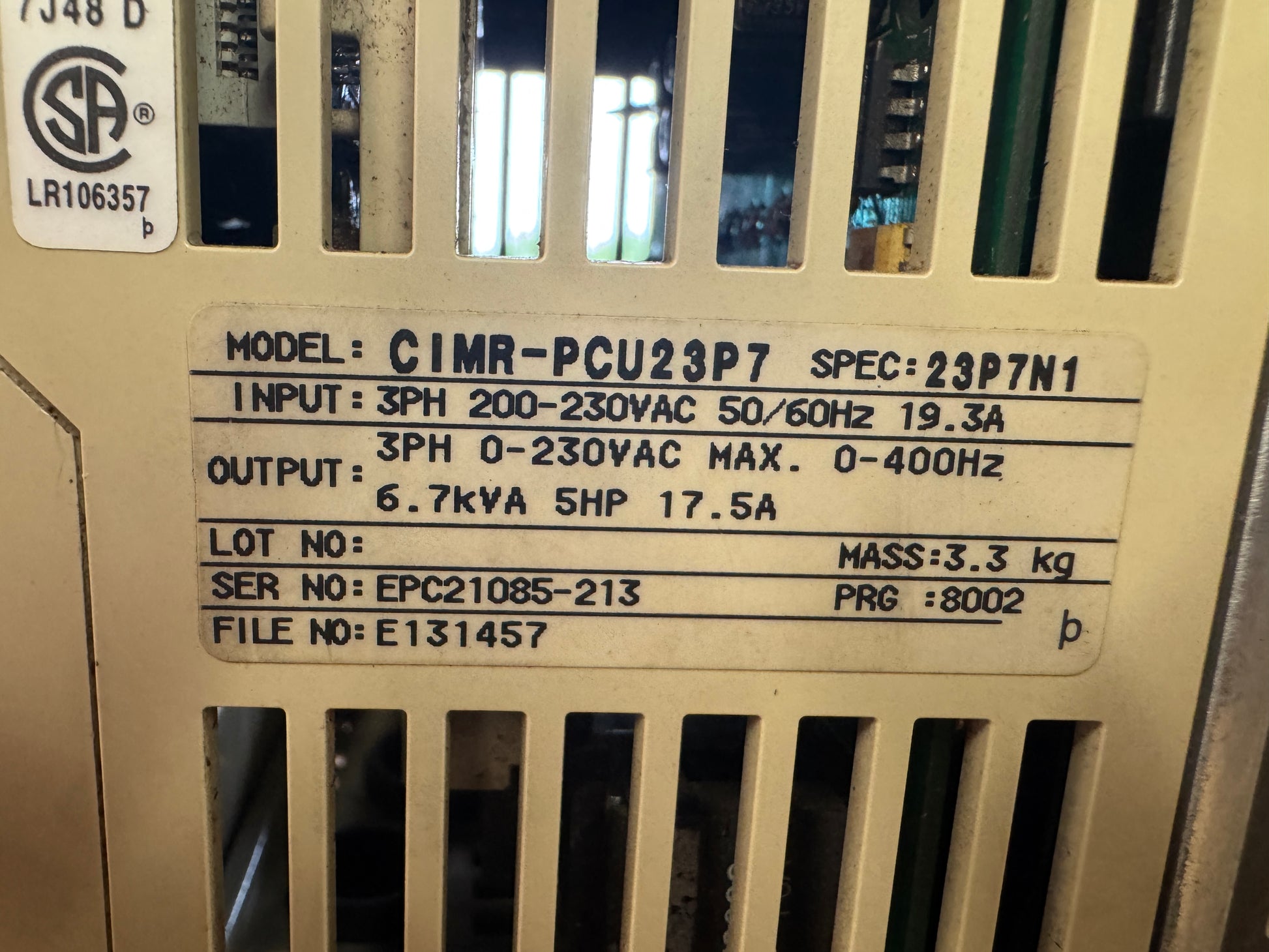

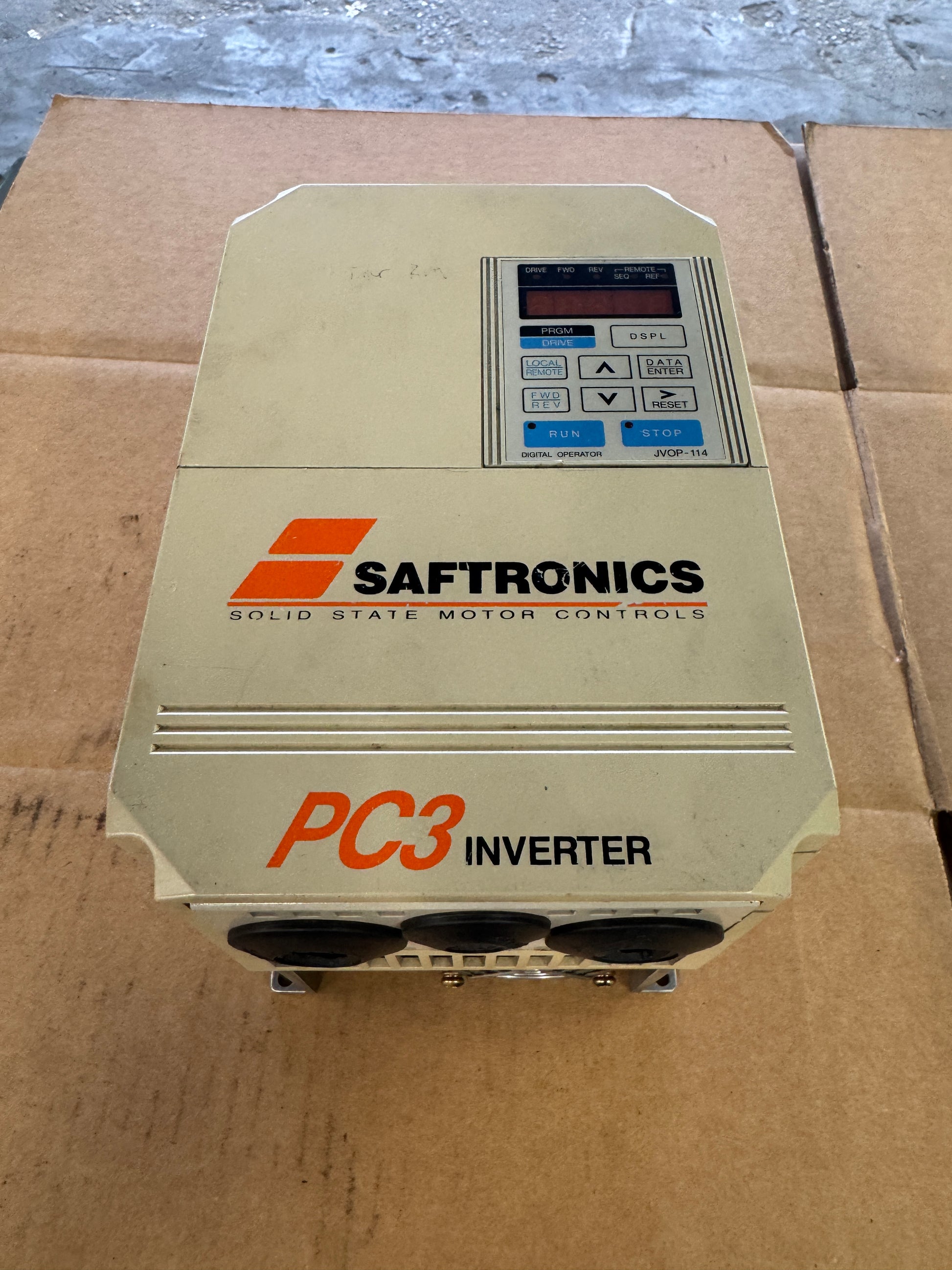

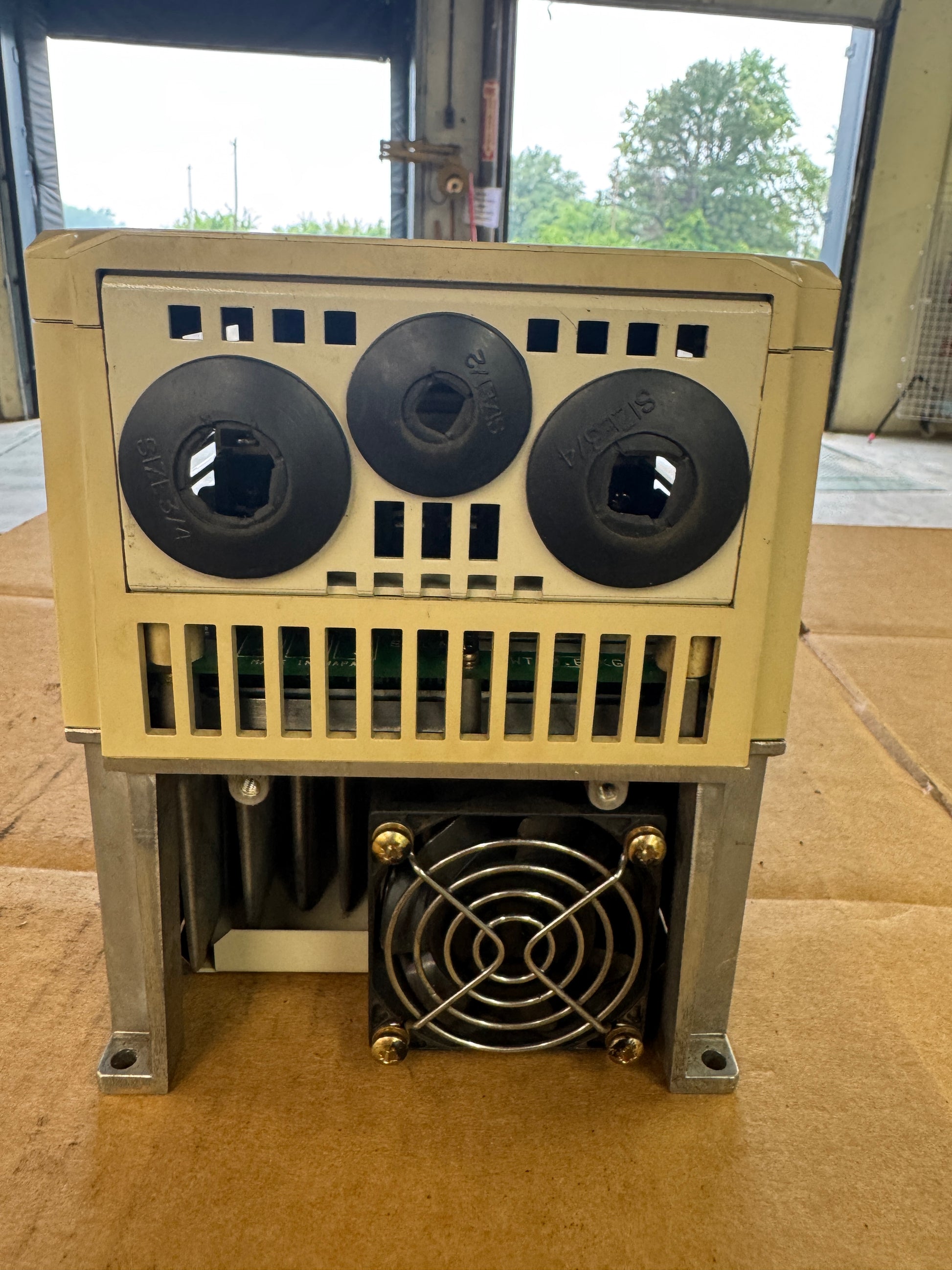

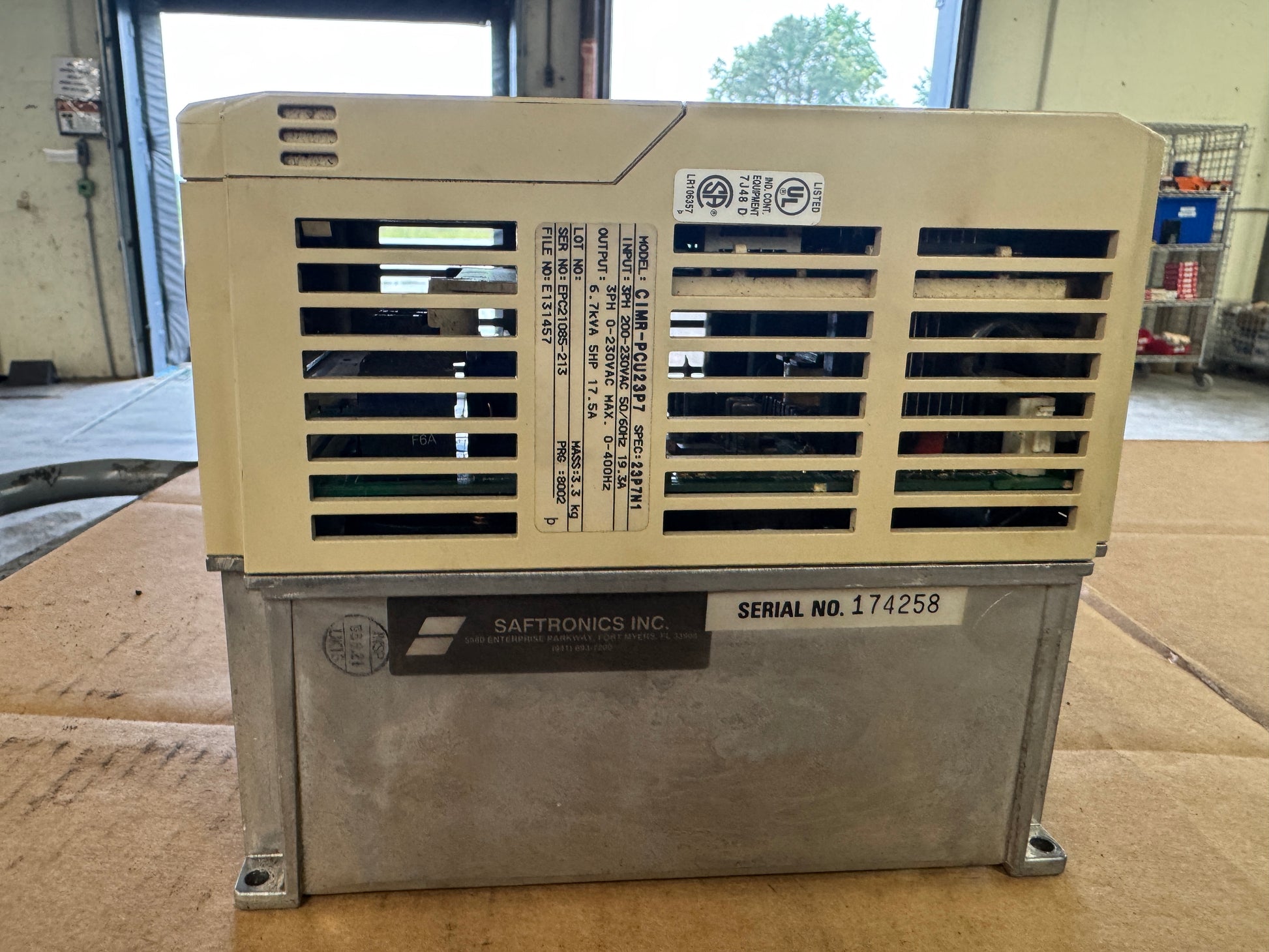

Saftronics CIMR-PCU23P7 is a 5HP variable frequency drive from the PC3 Inverter series, listed as surplus and untested. The nameplate identifies the model as CIMR-PCU23P7 with spec code 23P7N1. Input is rated for 3PH 200 to 230VAC at 50/60Hz and 19.3A. Output is rated 3PH 0 to 230VAC, 0 to 400Hz, 6.7kVA, and 17.5A. The unit includes a JVOP-114 digital operator panel mounted to the front face. Nameplate serial number is EPC21085-213 with a separate unit label serial number of 174258. PRG code is 8002 and File No is E131457. Certifications shown include CSA (LR106357) and UL. Buyers matching this Saftronics PC3 inverter should confirm the exact model number CIMR-PCU23P7 and spec code 23P7N1 against their requirements.
