Samchully 3-Jaw Hydraulic Power Chuck HS-06 | 6.5 In. Diameter, 3-Jaw

$719.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: HS-06
Stock #: 0426-01225

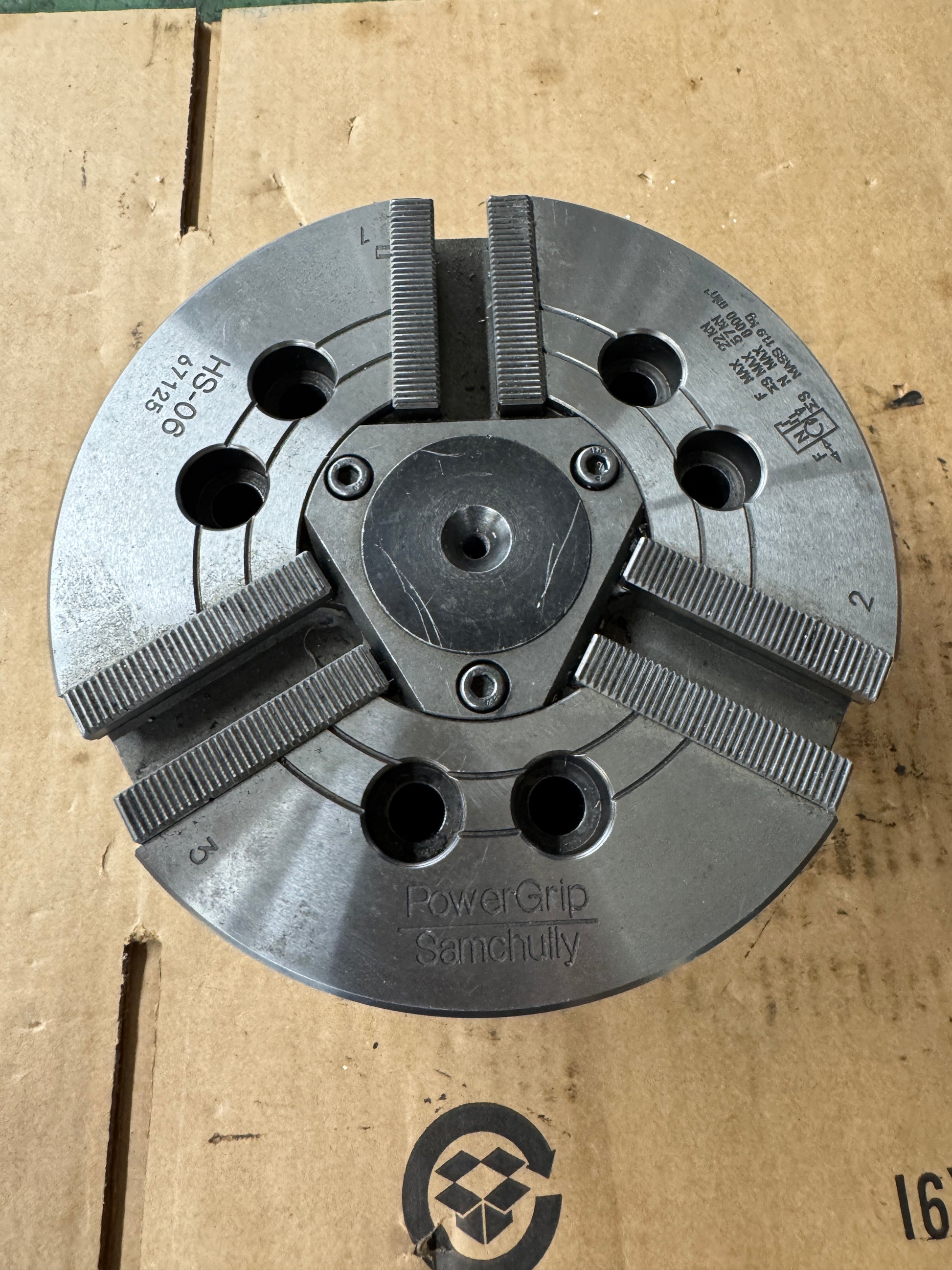

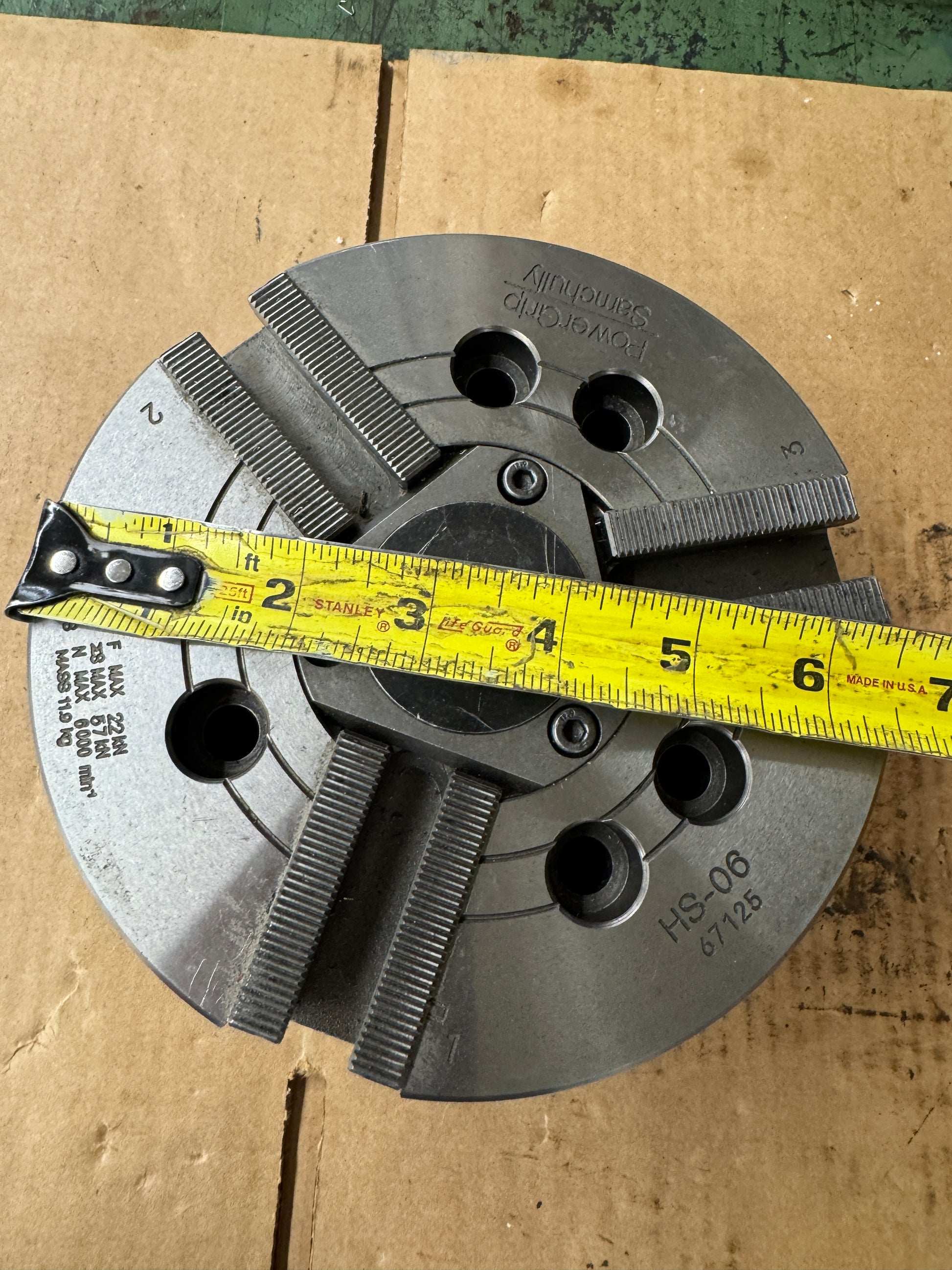

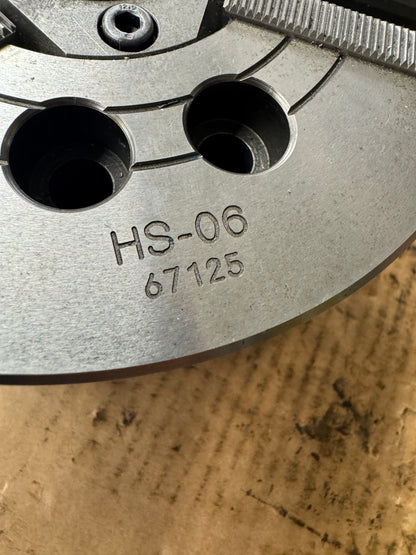

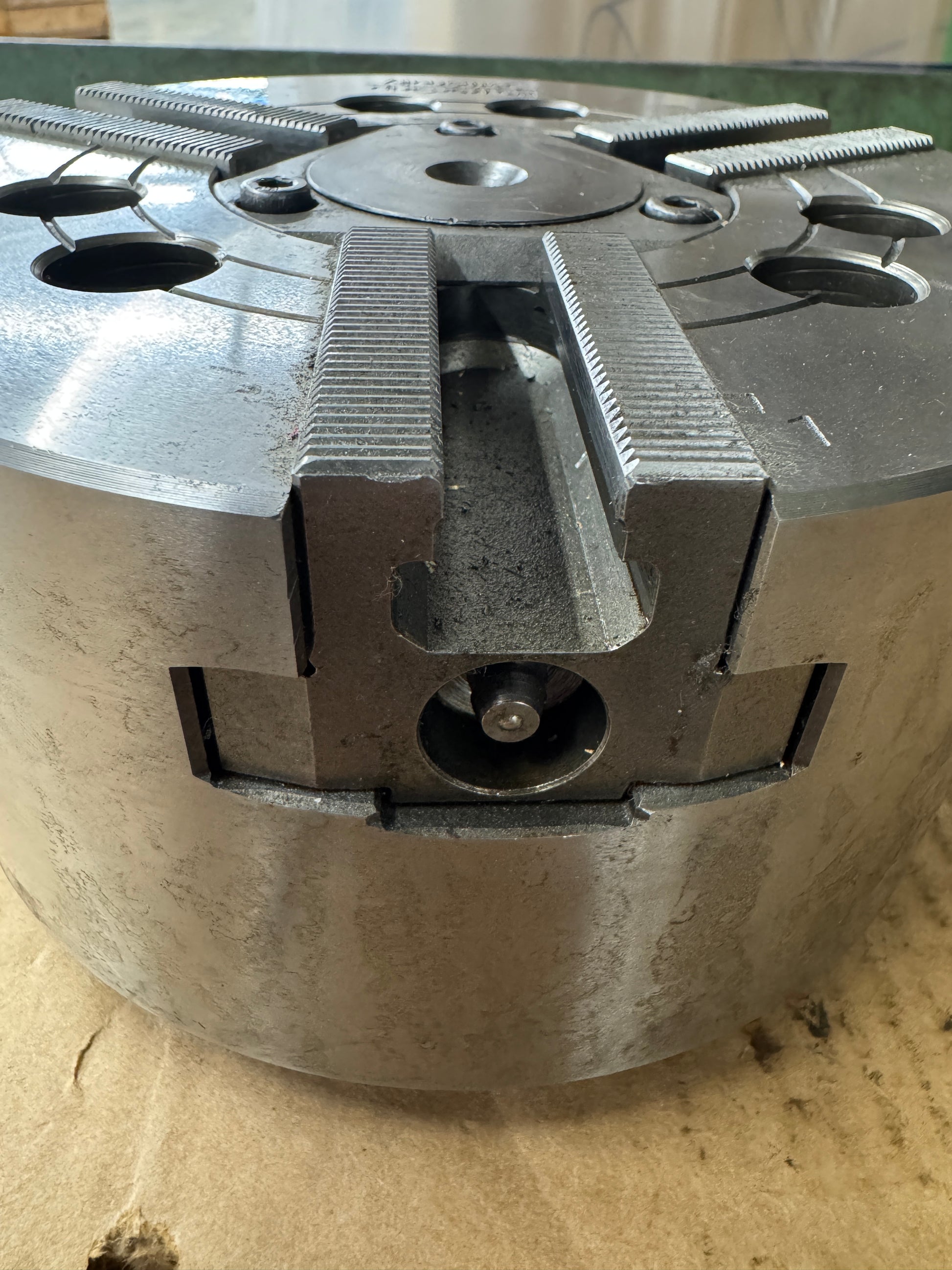

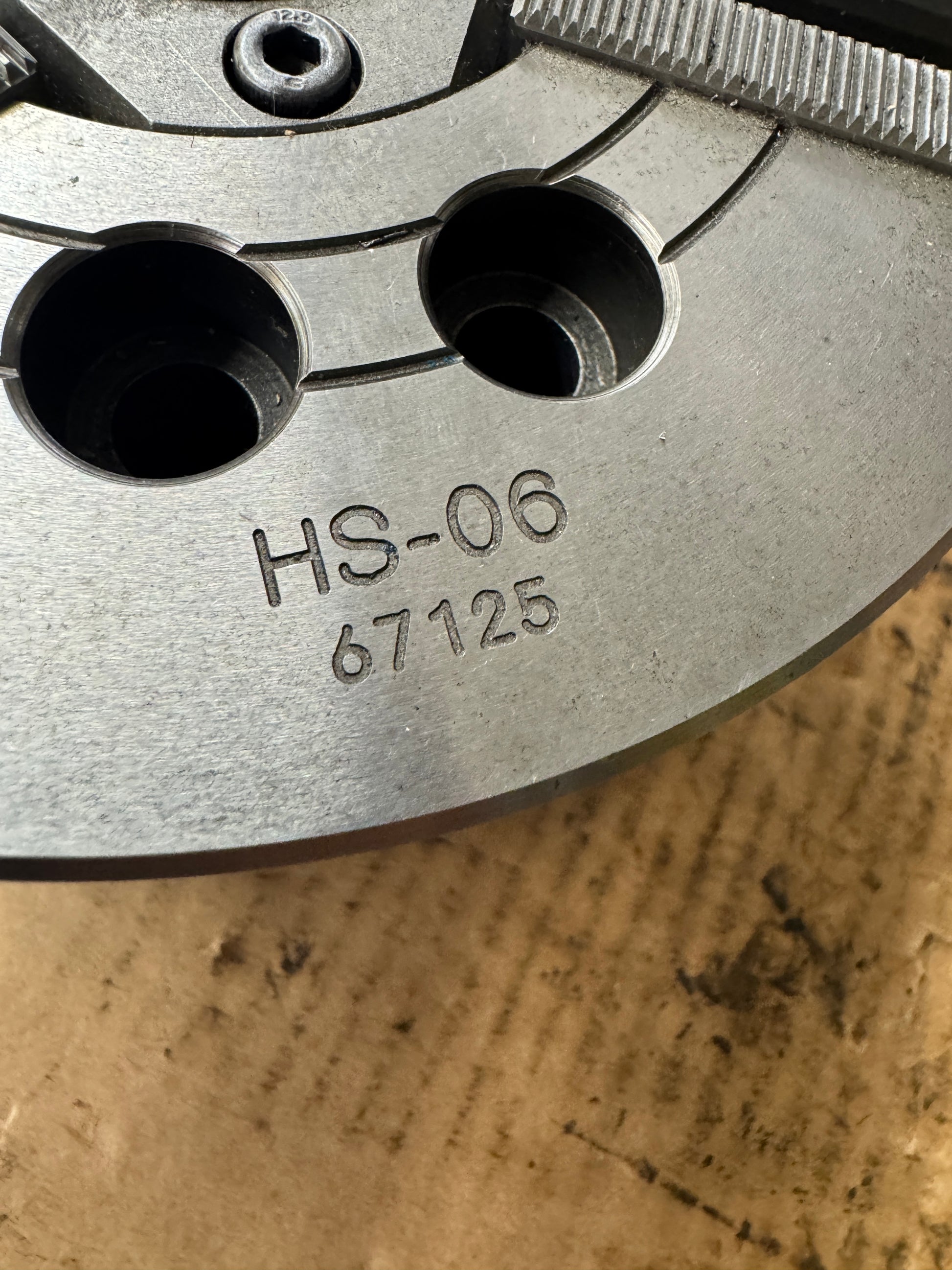

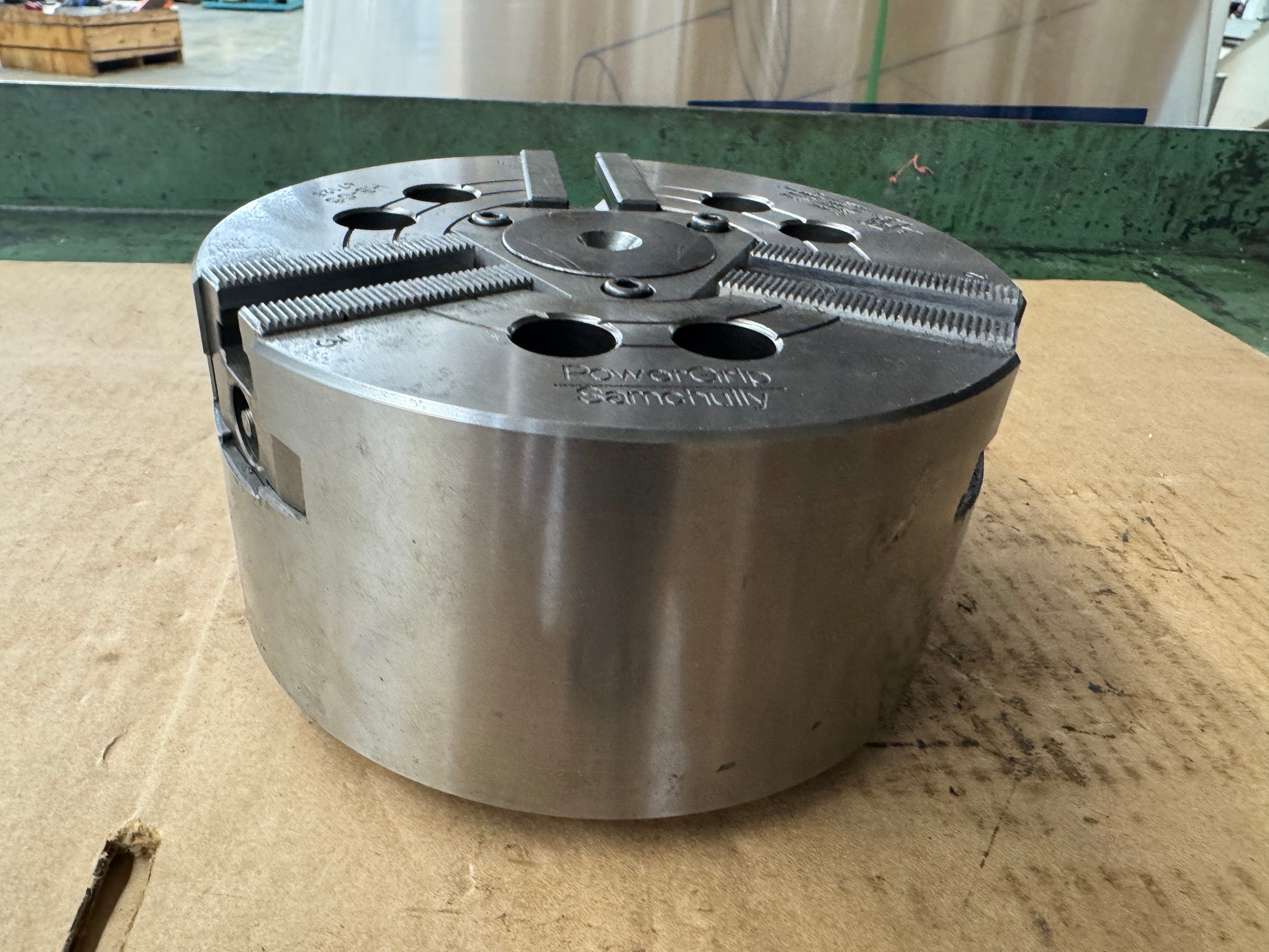

Used in CNC turning centers and manual lathes requiring a high-speed hydraulic workholding solution, the Samchully PowerGrip HS-06 is a 6.5-inch, 3-jaw open-center power chuck with a plain back mount configuration. The HS-06 features a wedge-type actuation mechanism and carries a maximum spindle speed rating of 6,000 RPM. Through-hole diameter is 46 mm (1.81 in.), accommodating bar-fed operations and through-shaft workholding. Jaw stroke on diameter is 5.5 mm, with a maximum plunger stroke of 12 mm. Static gripping force is rated at 57 kN. Clamping range spans 15 mm minimum to 169 mm maximum with standard soft jaws. Master jaw serration is 1.5 x 60 degrees, compatible with tooling sized for the 206 platform, which is a direct interchange with the Kitagawa B-206, Chandox OP-206, and Strong N-206. Serial number 67125 is stamped on the chuck body. Visible specifications on the chuck face indicate F MAX 22 kN, FS MAX 57 kN, and MASS 11.9 kg. This chuck ships as a plain back unit and requires a separately sourced spindle adapter plate to mount. No hydraulic cylinder or actuator is included. The nameplate and cast markings show no damage. Chuck jaws are present in photos.

Stock # 0426-01225
