Schneider Electric AC Servo Drive LXM52DD12C41000

$1,499.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

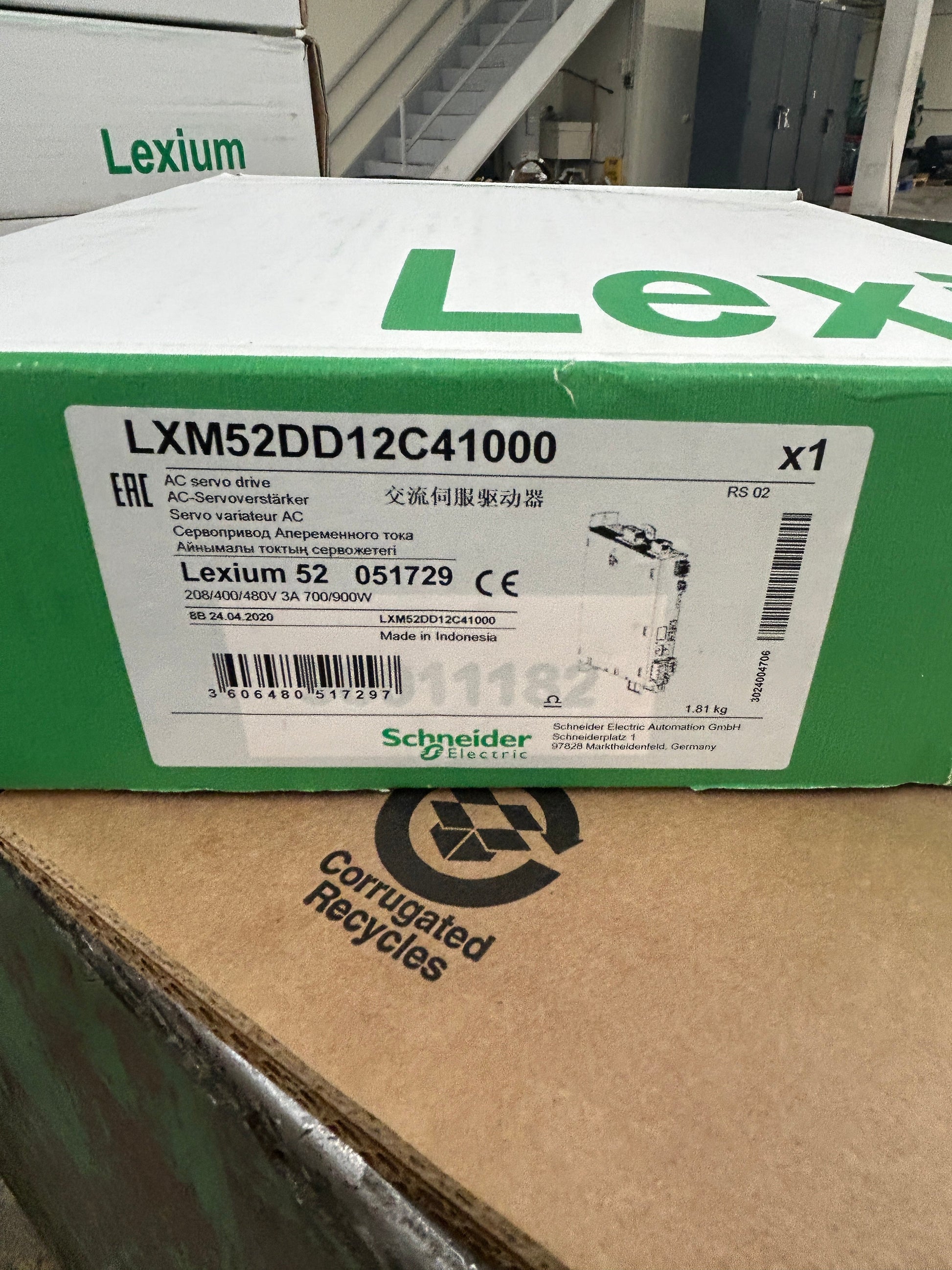

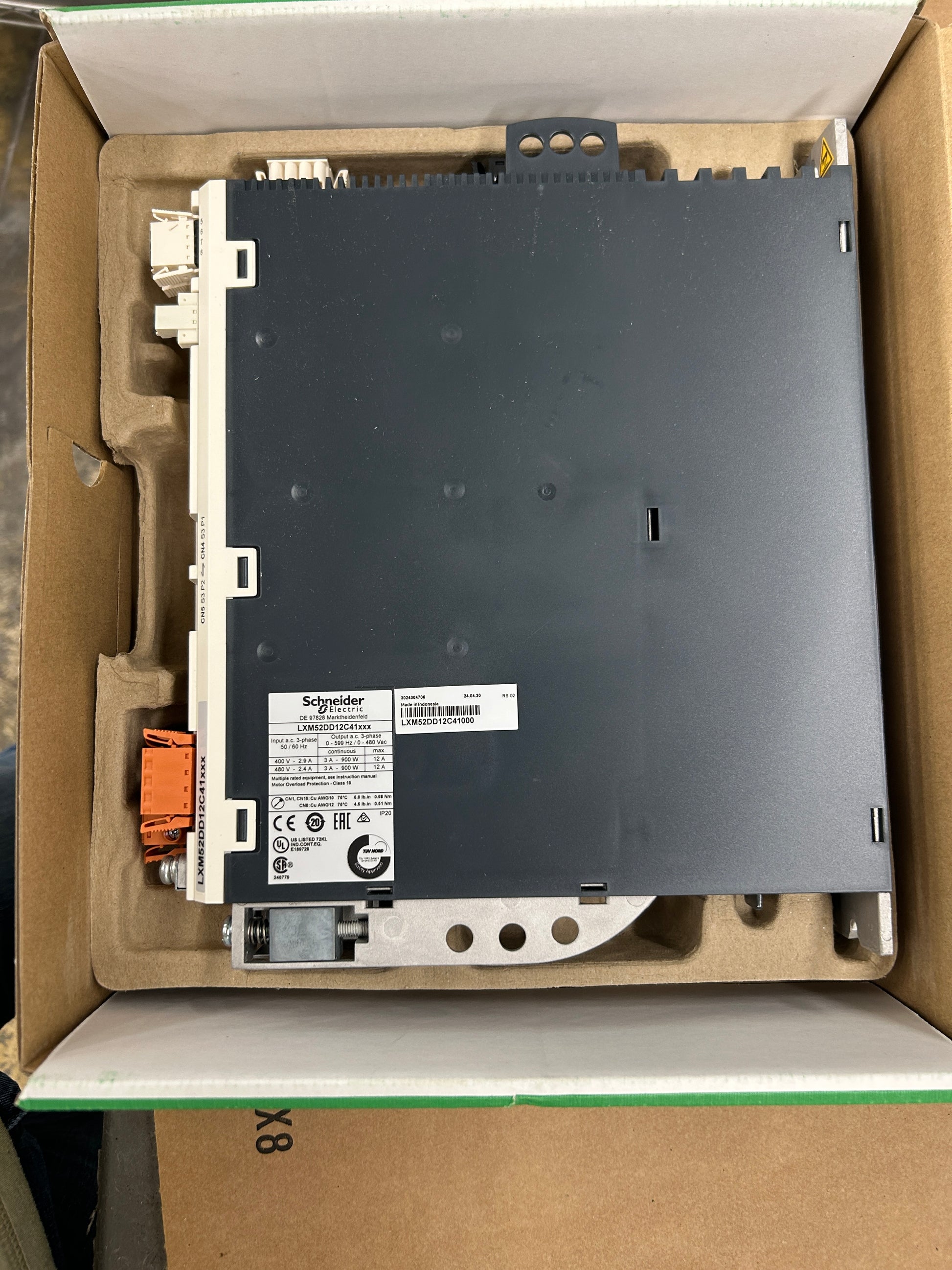

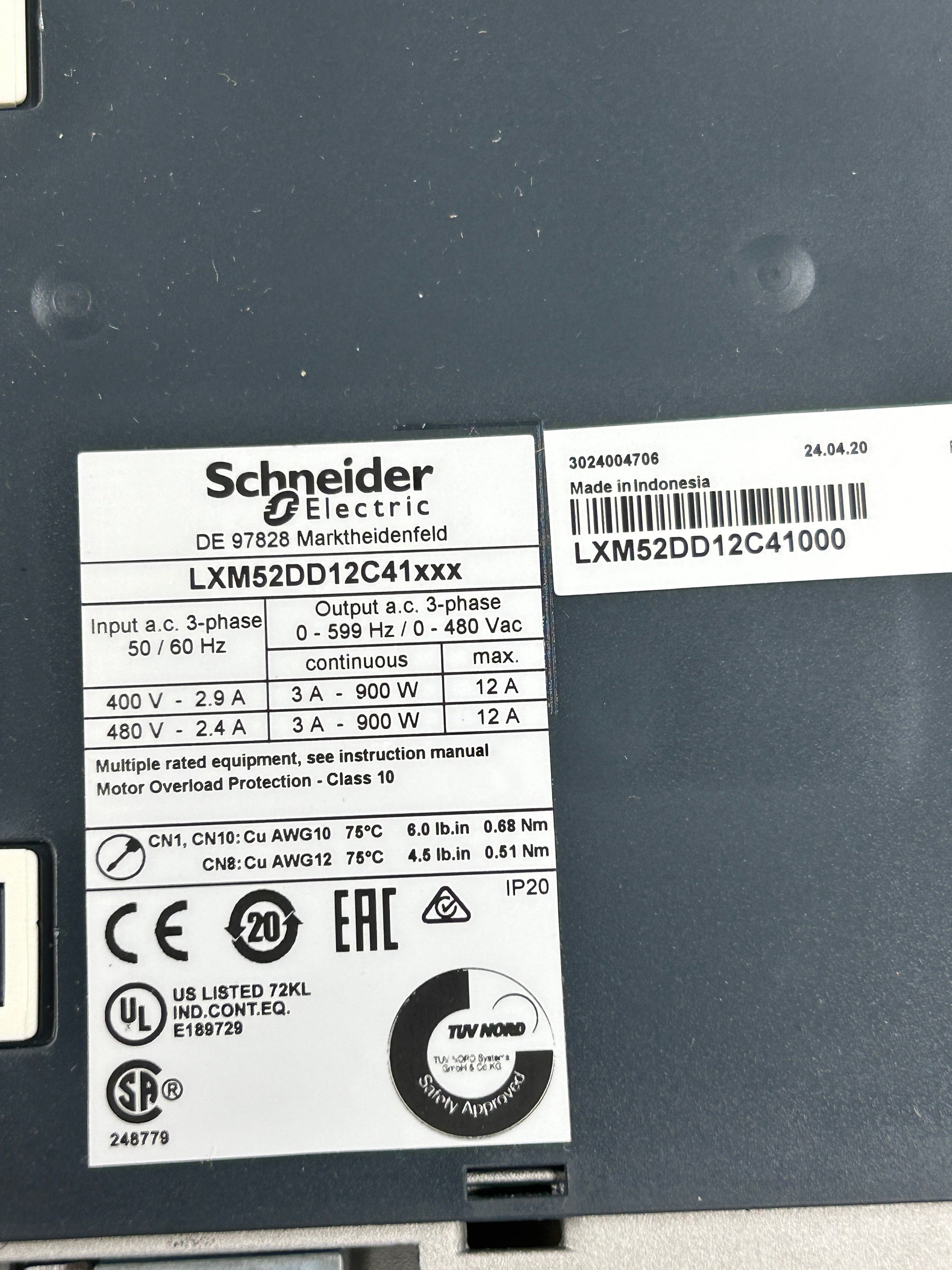

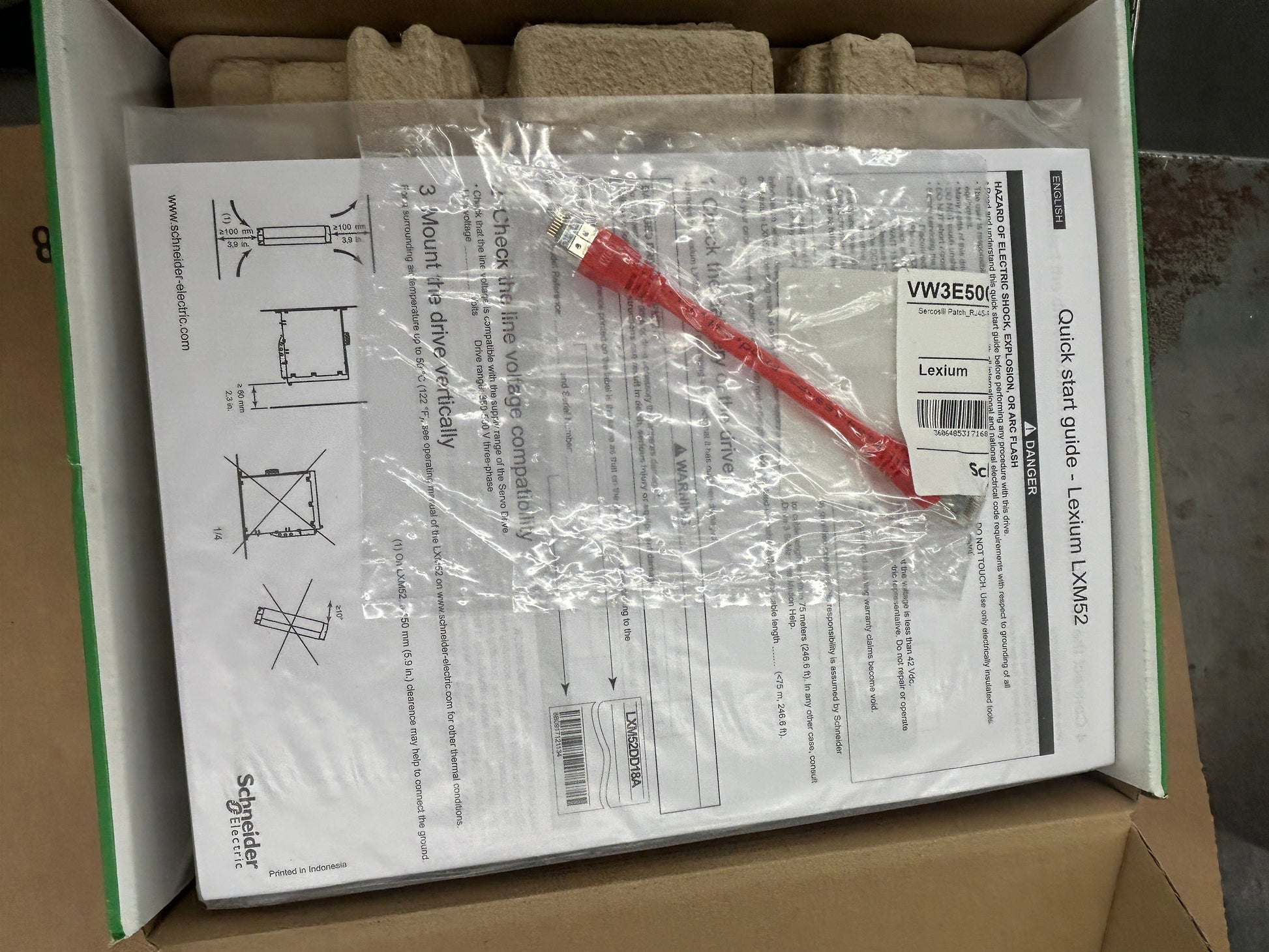

The Schneider Electric LXM52DD12C41000 is an AC servo drive in the Lexium 52 series, part of the PacDrive 3 automation platform. It accepts 3-phase AC input at 208V, 400V, or 480V, 50/60 Hz, and delivers a continuous output current of 3A at 900W continuous power, with a peak output of 12A. Output frequency range spans 0 to 599 Hz at 0 to 480 Vac. The drive features a SERCOS III physical interface and provides 4 digital inputs, 4 touch probe inputs, and 2 digital outputs. It is rated IP20 for enclosure installation and carries CE, UL (US Listed 72KL, E189729), CSA (248779), EAC, and TUV Nord safety certifications. Motor Overload Protection is Class 10. Terminal torque specifications are 6.0 lb.in for CN1 and CN10 (Cu AWG10) and 4.5 lb.in for CN8 (Cu AWG12). The unit weighs 1.81 kg per the factory label and is manufactured in Indonesia. Compatible servo motors include the SH3 series in 55 mm and 70 mm frame sizes. This unit is presented in its original factory box with pulp corner packaging, a VW3E50 Sercos patch cable, and the Lexium LXM52 quick start guide. The box label indicates revision RS 02, dated 24.04.2020.

Stock # 0326-1003
