Schneider Electric AC Servo Drive LXM52DU60C41000

$439.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

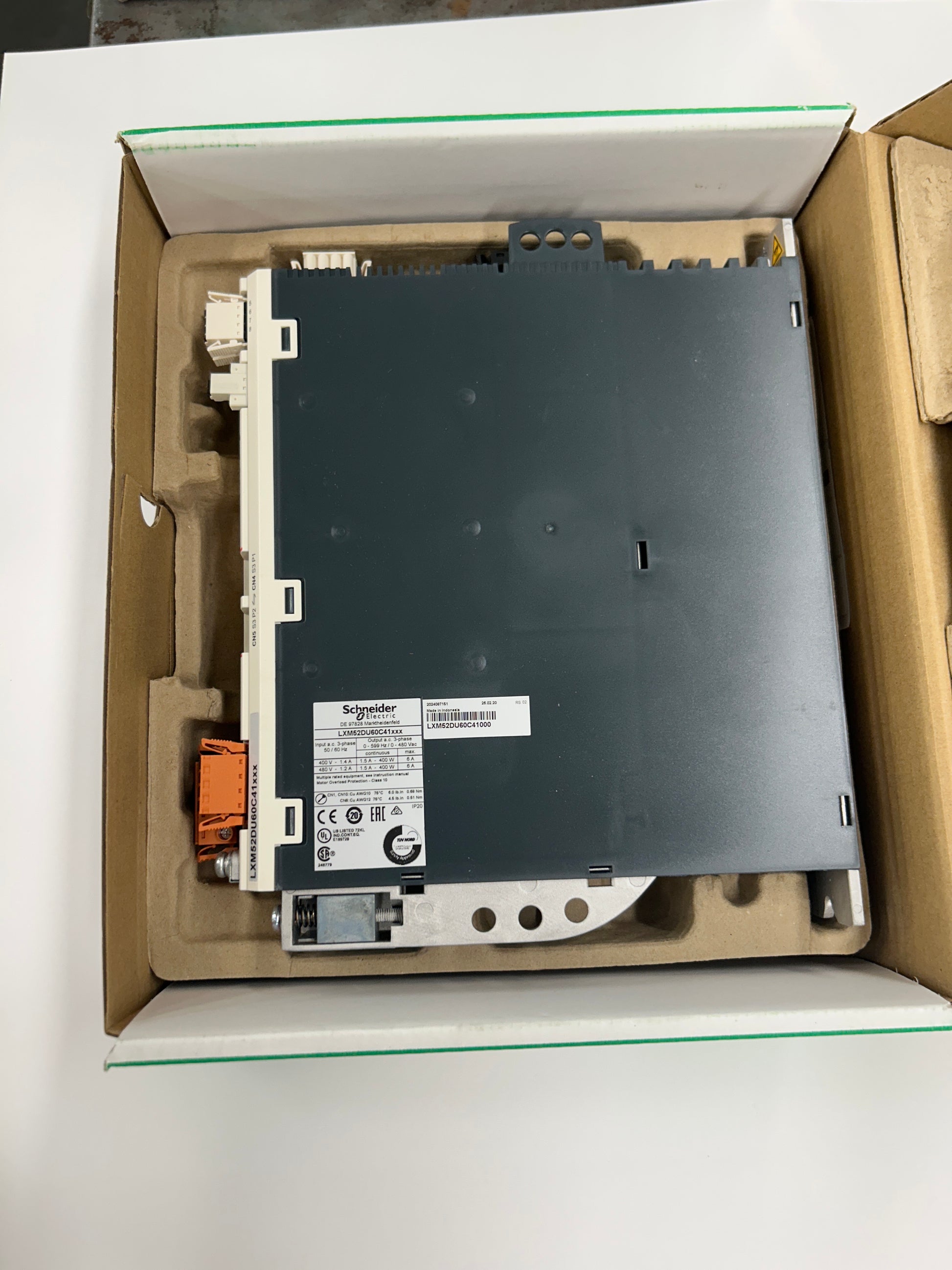

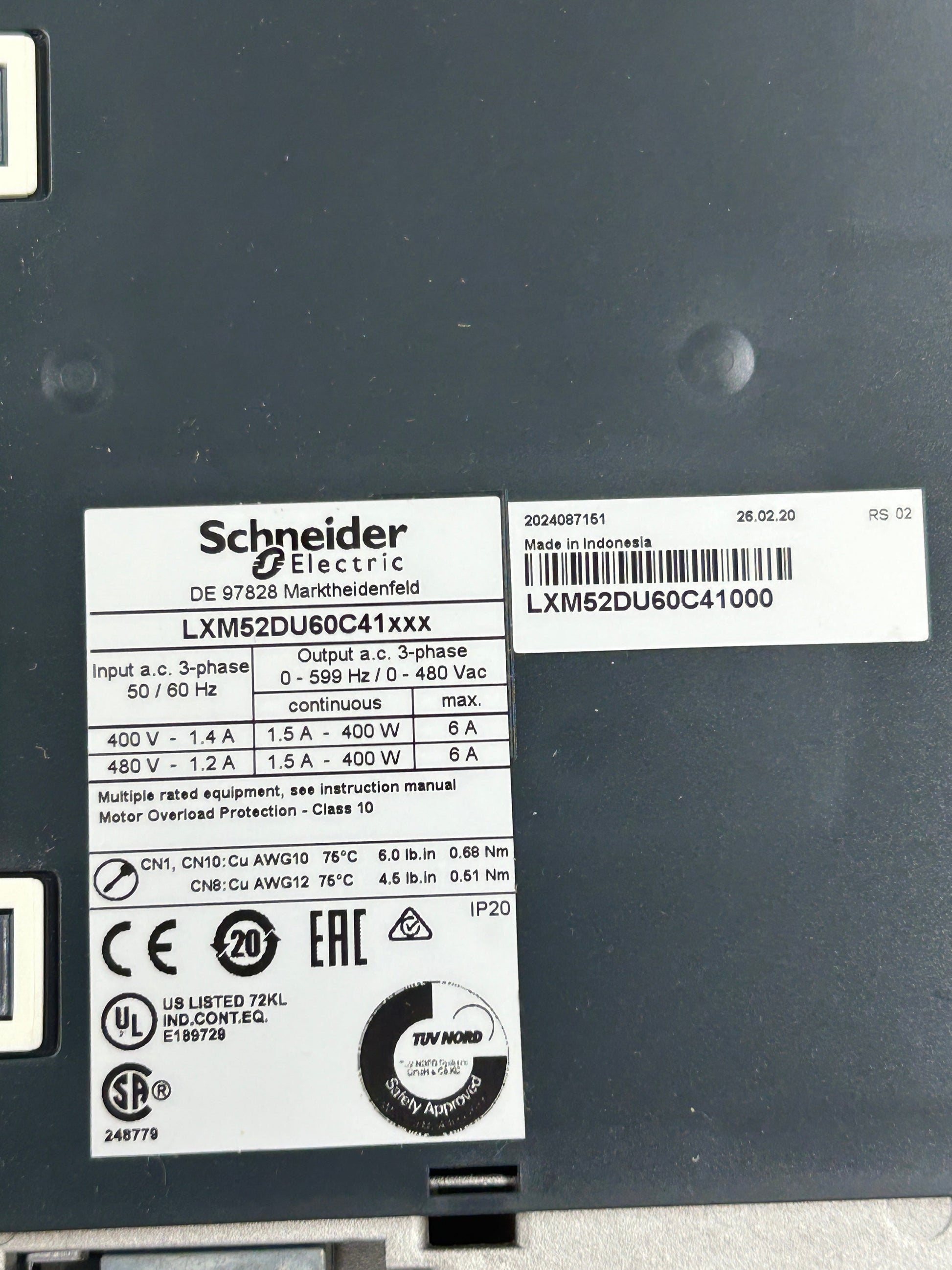

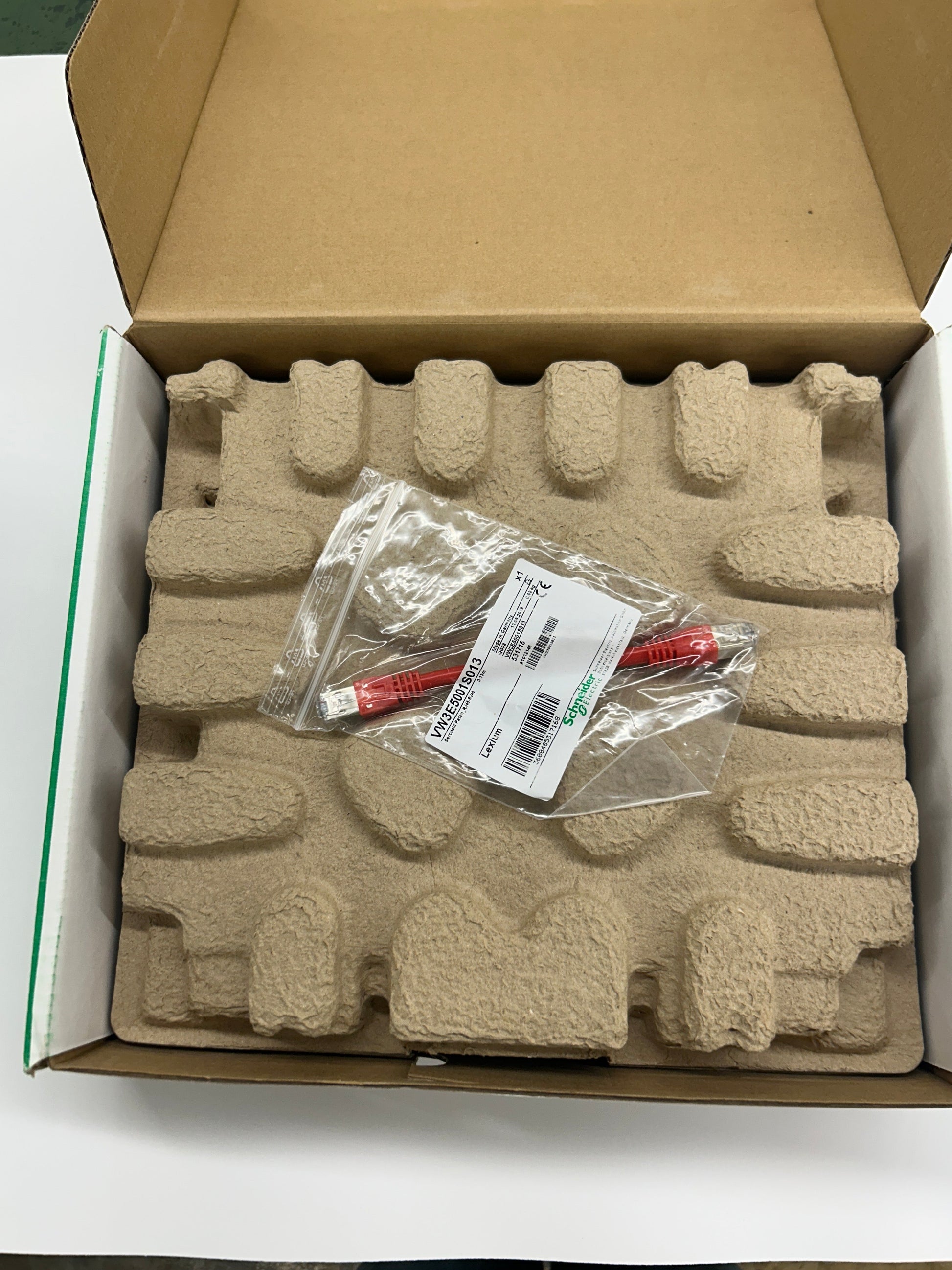

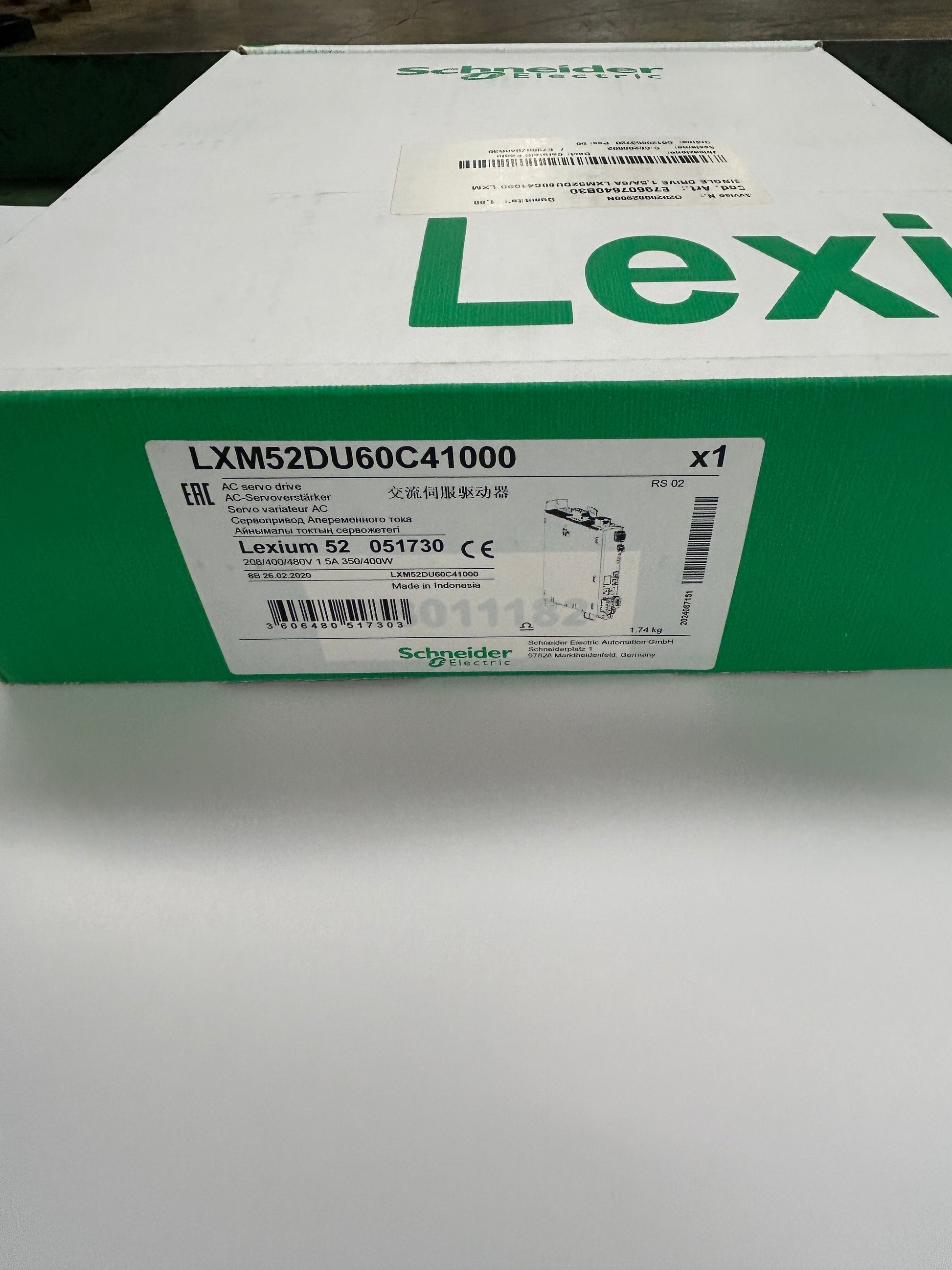

Used in PacDrive 3 automation systems, the Schneider Electric Lexium 52 AC servo drive, part number LXM52DU60C41000, is a single-axis standalone drive designed for packaging machinery, general machine control, and material handling applications. It accepts 3-phase AC input at 208V, 400V, or 480V at 50/60 Hz and delivers a continuous output current of 1.5A with a peak of 6A, supporting continuous power of 400W. Output frequency range is 0 to 599 Hz with output voltage of 0 to 480V AC. The drive features a SERCOS III physical interface and provides 4 digital inputs, 4 touch probe inputs, and 2 digital outputs. Motor overload protection is Class 10. Wiring terminals are rated for Cu AWG10 at 75 degrees C for connections CN1 and CN10, and Cu AWG12 at 75 degrees C for CN8. The enclosure is rated IP20. Certifications visible on the nameplate include CE, UL (US Listed 72KL, IND.CONT.EQ., E189728), CSA (248779), EAC, and TUV Nord Safety Approved. Manufactured in Indonesia. This unit ships in its original Schneider Electric Lexium 52 factory box with molded pulp packaging and includes the factory-packed VW3E3001S013 patch cable accessory. The barcode label confirms full model number LXM52DU60C41000 and date code BB 26.02.2020.

Stock # 0326-1004
