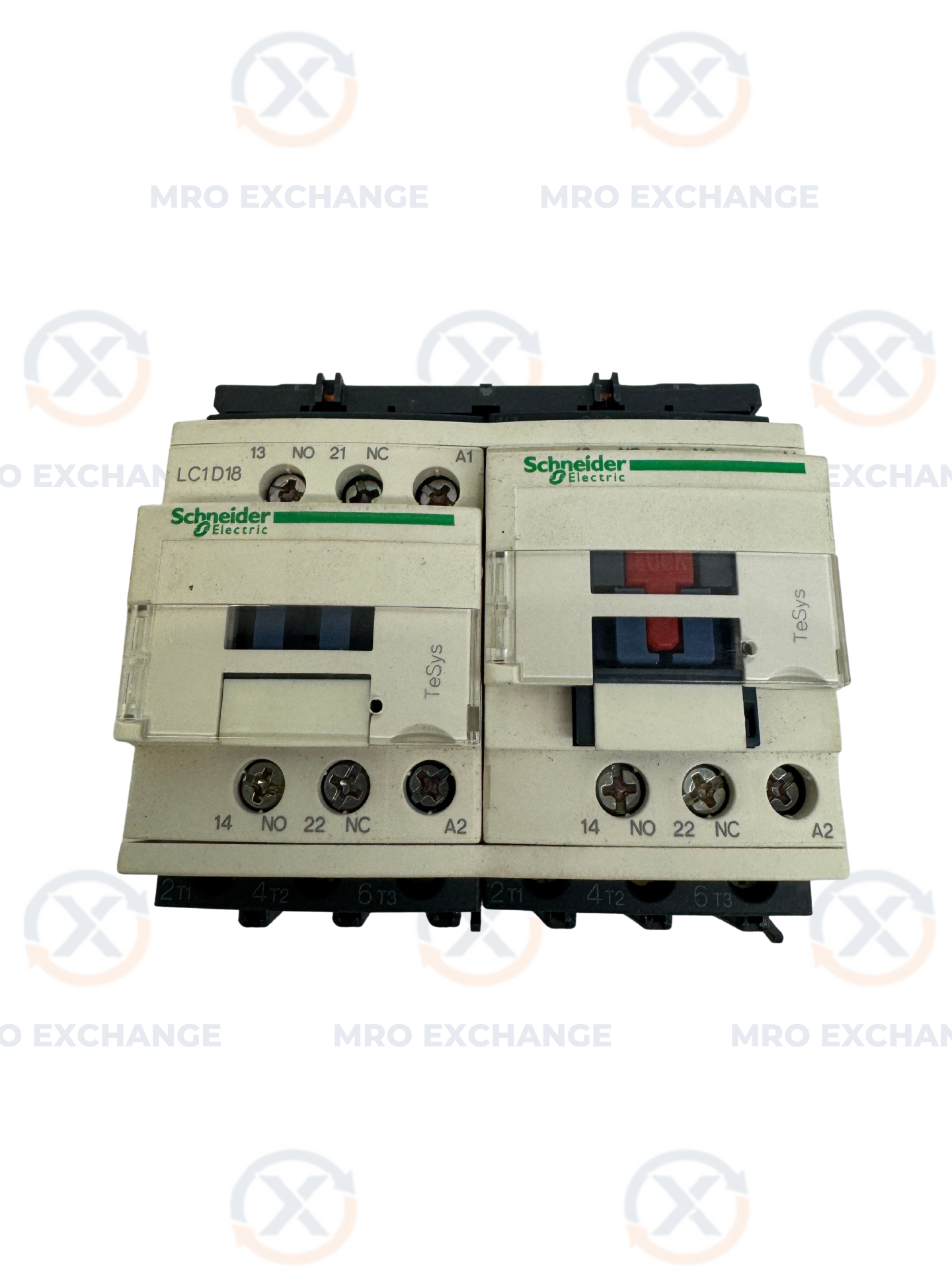

Schneider Electric LC2D18G7 Reversing Contactor 18A 120V AC Coil 3-Pole

$109.00 USD

Sale Sold out

ConditionSurplus - Untested MPNLC2D18G7 Stock #0226-00730

Photos reflect current condition. Items differing from description may be eligible for return or refund — see our condition guide.

Shipping Estimate

Estimated package weight: 5.0 lbs

Select your state above for a shipping estimate.

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

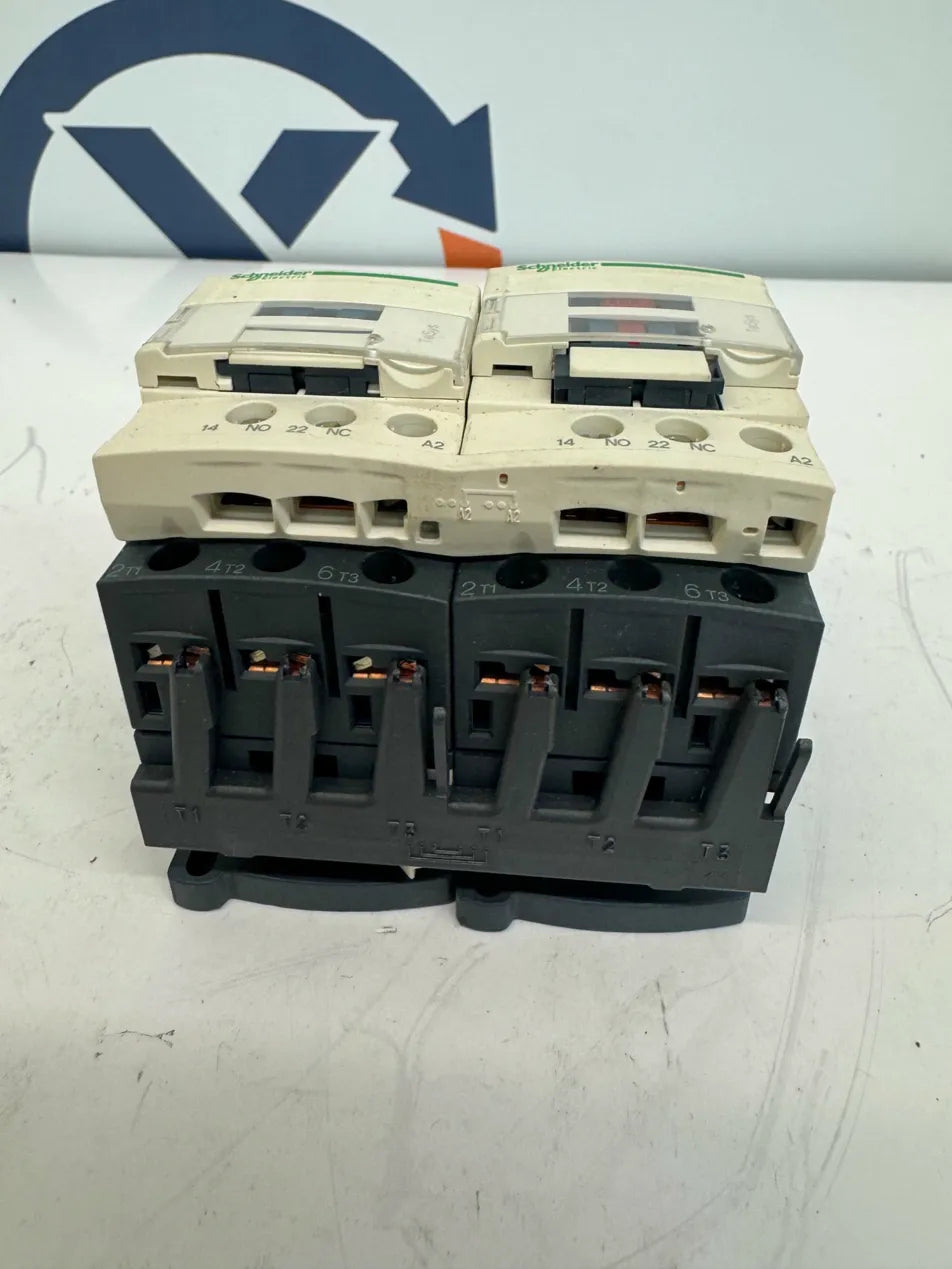

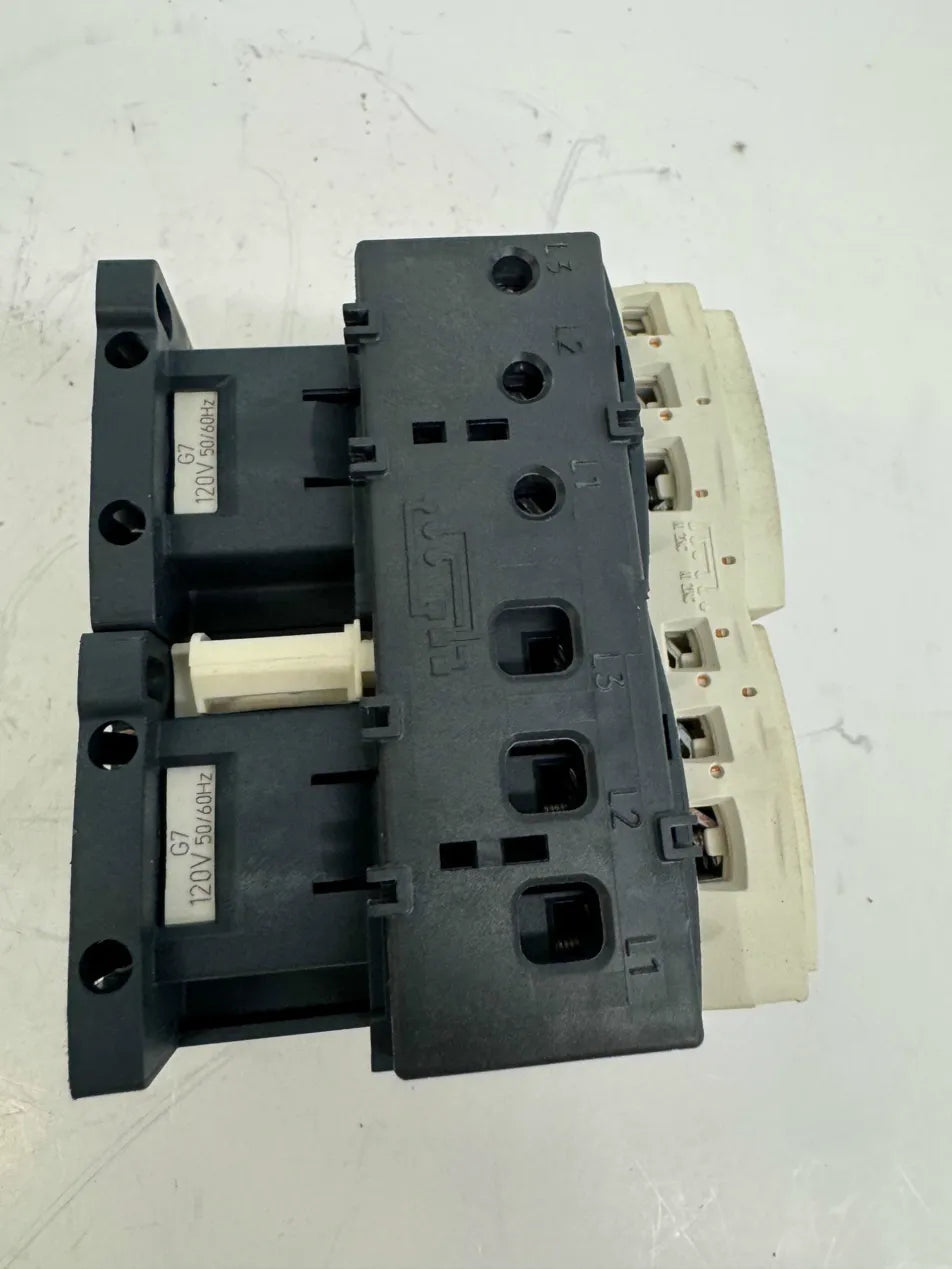

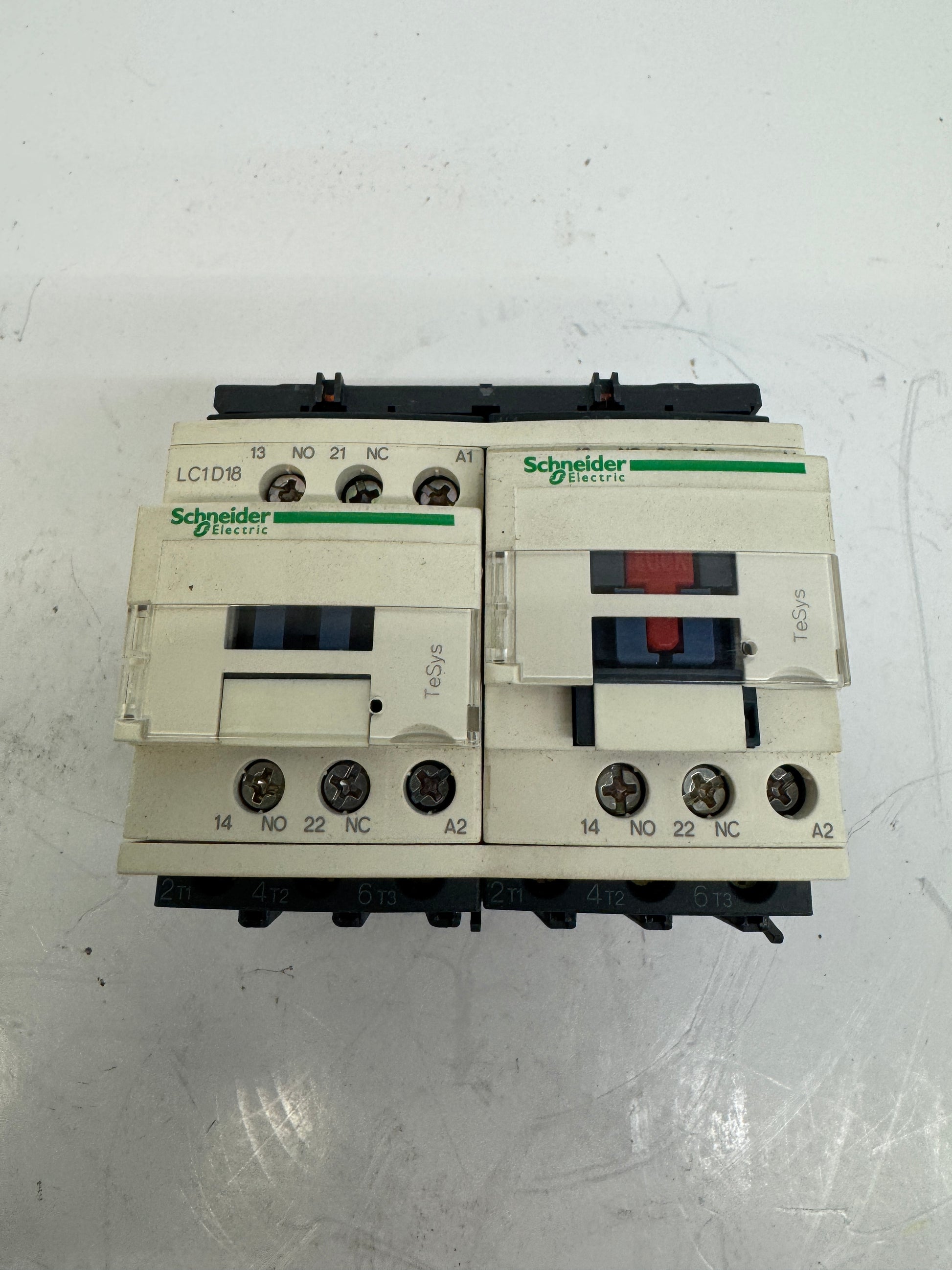

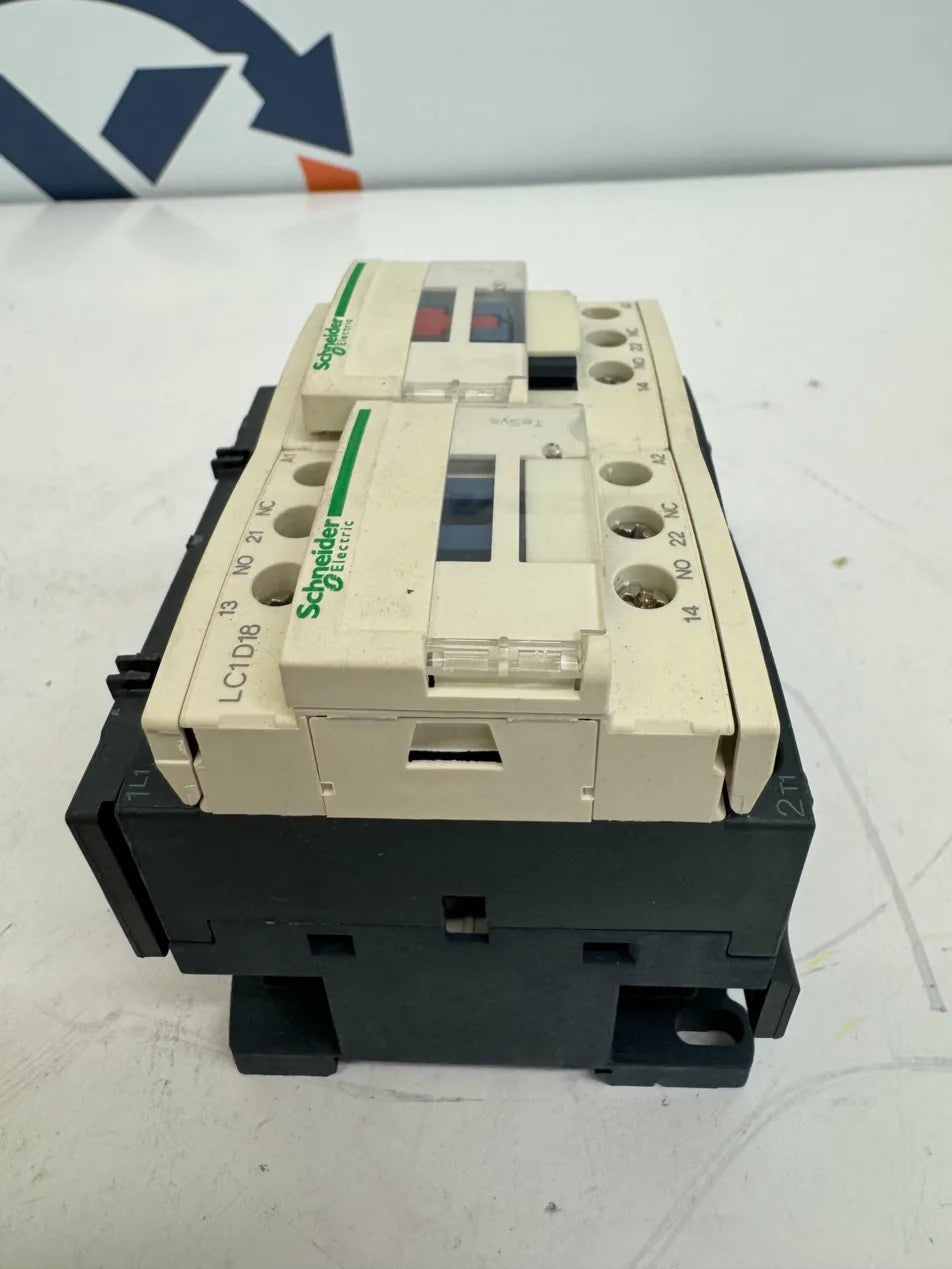

The Schneider Electric LC2D18G7 is a 3-pole IEC reversing contactor from the TeSys D series, consisting of two mechanically and electrically interlocked LC1D18G7 contactor units assembled as a single reversing starter package. The coil voltage is 120V AC at 50/60 Hz, as confirmed by the "G7 / 120V 50/60Hz" markings visible on both coil assemblies. The unit is rated for 18 amps AC-3, 10 HP at 460/480V three-phase, and 5 HP at 230/240V three-phase. Each contactor includes one normally open and one normally closed base-mounted auxiliary contact, providing a total of 2 NO and 2 NC auxiliary contacts across the assembly. The reversing kit provides both mechanical and electrical interlocking between the two contactors, preventing simultaneous energization. Terminal markings L1, L2, L3 on the line side and T1, T2, T3 on the load side are visible in the photos. Auxiliary control terminals labeled 13/14 (NO) and 21/22 (NC) are accessible on each unit, along with A1 and A2 coil terminals. The assembly mounts to standard 35mm DIN rail or flat panel with screws. Compatible with Schneider Electric LRD series overload relays and LADN auxiliary contact blocks. MPN LC2D18G7 is the Telemecanique/Schneider Electric market designation for this reversing contactor configuration.

Stock # 0226-730

View full details
