Seco Tools Indexable Grooving Tool Holder CFMR15005E | 1.5 In. Shank, 5 mm Insert Width

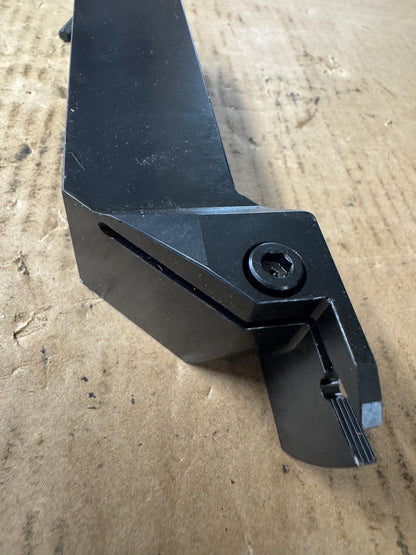

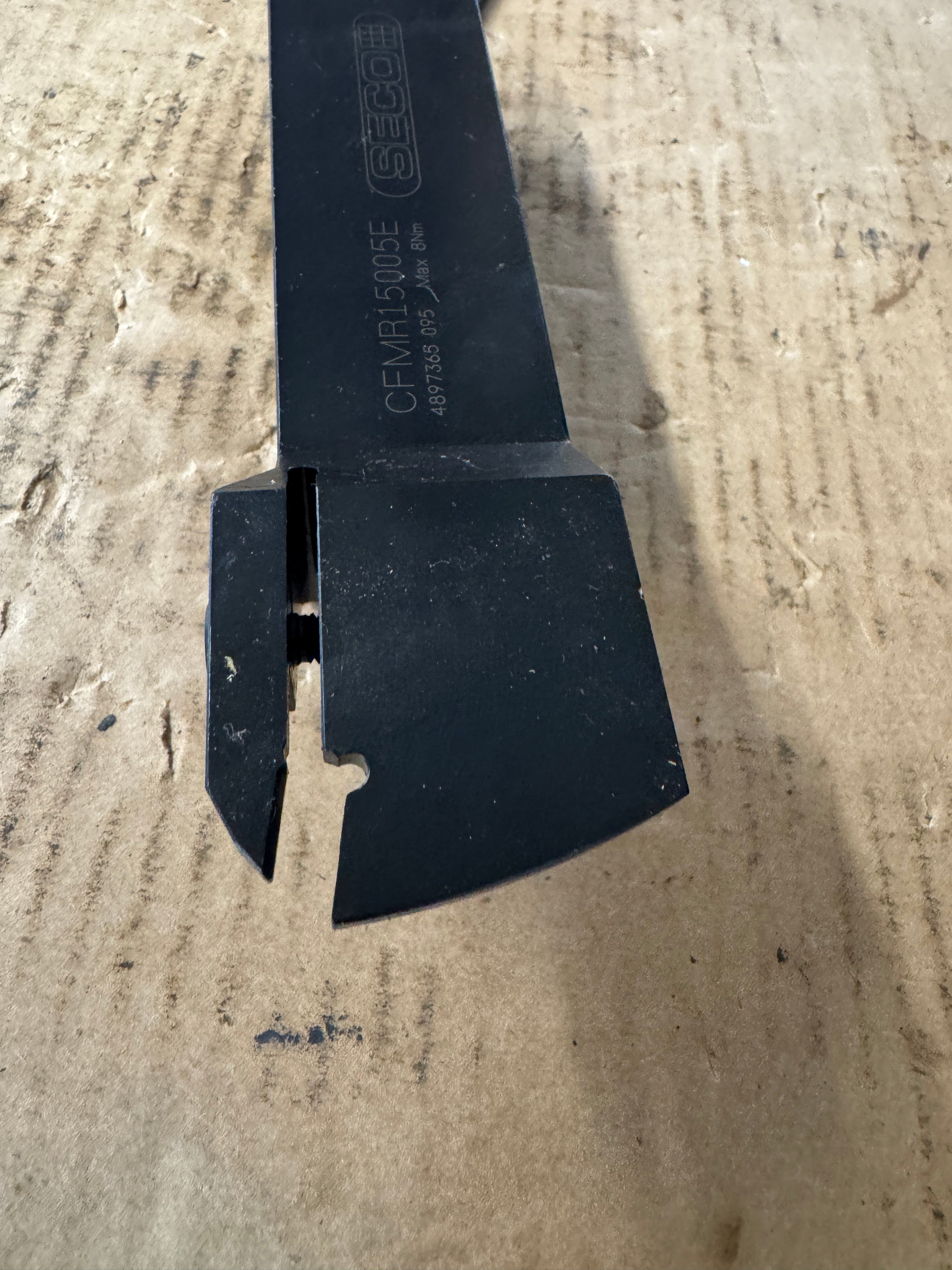

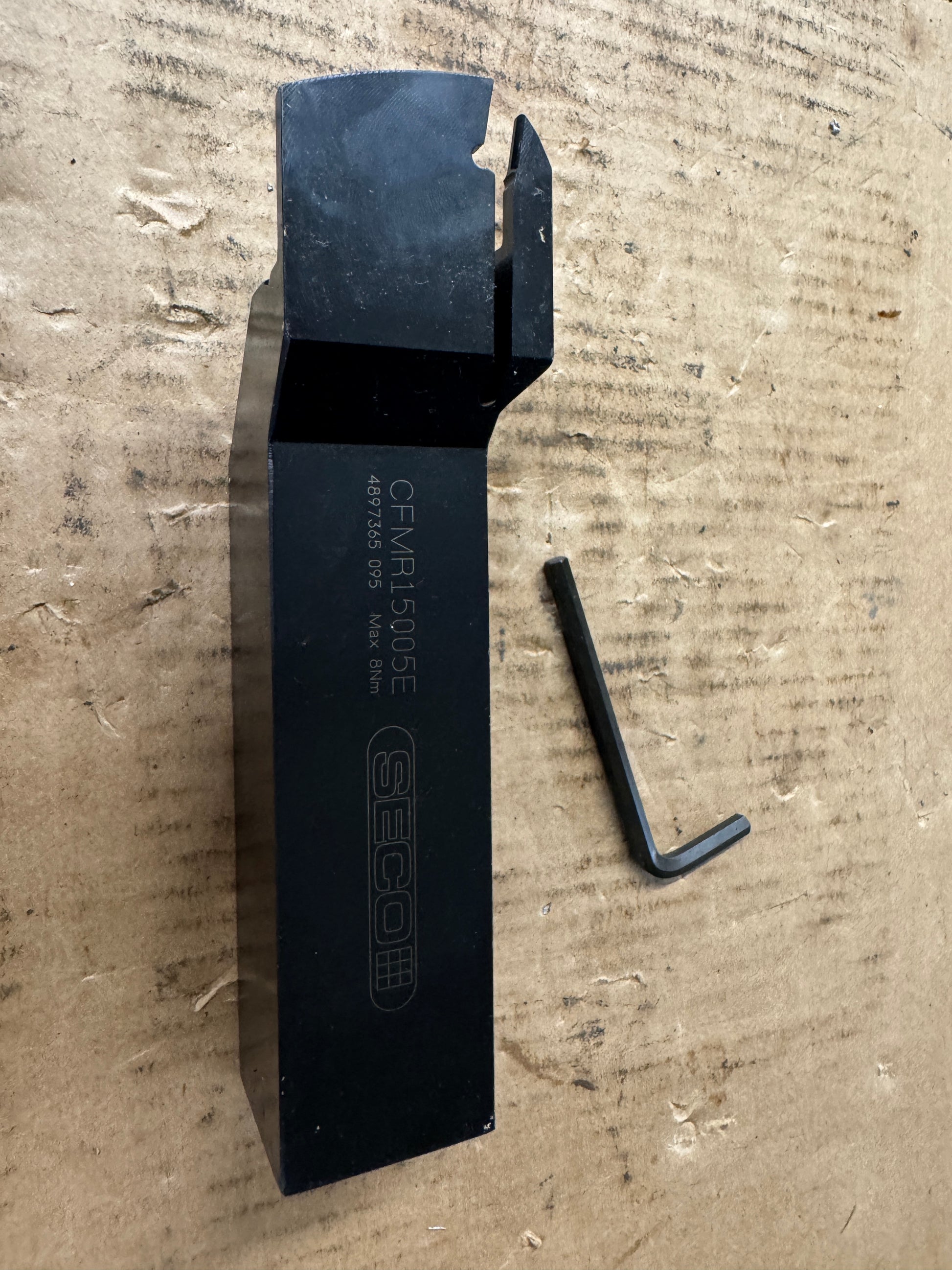

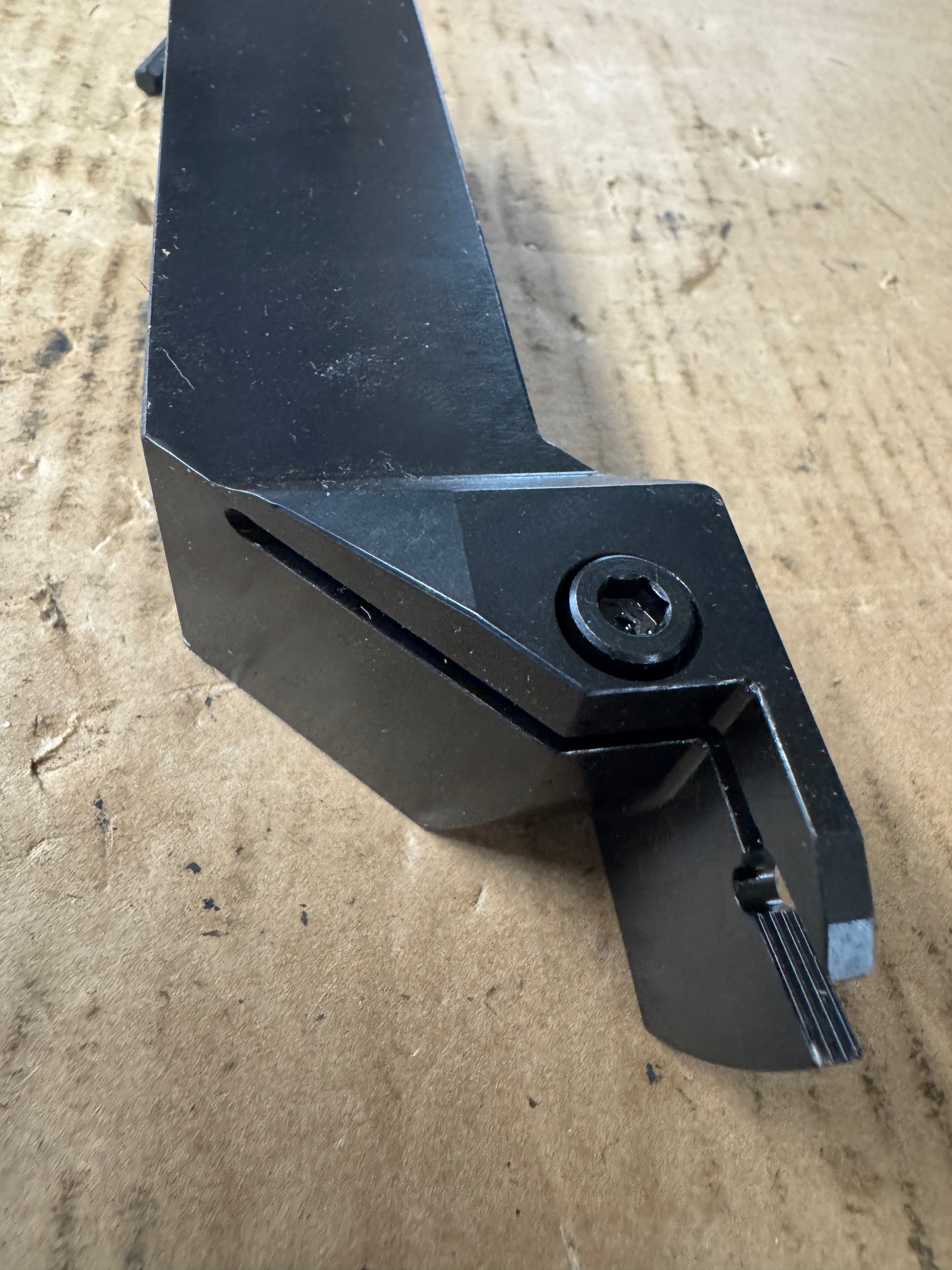

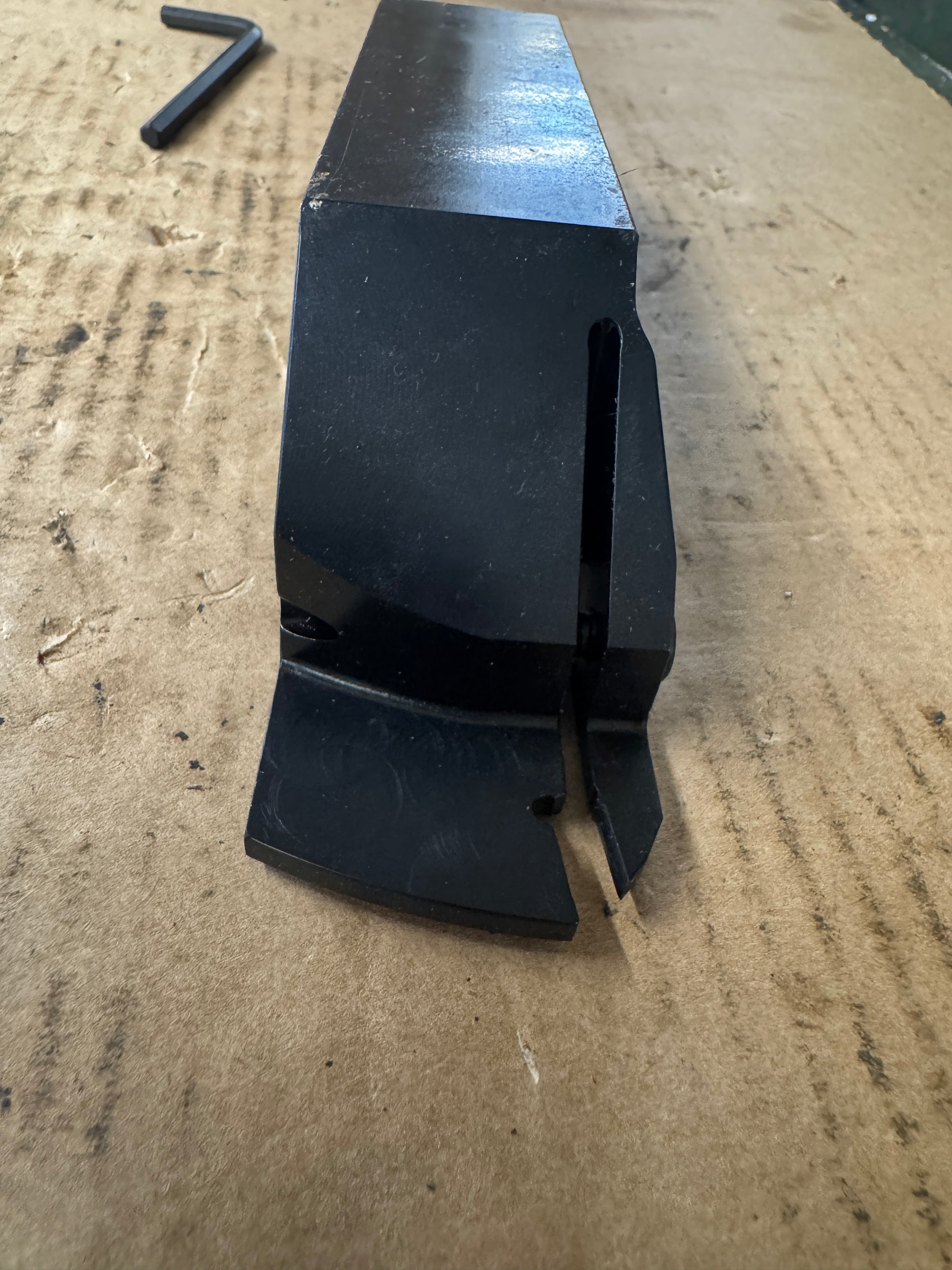

Used in CNC lathe and turning center applications, the Seco Tools CFMR15005E is an indexable Multi-Directional Turning (MDT) grooving and parting toolholder with a 1.5 inch square shank. The CFMR designation indicates a right-hand cut orientation with a clamp-style insert seat designed for Seco LC-style inserts with a 5 mm width. The holder is constructed of hardened tool steel with a black oxide finish and features a precision slot at the cutting end for secure insert indexing. The engraved markings on the body show the model designation CFMR15005E, internal reference number 4897365, and a maximum torque specification of 8 Nm. A T-handle hex wrench is included as visible in the photos. Seco Tools is a premium-tier global manufacturer of metal cutting solutions headquartered in Sweden with manufacturing operations worldwide. The CFMR series is part of Seco's broader MDT platform, which is designed to consolidate grooving, turning, profiling, and threading operations into a single toolholder. Compatible insert families for this holder include Seco LC..1605.. and LC..2005.. style inserts depending on the width and geometry selected. The 4897365 reference number is an internal Seco EDP or catalog identifier and may be used to cross-reference documentation or spare parts.

Stock # 0426-01384
