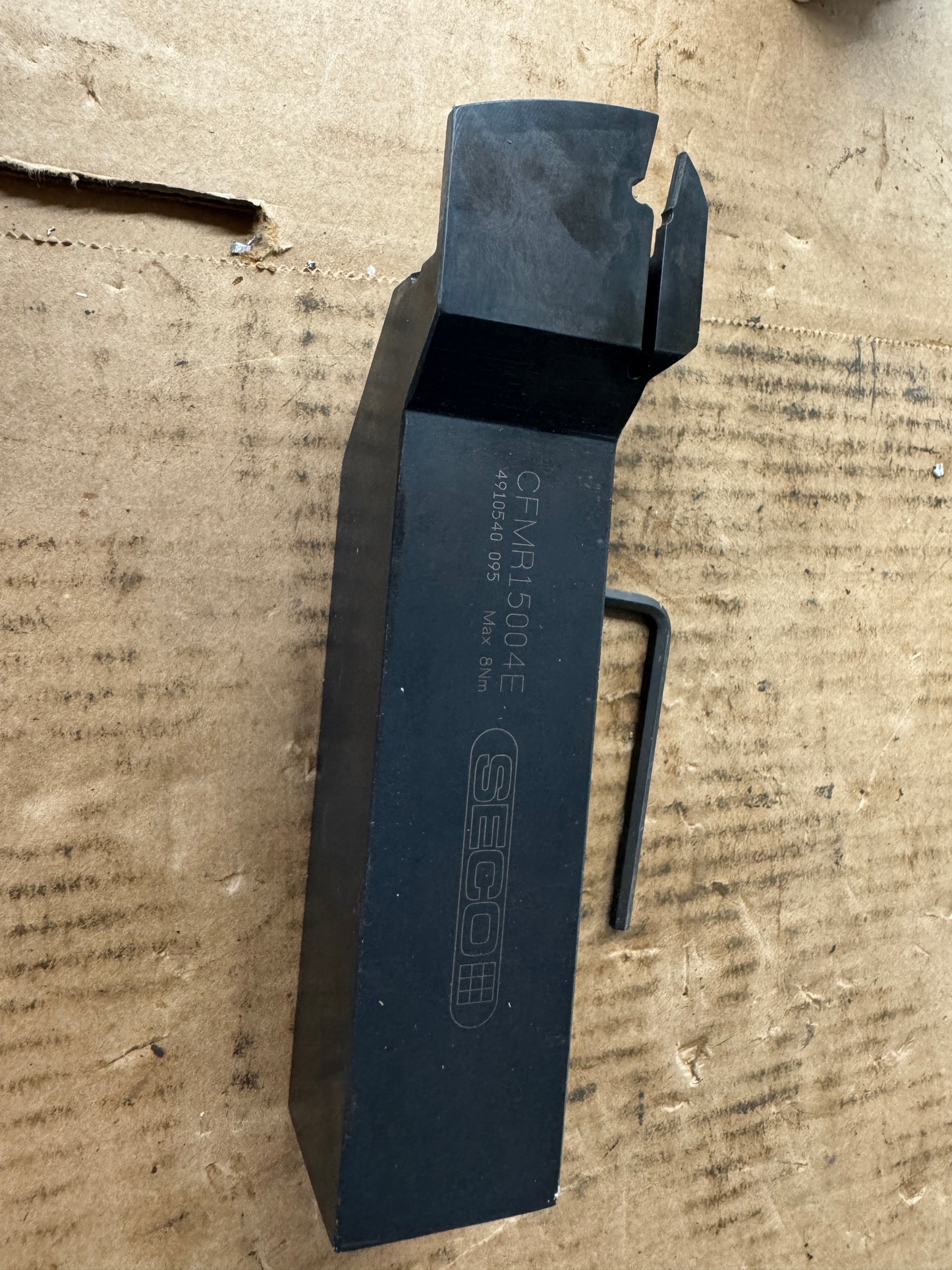

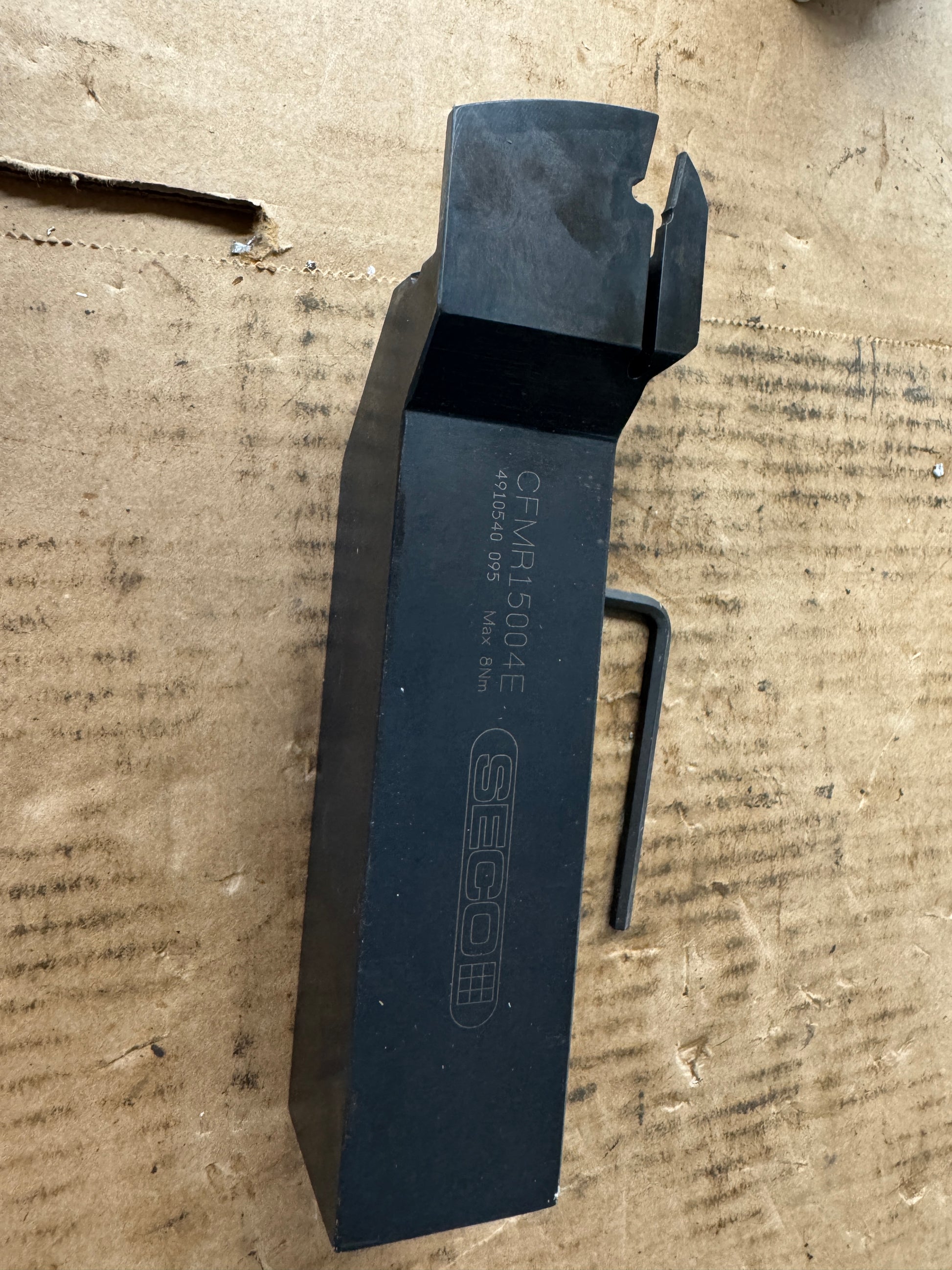

Seco Tools MDT Indexable Grooving Toolholder CFMR15004E | 1.5 In. Square Shank, 4 mm Insert Seat | Orientation: Radial

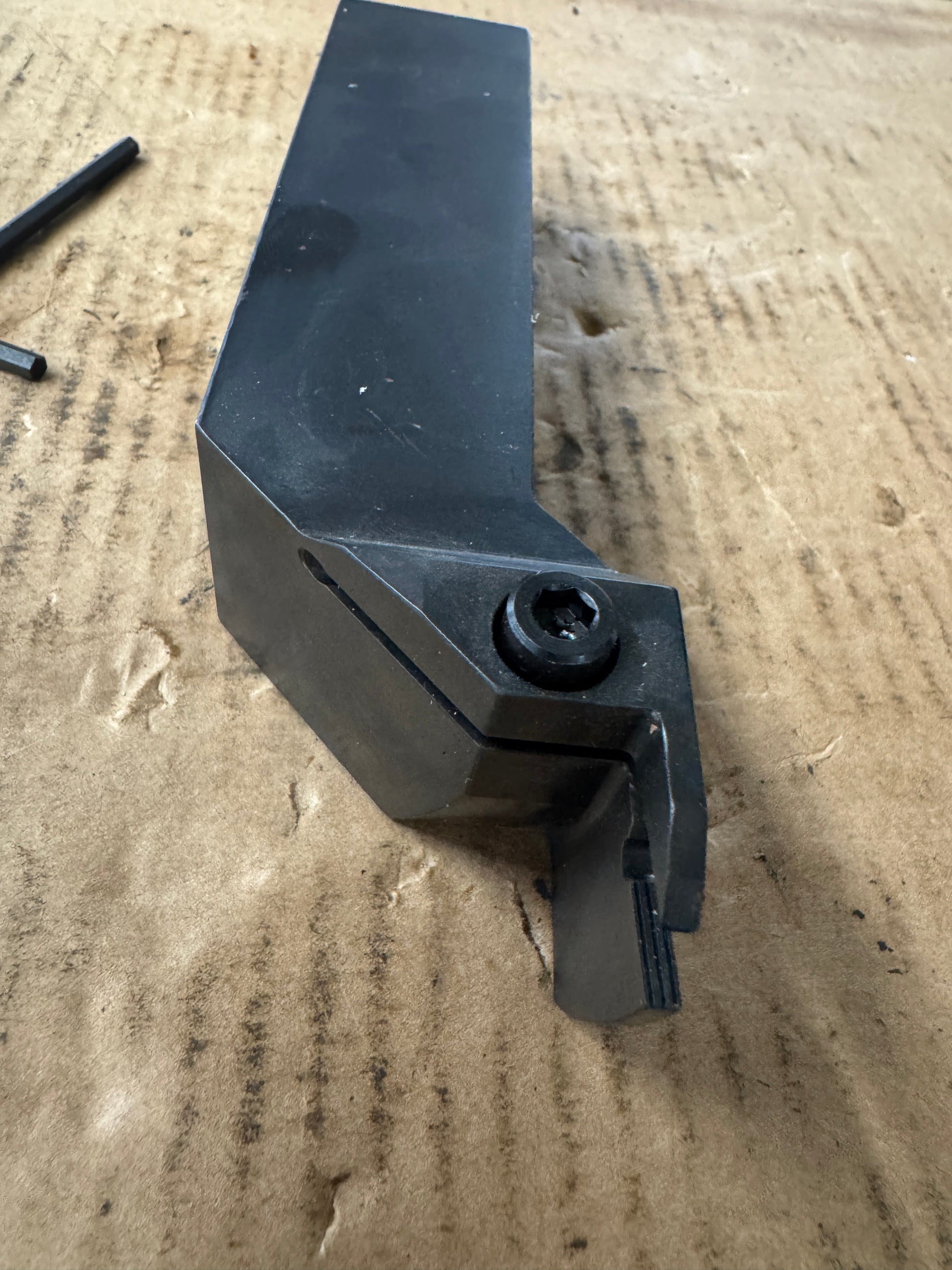

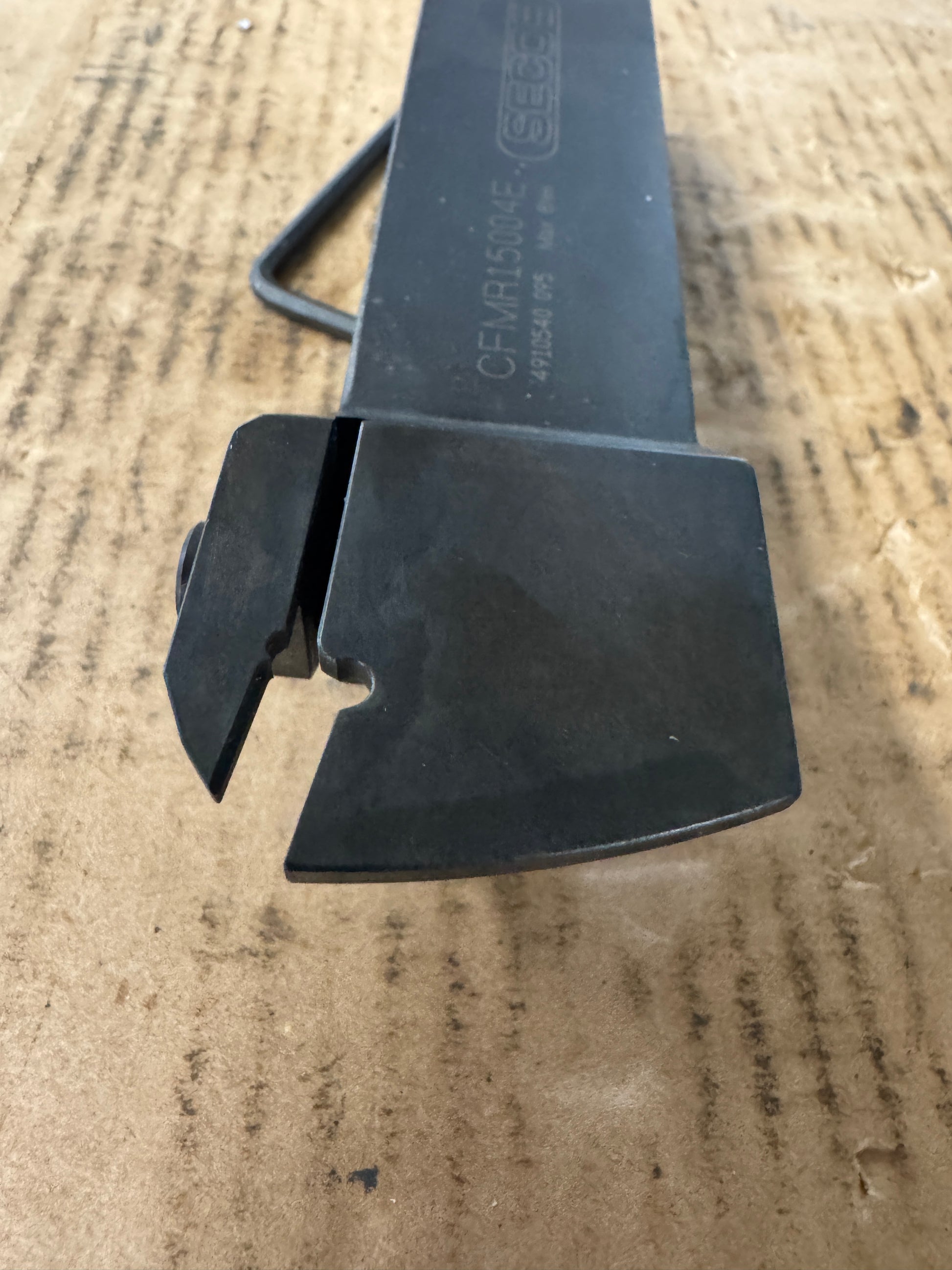

The Seco Tools CFMR15004E is an indexable MDT (Multi-Directional Turning) grooving and turning toolholder from Seco's CFMR series, designed for external grooving, profiling, turning, parting off, and threading operations on CNC lathes. The holder features a 1.5 In. square shank with a 1.5 In. shank height, compatible with LC series inserts using a 4 mm insert seat. Confirmed specifications sourced from manufacturer published data include a 7 In. functional length, 1.969 In. head length, 0.787 In. maximum cutting depth, and a 0.158 In. cutting width. The right-hand cutting orientation is stamped directly on the body alongside internal reference number 4918548 and the CFMR15004E designation. Seco's Secoloc clamping system uses a V-shaped top clamp with serrated contact surfaces between the insert underside and the holder body, providing rigid, repeatable insert positioning for multi-directional cutting passes. The black oxide steel body is a standard ANSI-coded format compatible with conventional lathe toolpost and quick-change setups sized for 1.5 In. square shanks. Seco Tools is a globally recognized premium manufacturer of metal cutting solutions headquartered in Fagersta, Sweden, and the CFMR series is a widely stocked platform in US industrial machining operations. Compatible insert family: LC..1604 series.

Stock # 0426-01382
