SEW-Eurodrive Gearmotor S37DRE80M4 - 1 HP 900 RPM
SEW-Eurodrive Gearmotor S37DRE80M4 - 1 HP 900 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

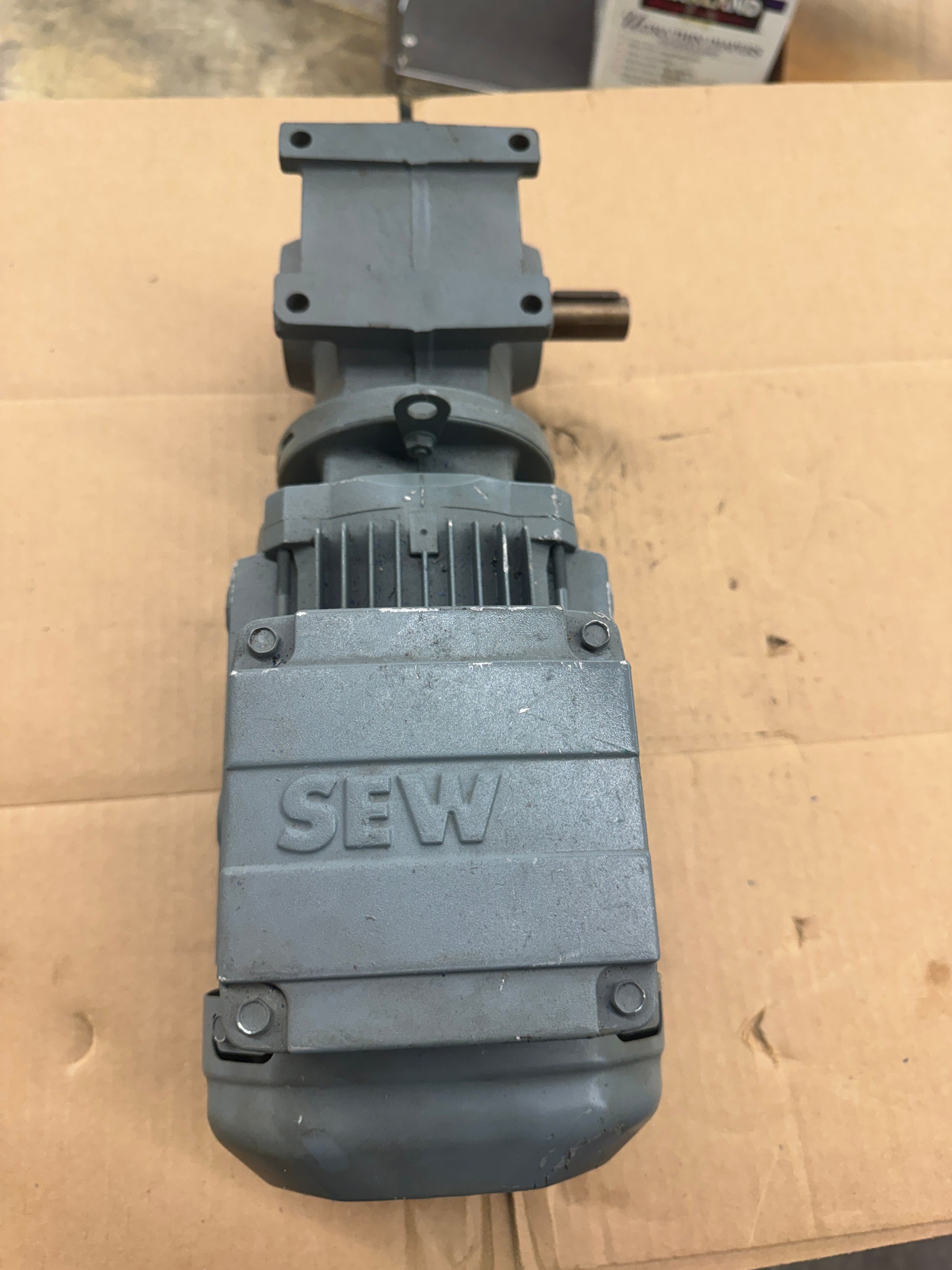

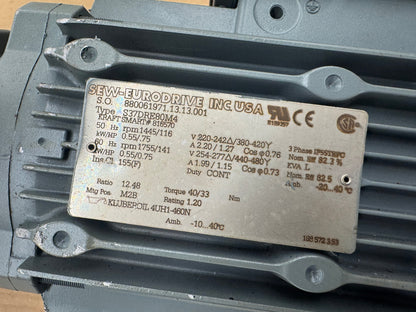

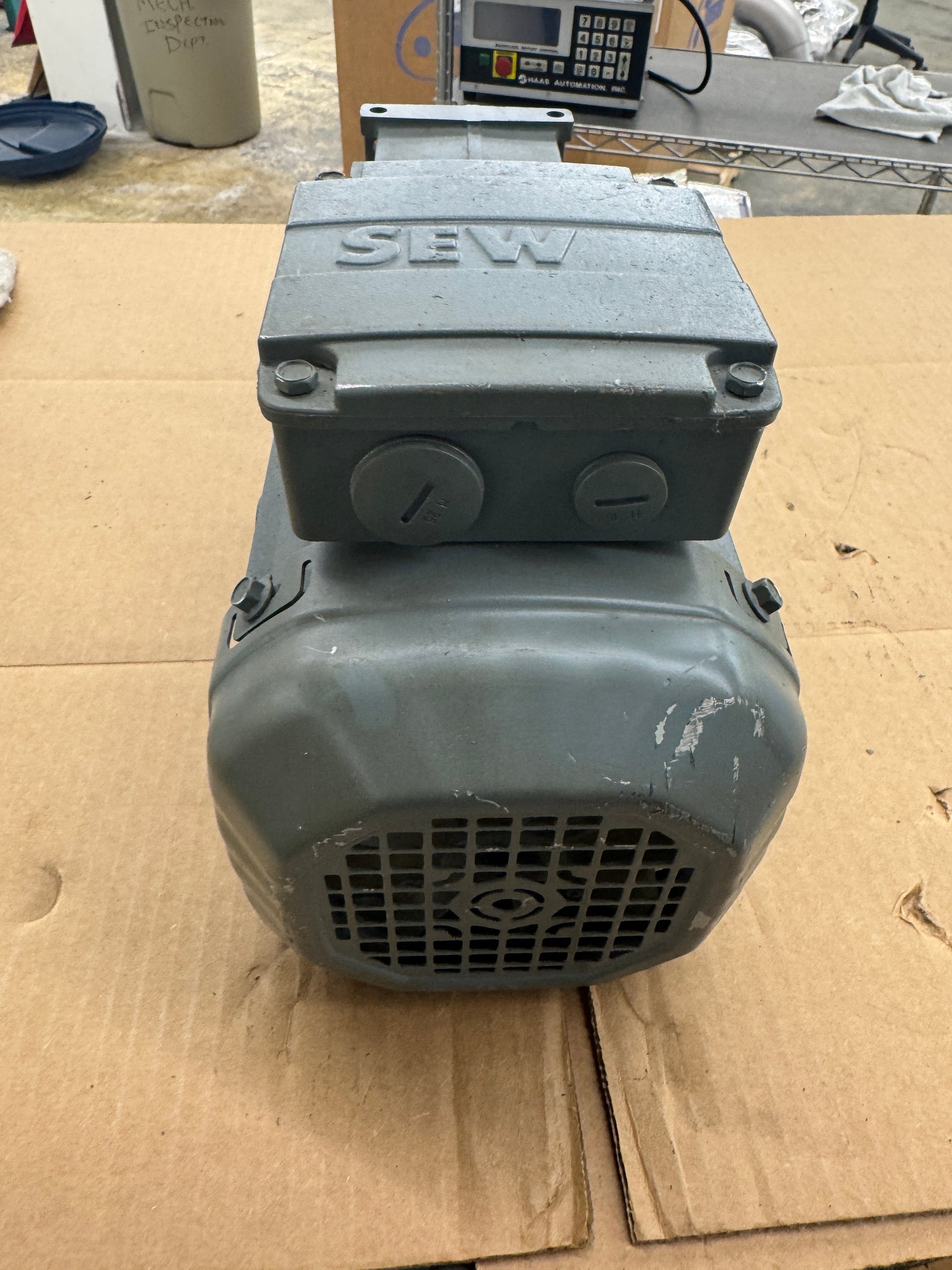

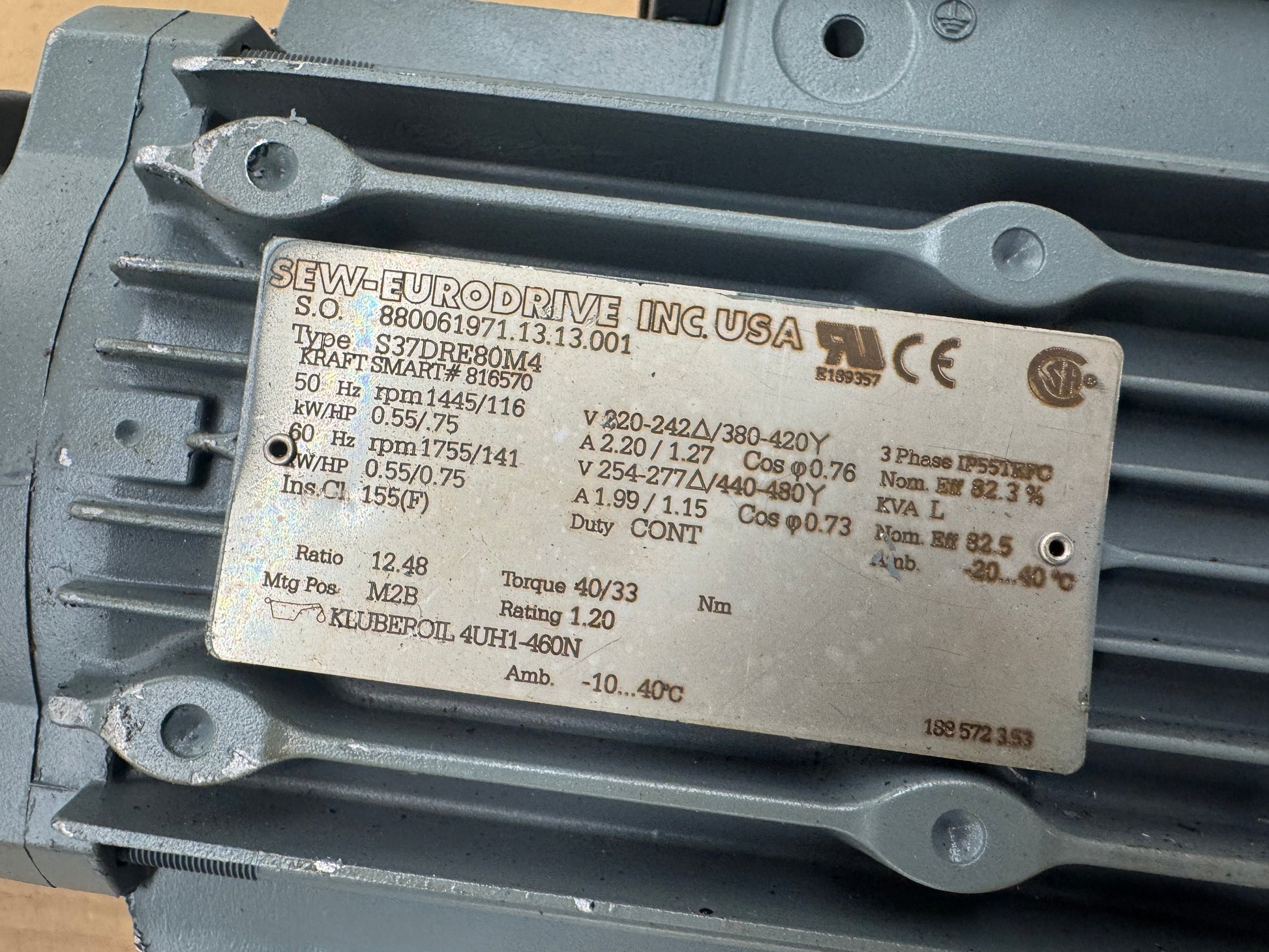

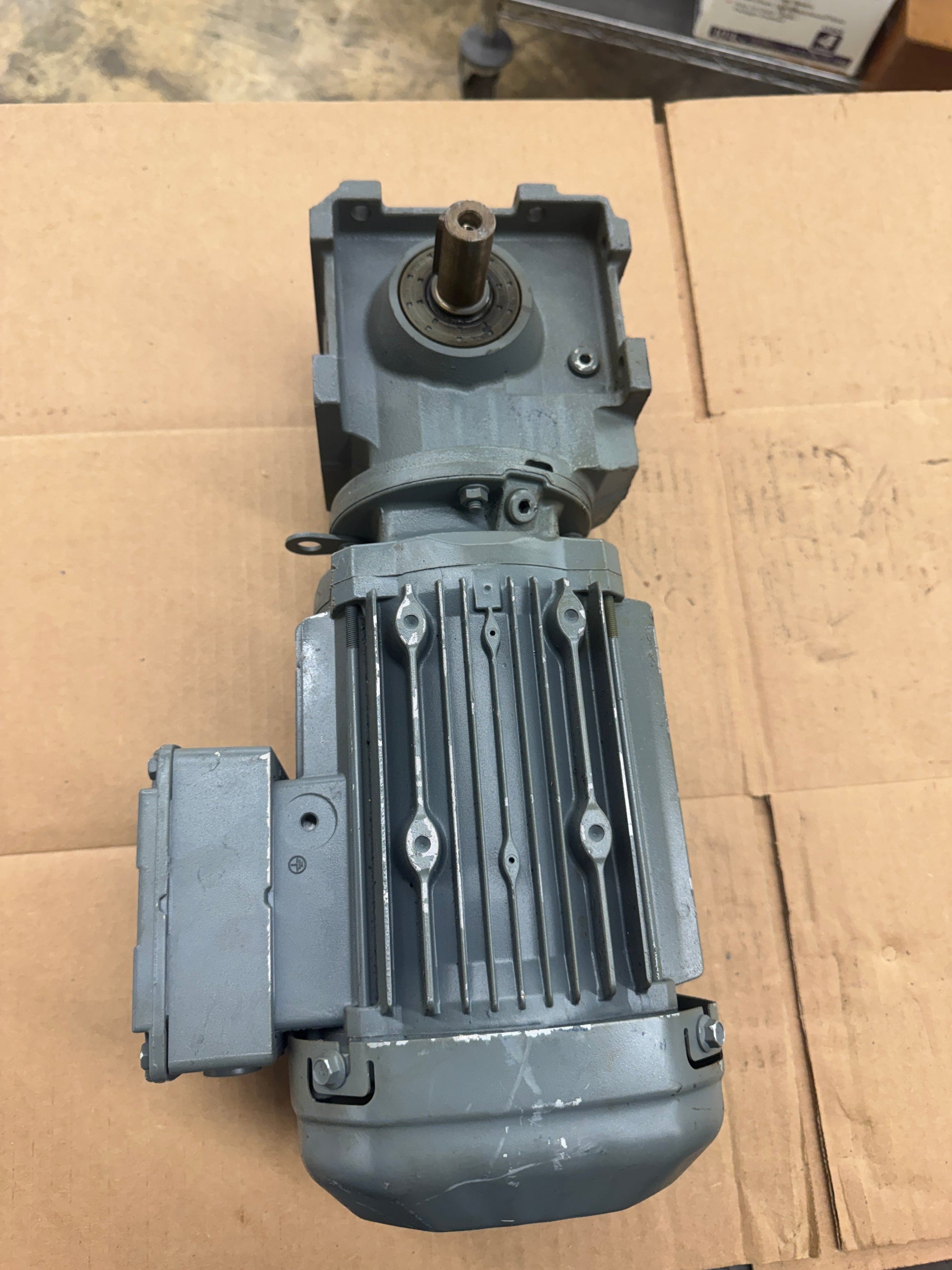

The SEW-Eurodrive S37DRE80M4 is a right-angle worm gearmotor combining an IEC 80M frame induction motor with an S-series worm gearbox in a single integrated assembly. The motor section is rated 0.55 kW at 50 Hz and 0.75 kW (1 HP) at 60 Hz, operating on three-phase power. At 60 Hz, input speed is 1755 RPM with a nameplate output speed of approximately 141 RPM based on the confirmed gear ratio of 12.48. Voltage configuration is 254 to 277V delta or 440 to 480V star at 60 Hz, with full-load current of 1.99A (delta) or 1.15A (star). Insulation class is 155 (F), duty rating is CONT, and enclosure is IP55 TEFC. Power factor is 0.73 at 60 Hz with nominal efficiency of 82.5%. Output torque is rated at 33 Nm. Mounting position is M2B per the nameplate. The gearbox is lubricated with Kluberoil 4UH1-460N food-grade gear oil, ambient temperature range is -10 to 40 degrees C for the gearbox section. The unit carries UL and CE marks and is rated for operation down to -20 degrees C per the motor section. The S.O. number on the nameplate is 880061971.13.13.001 and the KraftSmart reference number is 816570. The assembly is suited for conveyors, packaging equipment, food processing lines, and other continuous-duty applications requiring a compact right-angle drive.
Stock # 0326-879
