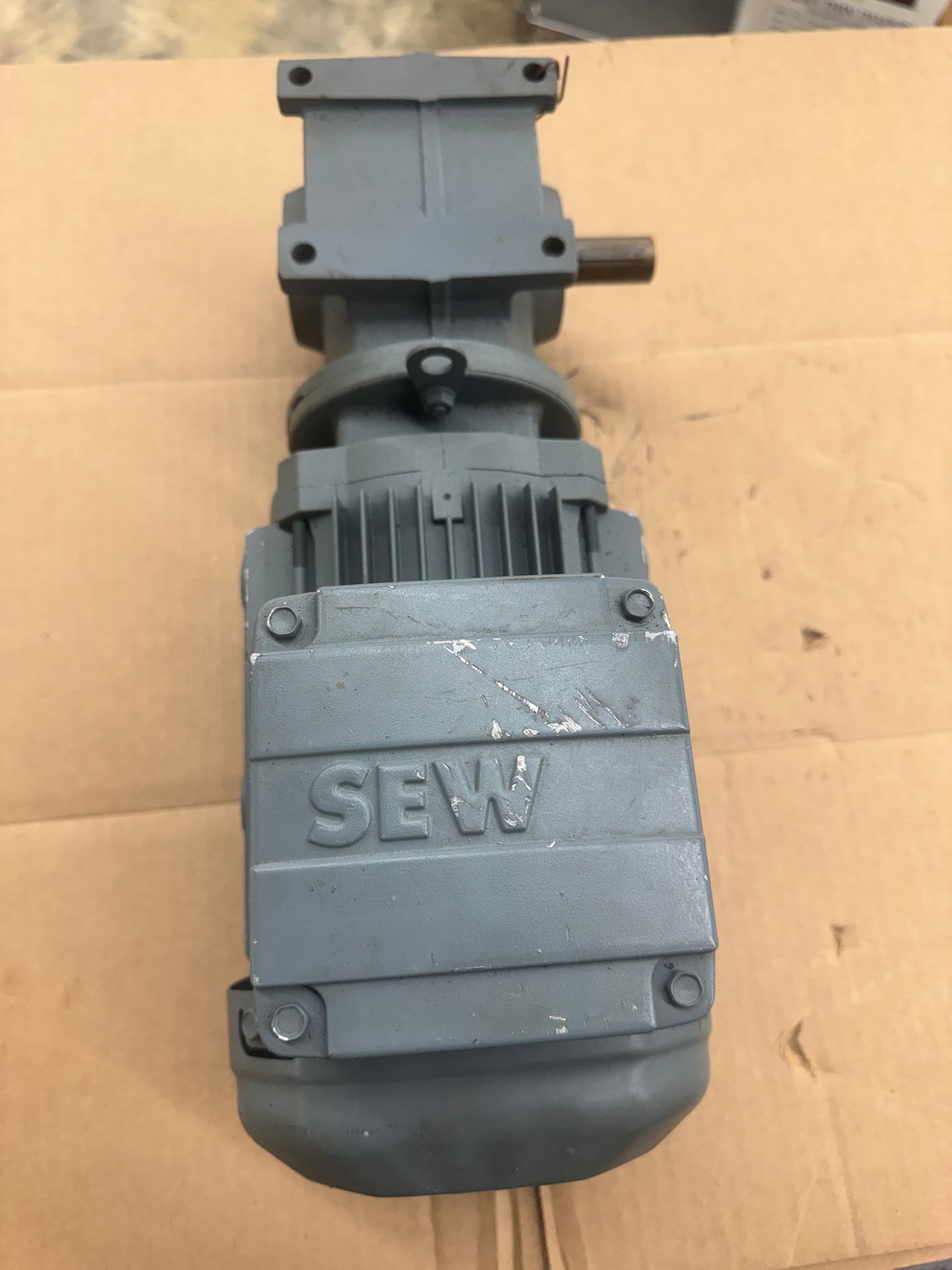

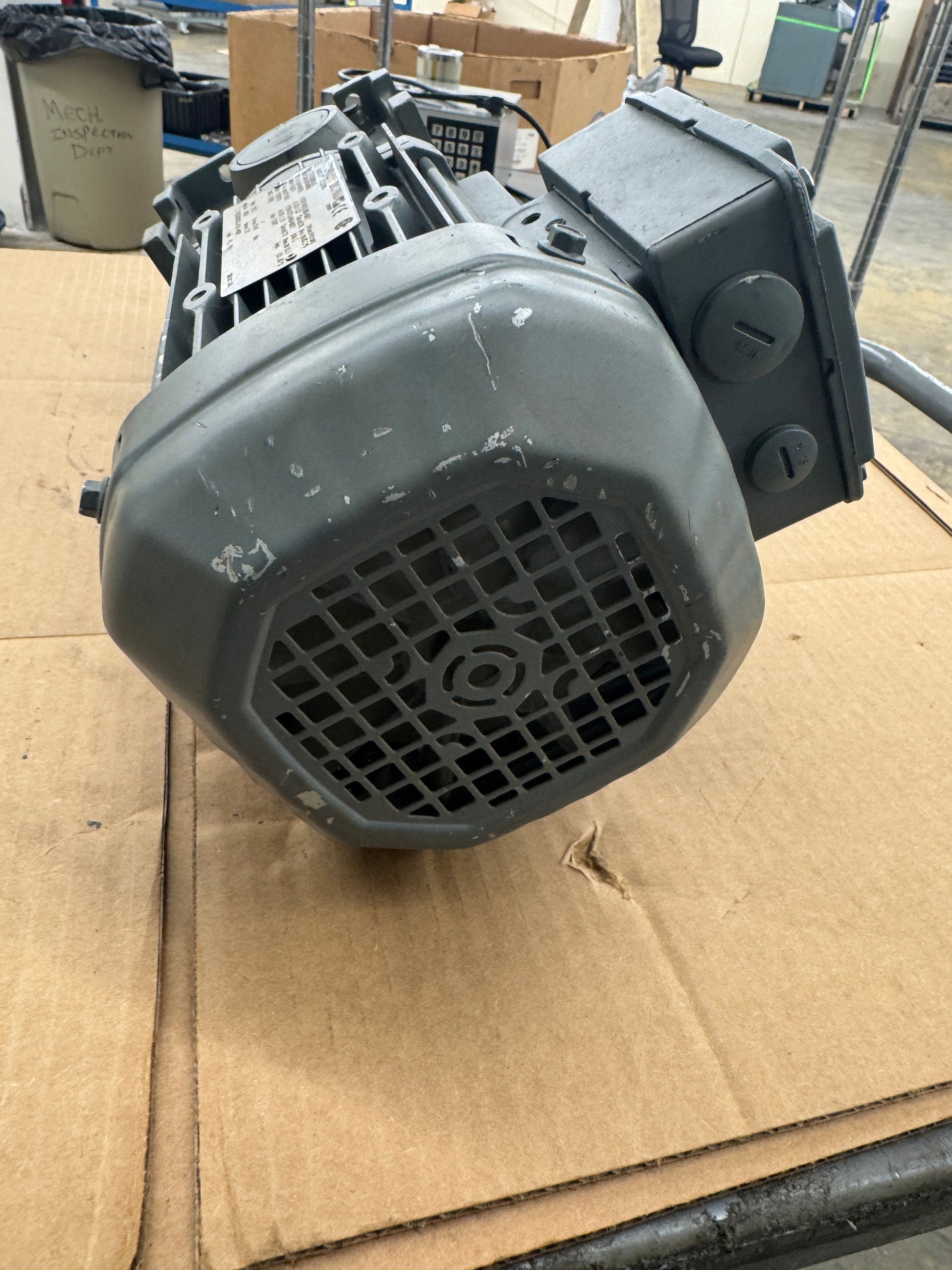

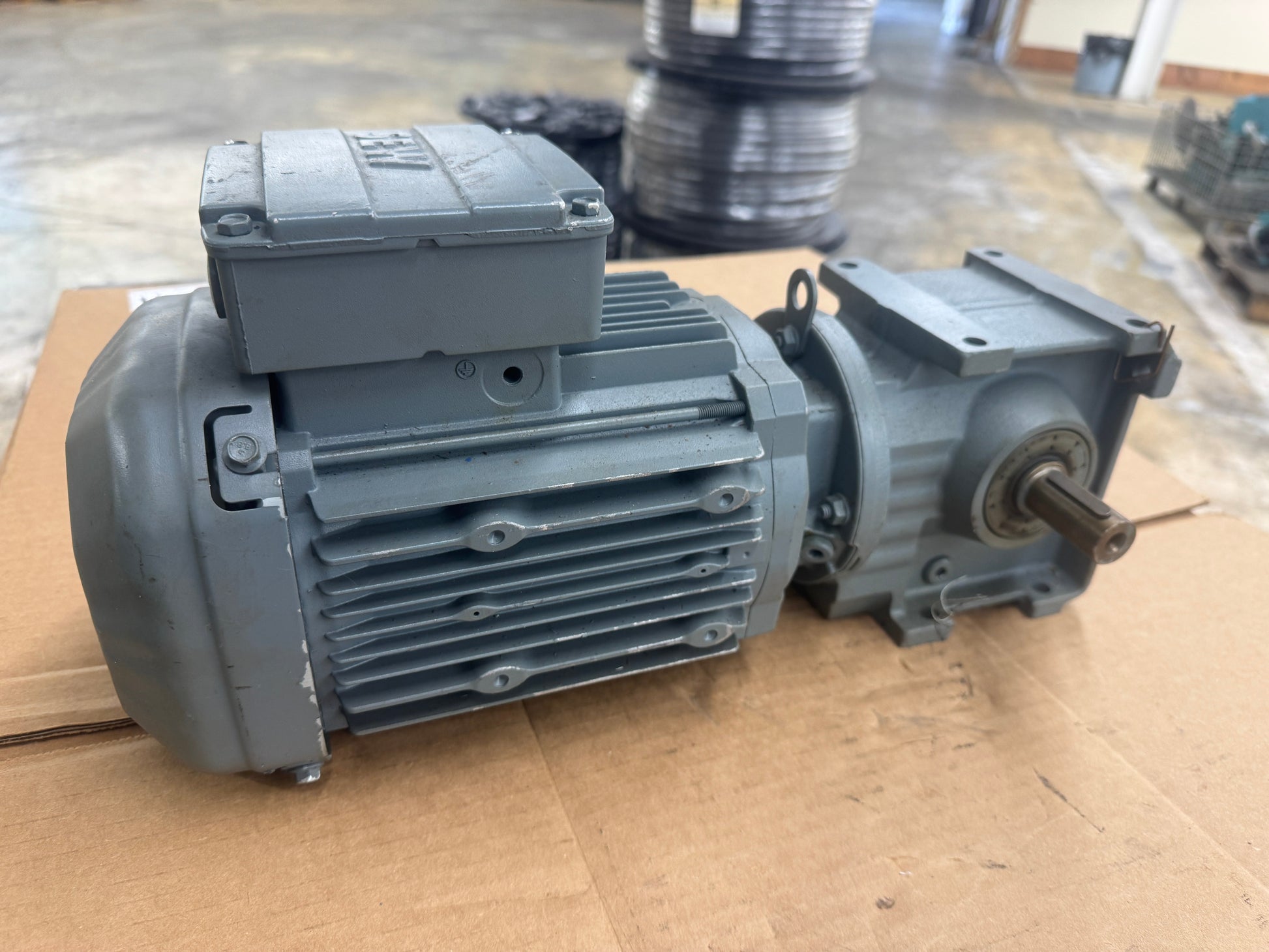

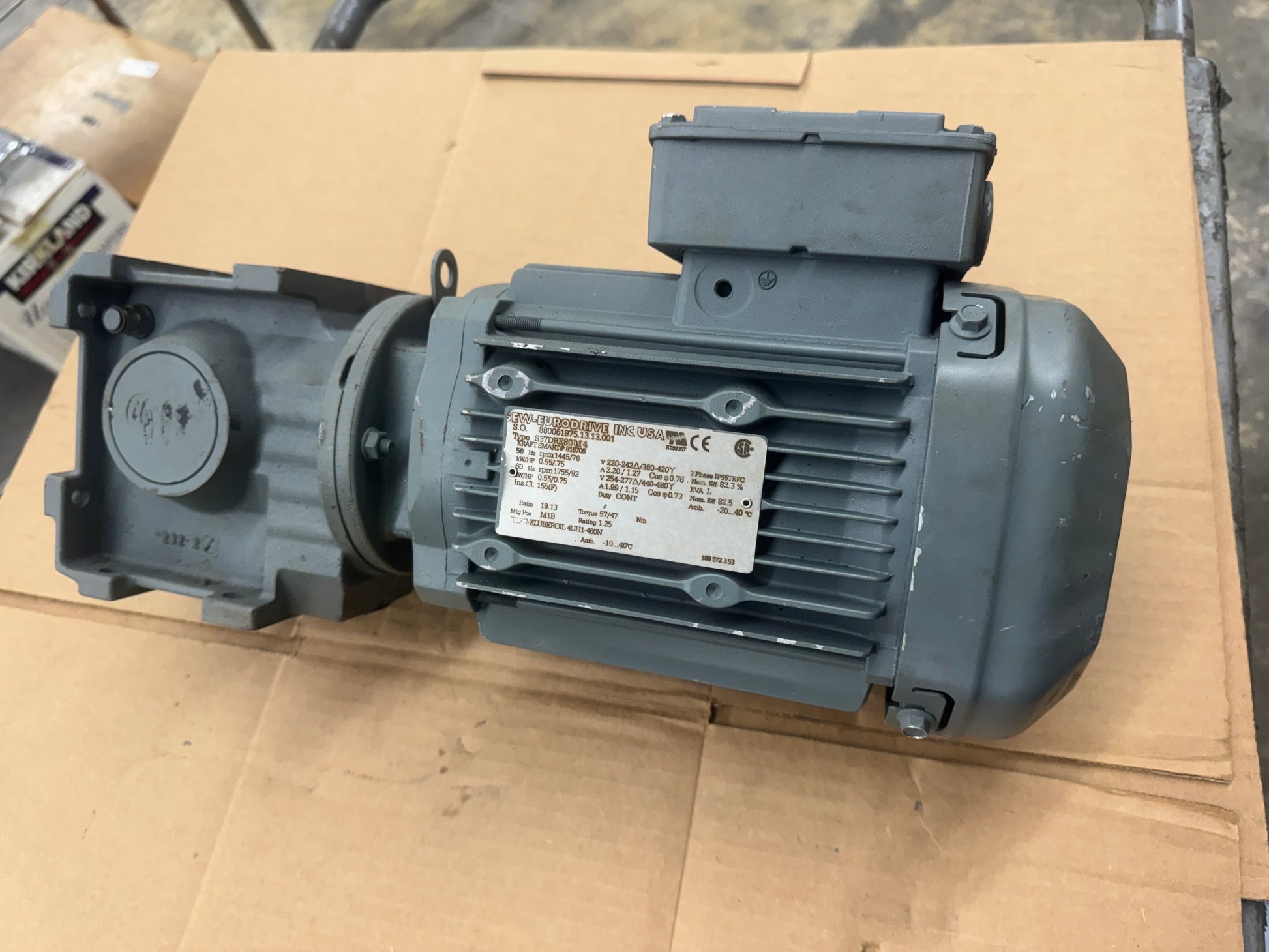

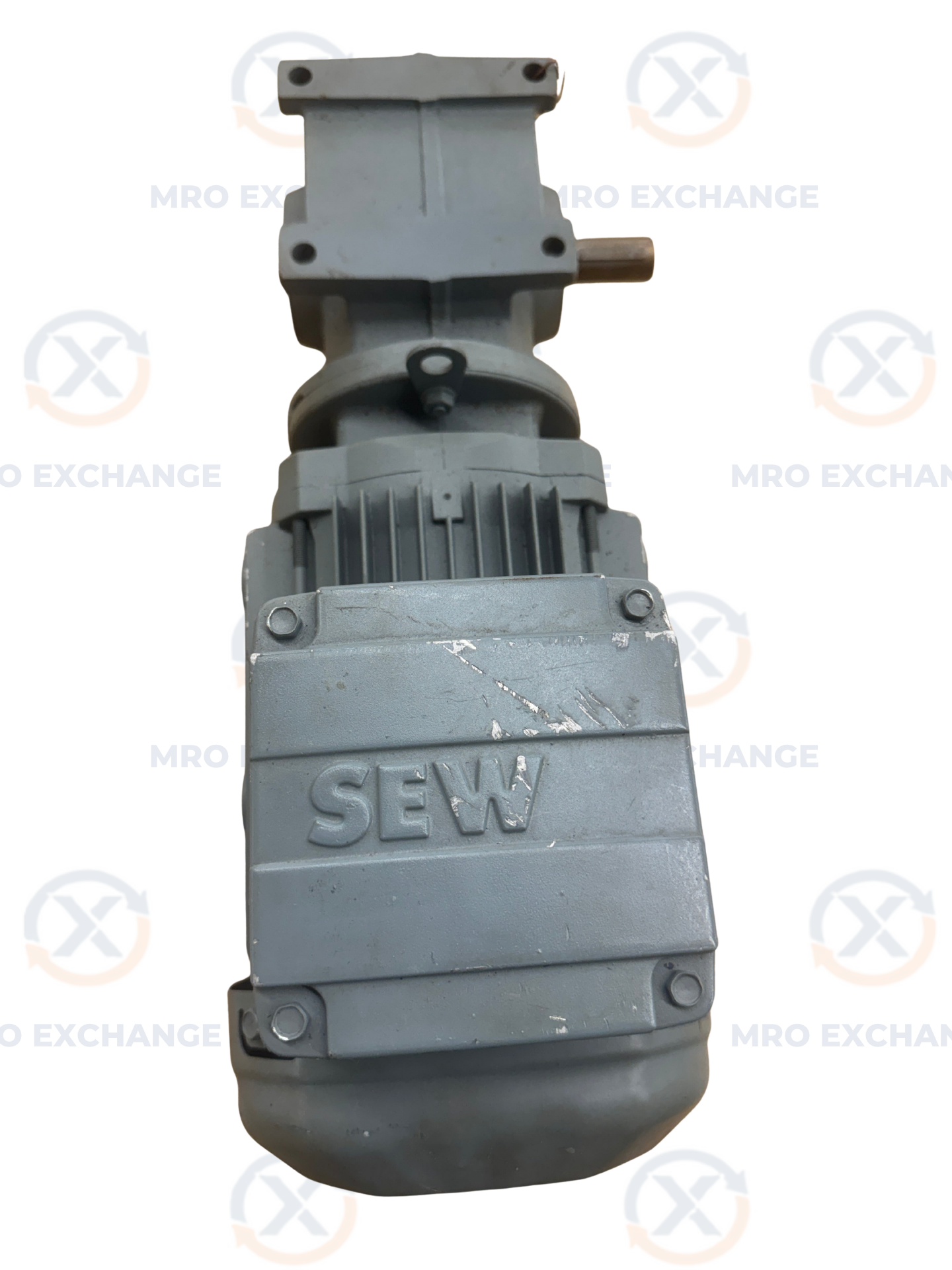

SEW-Eurodrive Helical-Worm Gearmotor S37DRE80M4 - 1 HP 1800 RPM m00877

$379.00 USD

Sale Sold out

ConditionSurplus - Untested MPNS37DRE80M4 Stock #0326-00877

Photos reflect current condition. Items differing from description may be eligible for return or refund — see our condition guide.

Shipping Estimate

Estimated package weight: 30.0 lbs

Select your state above for a shipping estimate.

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

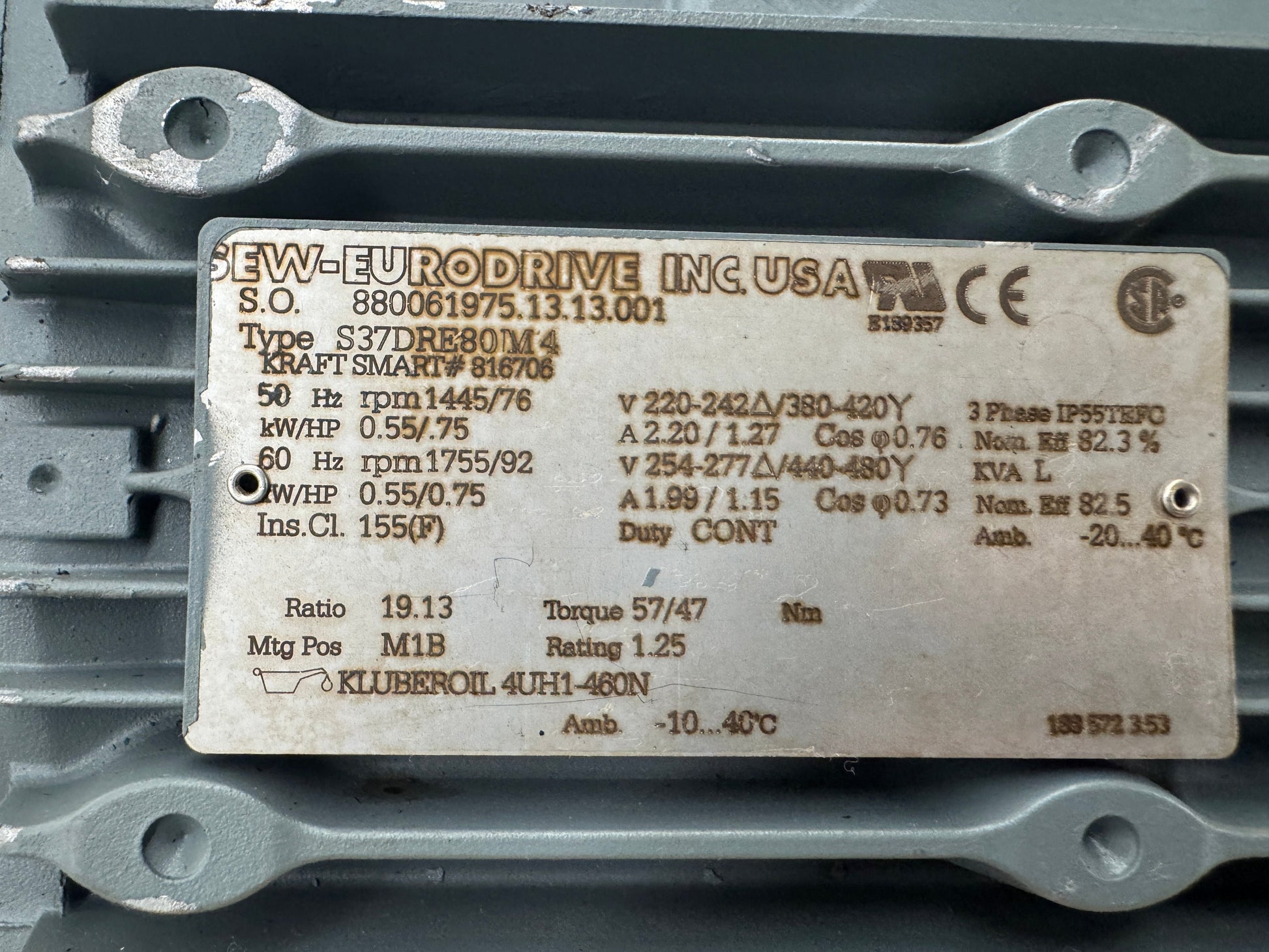

A compact helical-worm gearmotor from SEW-Eurodrive, the S37DRE80M4 combines an S37 series helical-worm gear unit with a DRE80M4 three-phase AC motor in a single integrated assembly. The unit is rated 0.55 kW (0.75 HP) at continuous duty and carries a nameplate gear ratio of 19.13:1, yielding an output speed of approximately 92 RPM at 60 Hz. Input speed at 60 Hz is 1755 RPM, and the motor is rated for 3-phase operation at 254 to 277 V delta or 440 to 480 V wye, drawing 1.99 A delta and 1.15 A wye. At 50 Hz the unit operates at 1445 RPM input and 76 RPM output on a 220 to 242 V delta or 380 to 420 V wye supply. Output torque is rated 57 Nm at 50 Hz and 47 Nm at 60 Hz. Insulation class is 155 (F), protection rating is IP55 TEFC, and the assembly carries UL and CE marks. Mounting position is M1B. The gear unit is lubricated with Kluberoil 4UH1-460N food-grade oil. Ambient operating range spans minus 20 to plus 40 degrees C. Sales order number 880061975.13.13.001 is stamped on the nameplate alongside Kraft Smart number 816706. The right-angle output shaft configuration makes this unit well suited for conveyor drives, packaging machinery, and material handling systems requiring a compact low-speed drive solution.

Stock # 0326-877
