SEW-Eurodrive Helical-Worm Gearmotor S37DRE80M4 - 1 HP 1800 RPM
SEW-Eurodrive Helical-Worm Gearmotor S37DRE80M4 - 1 HP 1800 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: S37DRE80M4
Stock #: 0326-00887

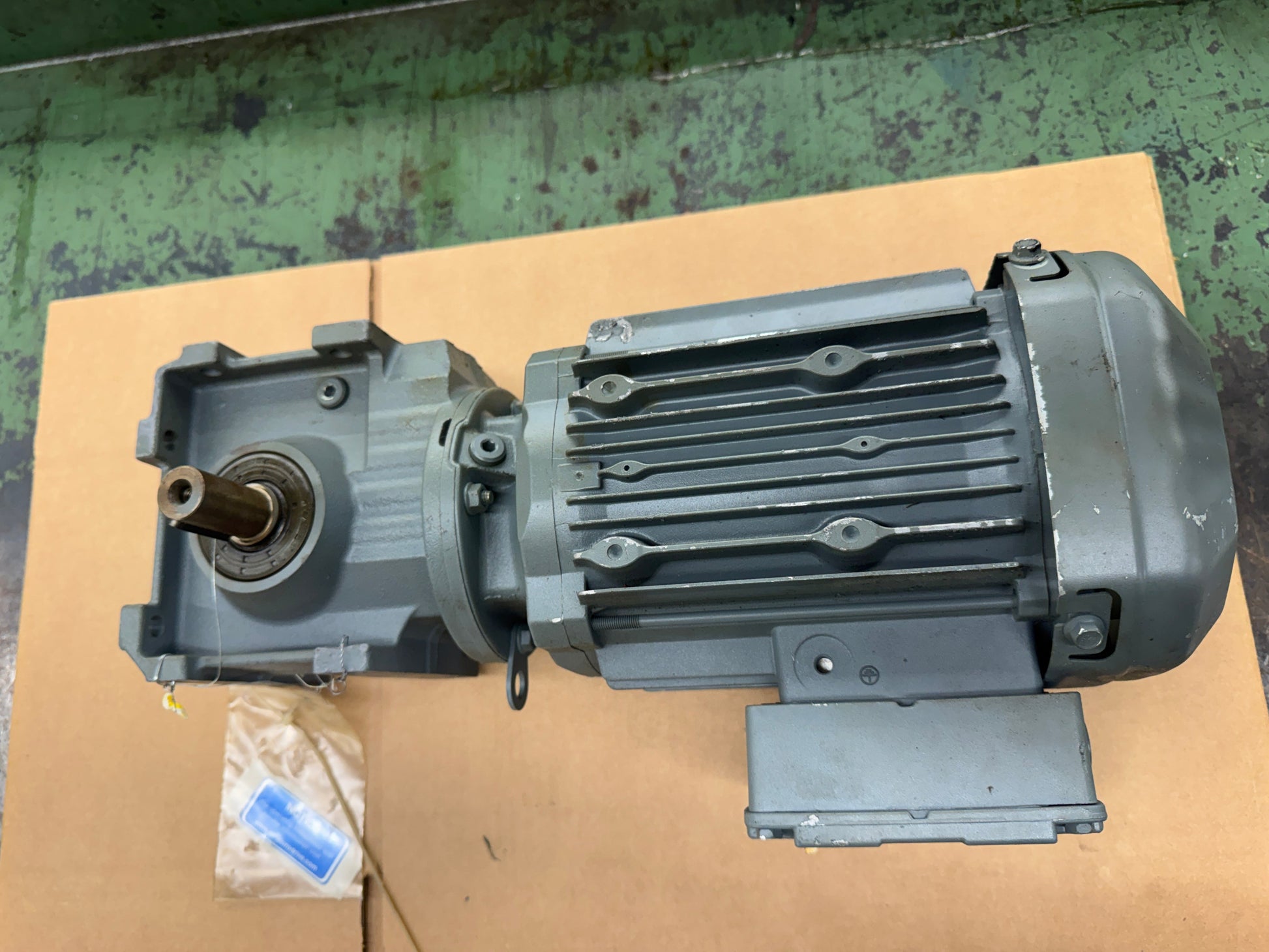

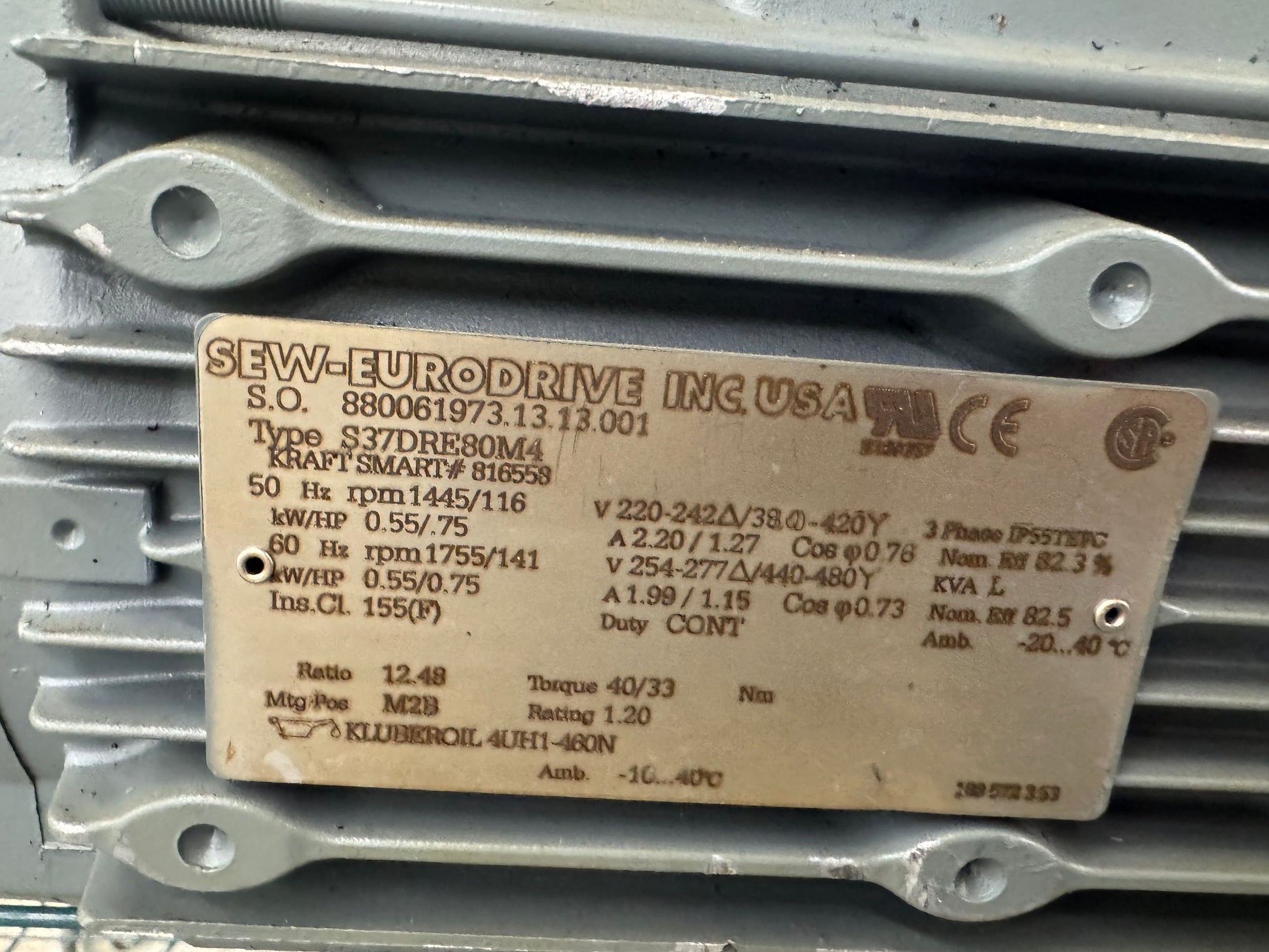

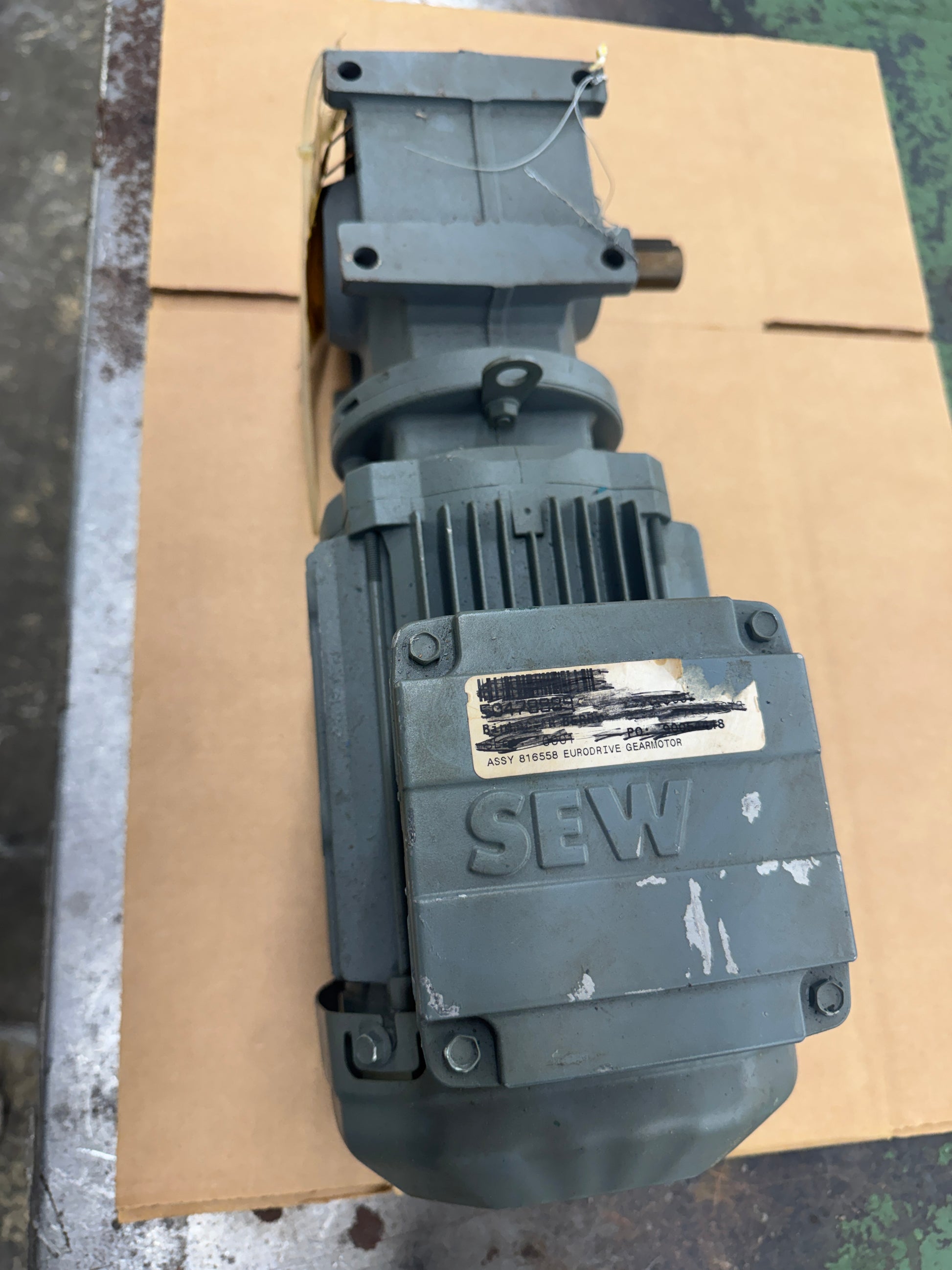

The SEW-Eurodrive S37DRE80M4 is a helical-worm gearmotor combining an S37 helical-worm gear unit with a DRE80M4 three-phase AC motor in a compact right-angle configuration. The motor section is rated at 0.75 kW / 1 HP at both 50 Hz and 60 Hz, with nameplate voltage options of 220-242V delta / 380-420V Y and 254-277V delta / 440-480V Y. At 60 Hz, the motor runs at 1755 RPM with full-load current of 1.99 A (high voltage) and 1.15 A (low voltage). The integral gear unit carries a 12.48:1 reduction ratio, yielding an output speed of approximately 141 RPM at 60 Hz. Output torque is rated at 40 Nm nominal and 33 Nm continuous per nameplate. The enclosure is rated IP55 TEFC with insulation class F (155°C), and the unit is designed for continuous duty (CONT) in an ambient temperature range of -20 to 40°C. Mounting position is M2B (foot mount). The unit carries UL, CE, and CSAe certifications as shown on the nameplate, and is manufactured by SEW-Eurodrive Inc USA. Lubricated with Kluberoil 4UH1-460N per nameplate specification. The S.O. number is 880061973.13.13.001, and the Kraft Smart assembly number is 816558.
Stock # 0326-887
