SICK CLV650-6120 Barcode Scanner 18-30V DC Untested Surplus
SICK CLV650-6120 Barcode Scanner 18-30V DC Untested Surplus
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Inspected Surplus - Appears Unused
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: CLV650-6120
Stock #: 0626-01434
Product Specifications
- Manufacturer: SICK
- MPN / Model: CLV650-6120
- Part Number: 1042125
- Product Type: Fixed-Mount Line Barcode Scanner
- Scan Technology: Oscillating Mirror
- Supply Voltage: 18 to 30 VDC
- Power Consumption: 9.5W Maximum
- Peak Current: 800 mA
- Laser Class: Class 2, Red, 658 nm
- Maximum Laser Output: 7.0 mW
- Average Laser Power: Below 1.0 mW
- Scanning Frequency: 600 to 1,000 Hz
- Code Resolution: 0.25 mm to 1 mm
- Maximum Reading Distance: 1,570 mm
- Connectivity: Ethernet, Rotatable M12 Connector
- Enclosure Rating: IP65
- Software Version: 5.40 (Reference 9 218 614)
- Serial Number: 1503 0380
- Manufacture Date: January 2015
- Country of Origin: Germany
- Certifications: CE, UL
Product Description

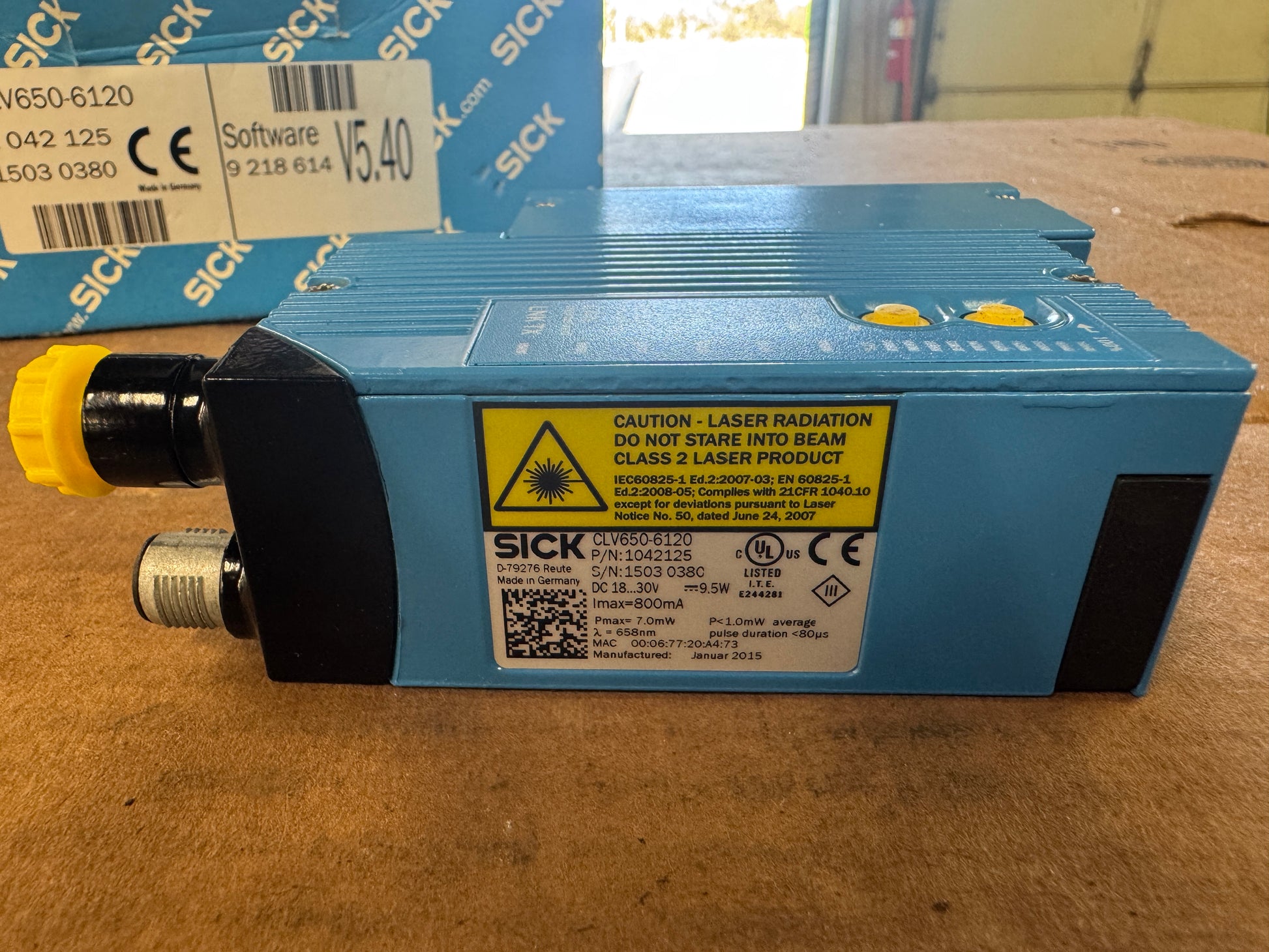

The SICK CLV650-6120 is a fixed-mount line barcode scanner with an oscillating mirror design, assigned part number 1042125 and carrying CE and UL marks. It operates on a DC supply ranging from 18 to 30 volts at 9.5 watts maximum, with a peak current draw of 800 mA. The scanner uses a Class 2 red laser at 658 nm wavelength, with a maximum output of 7.0 mW and an average power below 1.0 mW. Connectivity is provided through a rotatable M12 connector configuration supporting Ethernet, and the unit carries an IP65 enclosure rating.

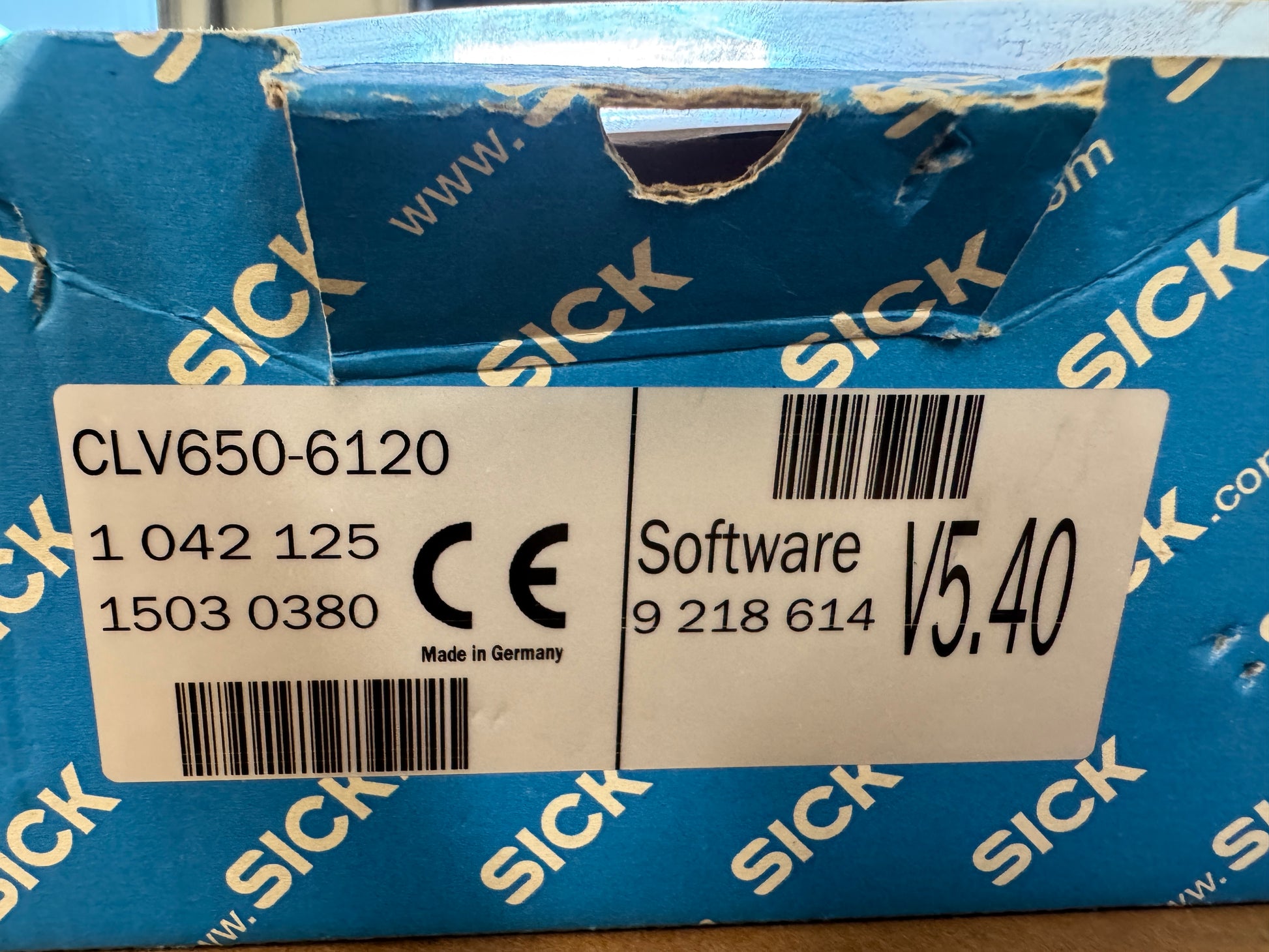

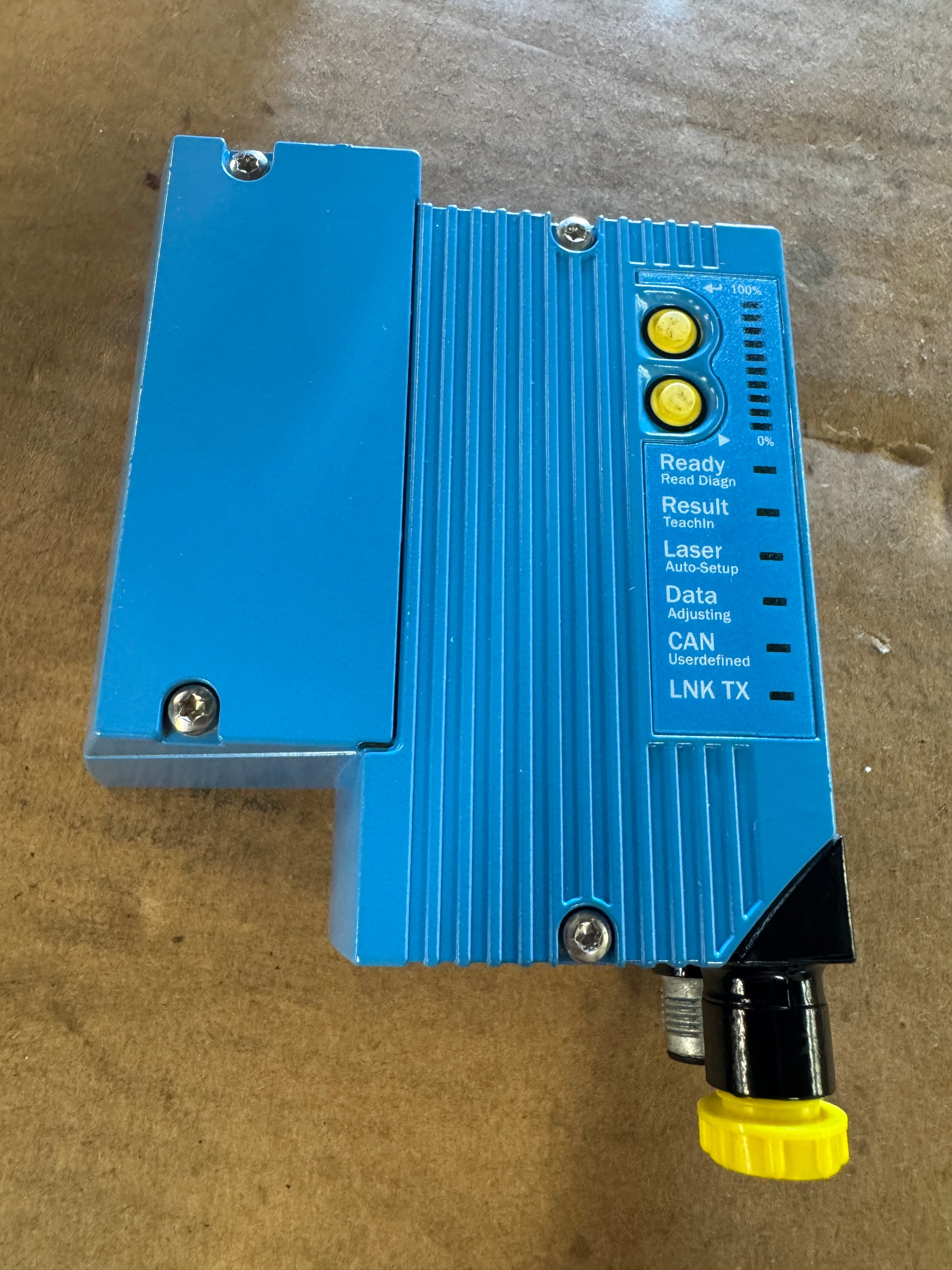

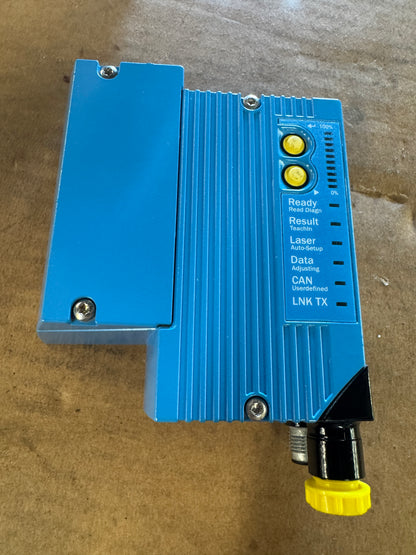

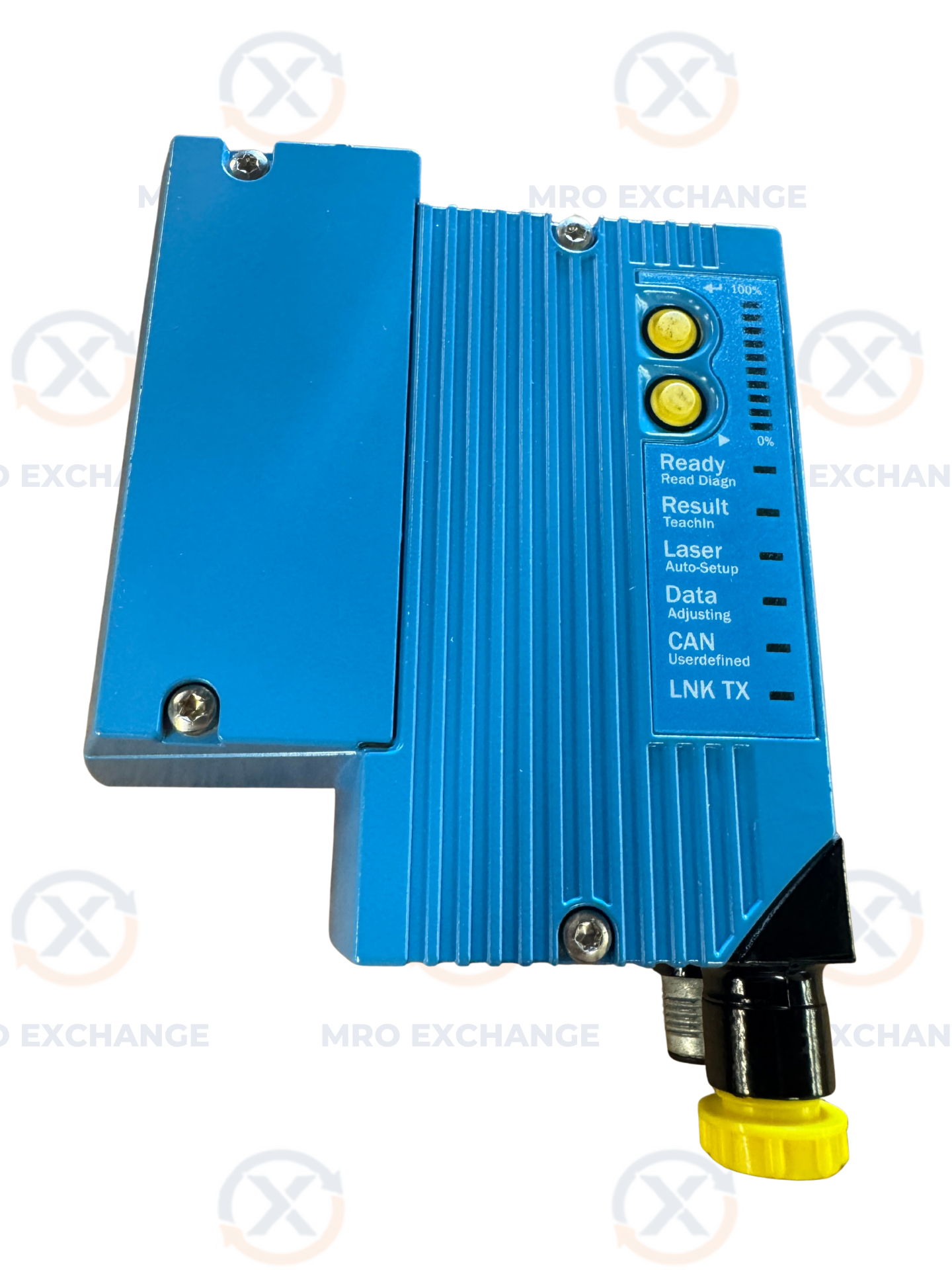

The CLV650 series is designed for side-window reading applications and incorporates an auto-focus optical system with oscillating mirror technology, supporting a scanning frequency range of 600 to 1,000 Hz and code resolutions from 0.25 mm to 1 mm. Reading distance extends up to 1,570 mm. This unit was manufactured in January 2015 in Germany, serial number 1503 0380, and runs Software Version 5.40 (software reference 9 218 614). Status indicator LEDs labeled Ready, Result, Laser, Data, CAN, and LNK TX are present on the housing, plus two yellow pushbuttons for setup functions.
