Siemens 1FK7063-2AF71-1RG0 2 kW 3000 RPM Servo Motor
Siemens 1FK7063-2AF71-1RG0 2 kW 3000 RPM Servo Motor
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

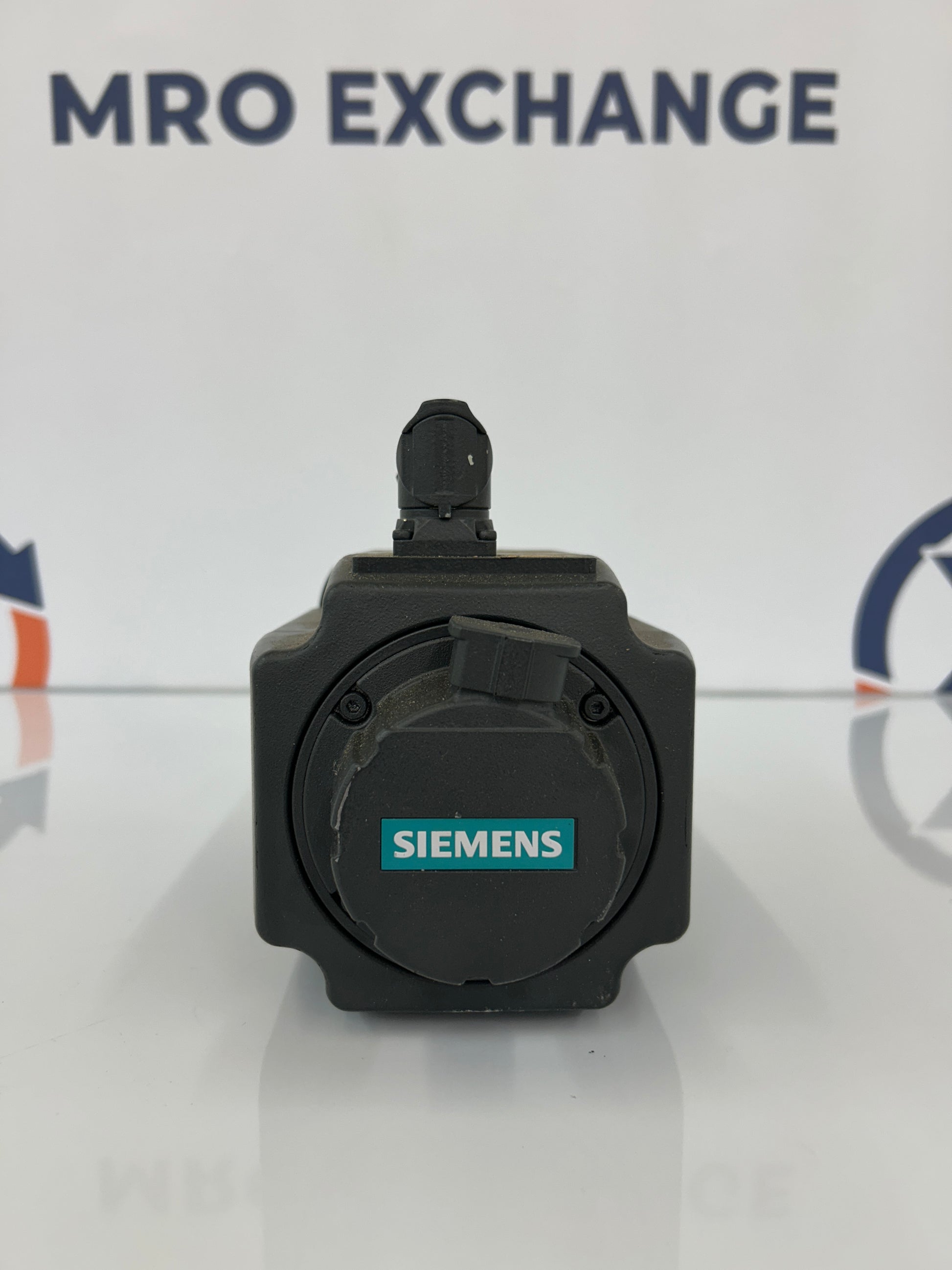

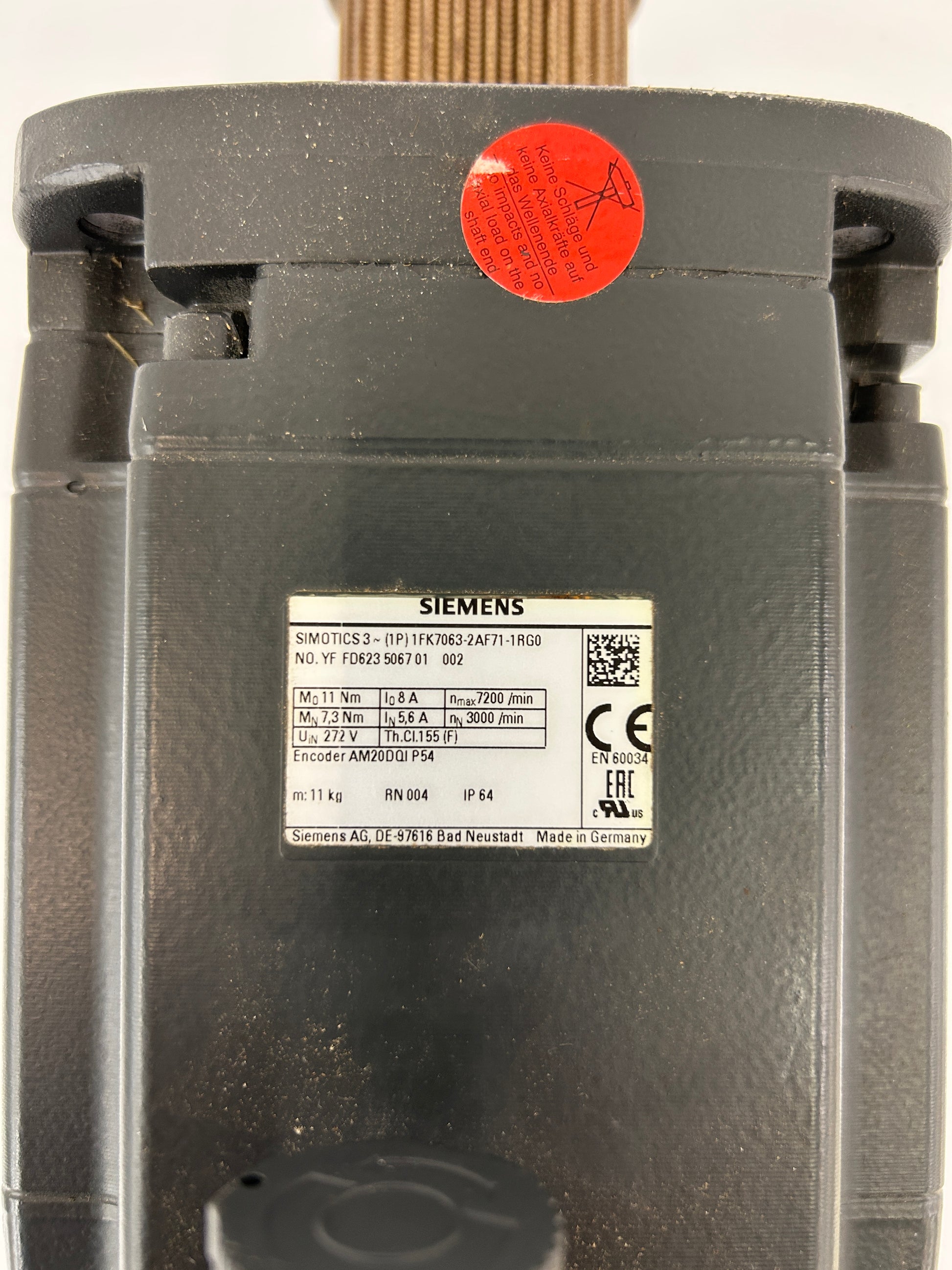

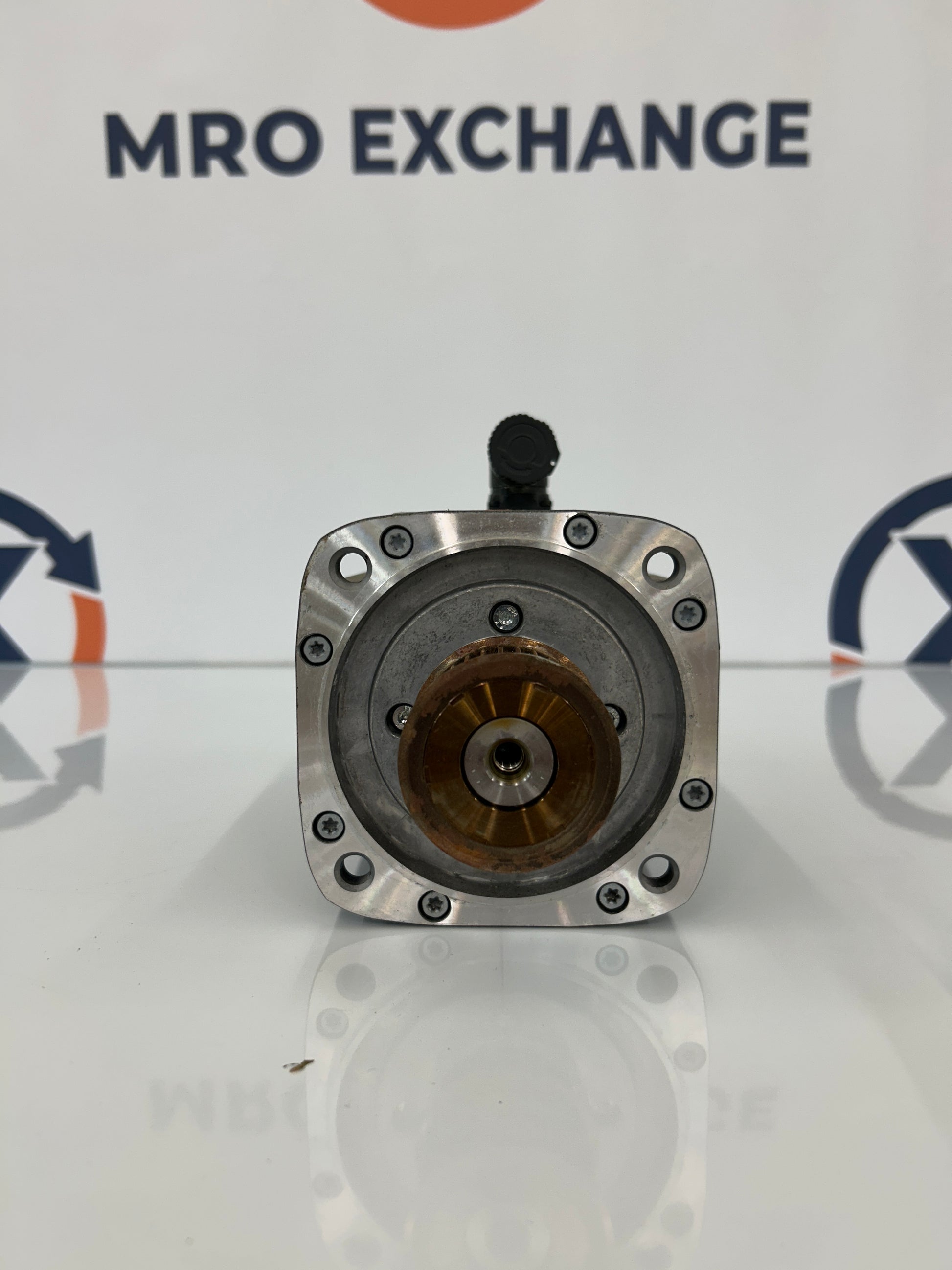

The Siemens 1FK7063-2AF71-1RG0 is a SIMOTICS S 1FK7 series compact synchronous AC servo motor with a 63 mm shaft height and 126 x 126 mm flange mounting. Rated output is 2.3 kW with a rated torque (MN) of 7.3 Nm and stall torque (M0) of 11 Nm. Rated current (IN) is 5.6 A with a stall current (I0) of 8 A, and the motor operates from a DC link voltage (UIN) of 272 V. Rated speed (nN) is 3000 RPM with a maximum speed (nmax) of 7200 RPM. The thermal class is 155 (F) with natural cooling. The motor is fitted with an AM20DQI multi turn absolute encoder (20 bit, 8 bit per turn x 4096 turns) with a P54 protection class on the encoder, and the overall motor housing is rated IP64. Construction includes rare earth permanent magnets for the rotor. Mass is 11 kg. Markings include CE, EAC, and cULus (UL recognized). Nameplate data: SIMOTICS 3, Serial Number YF FD623 506701 002, RN 004. Manufactured by Siemens AG in Bad Neustadt, Germany. Applications include CNC machine tool feed axes, robotics, packaging machinery, and general motion control systems requiring high dynamic response with absolute position feedback. Compatible with Siemens SINAMICS S120 drive systems.
Stock # 0226-053
