Siemens 1FT5132-0AF71-1-Z AC Brushless Servo Motor Variable 3000 RPM

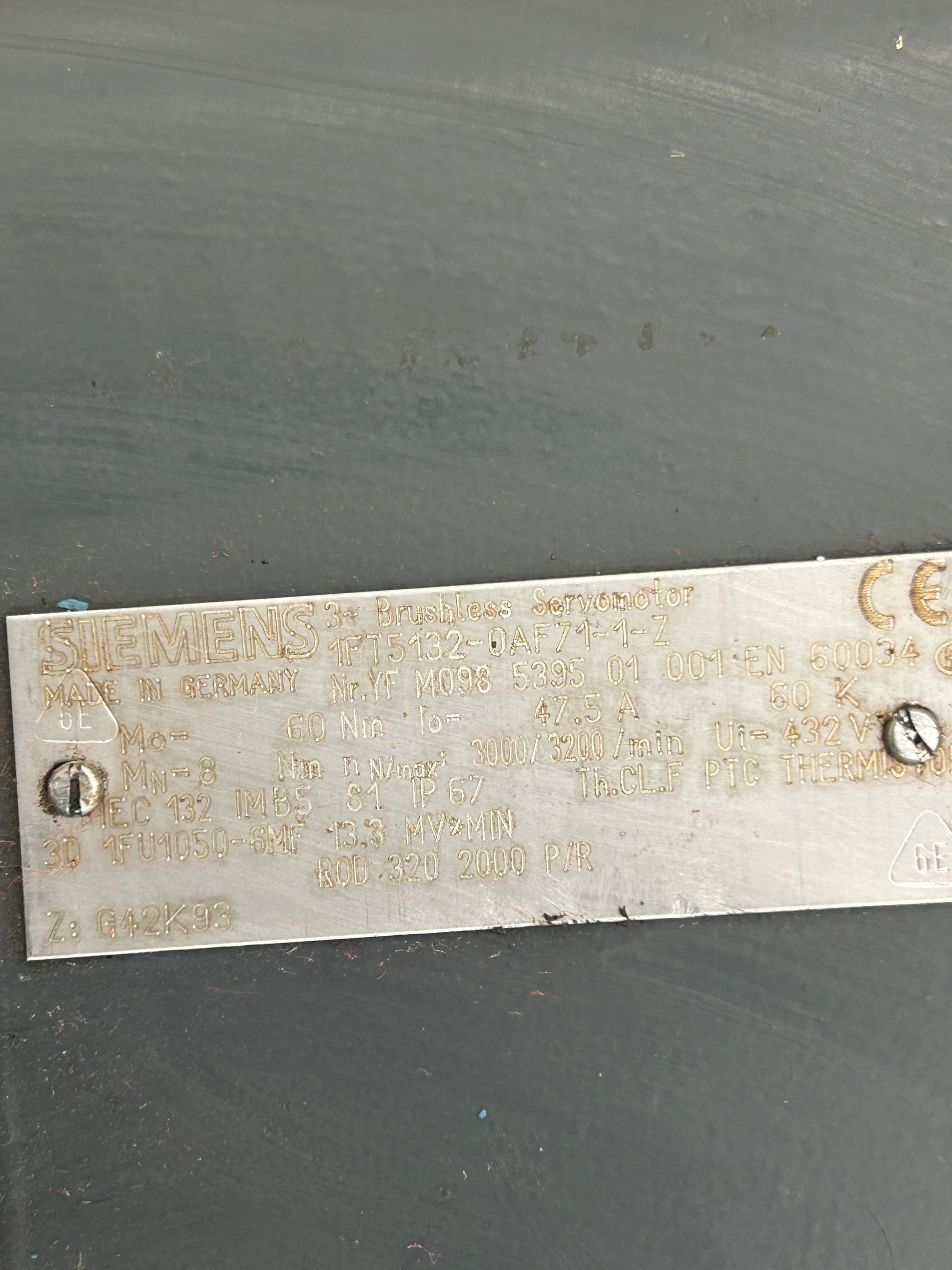

The Siemens 1FT5132-0AF71-1-Z is a three phase brushless AC servomotor manufactured in Germany and built to standard EN 60034. Frame size IEC 132 IMB5 places the motor in the upper mid range of the 1FT5 family, intended for high inertia, high torque axes on SIMODRIVE 610 and 611 series drive systems. Nameplate ratings include a stall torque (Mo) of 60 Nm, stall current (Io) of 47.5 A, rated speed of 3000/3200 RPM, induced voltage (Ui) of 432 V, nominal torque (Mn) of 8 Nm at n N/Nmax, and a temperature rise rating of 60 K. The unit carries an IP67 enclosure rating and thermal class F insulation with embedded PTC thermistor protection (Th.CL.F PTC THERMISTOR). Duty cycle is rated S1 for continuous operation. The motor is fitted with an integrated holding brake assembly identified as 1FU1050-6MF, rated 13.3 MV*MIN, and a ROD 320 incremental encoder with 2000 pulses per revolution for position feedback. Serial number Nr.YF M098 5395 01 001 is visible on the nameplate, along with manufacturing identifier Z: G42K93. The motor is configured for use as a feed or main axis drive on CNC machine tools, automation systems, and industrial production equipment built around the Siemens SIMODRIVE platform. The CE mark is present. Permanent magnet synchronous construction provides near constant continuous torque and overload capability across the full speed range when paired with a properly sized PWM converter.

Stock # 0226-100
