Siemens 6SL3210-1KE22-6AP1 Variable Frequency Drive 380-480V 3AC Untested Surplus
Siemens 6SL3210-1KE22-6AP1 Variable Frequency Drive 380-480V 3AC Untested Surplus
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 6SL3210-1KE22-6AP1
Stock #: 0626-01505
Product Specifications
- Manufacturer: Siemens
- MPN / Model: 6SL3210-1KE22-6AP1
- Product Type: Variable Frequency Drive (VFD)
- Product Family: SINAMICS G120C
- Input Voltage: 3AC 400-480V +/-10%, 33.3A
- Input Voltage (IEC): 3AC 380-480V +10%/-20%, 33.3A
- Output: 3AC 0 to Input V, 25A
- Frequency: 47-63 Hz
- Motor Rating: 15 HP / 11 kW
- Enclosure Rating: IP20
- Integrated Filter: Line Filter Class A
- Fieldbus: PROFIBUS-DP
- Version: A04 / V4.5
- Serial Number: XACD18-002663
- Country of Origin: United Kingdom
Product Description

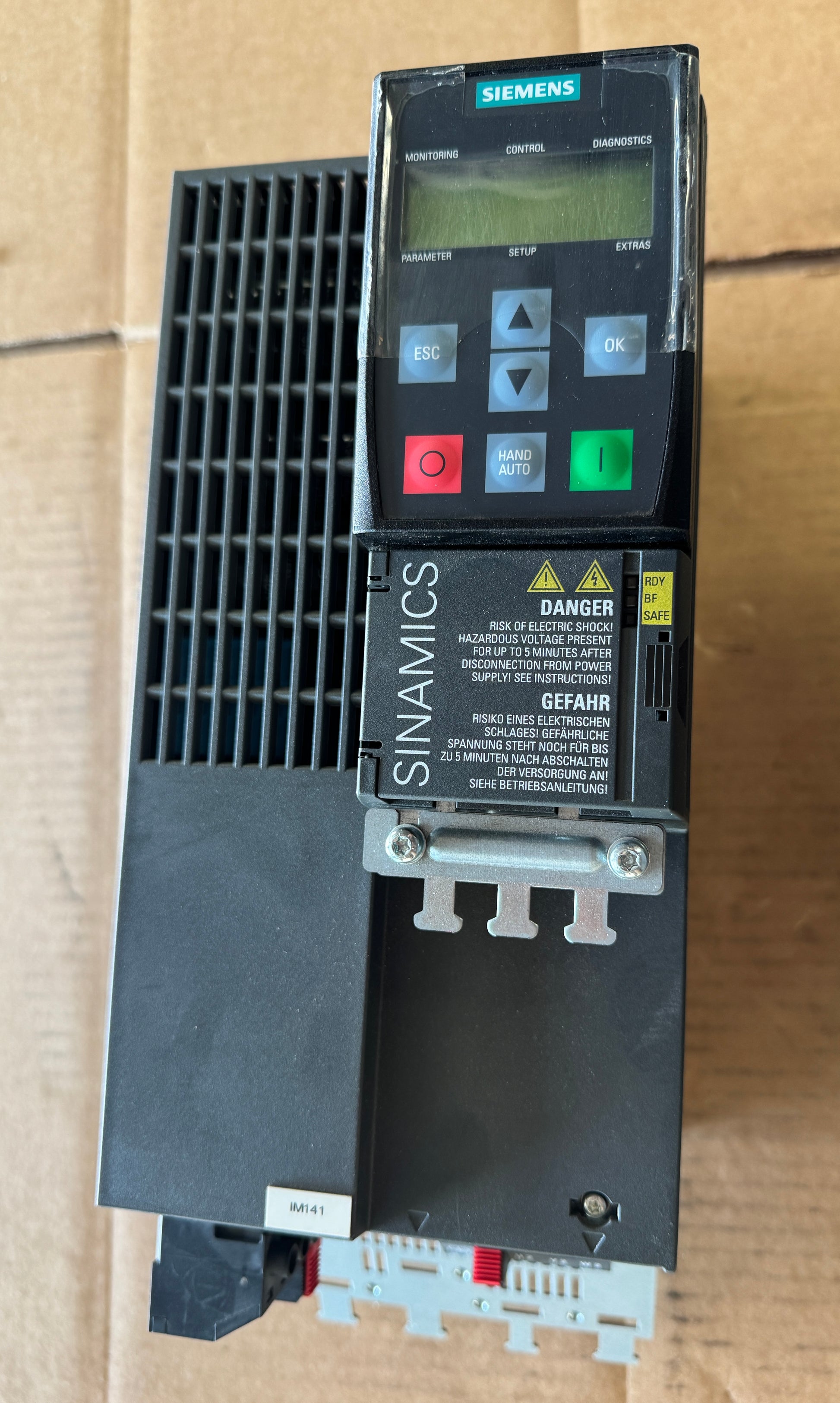

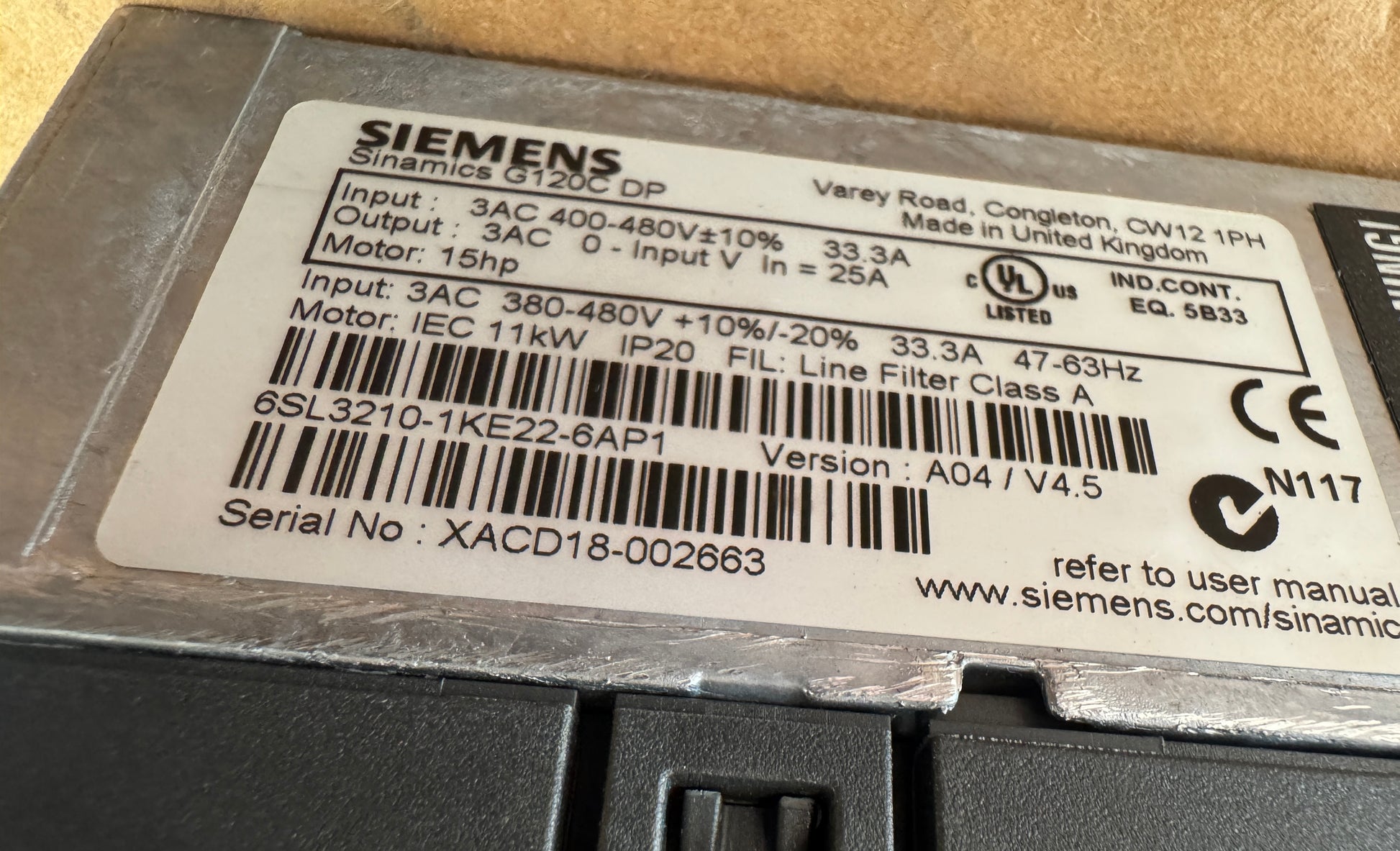

The Siemens SINAMICS G120C compact variable frequency drive, model 6SL3210-1KE22-6AP1, is a three-phase VFD rated for 15 HP (11 kW) motor loads. The nameplate confirms an input of 3AC 400-480V +/-10% at 33.3A and an output of 3AC 0 to input voltage at 25A, with a frequency range of 47-63 Hz. The integrated Line Filter Class A and PROFIBUS-DP fieldbus interface are confirmed on the rating label. Enclosure protection is IP20. The unit is identified by serial number XACD18-002663, firmware version A04 / V4.5, and was manufactured in the United Kingdom. The BOP-2 operator panel is attached and visible on the front face. This item is listed as surplus and untested.
