Siemens 1LE15233AB490FB4-Z AC Induction Motor 200 HP 1791 RPM 480V AC IMB5

$17,399.99 USD

Sale Sold out

✓ 30-day returns on every item — return policy

ConditionSurplus - Untested MPN1LE15233AB490FB4-Z Stock #0226-00322

30-day returns on every item. Photos reflect the actual item’s current condition — see our return policy and condition guide.

Shipping

This item ships by custom freight. Check out with local pickup, and we'll contact you with a custom shipping quote.

Same-Day Available
Real support team
Secure checkout

Product Specifications

Manufacturer: Siemens (D-90441 Nürnberg, made in Czech Republic)
MPN / Model: 1LE15233AB490FB4-Z
Type: 1CV3314B
Order / Serial Reference: UC 2208/318275201
Product Type: 3-Phase AC Induction Motor, force ventilated
Power: 200 HP / 150 kW
Voltage: 480V AC delta
Frequency: 60 Hz
Current: 215A
Speed: 1791 RPM
Power Factor: 0.87
Nominal Efficiency: 96.2%
Service Factor: 1.15
Duty: Continuous, NEMA MG1, Design A
Frame: IEC/EN 60034, 315L
Mounting: IMB5 (flange mount)
Enclosure: IP55, TEFC
Cooling: IC416, forced ventilation by separately driven blower
Blower Motor: Siemens 1LE10030DA222KB4-Z, type 1AV3082A, 1.0 HP, 80M frame, IMB14, IP65, 460V AC 3-phase 60 Hz at 1.63A, 3450 RPM, TEAO, IE3, 12 kg
Insulation: Thermal class 155 (F)
Ambient Range: -20°C to 40°C
Bearings: DE 6319-C3, NE 6319-C3, UNIREX-N3 grease, 40 g per bearing, 6,000 hour relubrication interval
Weight: 1,070 kg
Efficiency Class: IE3, NEMA Premium (CC 032A)
Certifications: UL, CSA, CE
Additional Nameplate Codes: MP150.0/266, 12-12
Condition: Inspected Surplus - Appears Unused

Product Description

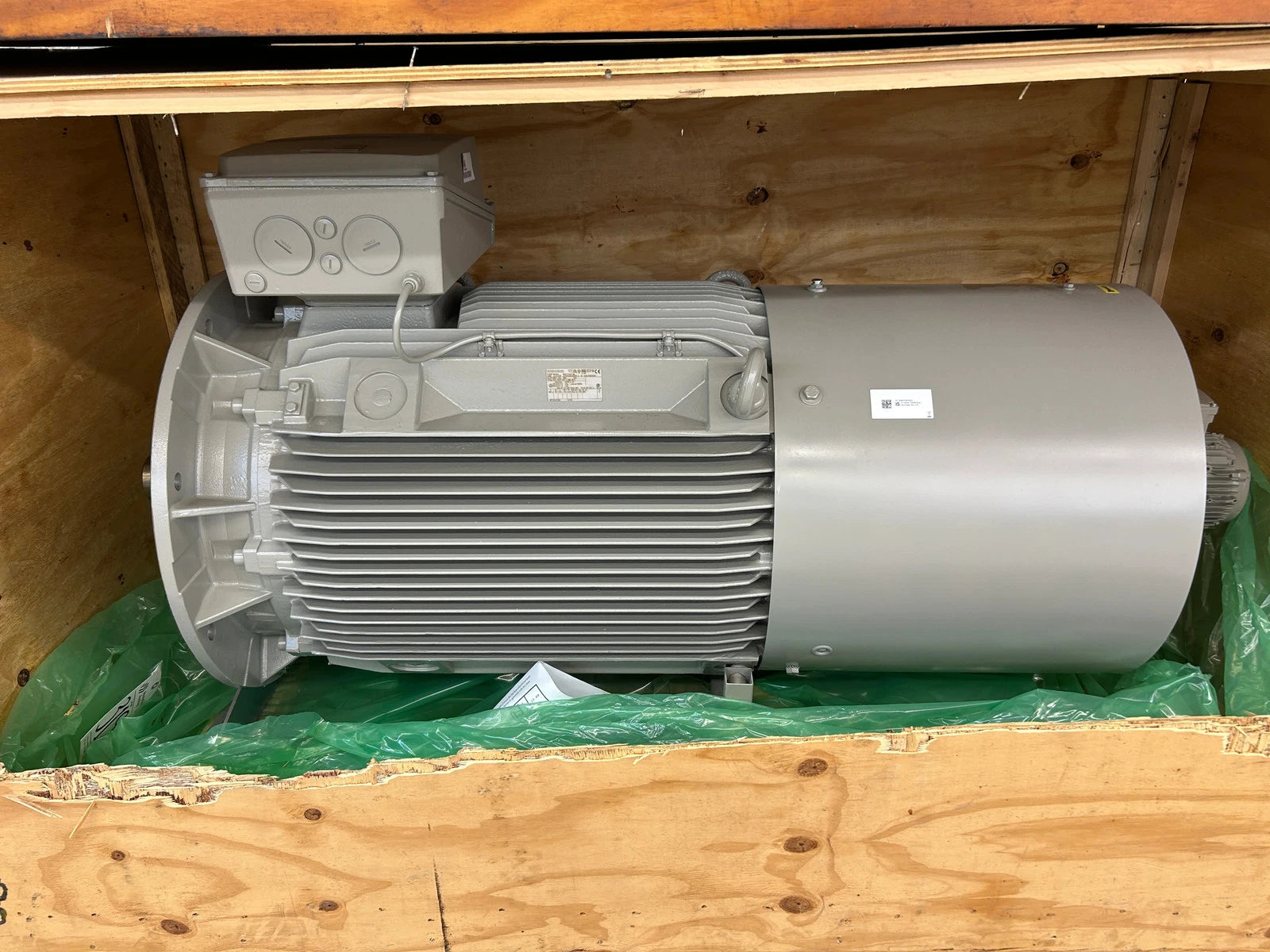

The Siemens 1LE15233AB490FB4-Z is a 200 HP three-phase AC induction motor rated 480V delta, 60 Hz, 215A, at a nameplate speed of 1791 RPM. Nominal efficiency is 96.2% with a power factor of 0.87 and a 1.15 service factor on continuous duty to NEMA MG1, Design A. The motor is built on an IEC 315L frame, flange mounted per IMB5, with an IP55 TEFC enclosure and an ambient range of -20°C to 40°C. Insulation is thermal class 155, which is class F. Nameplate weight is 1,070 kg. It carries IE3 and NEMA Premium efficiency classification under CC 032A, with UL, CSA and CE marks, and is made in the Czech Republic.

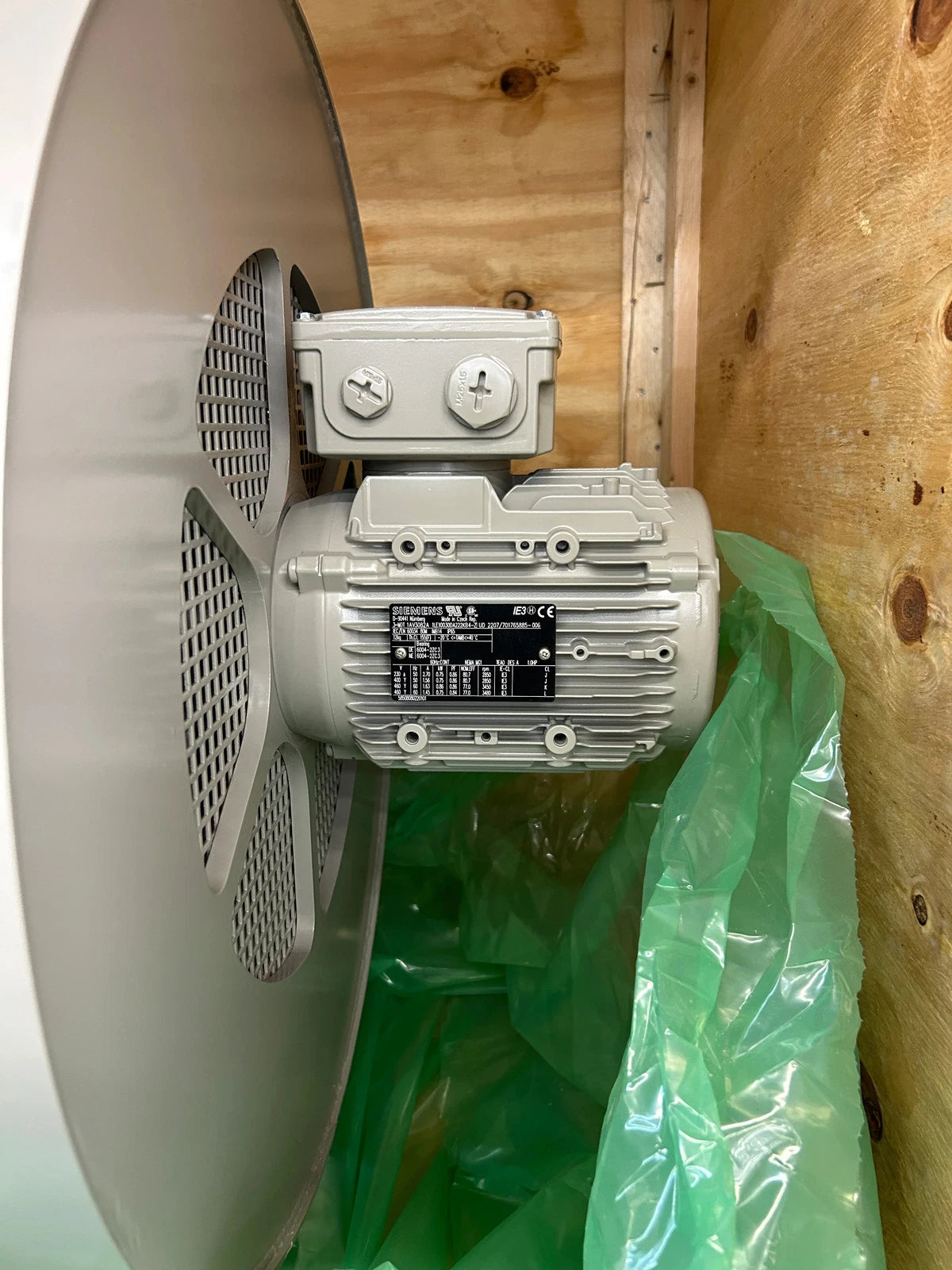

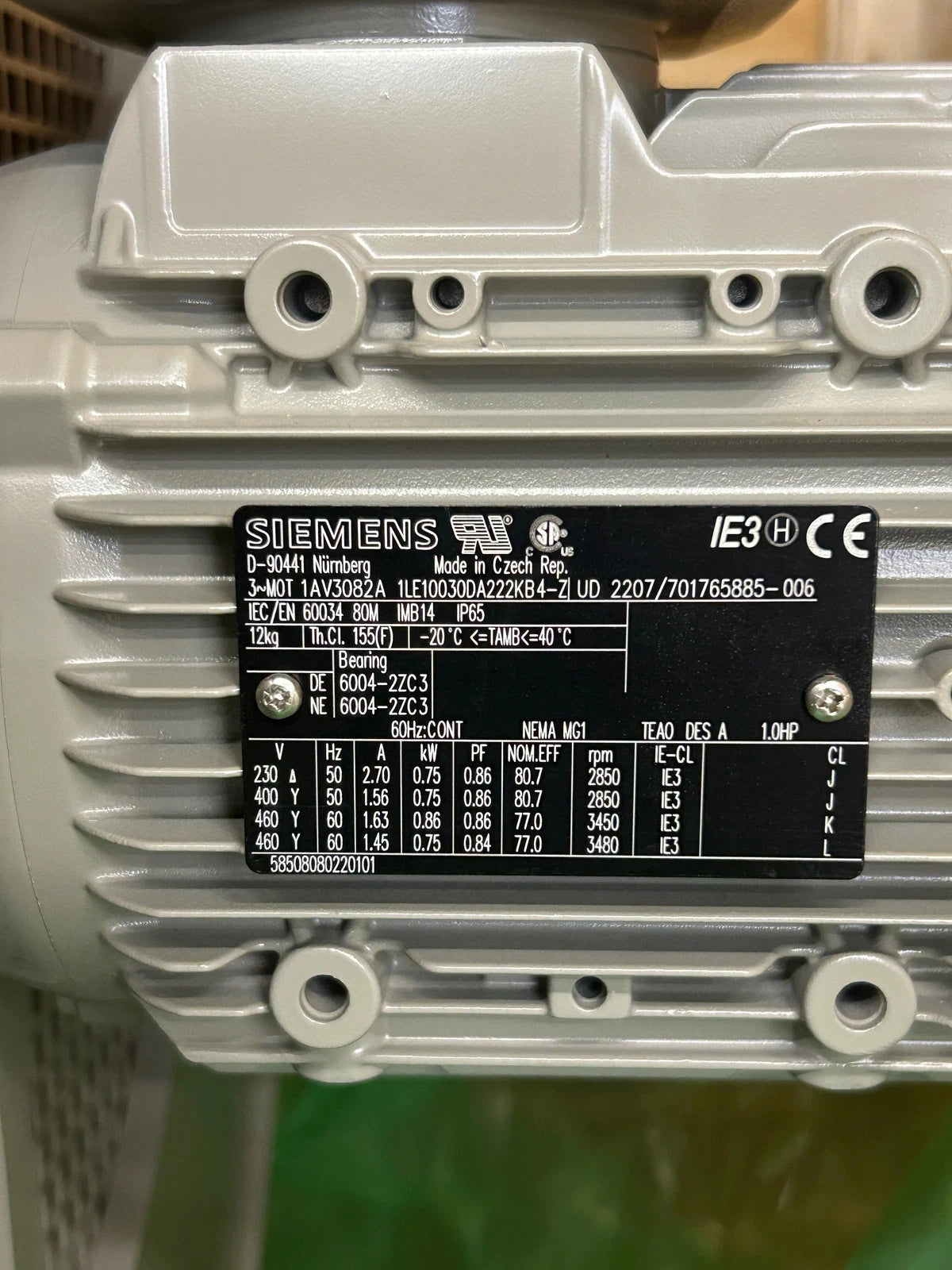

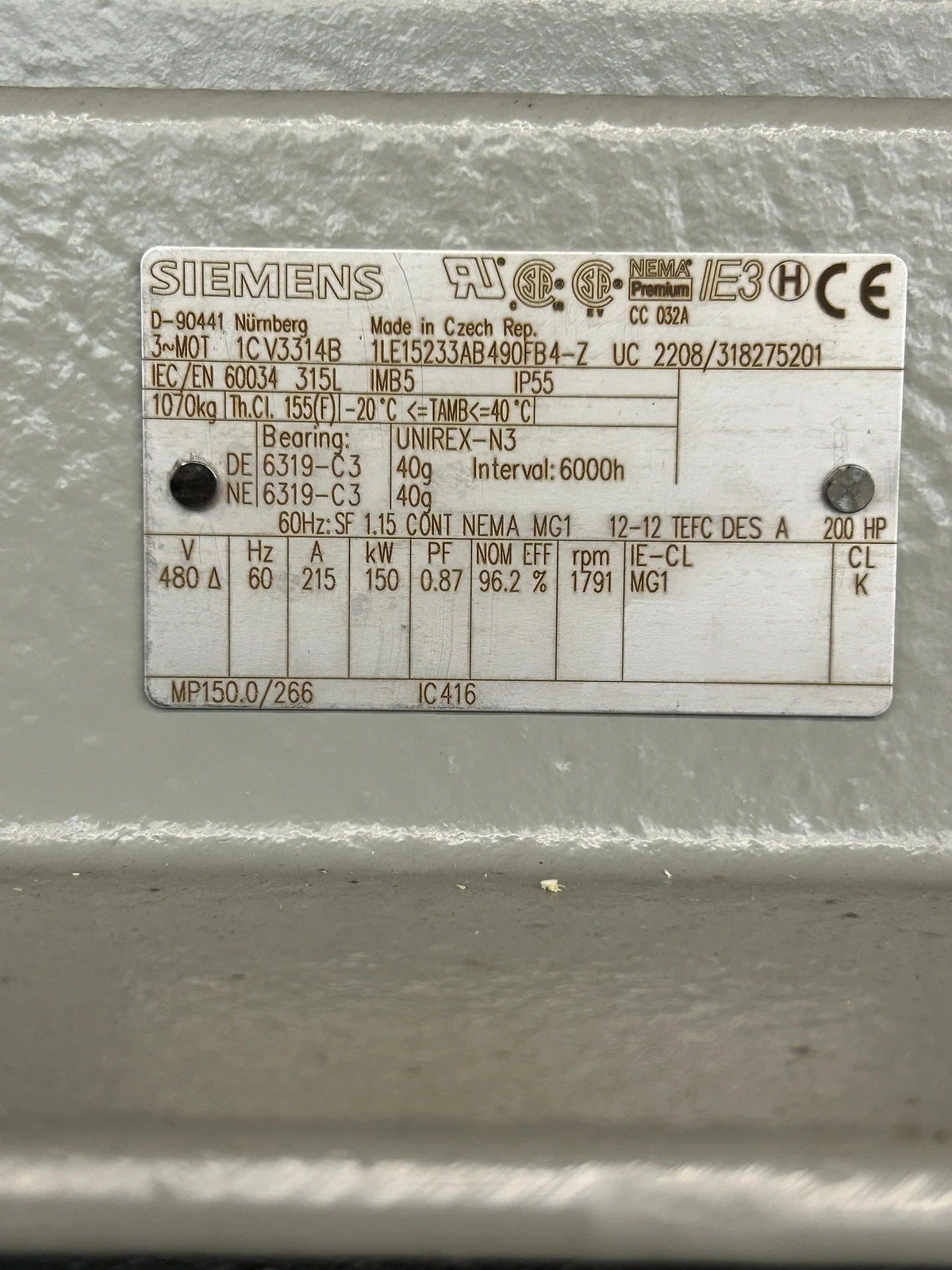

This unit is force ventilated rather than self-cooled. The main nameplate carries the IC416 cooling code, and a separately driven blower is mounted on the fan end. The blower is a Siemens 1LE10030DA222KB4-Z, type 1AV3082A, rated 1.0 HP on an 80M frame, IMB14 mounted, IP65, drawing 1.63A at 460V three-phase 60 Hz and running at 3450 RPM, TEAO enclosure, IE3, 12 kg. Forced ventilation allows the motor to hold rated torque at low speed on an inverter, and the blower requires its own supply and starter separate from the main motor.

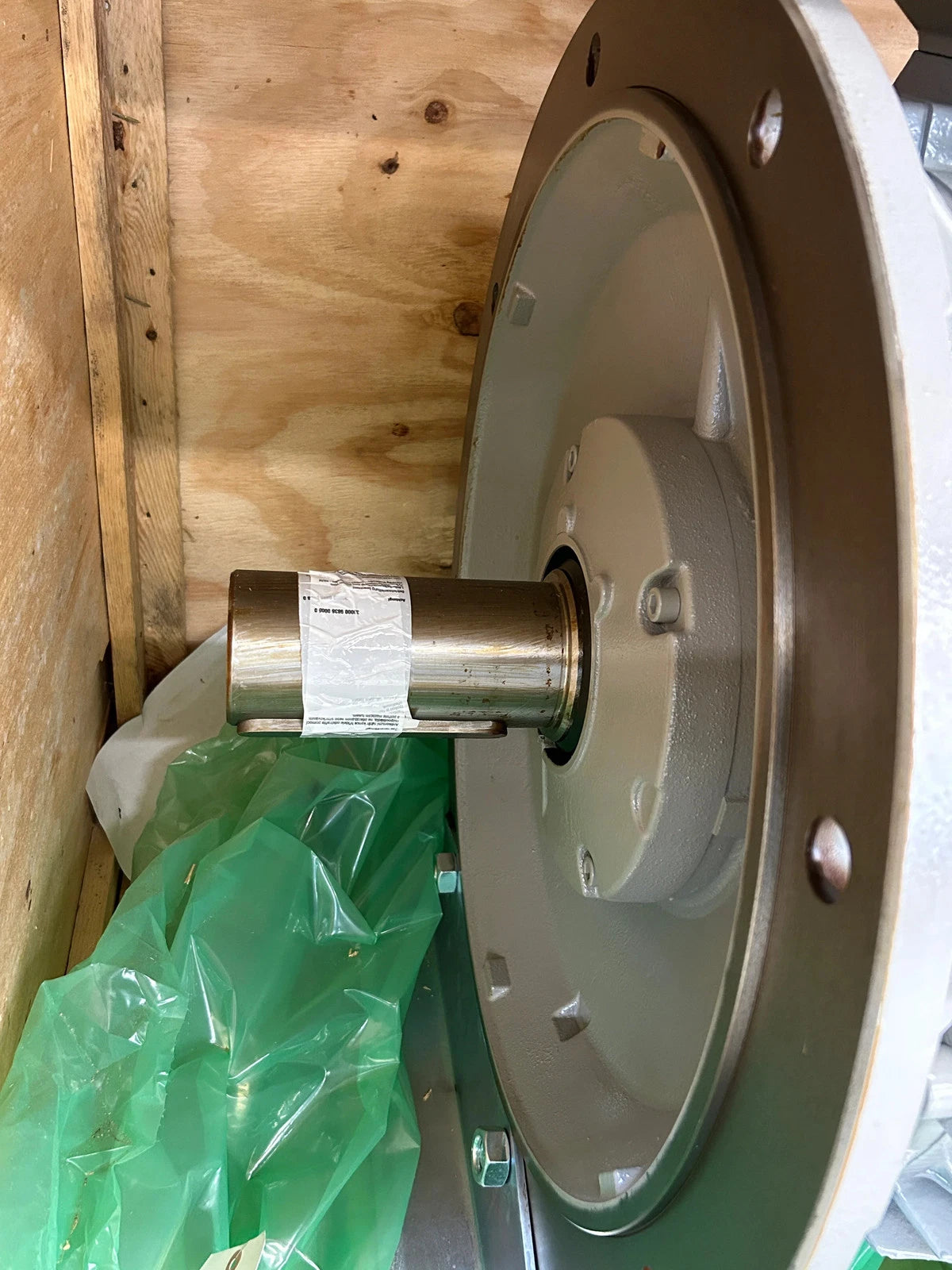

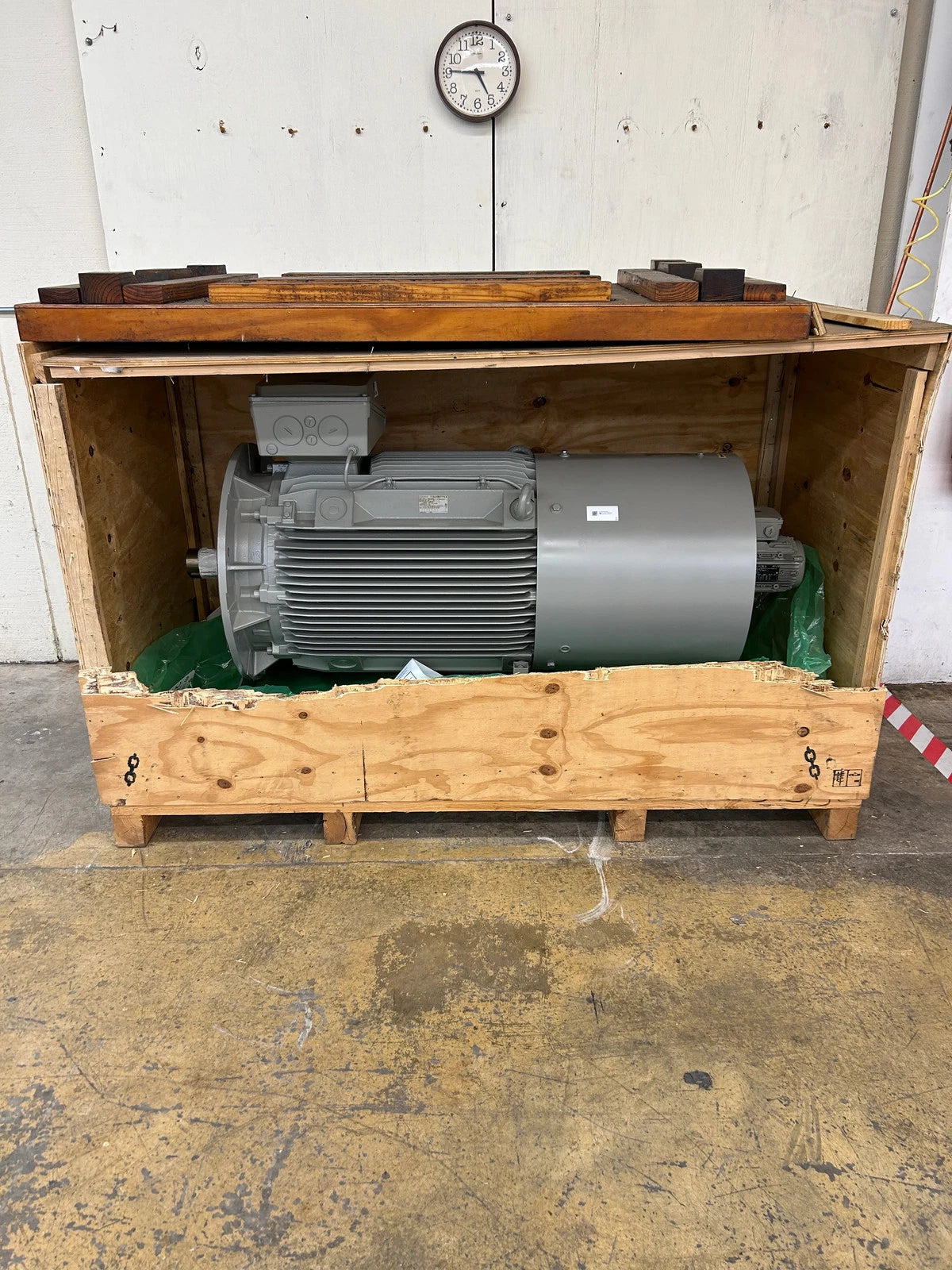

Both bearings are 6319-C3, greased with UNIREX-N3 at 40 g per bearing on a 6,000 hour relubrication interval. The motor is supplied in its original crate on VCI packaging with the shaft protected.

Buyers matching this Siemens motor for replacement or spare inventory should confirm the full order code 1LE15233AB490FB4-Z, the IMB5 flange dimensions, and the blower supply requirement against their existing installation.

Stock # 0226-322
