Siemens 6AV6643-0CD01-1AX1 HMI Touch Panel 24V DC

$1,499.00 USD

Sale Sold out

ConditionSurplus - Untested MPN6AV6643-0CD01-1AX1 Stock #0426-02078

Photos reflect current condition. Items differing from description may be eligible for return or refund — see our condition guide.

Shipping Estimate

Estimated package weight: 15.0 lbs

Select your state above for a shipping estimate.

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

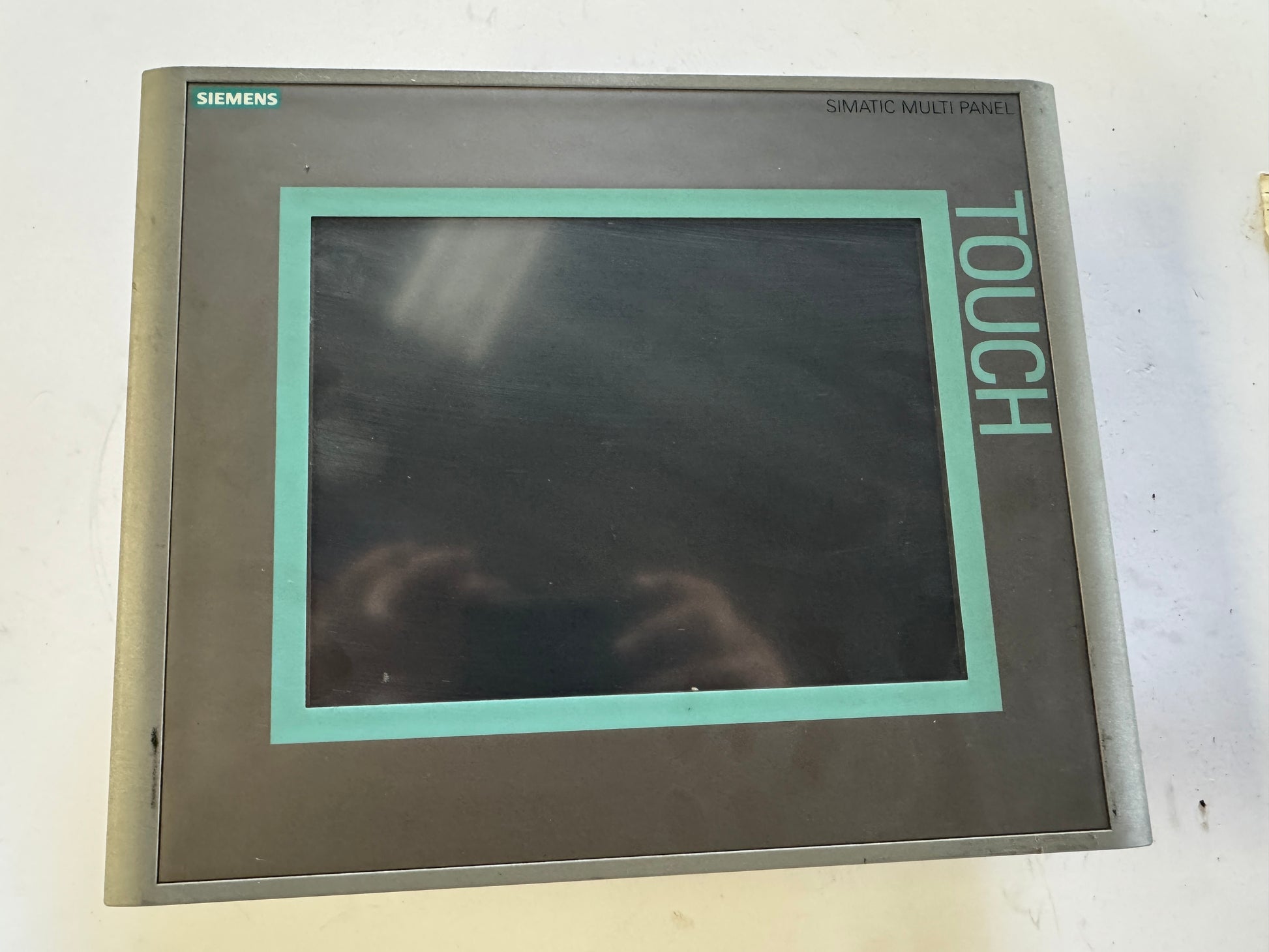

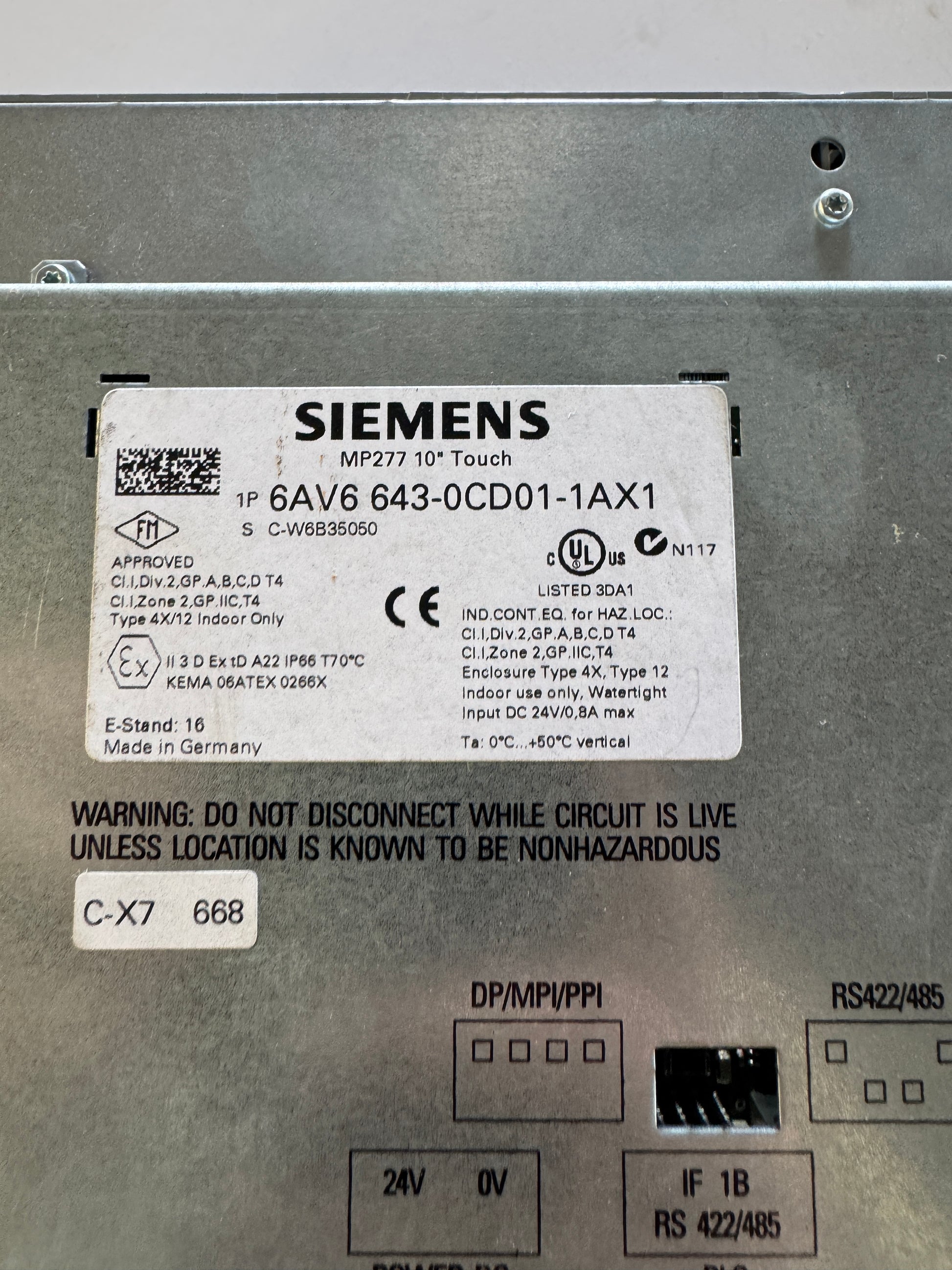

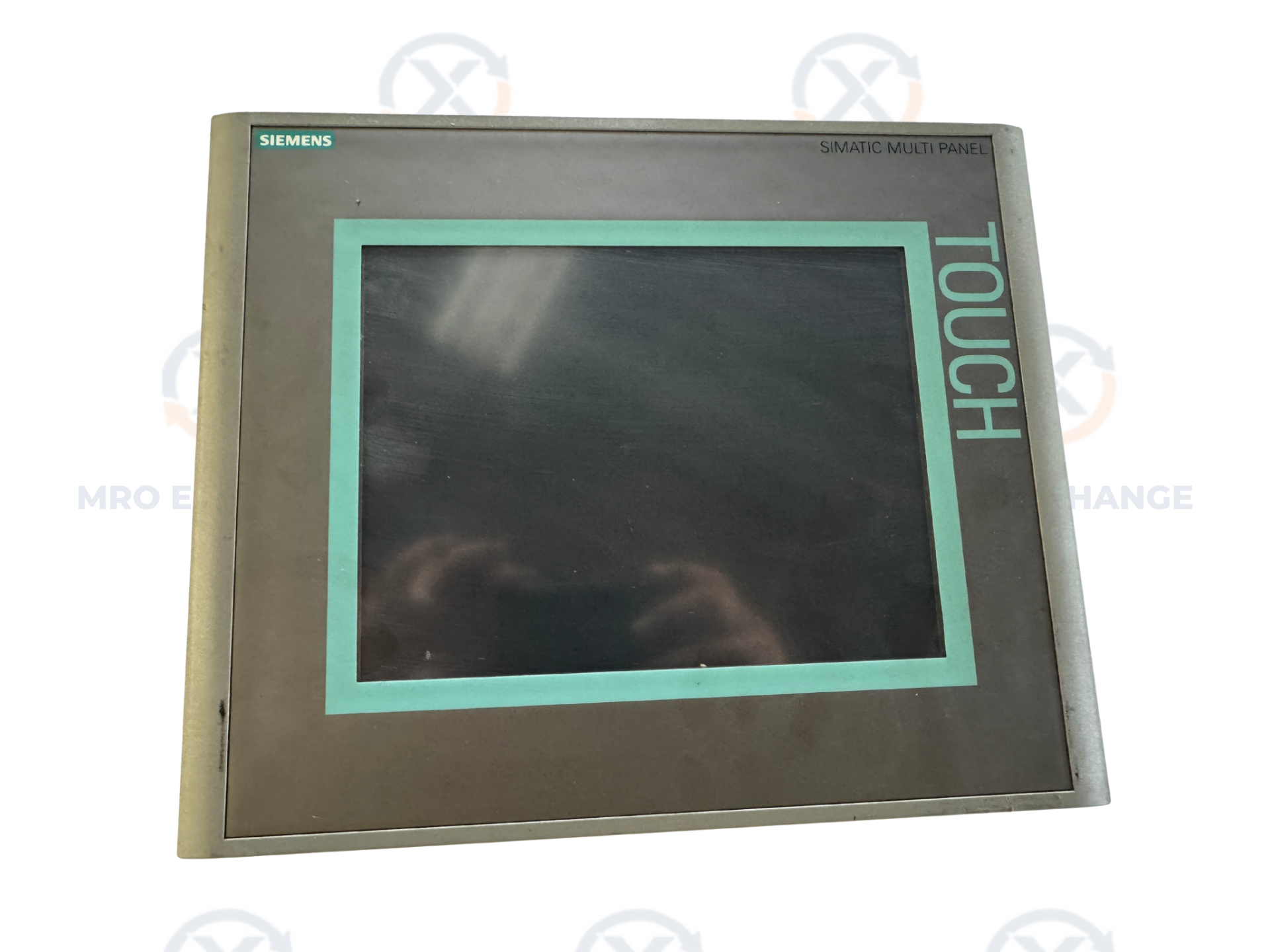

The Siemens SIMATIC MP277 is a 10-inch color touchscreen operator panel from the MP 277 Multi Panel series, identified by part number 6AV6643-0CD01-1AX1. Rated for 24V DC input at 0.8A maximum, this unit operates in a temperature range of 0 to 50 degrees C in vertical mounting orientation. The panel carries enclosure ratings of Type 4X and Type 12 for indoor use and is listed for use in hazardous locations per Class I, Division 2, Groups A, B, C, D T4 and Class I, Zone 2, GP.IIC, T4, with ATEX certification KEMA 06ATEX 0266X. The serial number on the nameplate is C-W6B35050, E-Stand (revision level) 16, manufactured in Germany. Interface connections visible on the rear panel include DP/MPI/PPI, RS422/485 ports, and a 24V/0V power input terminal. The unit bears UL Listing mark (3DA1) and CE marking. This part number was discontinued by Siemens and is no longer available as a new production item, making quality used and surplus units the primary source for maintenance and replacement applications. Compatible with WinCC Flexible and SIMATIC S7 control platforms. The unit is offered as removed surplus.

Stock # 0426-02078
