Siemens Power Supply 6EP3437-8SB00-0AY0 m01046

$629.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

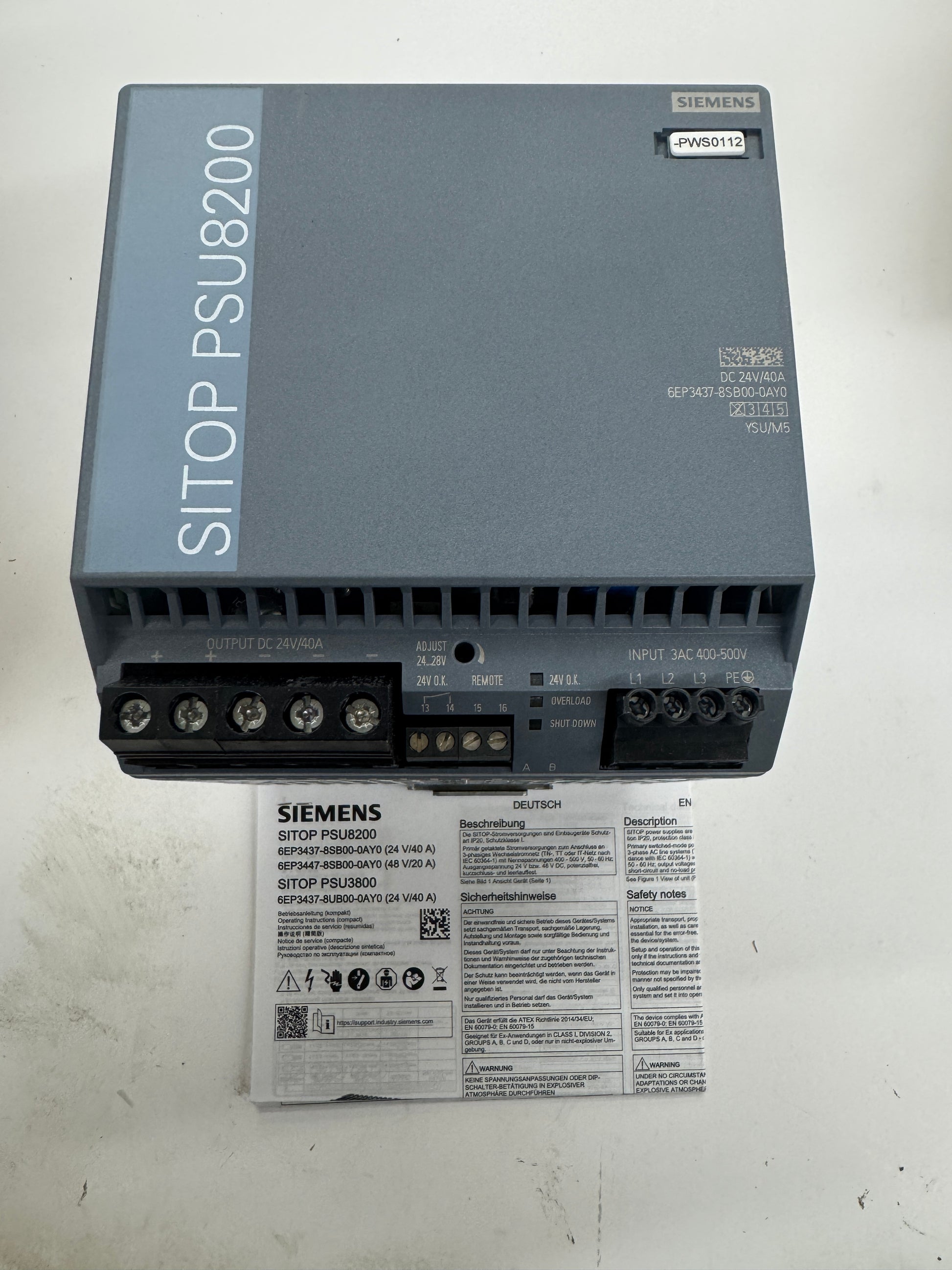

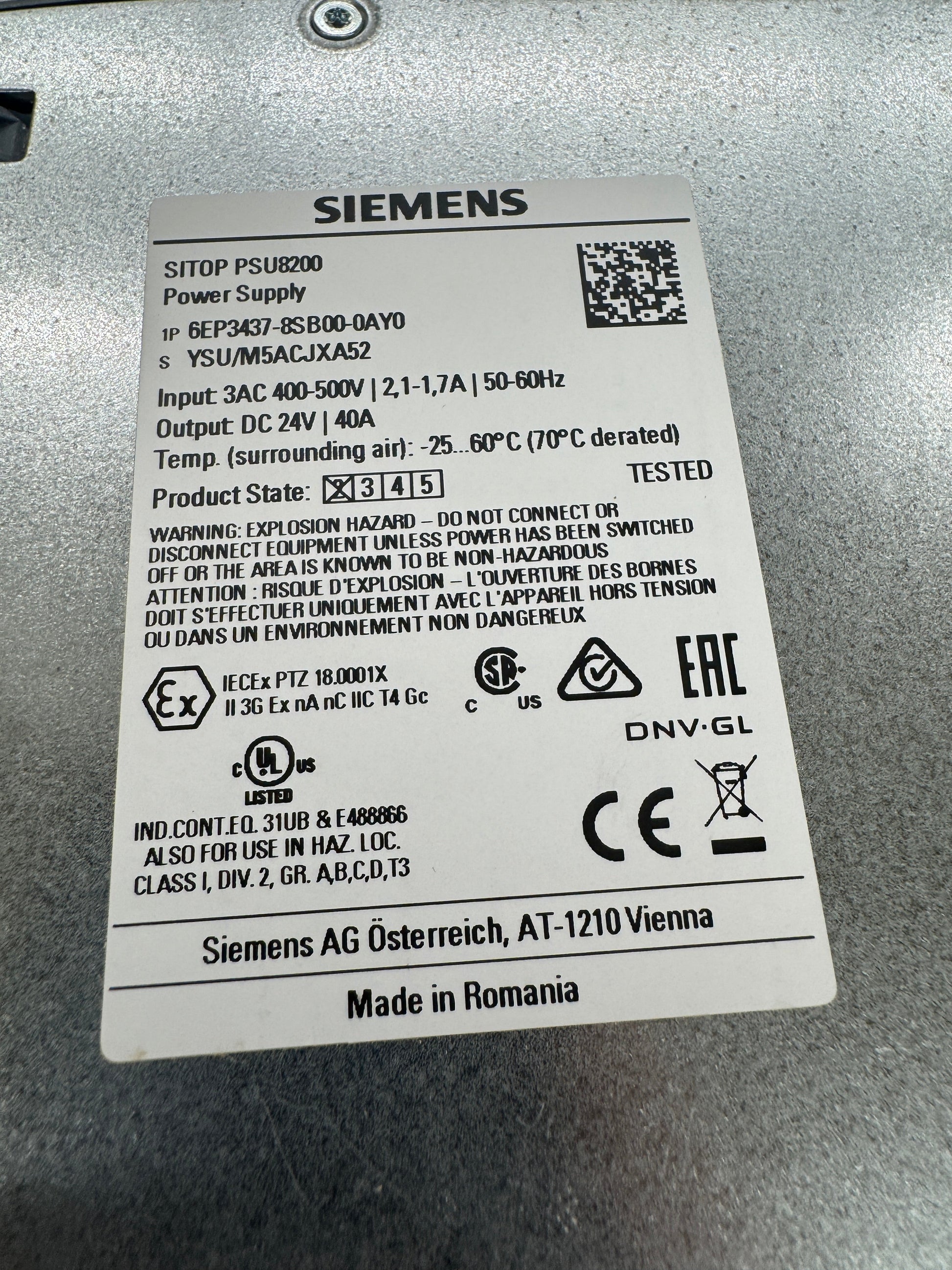

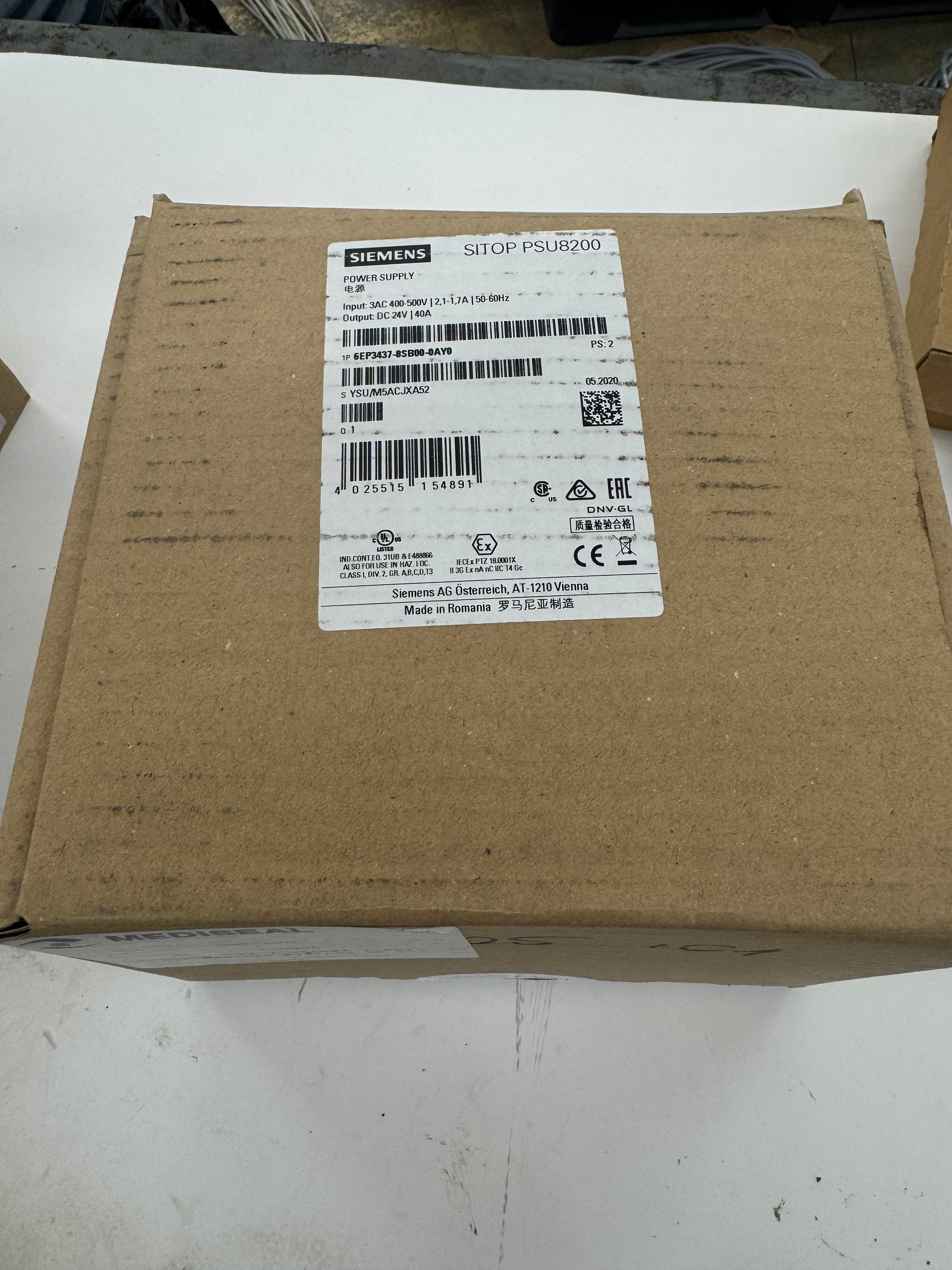

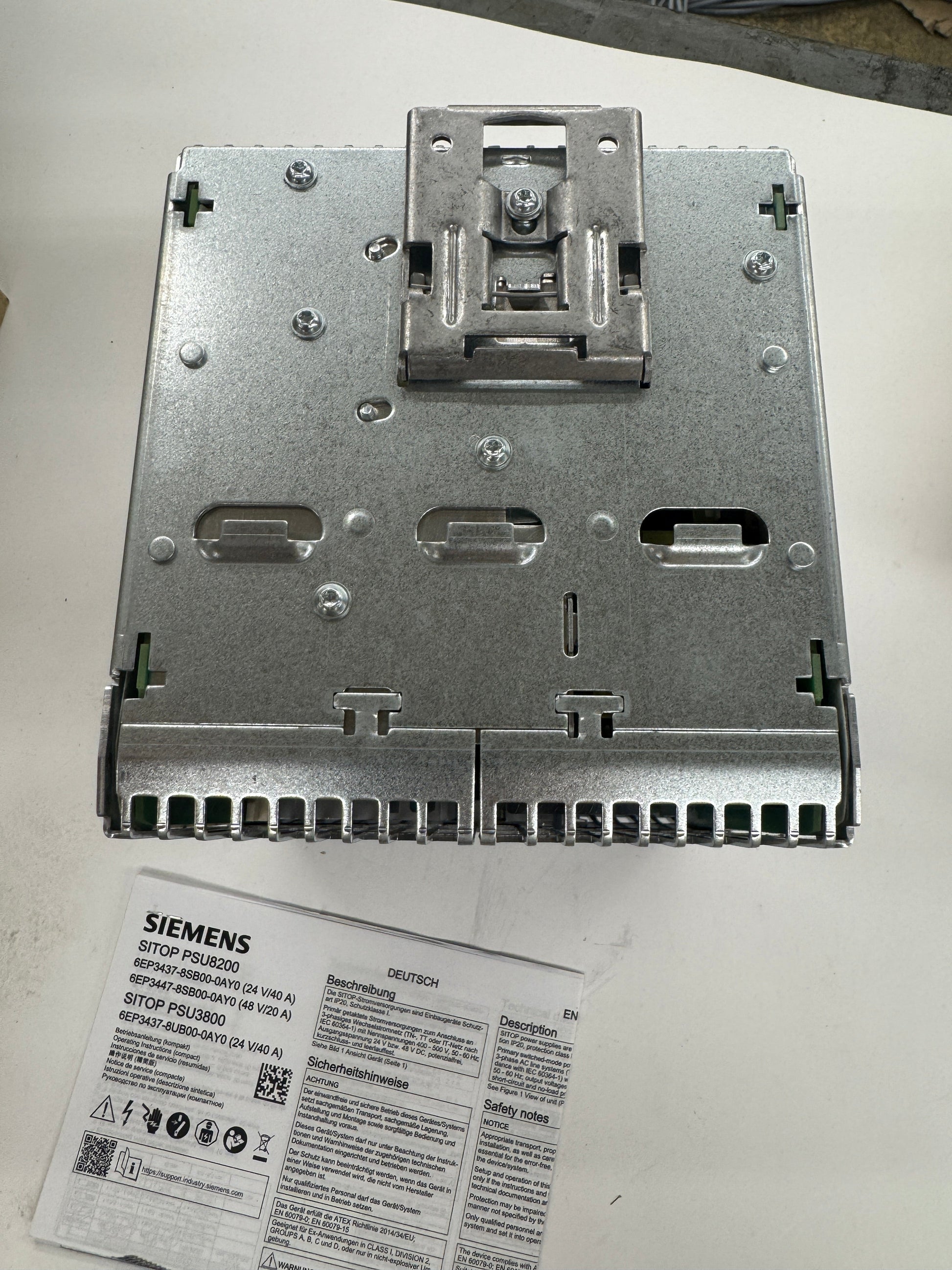

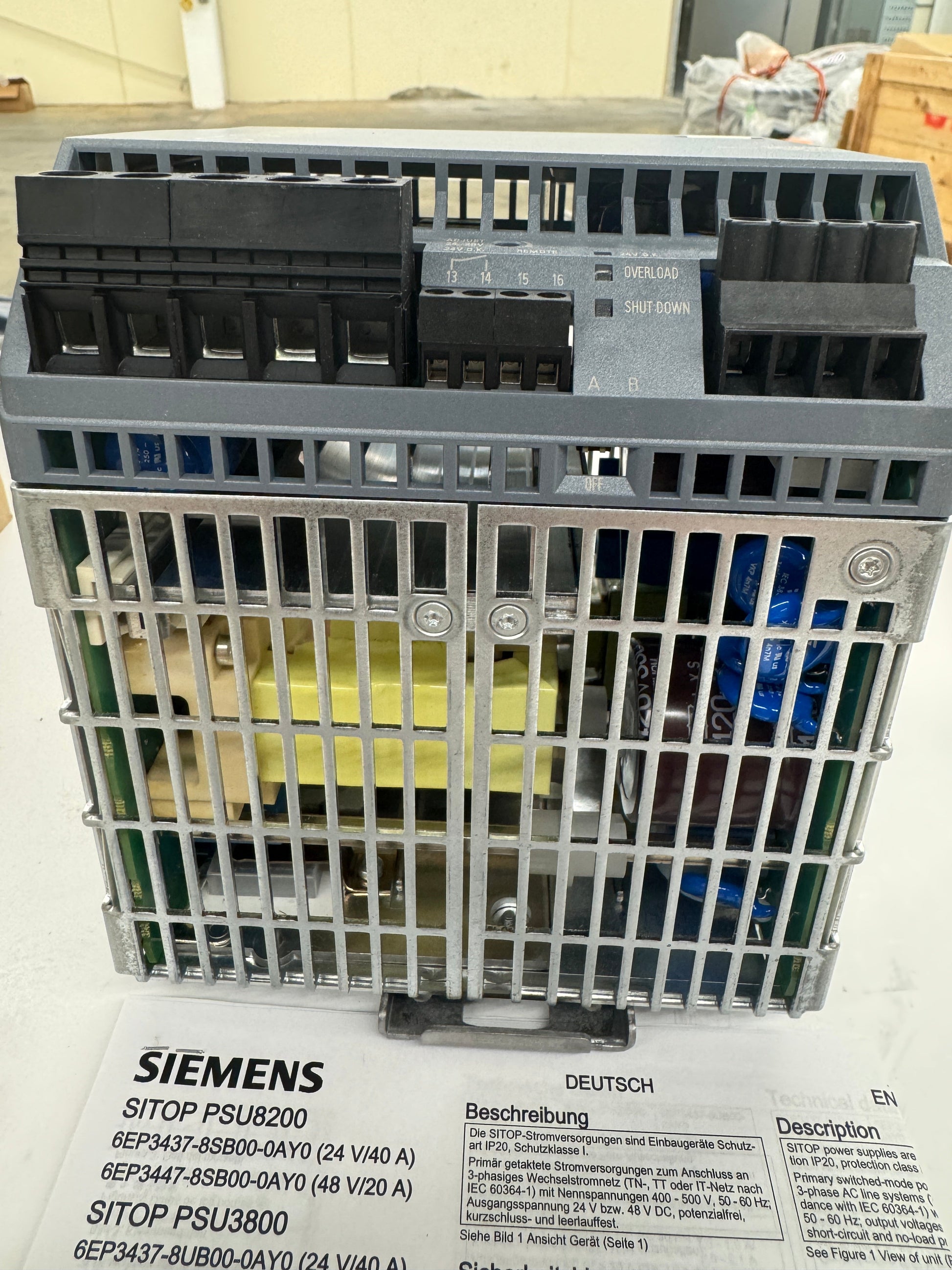

Used in automation panels, PLC enclosures, and industrial control systems requiring a stable 24 VDC bus, the Siemens SITOP PSU8200 is a three-phase primary-switched mode power supply rated for input voltages from 400 to 500 V AC at 50-60 Hz and a continuous output of 24 V DC at 40 A (960 W). Part number 6EP3437-8SB00-0AY0, serial number YSU/M5ACJXA52, manufactured May 2020. Nameplate confirms Product State 3, 4, 5 with TESTED marking. Operating temperature range is -25 to 60 degrees C (derated above 60 degrees C to 70 degrees C). DIN rail mount, IP20 protection class. Output voltage is adjustable from 24 to 28 V via front panel trimmer. Signaling outputs include OVERLOAD and SHUT DOWN relay contacts on terminals 13-16 plus REMOTE and 24V OK indicators. Certified UL Listed (IND.CONT.EQ. 31UB and E488866), IECEx PTZ 18.0001X (II 3G Ex nA nC IIC T4 Gc), ATEX, CE, EAC, and DNV-GL. Also rated for use in hazardous locations Class I, Division 2, Groups A, B, C, D, T3. Original factory box included. Manufactured in Romania by Siemens AG Osterreich, AT-1210 Vienna.

Stock # 0326-1046
