Siemens Selectivity Module 6EP1961-2BA21 24 VDC
Siemens Selectivity Module 6EP1961-2BA21 24 VDC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:
The Siemens SITOP PSE200U is a 4-channel selectivity module designed for use in 24V DC industrial power distribution systems. Part number 6EP1961-2BA21, serial number Q6M5A922GT9. The module accepts a single 24V DC input at up to 40A and distributes power across four independent 24V DC output channels, each rated at 10A, for a combined output capacity of 40A. This configuration allows downstream circuit branches to be selectively de-energized in the event of an overload without interrupting the entire power supply bus.

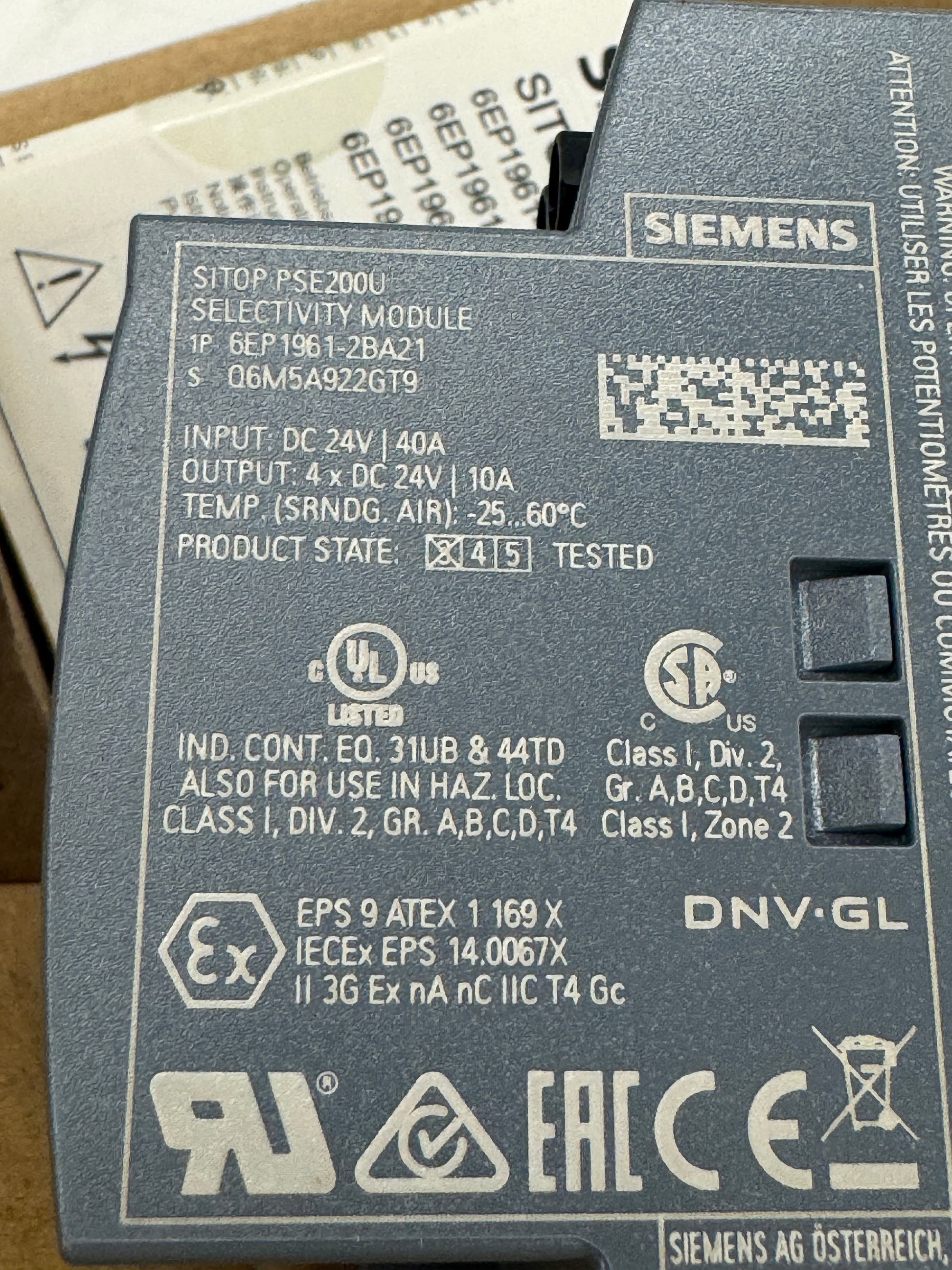

Operating temperature range is rated from minus 25 to plus 60 degrees Celsius (surrounding air). The unit carries UL listing for Industrial Control Equipment under categories 31UB and 44TD, CSA Class I Division 2 Groups A, B, C, D T4 and Class I Zone 2 certification, DNV-GL marine approval, and ATEX certification EPS 9 ATEX 1 169 X along with IECEx EPS 14.0067X for use in Zone 2 hazardous locations (II 3G Ex nA nC IIC T4 Gc). The device mounts on standard DIN rail and interfaces with the SITOP power supply family.

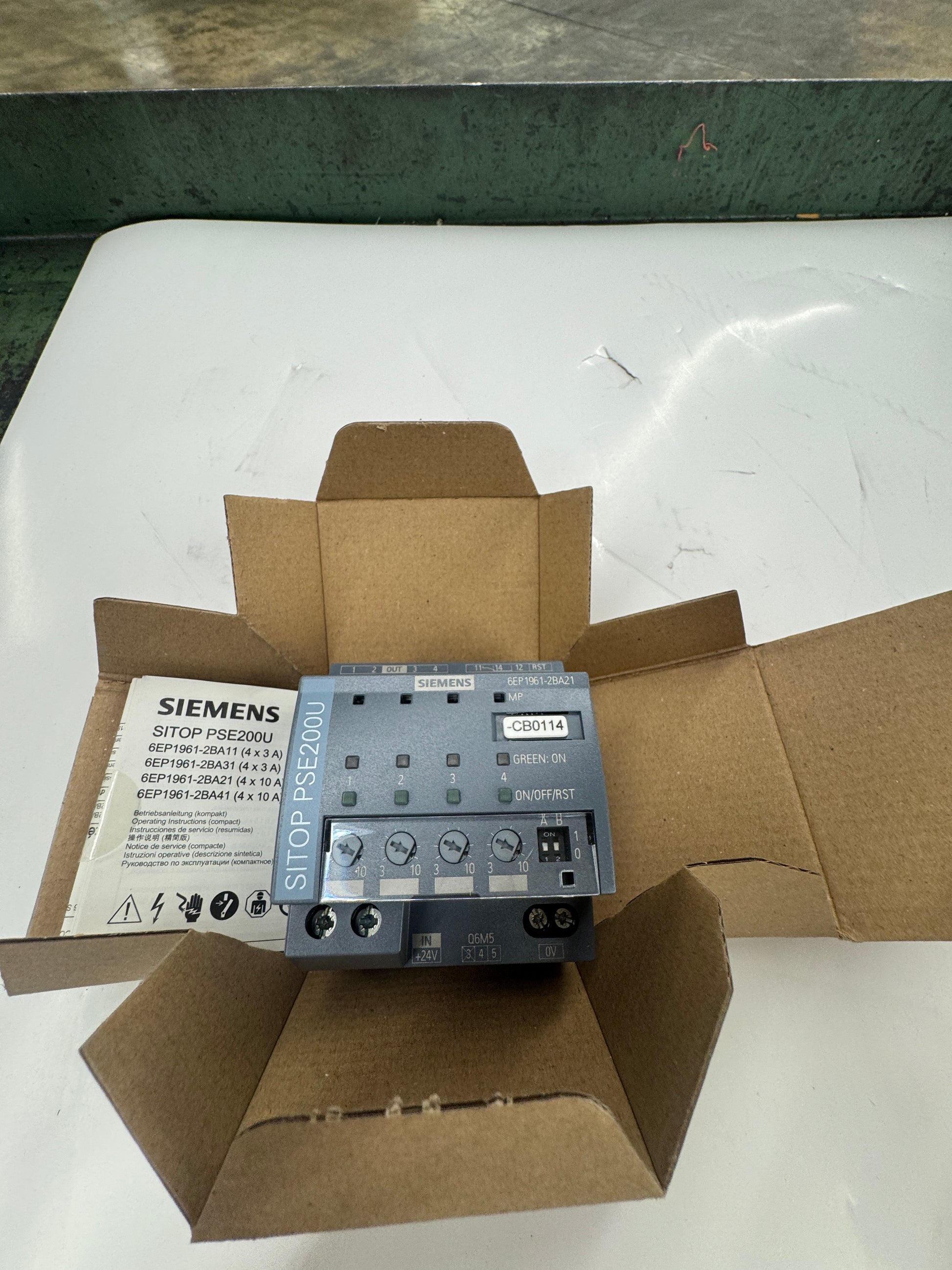

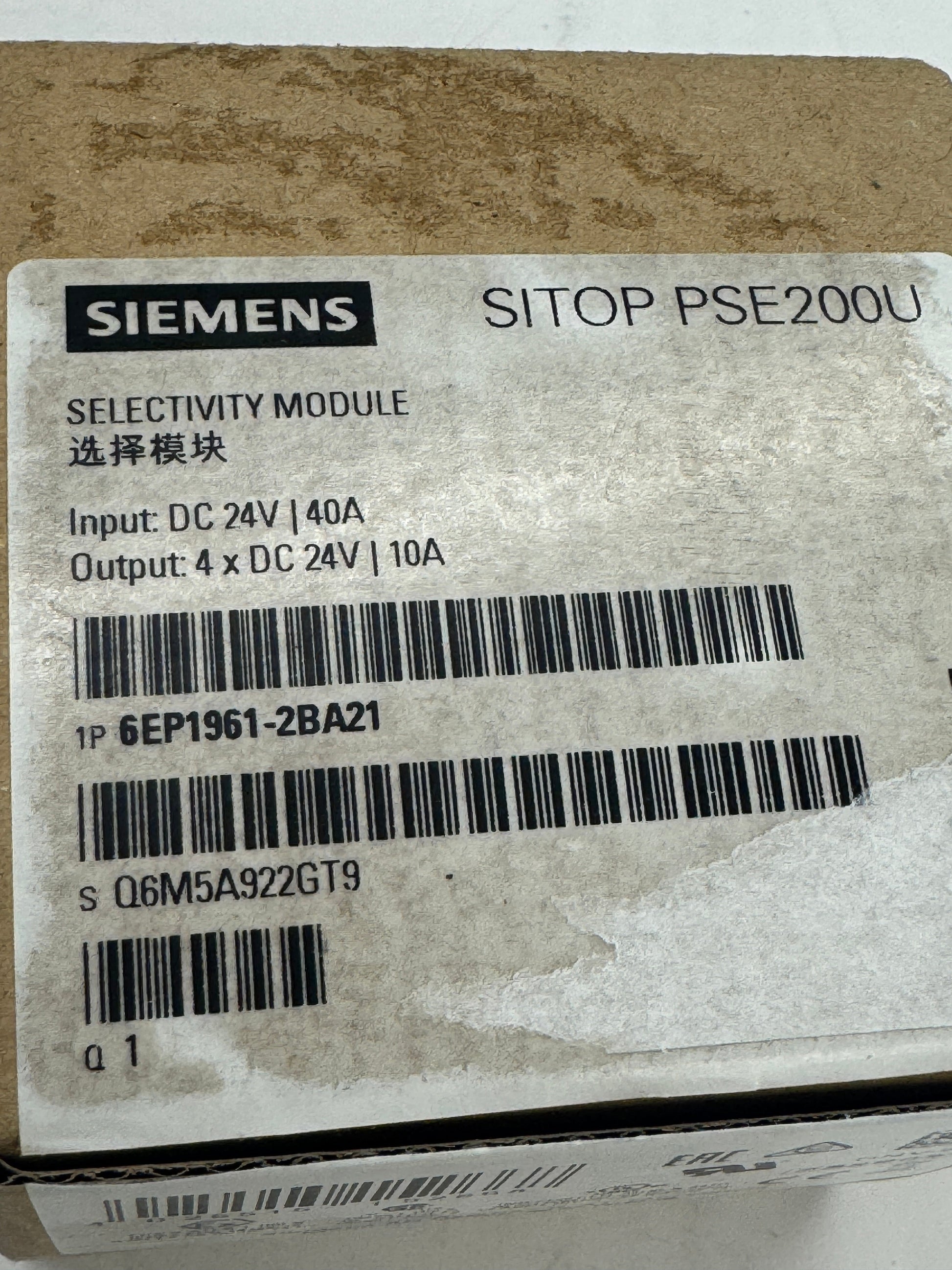

Manufactured by Siemens AG Osterreich. Shipped in original Siemens cardboard packaging with multilingual compact operating instructions included.
Stock # 0326-1112
