SKF 5312A/C3 Double Row Angular Contact Ball Bearing – 60mm ID x 130mm OD x 54mm Width – New
SKF 5312A/C3 Double Row Angular Contact Ball Bearing – 60mm ID x 130mm OD x 54mm Width – New
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 5312A/C3
Stock #: 0226-00167

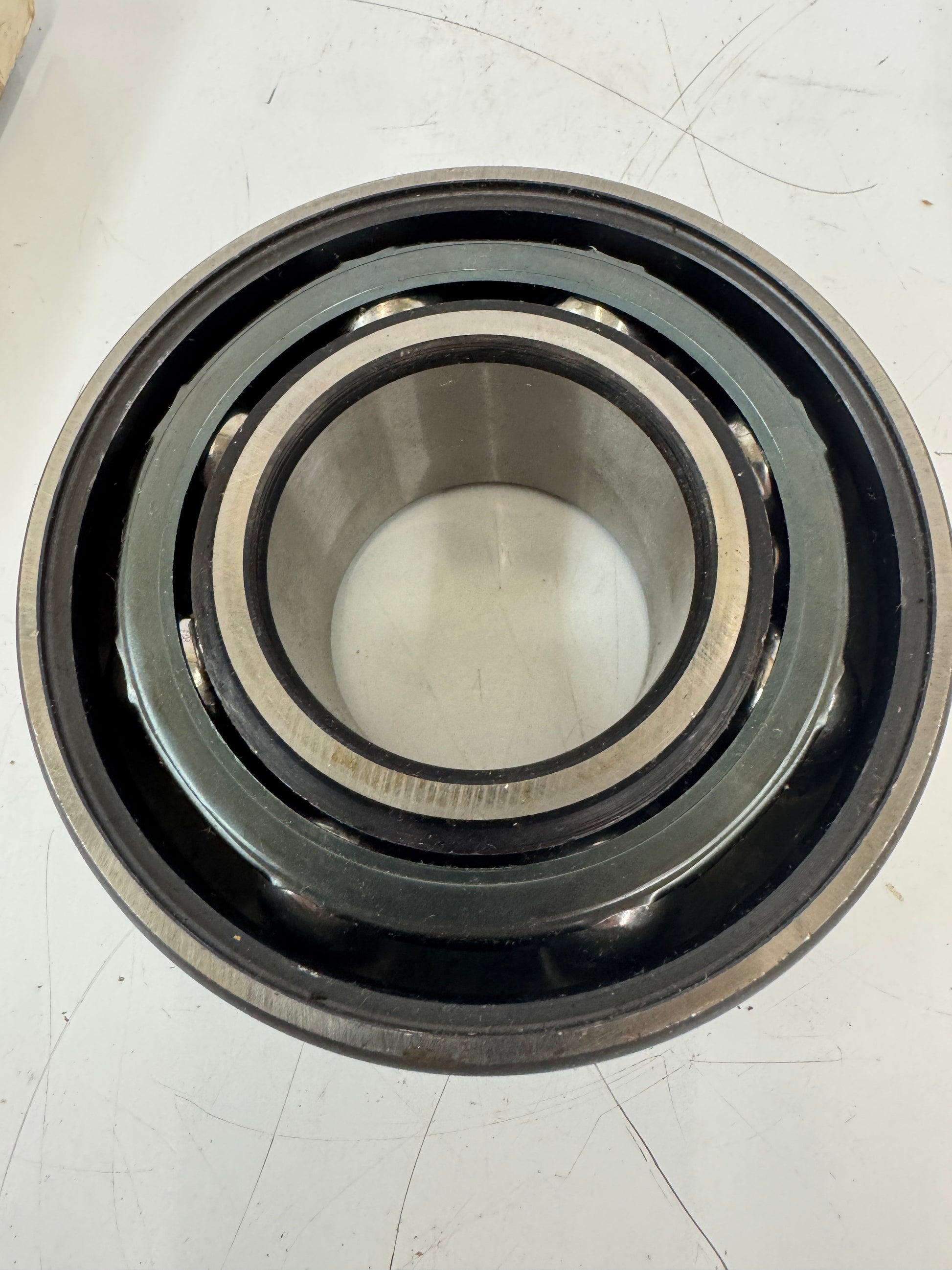

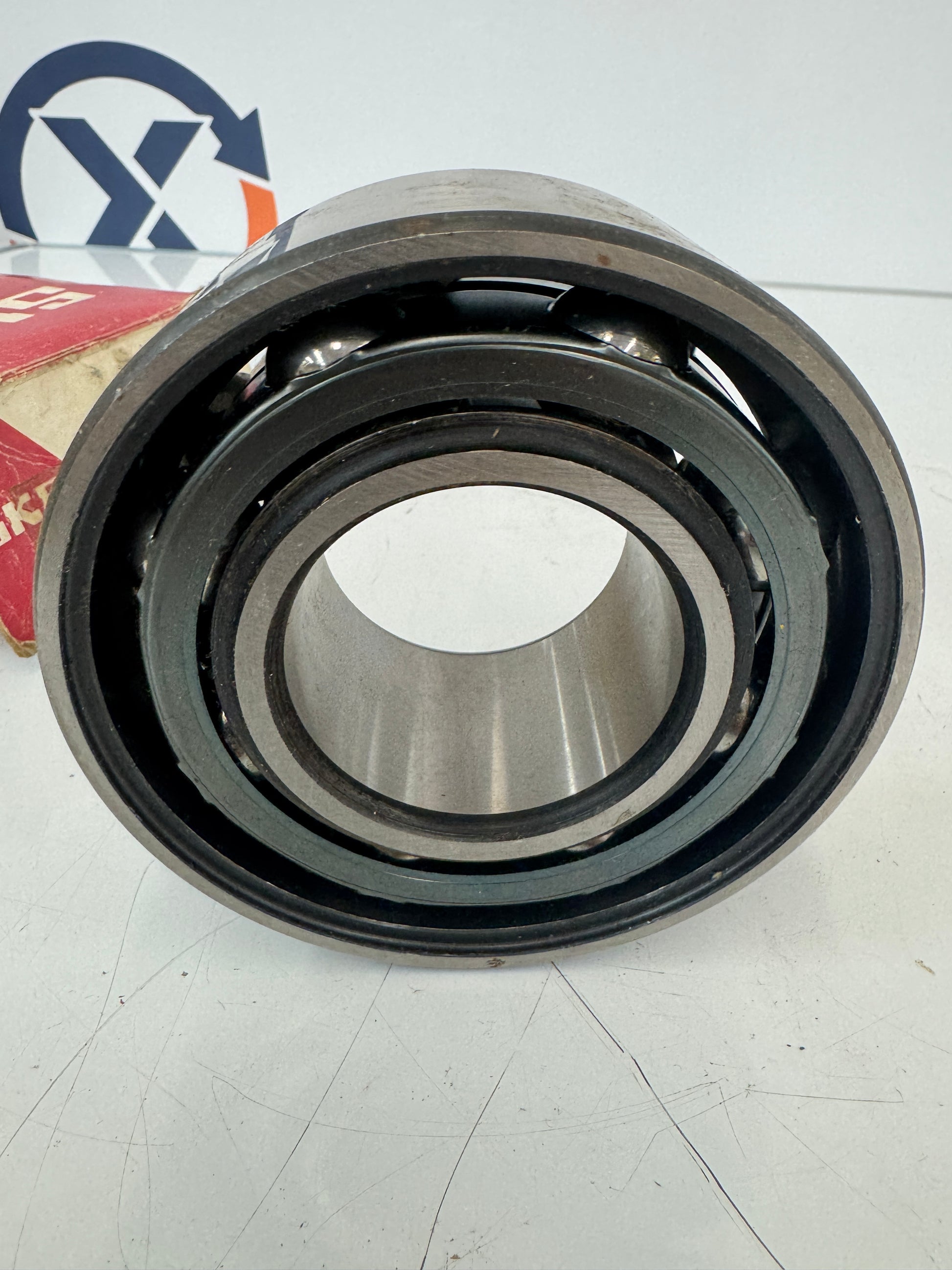

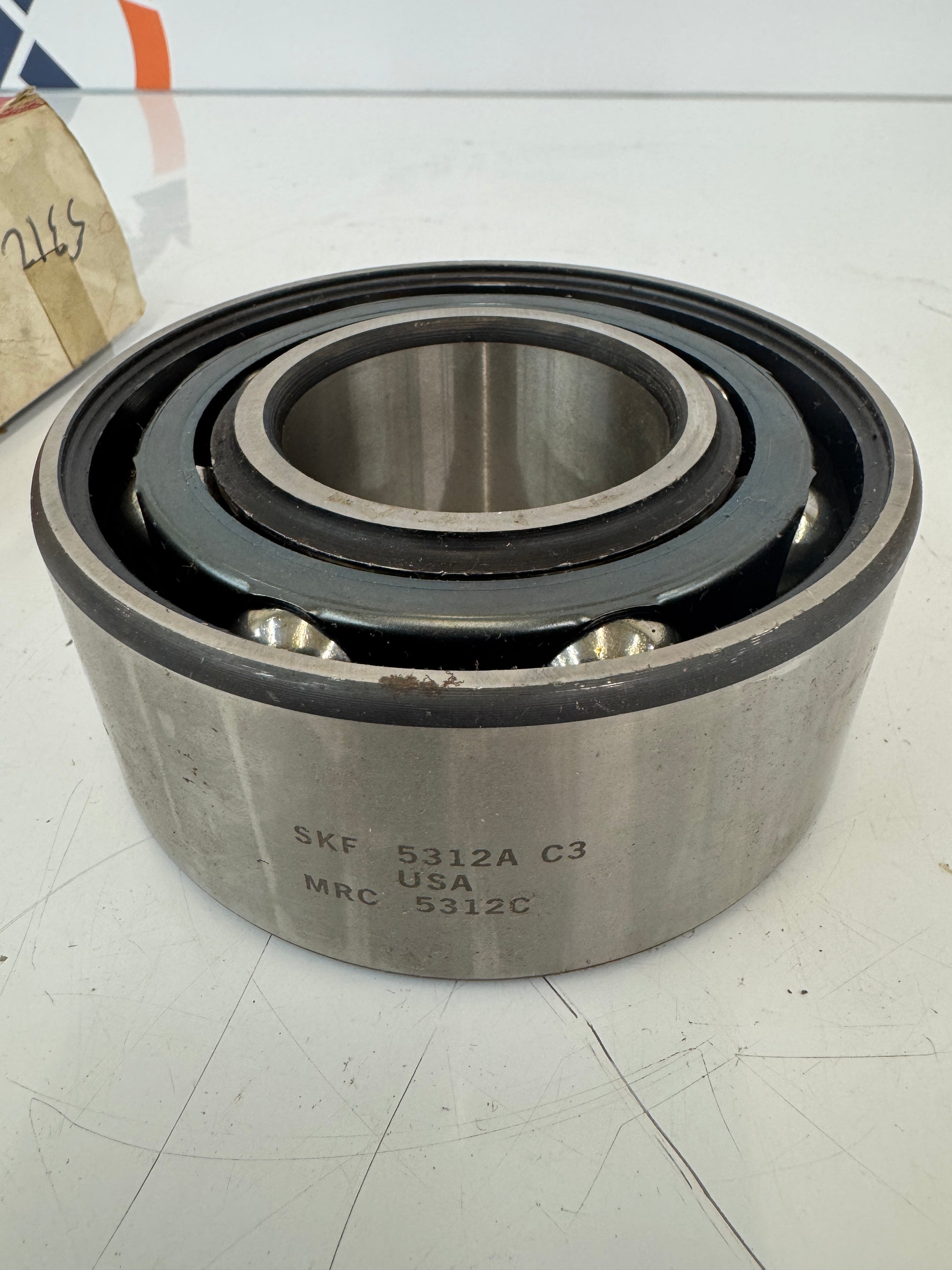

The SKF 5312 A/C3 is a double row angular contact ball bearing with a 60 mm bore, 130 mm outside diameter, and 54 mm width. The unit is marked 5312 A/C3 with date code 1989 03, batch marking 72 USA, and code BF01, indicating United States manufacture. It arrives new in original SKF factory packaging.
The 5312 A series uses two rows of balls arranged at a contact angle, allowing the bearing to support combined radial and axial loads in both directions in a single compact assembly. The C3 suffix designates internal radial clearance greater than Normal, suited to applications with elevated operating temperatures, interference fits, or thermal expansion across the inner and outer rings. Internal construction features solid steel inner and outer rings with a sheet steel cage and an open, non sealed design that accepts user applied grease or oil lubrication.
Typical applications for SKF 5312 series double row angular contact ball bearings include pumps, compressors, gearboxes, electric motors, agricultural drives, and general industrial machine tool spindles where bi directional thrust capacity is required alongside radial load support. The 60 x 130 x 54 mm envelope makes the 5312 A/C3 functionally interchangeable with the SKF 3312 A/C3 and equivalents from MRC, NSK, NTN, FAG, and Koyo carrying the same metric size and clearance class.

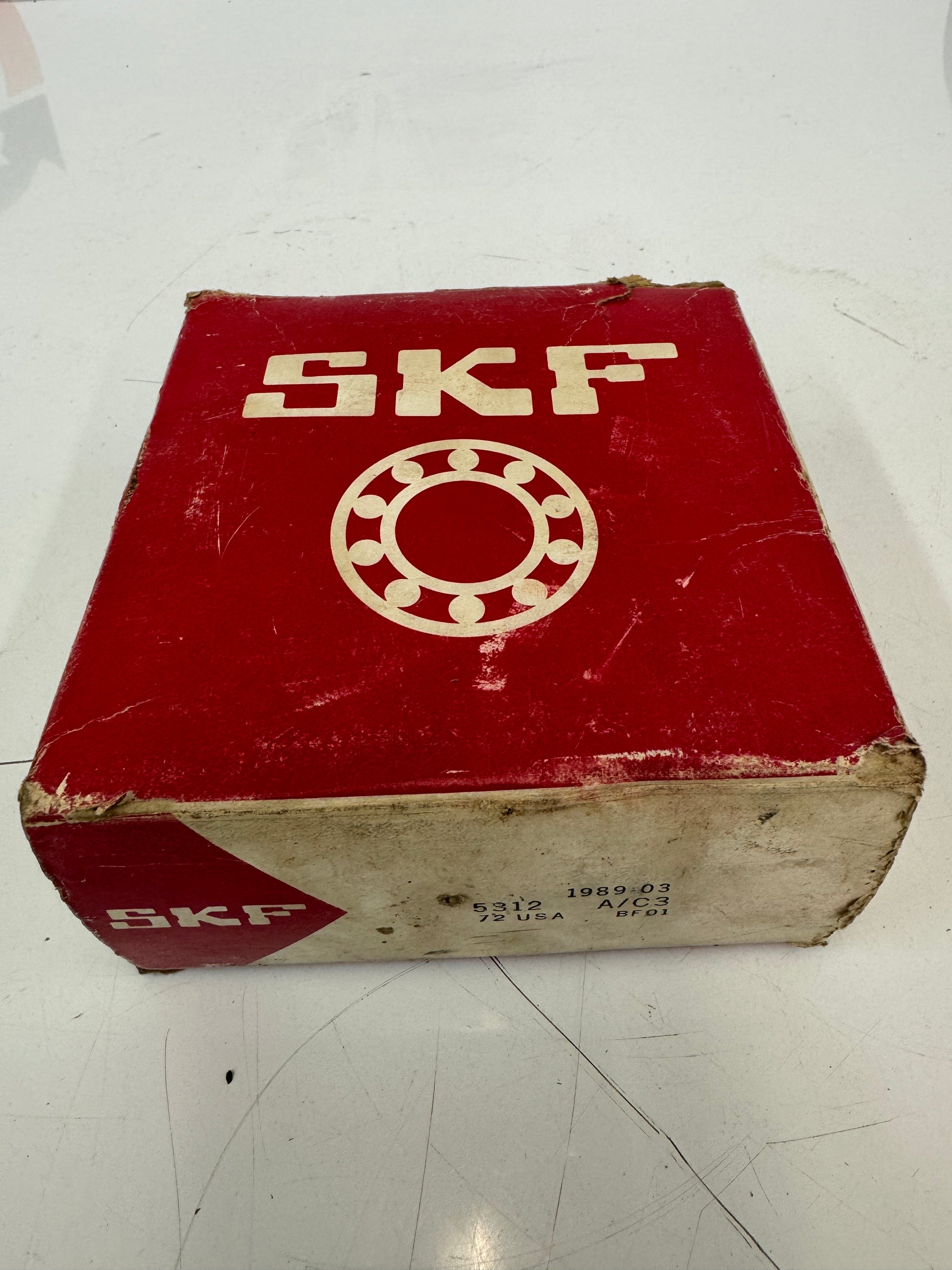

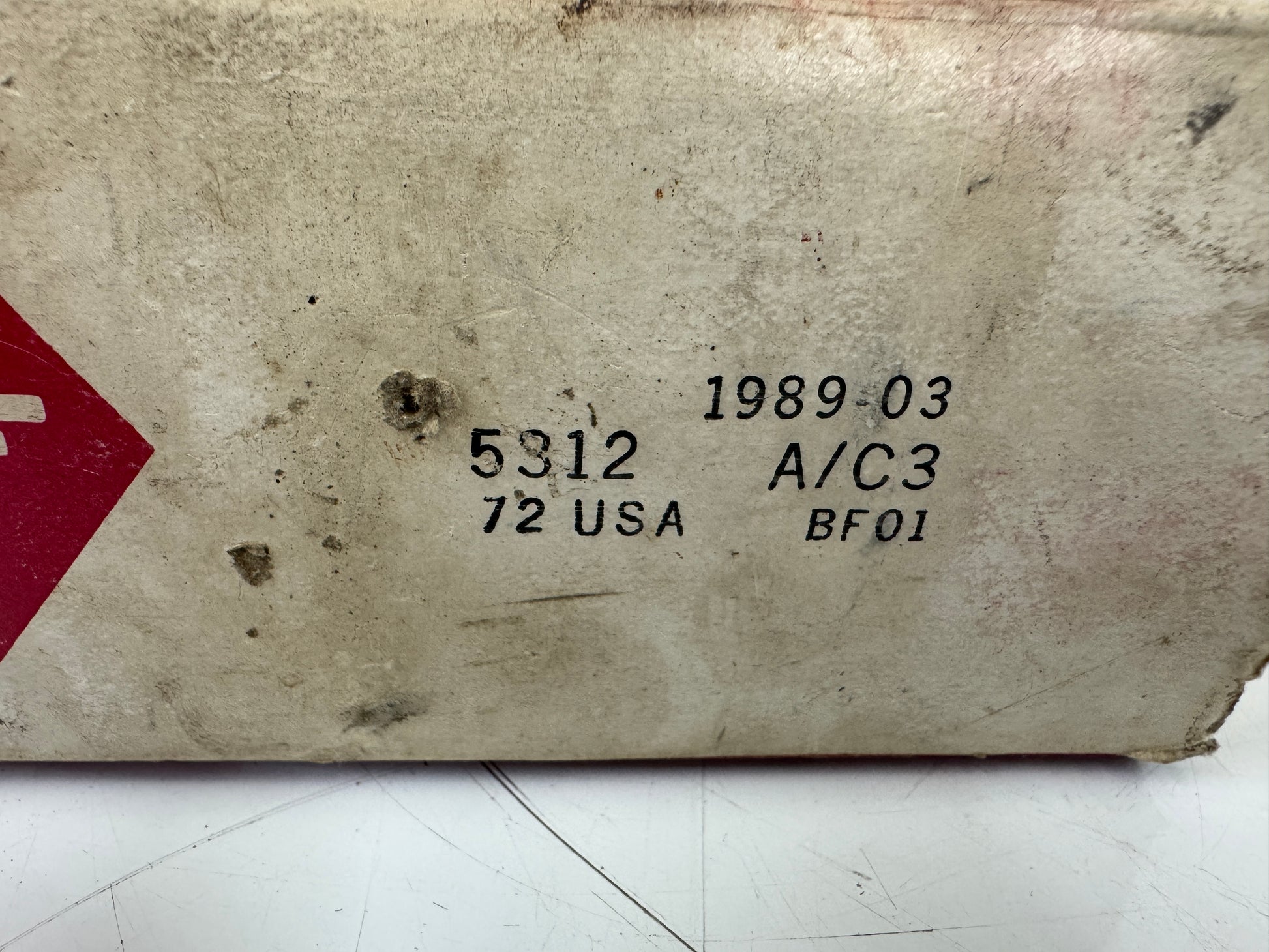

Package markings, part number, and date code are visible in the listing photos. Buyers should verify required clearance class, cage type, and dimensional fit against their application specifications.
Stock # 0226-167
