SKF 5410 A Double Row Angular Contact Ball Bearing – 50mm ID x 130mm OD x 52mm Width – New
SKF 5410 A Double Row Angular Contact Ball Bearing – 50mm ID x 130mm OD x 52mm Width – New
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 5410 A
Stock #: 0226-00163

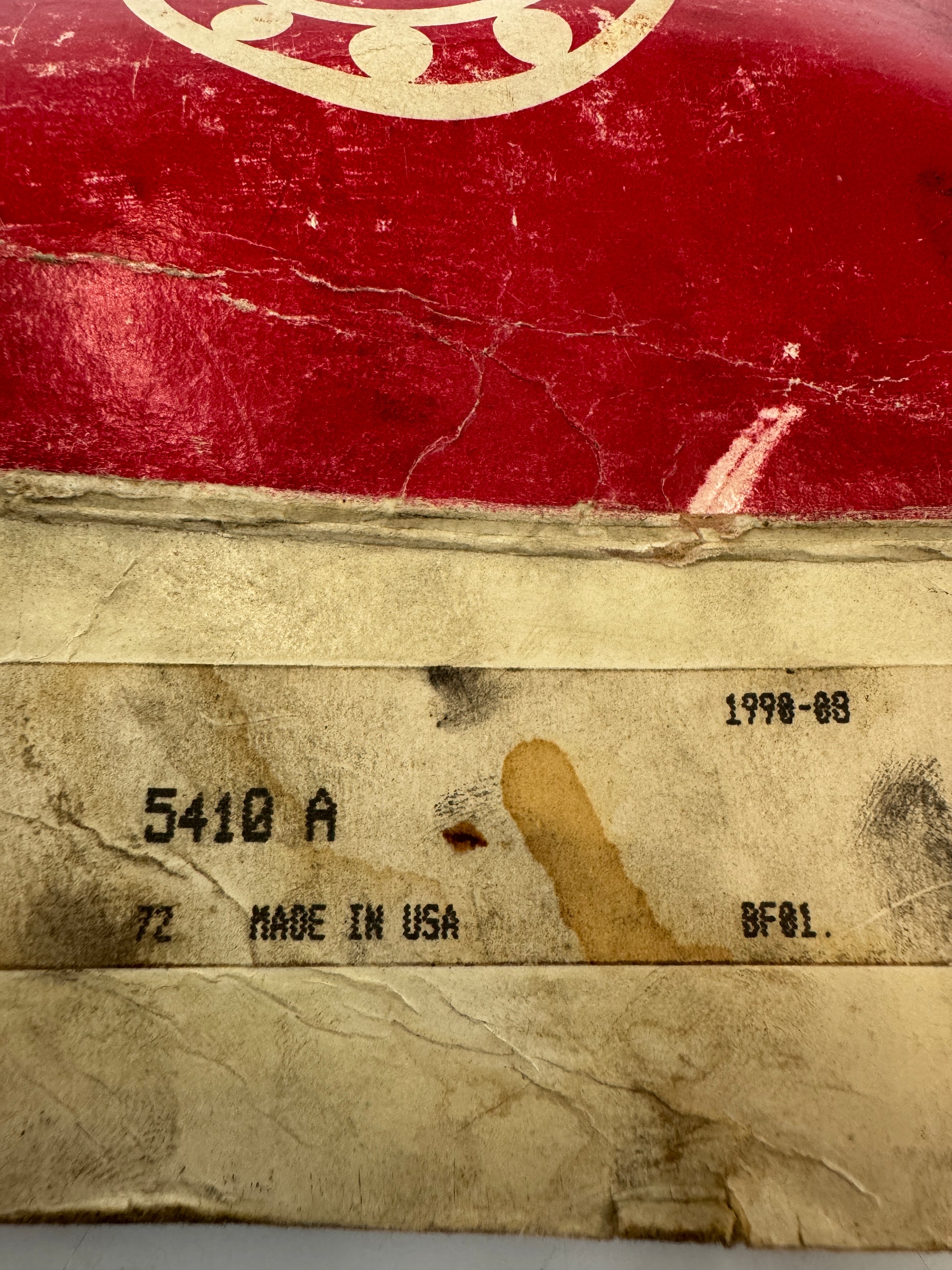

The SKF 5410 A is a double row angular contact ball bearing with a 50 mm bore, 130 mm outside diameter, and 58.7 mm width. The bearing carries the original SKF factory carton and label markings, with the part identifier 5410 A, date code 1998 09, and country of origin United States. The design corresponds to two single row angular contact ball bearings arranged back to back in a single unit, providing axial guidance in both directions while requiring less axial space than a paired single row arrangement.
This series is configured with a 30 degree contact angle, open construction with no integrated seals or shields, a stamped steel cage, and normal internal clearance. Inner ring and outer ring raceways accommodate simultaneously acting radial and axial loads, and the converging contact angle geometry increases the axial load carrying capacity relative to deep groove ball bearings of the same envelope. The bearing weight is approximately 3.7 kg.

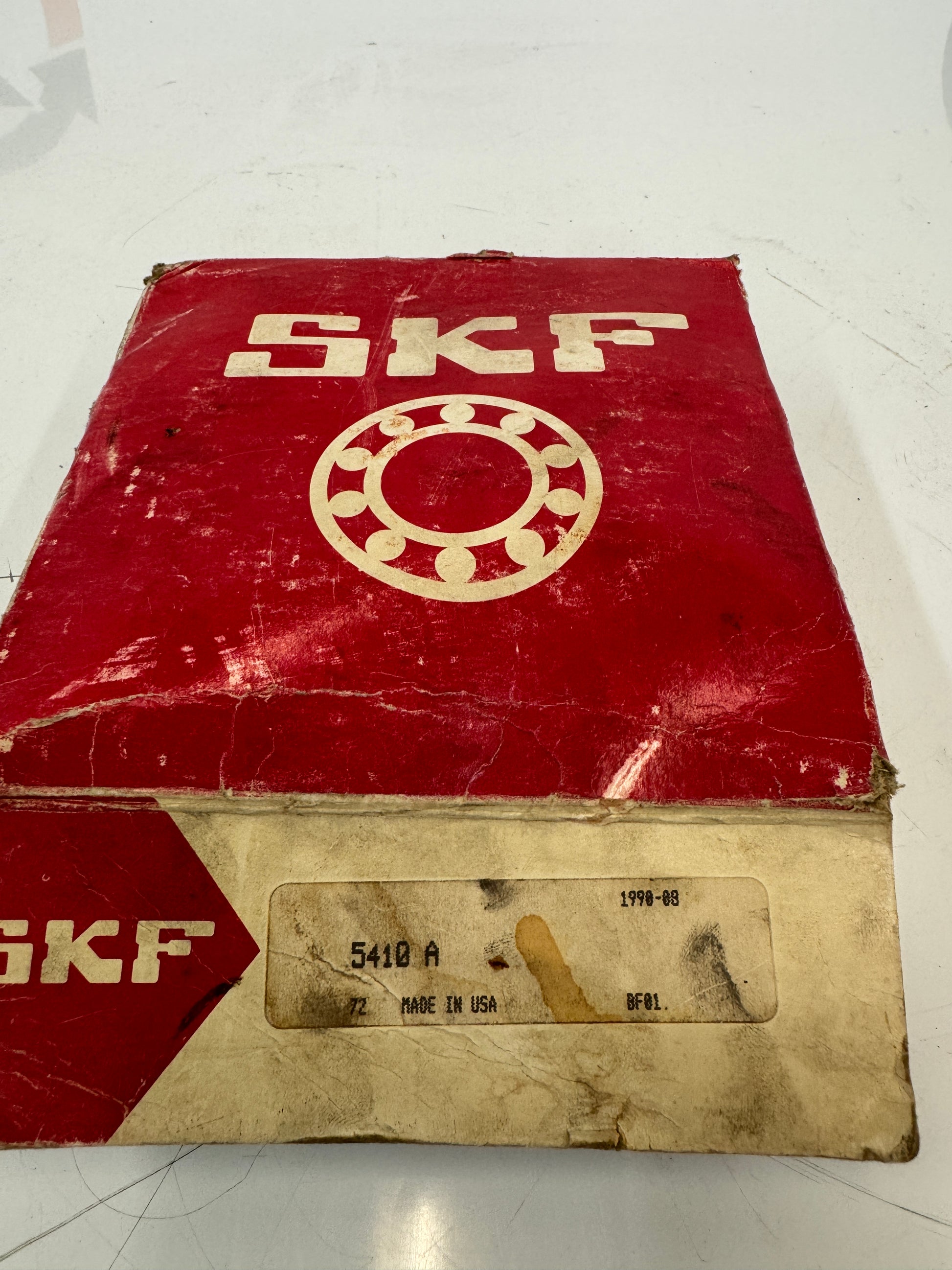

The 5410 A is commonly applied in pumps, compressors, centrifuges, gearboxes, and general industrial machinery where two directional thrust and radial loading occur in combination. Dimensional standards conform to ISO 15. The unit is supplied in the original SKF box shown in the listing photographs. Buyers should reference the SKF 5410 A datasheet for full load rating, limiting speed, and mounting fit specifications applicable to their installation.
Stock # 0226-163
