SKF 7313 BECBM Angular Contact Ball Bearing – 65mm ID x 140mm OD x 33mm Width – New

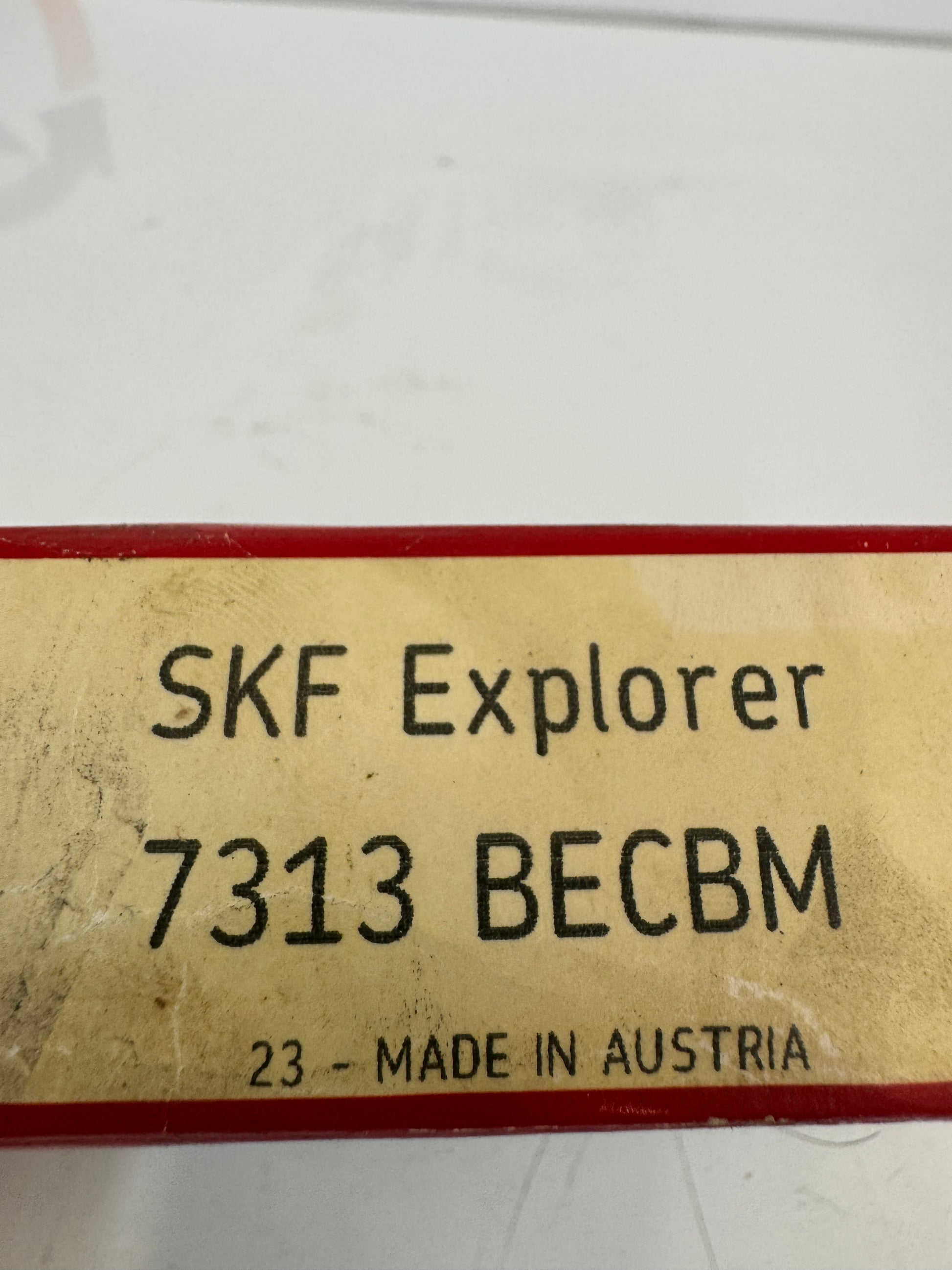

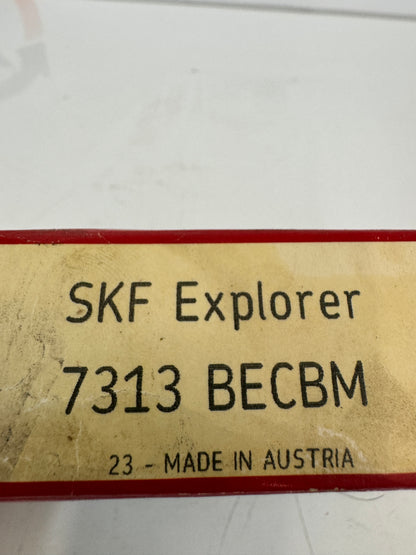

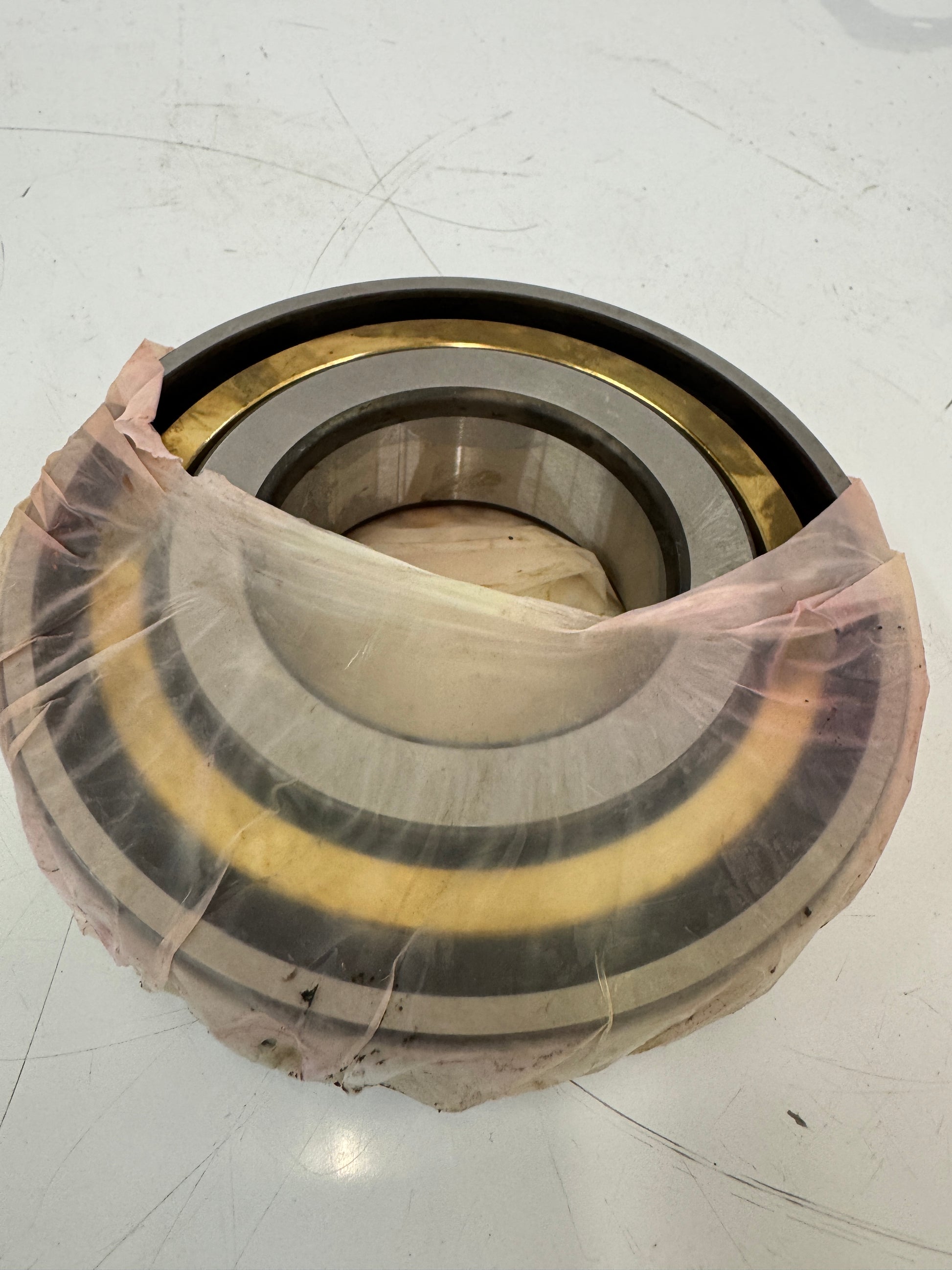

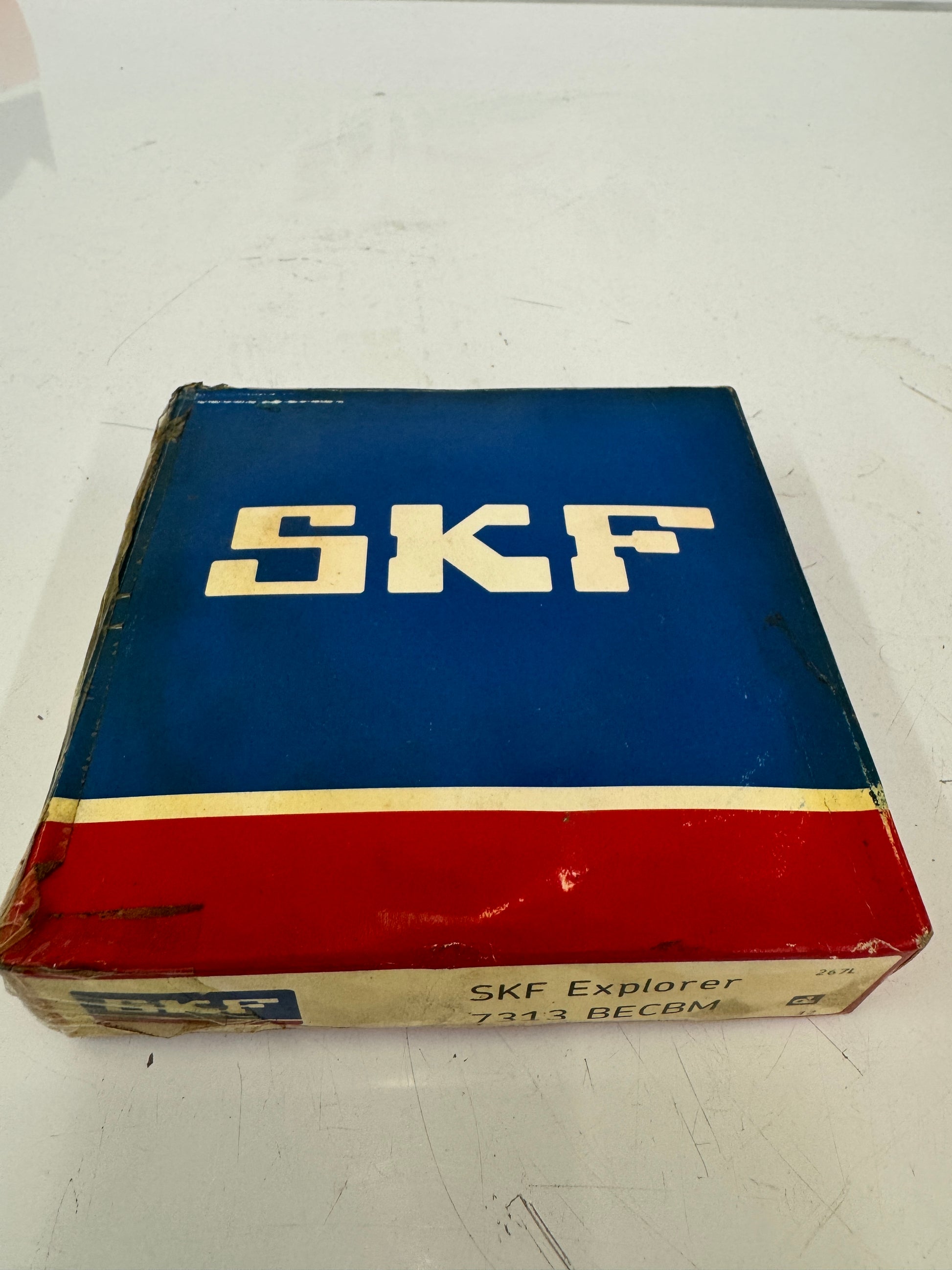

The SKF 7313 BECBM is a single row angular contact ball bearing from the SKF Explorer performance class, featuring a machined brass cage and a 40 degree contact angle. Bore diameter measures 65 mm, outside diameter 140 mm, and width 33 mm, placing it in the 73 series. The designation suffix breakdown is as follows: BE indicates single row angular contact geometry, CB denotes a configuration suitable for universal matching, and M identifies the machined brass cage. Manufactured in Austria as marked on the carton label, this bearing is part of SKF's Explorer line, the brand's premium performance designation for rolling bearings. Published manufacturer specifications list a dynamic load rating of 116 kN, static load rating of 80 kN, maximum reference speed of 6,300 RPM, and an ABEC 3 (ISO Class 6) precision tolerance. Operating temperature range is rated from 40 below zero to 212 degrees Fahrenheit. The bearing is supplied open, without seals or shields, with C0 normal internal radial clearance and a 2 mm fillet radius. Typical applications include machine tool spindles, pump shafts, gearbox assemblies, and other rotating equipment requiring combined radial and axial load support in one direction. Cage material is brass, rolling element and ring material is through hardened bearing steel. The bearing weight is approximately 5.2 lb per SKF documentation. Part number 7313 BECBM is the OEM SKF designation as marked on the original carton label.

Stock # 0226-158
