SKF Deep Groove Ball Bearing 6009-2RSJEM 45 x 75 x 16 mm
SKF Deep Groove Ball Bearing 6009-2RSJEM 45 x 75 x 16 mm
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 6009-2RSJEM
Stock #: 0426-01282

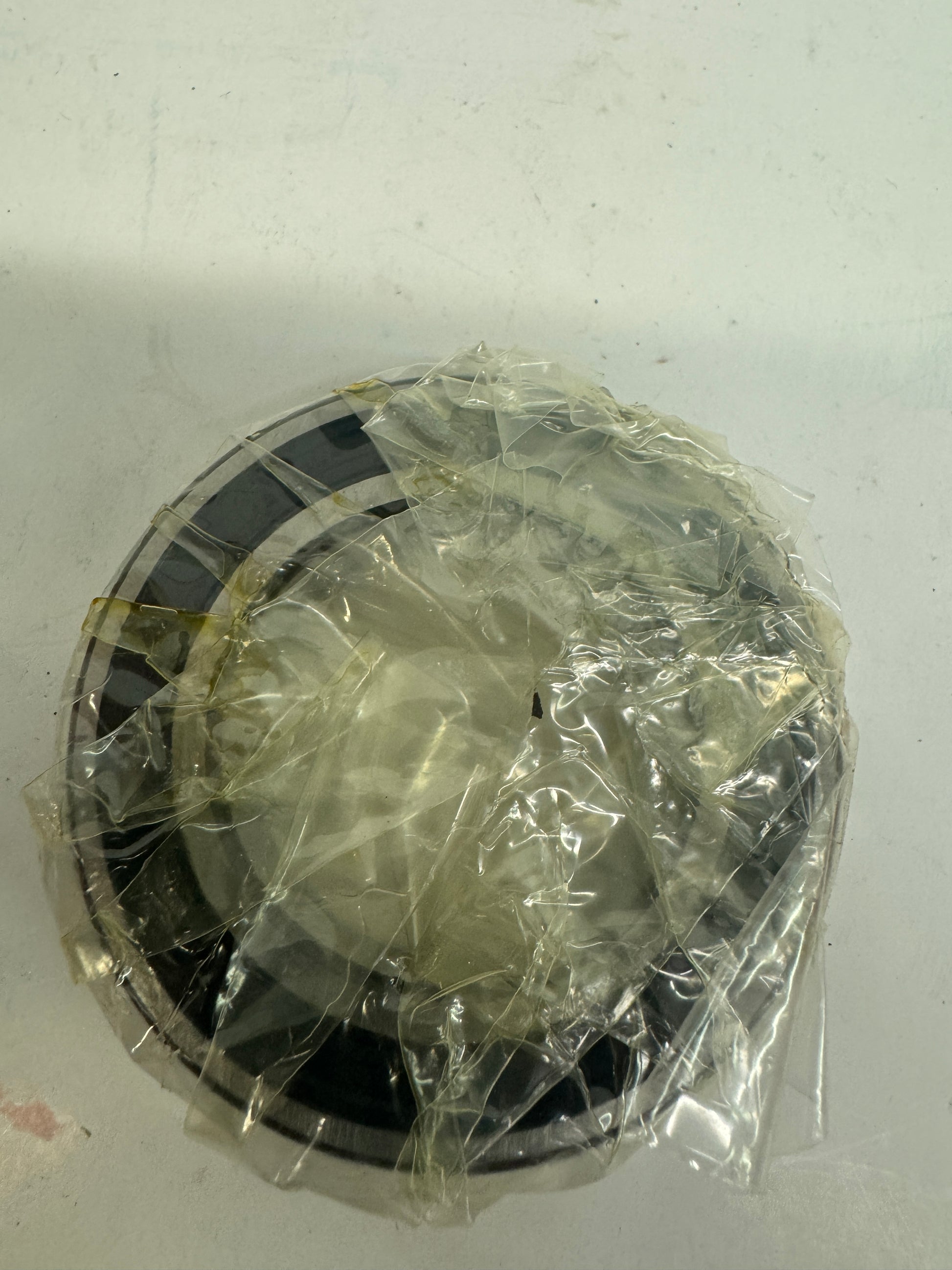

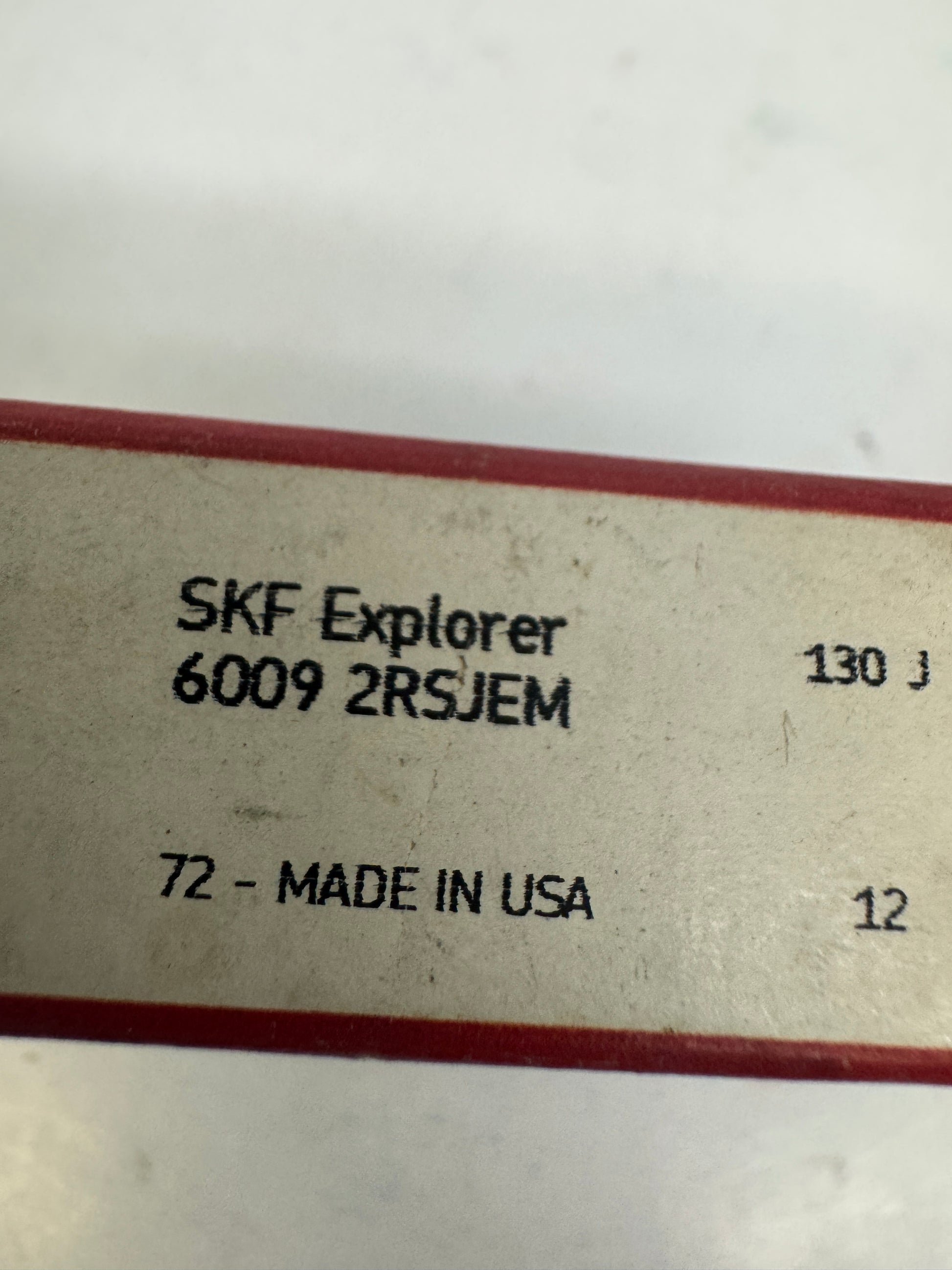

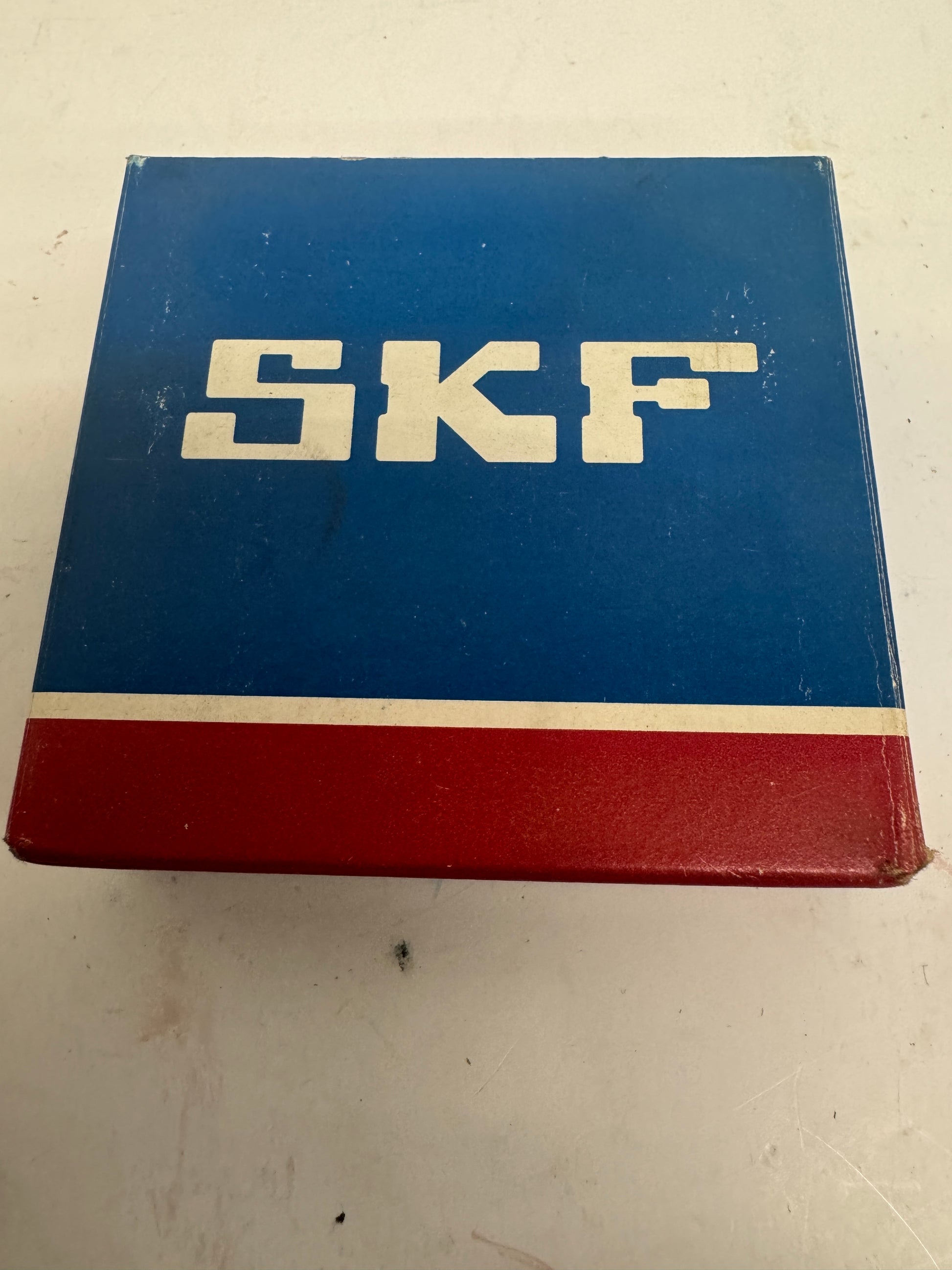

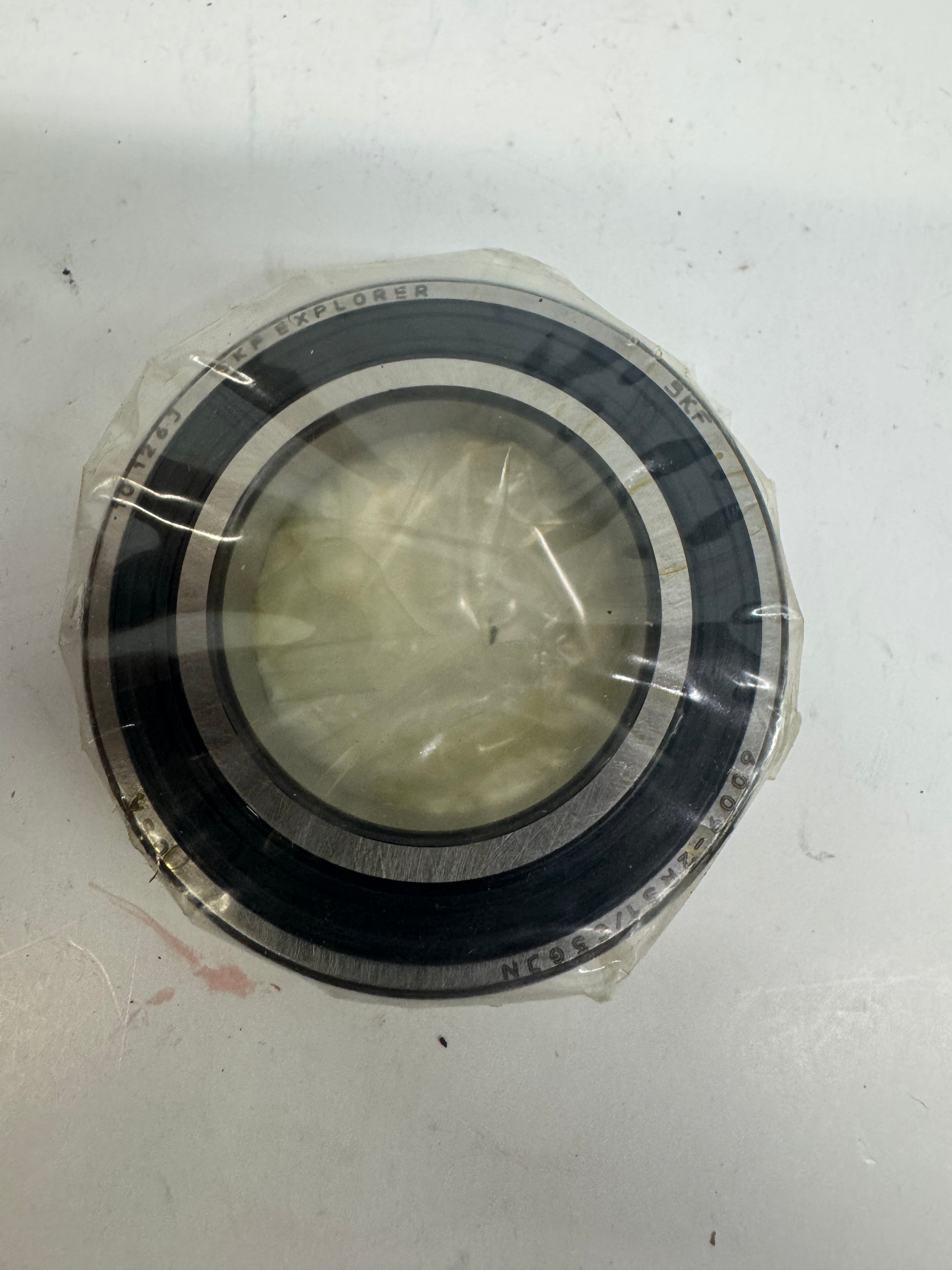

The SKF 6009-2RSJEM is a single-row deep groove radial ball bearing produced under SKF's Explorer performance specification. It features a 45 mm bore diameter, 75 mm outer diameter, and 16 mm width, with double rubber seals on both sides and C3 internal clearance for applications requiring slightly greater than normal radial play. The bearing is lubricated with EM-grade grease and carries a steel cage, making it well suited for electric motor applications and general industrial machinery operating at speeds up to 5,600 RPM. Confirmed nameplate markings identify this as an SKF Explorer series unit with the designation 6009 2RSJEM, manufactured in the USA. The box label also shows code "130 J" and date code "12," with a quantity indicator of 1. The bearing remains in its original SKF red and blue retail packaging and is wrapped in factory protective film. Dimensional specifications are confirmed via SKF published data: 45 mm ID, 75 mm OD, 16 mm width, ABEC 3 precision rating, 52100 chrome steel construction, nitrile rubber seal material. Radial dynamic load capacity is 4,970 lbf and static load capacity is 3,280 lbf per published SKF specifications. The 6009-2RSJEM is a widely used replacement bearing in conveyors, fans, pumps, and light-duty industrial drive applications.
