SKF Deep Groove Ball Bearing 6009 2RSJEM 45 x 75 x 16 mm
SKF Deep Groove Ball Bearing 6009 2RSJEM 45 x 75 x 16 mm
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 6009 2RSJEM
Stock #: 0626-01452
Product Specifications
- Manufacturer: SKF
- MPN / Model: 6009 2RSJEM
- Product Type: Deep Groove Radial Ball Bearing
- Series: SKF Explorer
- Bore Diameter: 45 mm
- Outside Diameter: 75 mm
- Width: 16 mm
- Seal Type: Double Rubber Seals, Both Sides
- Cage Material: Pressed Steel
- Internal Clearance: C3
- Lubrication: GJN High-Temperature Urea-Based Grease
- Dynamic Load Capacity: 4,680 Lbf
- Static Load Capacity: 3,280 Lbf
- Maximum Operating Speed: 5,600 RPM
- Temperature Range: -40 to 212 degrees F
- Bearing Material: 52100 Chrome Steel
- Seal Material: Synthetic Rubber
- Alternate Reference: 6009-2RS JEM C3
- Country of Origin: United States
- Stock Number: 0526-01452
Product Description

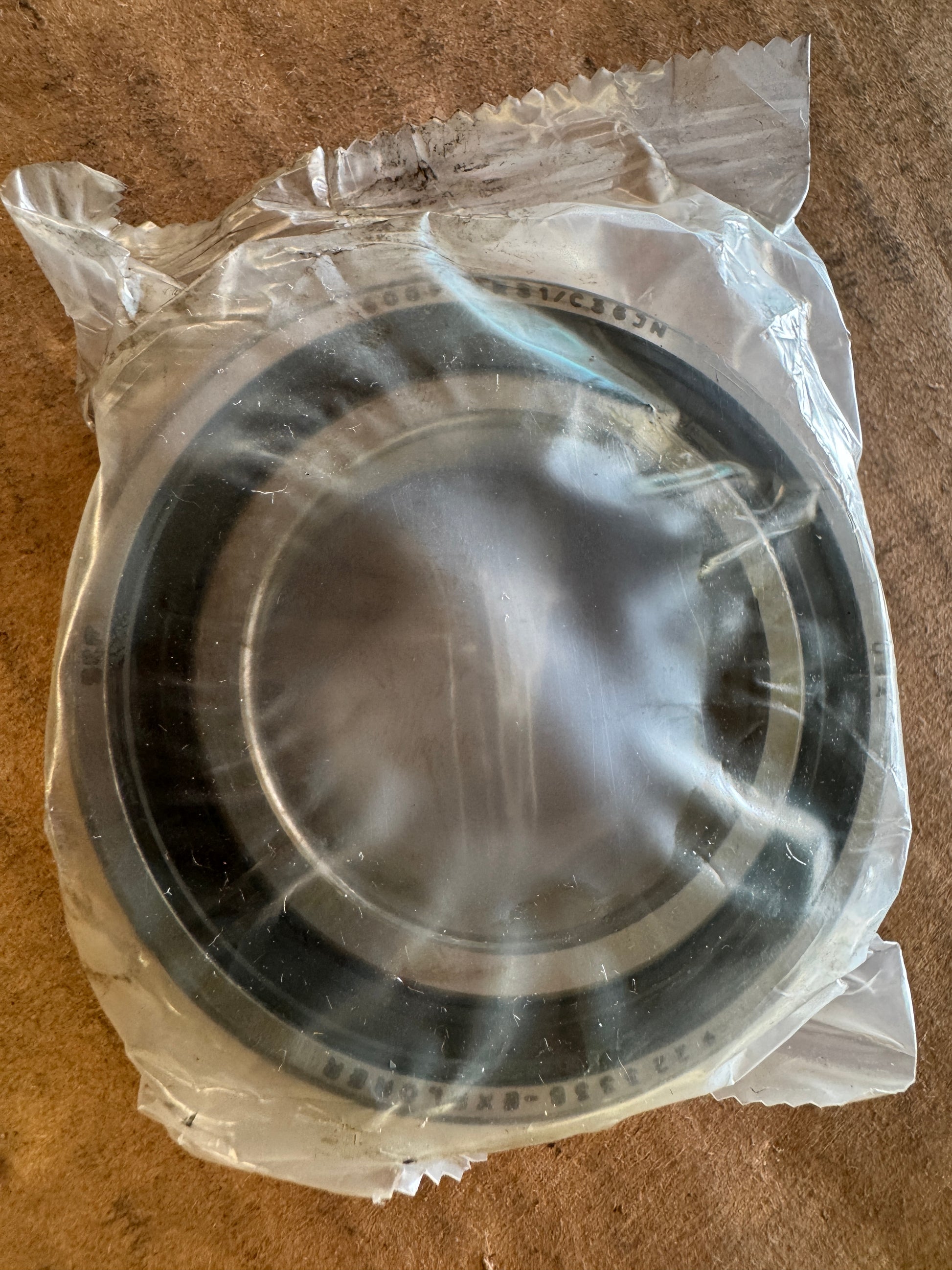

The SKF 6009 2RSJEM is a single-row deep groove radial ball bearing in the Explorer series, manufactured in the USA. It carries part number 6009 2RSJEM and is designed for use in electric motors, pumps, fans, gearboxes, and general industrial machinery requiring reliable radial and axial load support at moderate to high speeds.
Key specifications include a 45 mm bore diameter, 75 mm outside diameter, and 16 mm width. The bearing features double rubber seals on both sides, a pressed steel cage, and GJN high-temperature urea-based grease lubrication, which is the SKF standard for JEM-series deep groove ball bearings. Internal clearance is C3, making it well-suited for applications where thermal expansion is a factor. Dynamic load capacity is rated at 4,680 lbf and static load capacity at 3,280 lbf. Maximum operating speed is 5,600 RPM. Temperature range is rated from negative 40 to 212 degrees Fahrenheit. Bearing material is 52100 chrome steel. Seal material is synthetic rubber.

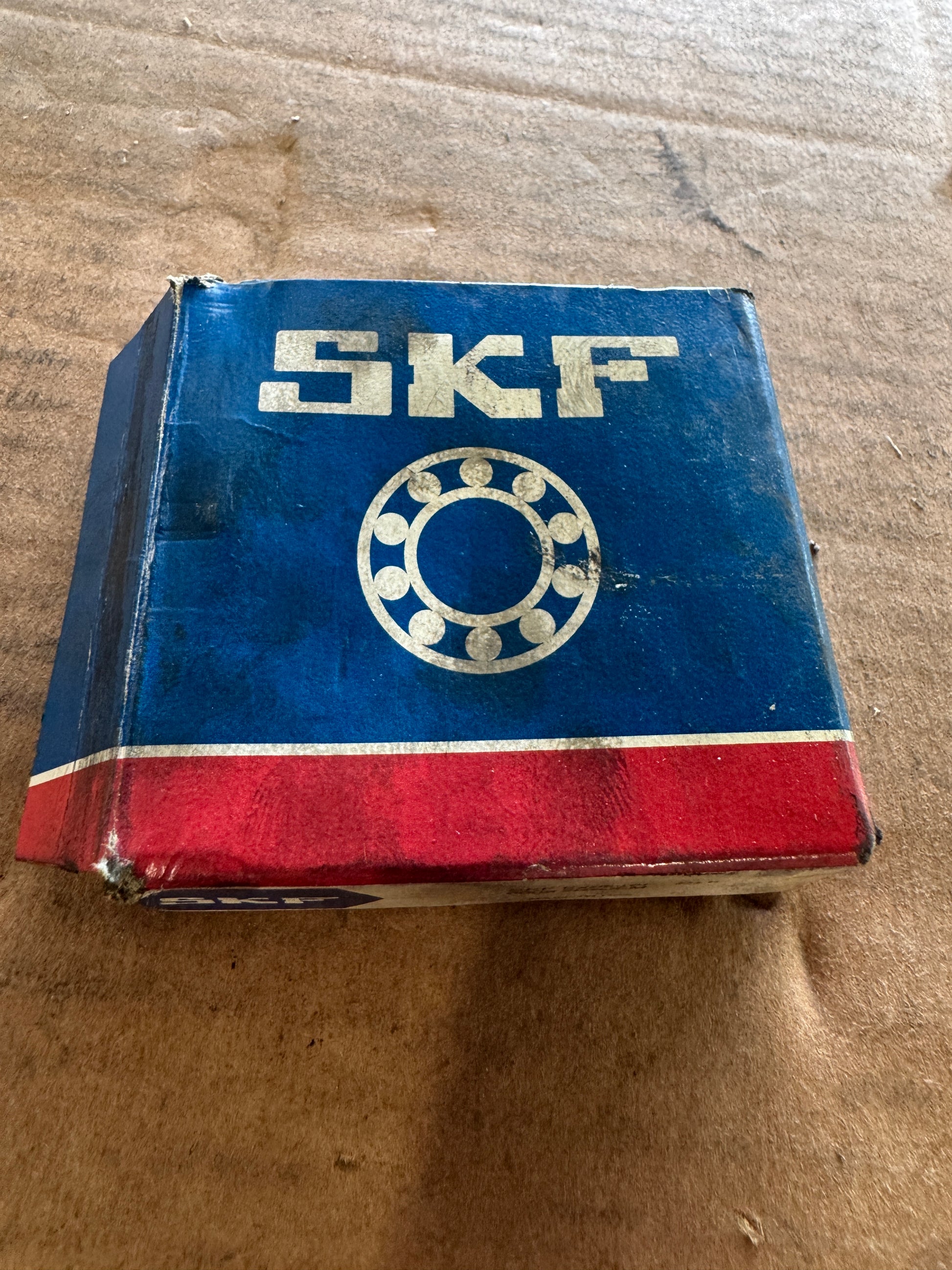

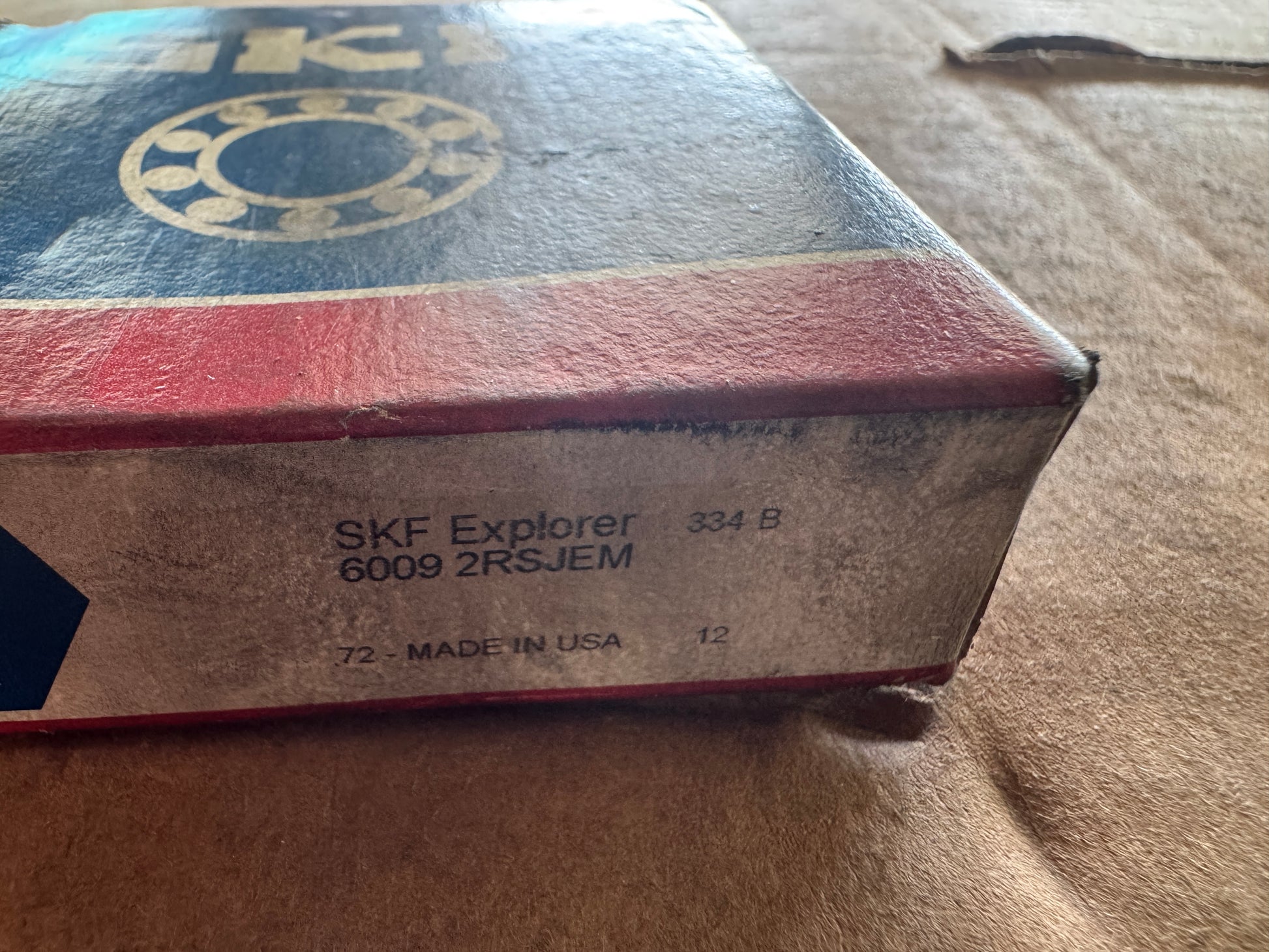

The SKF Explorer designation indicates enhanced internal geometry for extended service life and improved load distribution compared to standard grade deep groove ball bearings. The box label confirms manufacture in the USA. The bearing is presented in its original SKF Explorer packaging. The box shows external cosmetic wear consistent with storage age. Industry cross-reference number: 6009-2RS JEM C3.
