SKF Deep Groove Ball Bearing 6308-Z/C3 40 x 90 x 23 mm
SKF Deep Groove Ball Bearing 6308-Z/C3 40 x 90 x 23 mm
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 6308-Z/C3
Stock #: 0626-01454
Product Specifications
- Manufacturer: SKF
- MPN / Model: 6308-Z/C3
- Product Type: Deep Groove Ball Bearing
- Series: SKF Explorer
- Bore Diameter: 40 mm
- Outside Diameter: 90 mm
- Width: 23 mm
- Shield Type: Single-Side Steel Shield (Z)
- Cage Material: Steel
- Internal Clearance: C3
- Batch Code: 209A
- Production Code: 12
- Country of Origin: United States
- Stock Number: 0526-01454
Product Description

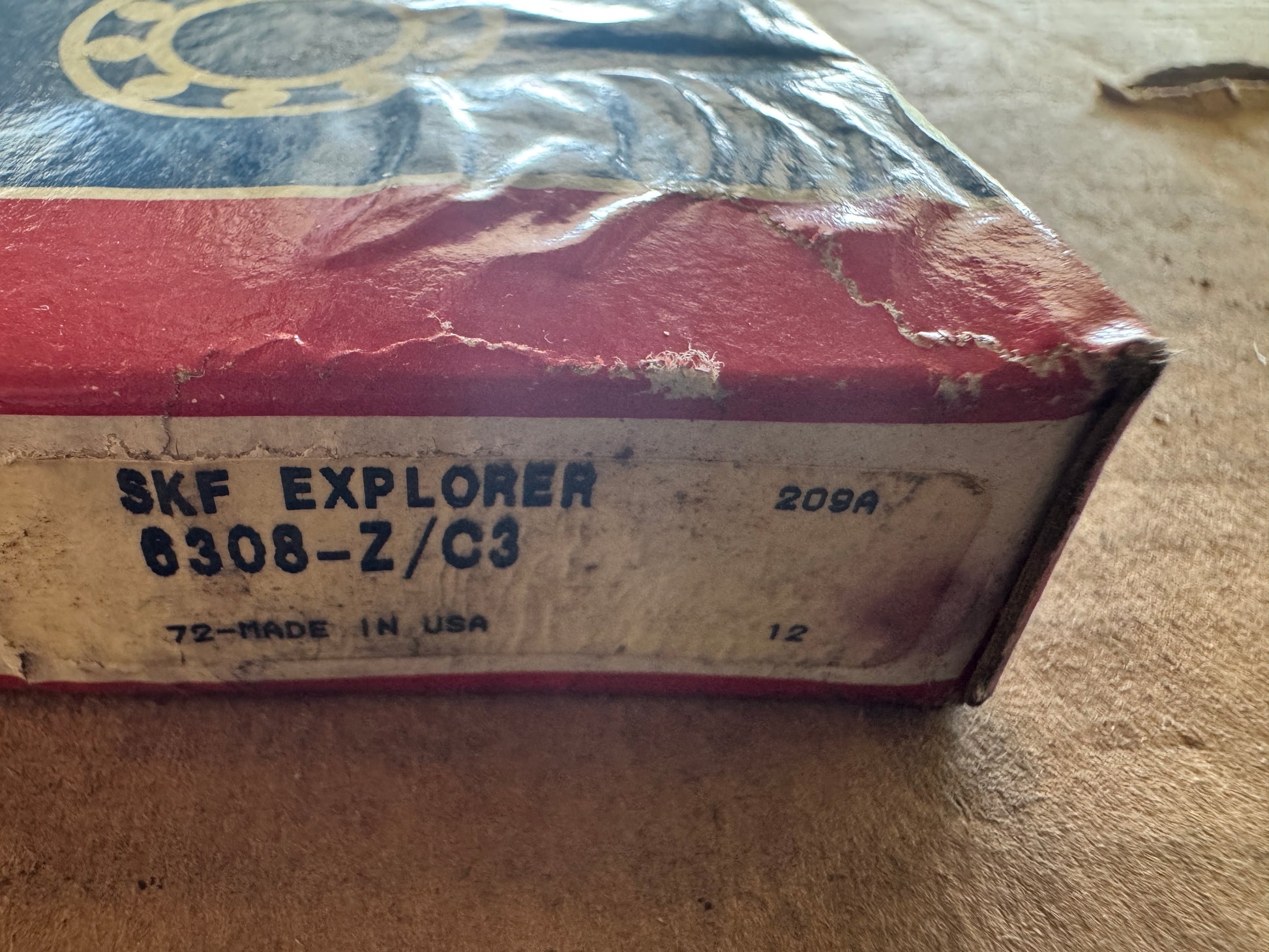

The SKF 6308-Z/C3 is a single-row deep groove ball bearing from the SKF Explorer series, manufactured in the USA as indicated on the original box label. The part number 6308-Z/C3 identifies a 40 mm bore, 90 mm outside diameter, 23 mm width configuration with a single-side steel shield (Z suffix) and C3 internal clearance, which provides greater-than-normal radial play for applications involving elevated temperatures or higher-speed operation. The SKF Explorer designation reflects a performance-level production standard within SKF's deep groove ball bearing line. Published dimensions per manufacturer data are 40 x 90 x 23 mm with a steel cage. Deep groove ball bearings of this series support both radial and axial loads in either direction and are widely used in electric motors, pumps, gearboxes, fans, and general industrial machinery. The C3 clearance specification is commonly specified in motor and pump applications where thermal expansion during operation must be accommodated. The box label additionally shows a batch code of 209A and production code 12.
