SKF Deep Groove Ball Bearing 6309-2RSJEM 45 x 100 x 25 mm
SKF Deep Groove Ball Bearing 6309-2RSJEM 45 x 100 x 25 mm
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 6309-2RSJEM
Stock #: 0626-01451
Product Specifications
- Manufacturer: SKF
- MPN / Model: 6309-2RSJEM
- Product Type: Deep Groove Ball Bearing
- Series: SKF Explorer 6300
- Bore Diameter: 45 mm
- Outside Diameter: 100 mm
- Width: 25 mm
- Seal Type: Double Rubber Seals (2RS)
- Internal Clearance: C3
- Cage Material: Machined Brass
- Alternate Reference: 63092RSJEM
- Country of Origin: United States
- Stock Number: 0526-01451
Product Description

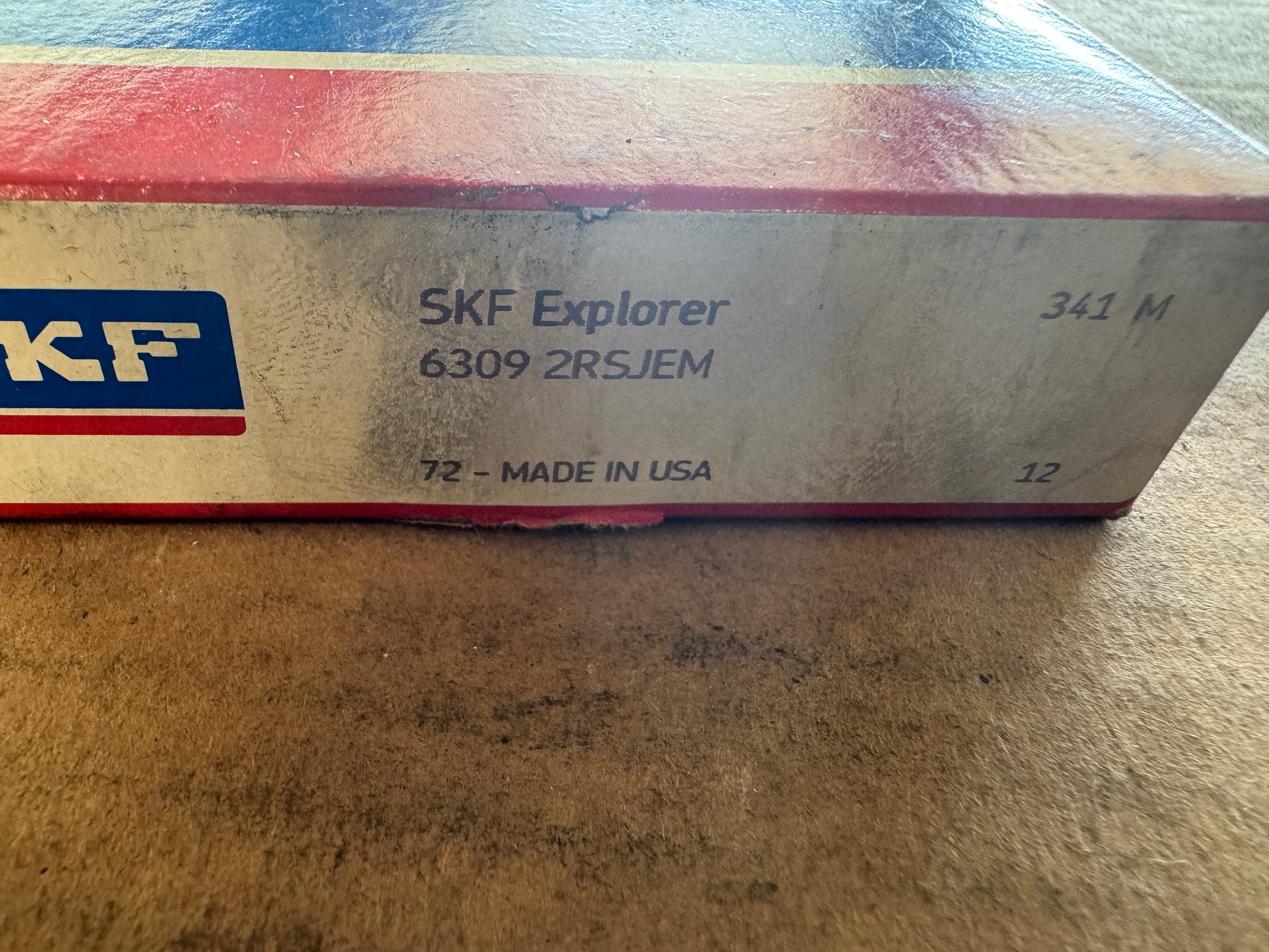

The SKF 6309-2RSJEM is a single-row deep groove ball bearing from the SKF Explorer series, manufactured in the USA as indicated on the box label. Part number 6309-2RSJEM, also cross-referenced as 63092RSJEM, specifies a 45 mm bore diameter, 100 mm outside diameter, and 25 mm width. The bearing features double rubber seals (2RS designation), C3 greater-than-normal internal clearance, and a machined brass cage construction. The JEM suffix denotes the Explorer series designation, which reflects SKF's higher-performance specification within the standard 6300 series deep groove family.
This bearing accommodates both radial and axial loads in either direction and is optimized for low friction, low noise, and high rotational speed operation. The double-seal configuration provides protection against contaminants including dust and moisture, extending service life in demanding environments. C3 clearance accommodates thermal expansion and shaft-fit interference in applications where standard clearance would be insufficient.
Common application contexts include electric motors, pumps, compressors, fans, conveyors, and general industrial rotating machinery requiring a 45 mm shaft fit. The 6309-2RSJEM is a widely stocked and commonly specified bearing in North American MRO and OEM supply chains. The Explorer designation indicates compliance with SKF's internal quality and performance standards for this series. Date code and country of origin visible on box label.
