SKF Double Row Angular Contact Ball Bearing 5207 A-2RS1/C3 35 x 72 x 27 mm

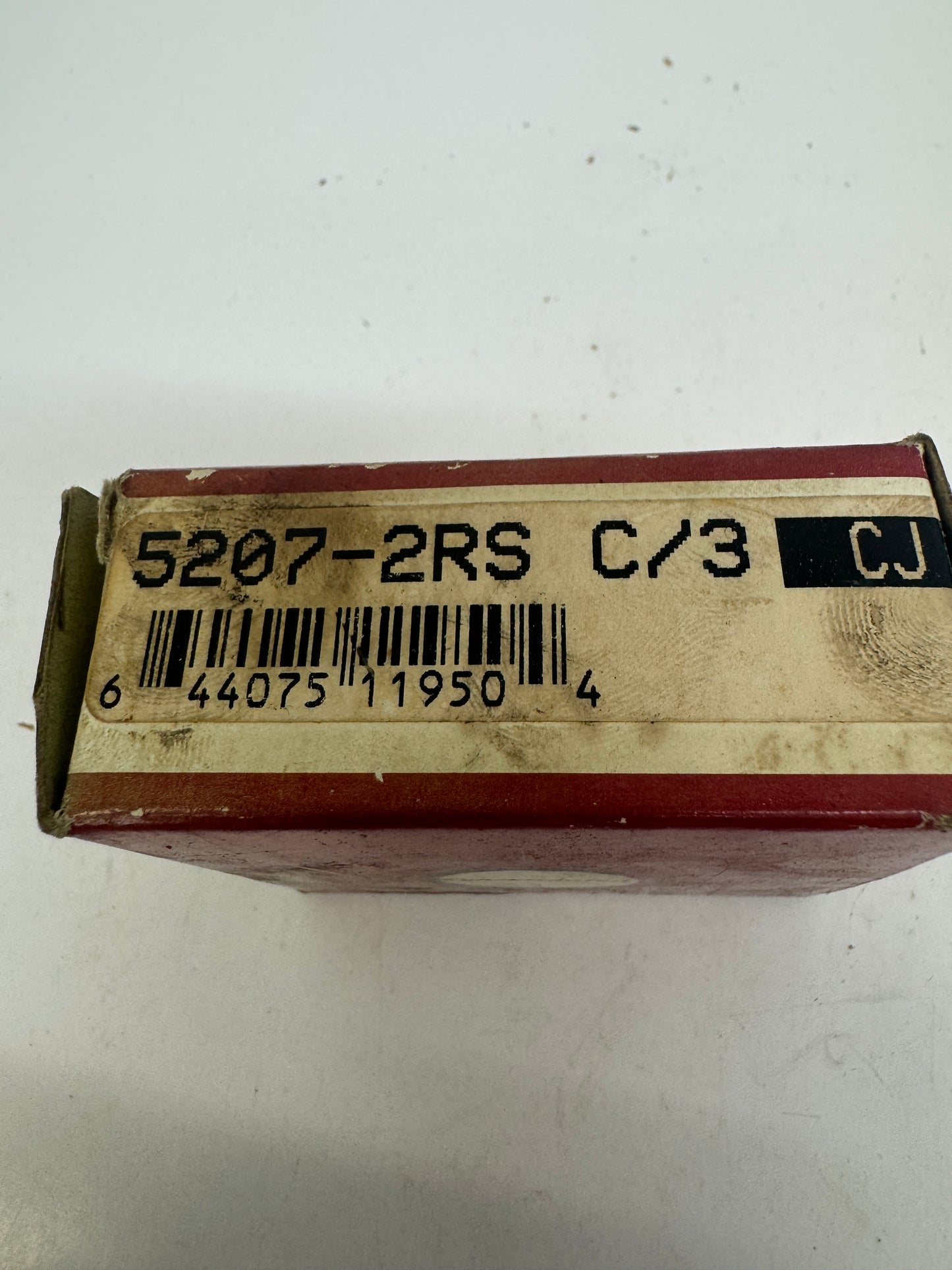

The SKF 5207 A-2RS1/C3 is a double row angular contact ball bearing from SKF's Explorer series, carrying part number 5207 A-2RS1/C3. It features dual rubber lip seals on both sides (2RS1 designation) and C3 internal radial clearance, making it suited for applications with higher than normal operating temperatures or interference-fit installations. The bearing measures 35 mm bore diameter, 72 mm outer diameter, and 27 mm width. Double row angular contact bearings of this design are capable of supporting combined radial and axial loads in both directions simultaneously, due to the two rows of balls arranged in an O-configuration within a single bearing assembly. The SKF Explorer designation indicates the bearing is manufactured to SKF's enhanced performance specification, incorporating optimized internal geometry, improved surface finish on raceways, and high-quality cage and rolling element materials. The 5207 A-2RS1/C3 is commonly used in electric motors, gearboxes, pumps, compressors, and general industrial machinery where a compact, sealed double row bearing is required. The bearing is housed in original Consolidated Bearings packaging marked 5207-2RS C/3, with the SKF Explorer brand and model stamped on the bearing outer ring itself. Dimensions: 35 x 72 x 27 mm.

Stock # 0426-01328
