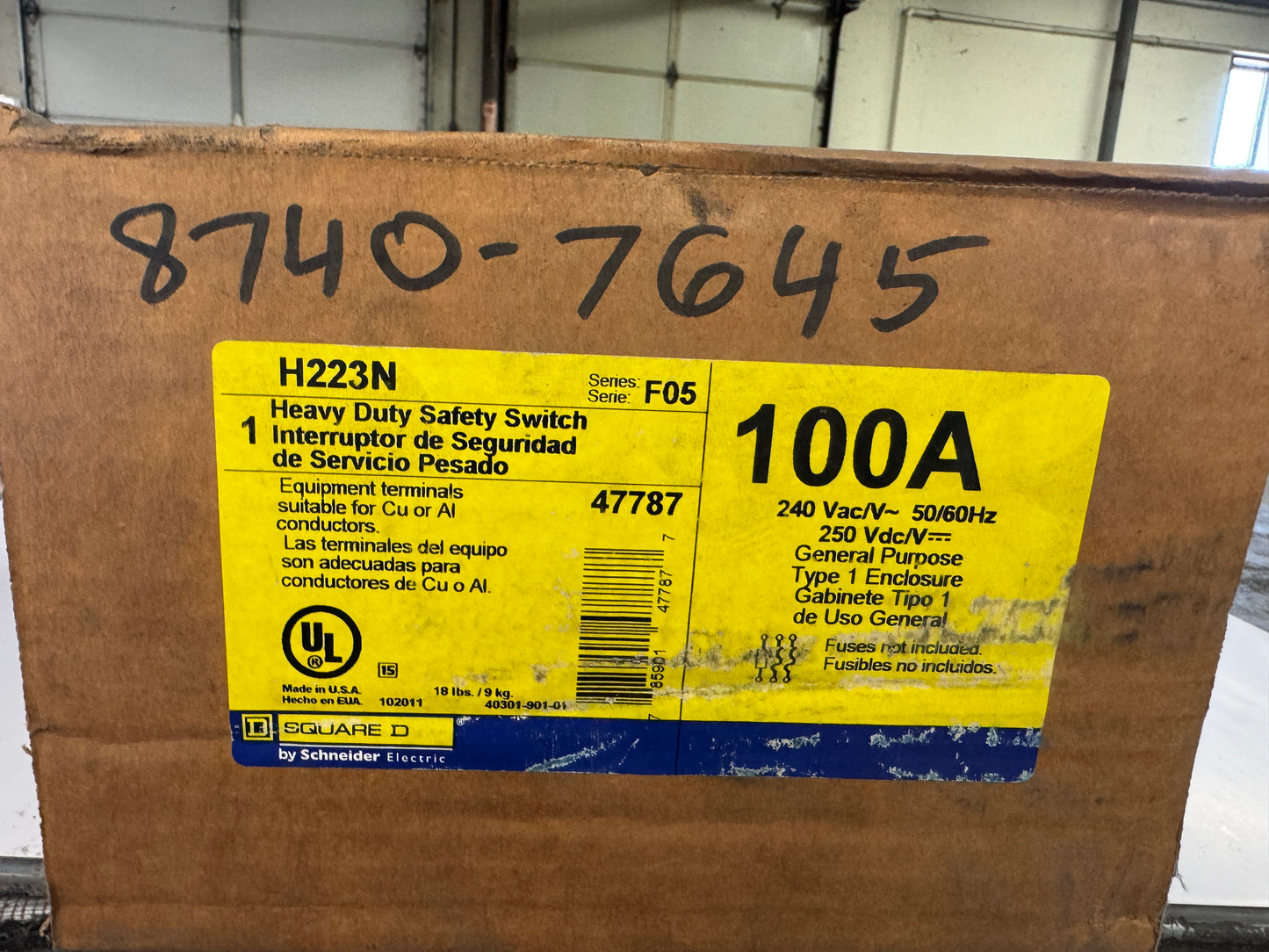

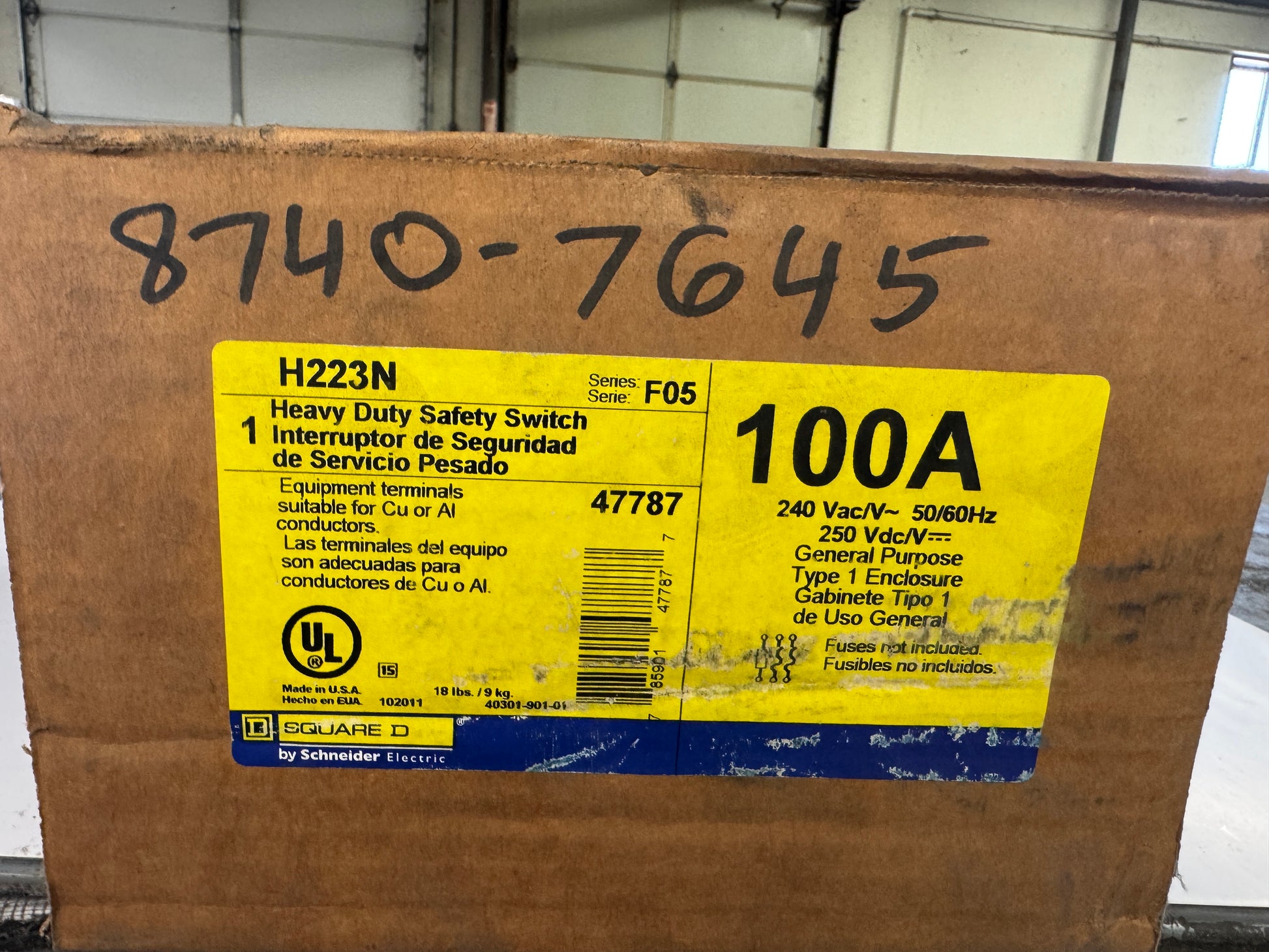

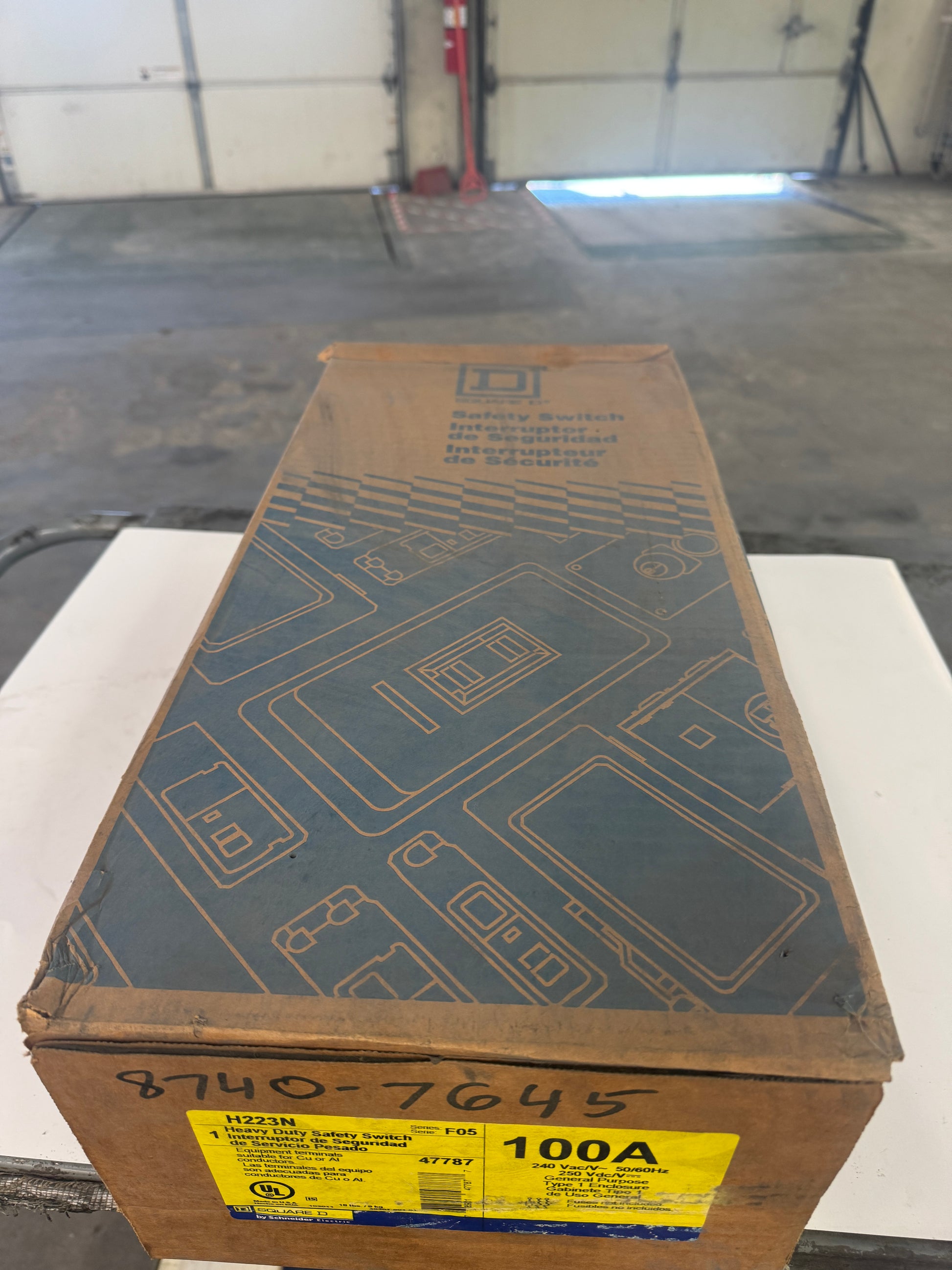

Square D Heavy Duty Safety Switch H223N 240 VAC / 250 VDC

The Square D H223N is a heavy duty fusible safety switch rated for 100 amps at 240 VAC and 250 VDC, manufactured under Schneider Electric. This unit is a Series F05 disconnect housed in a NEMA Type 1 general purpose enclosure intended for indoor installation. The switch carries Square D catalog number H223N and reference number 47787, with equipment terminals suitable for either copper or aluminum conductors. UL listed and made in the USA, the device provides a fusible 2 pole, 3 wire configuration for single phase service entrance, branch circuit, and motor disconnect applications. Published manufacturer specifications list horsepower ratings of 7.5 HP at 240 VAC single phase, 15 HP at 240 VAC three phase standard, 15 HP at 240 VAC single phase maximum, 30 HP at 240 VAC three phase maximum, and 20 HP at 250 VDC. The H223N accepts Class H or Class K fuses (fuses not included) and includes a defeatable cover interlock to prevent door opening while the switch is in the ON position. The visible quick make, quick break operating mechanism is designed for use as a service disconnect, motor disconnect, or branch circuit disconnect in commercial and industrial facilities. This unit is offered in original Square D packaging, surplus stock, with the factory carton showing date code 102011. Typical applications include HVAC equipment, pumps, compressors, machine tools, and other 240 VAC single phase or DC loads requiring local disconnect capability per NEC requirements.

Stock # 0526-02266
