Square D Heavy Duty Safety Switch H364RB 600V AC/DC
Square D Heavy Duty Safety Switch H364RB 600V AC/DC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: H364RB
Stock #: 0526-02191

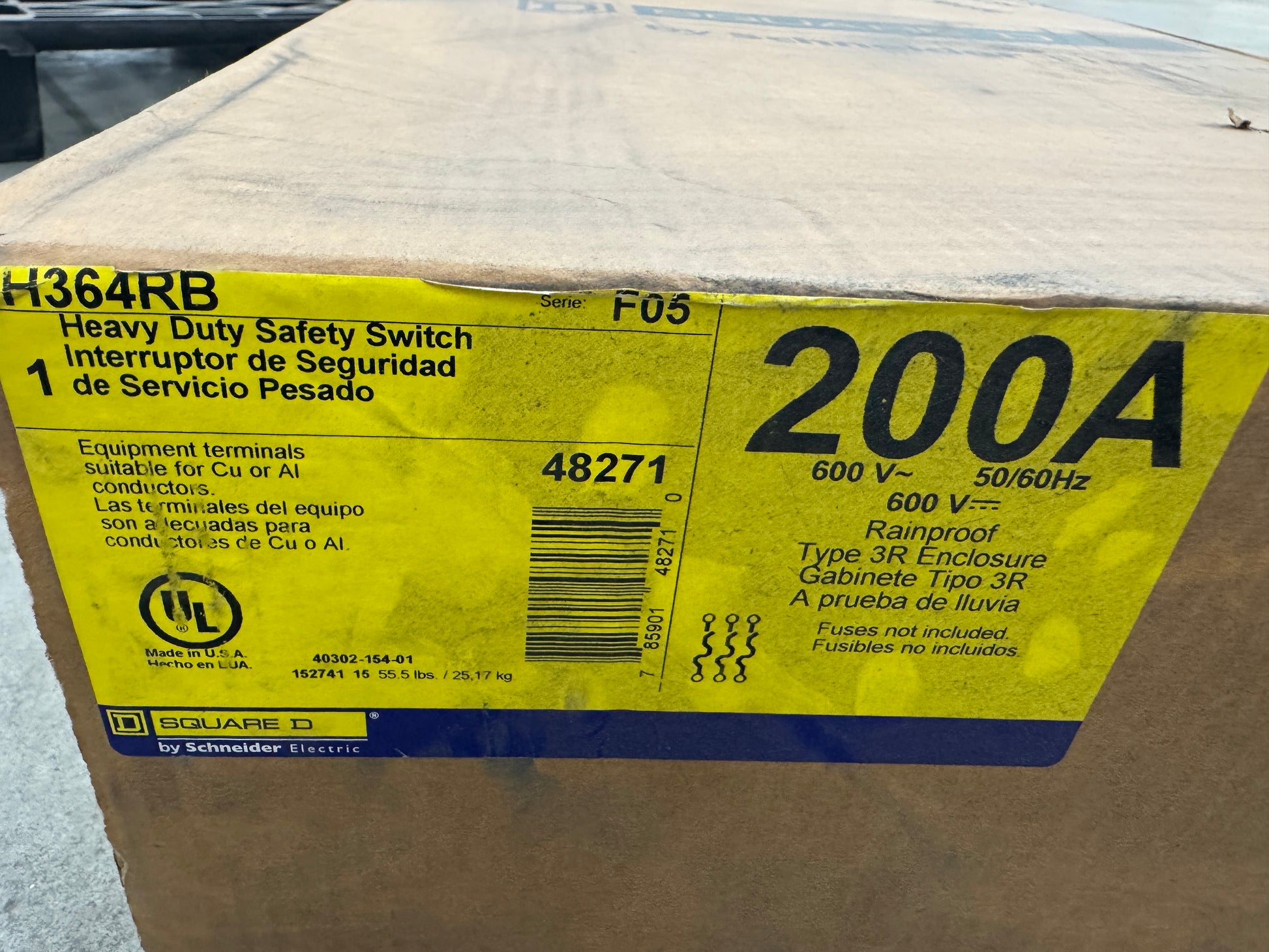

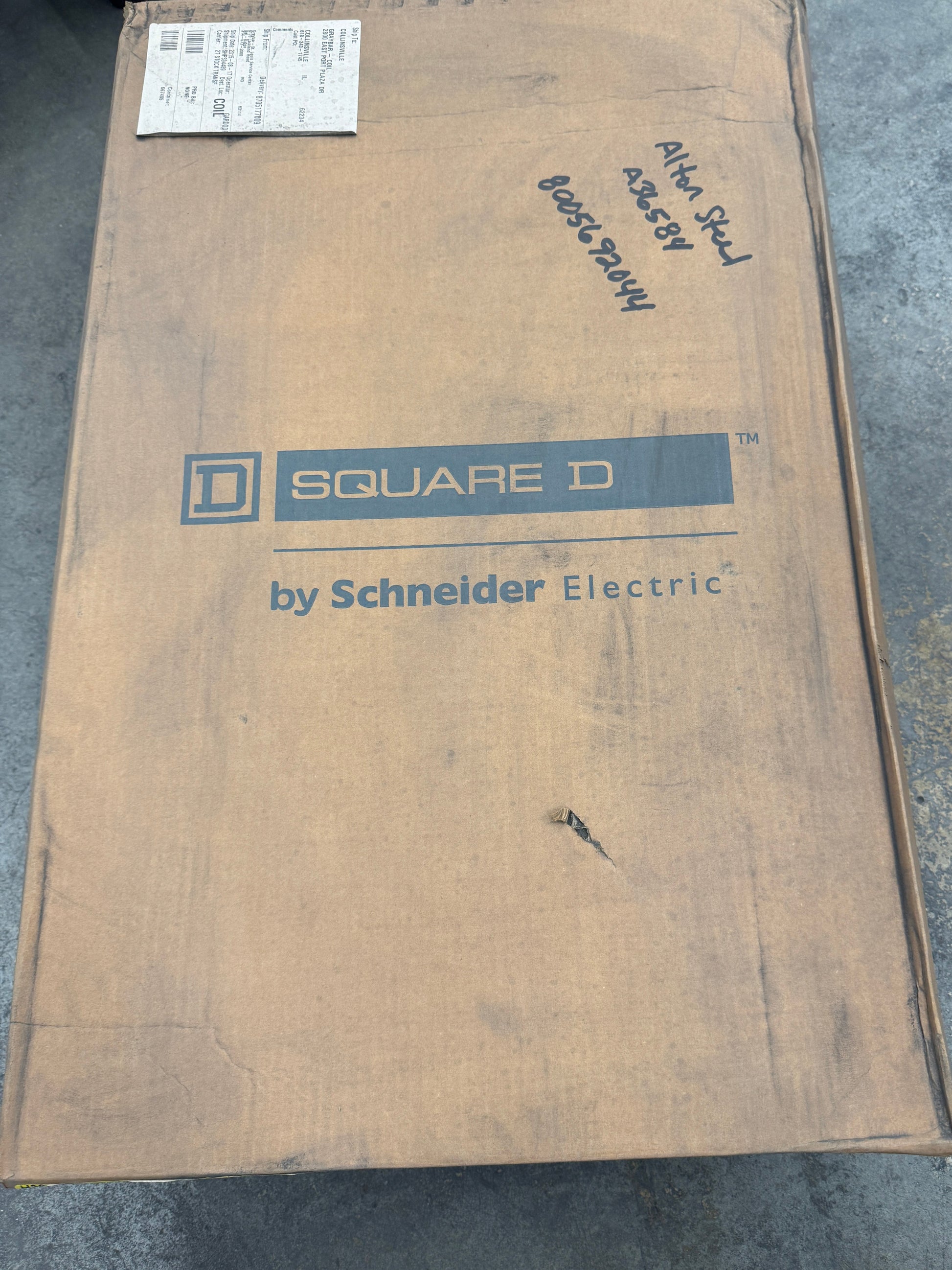

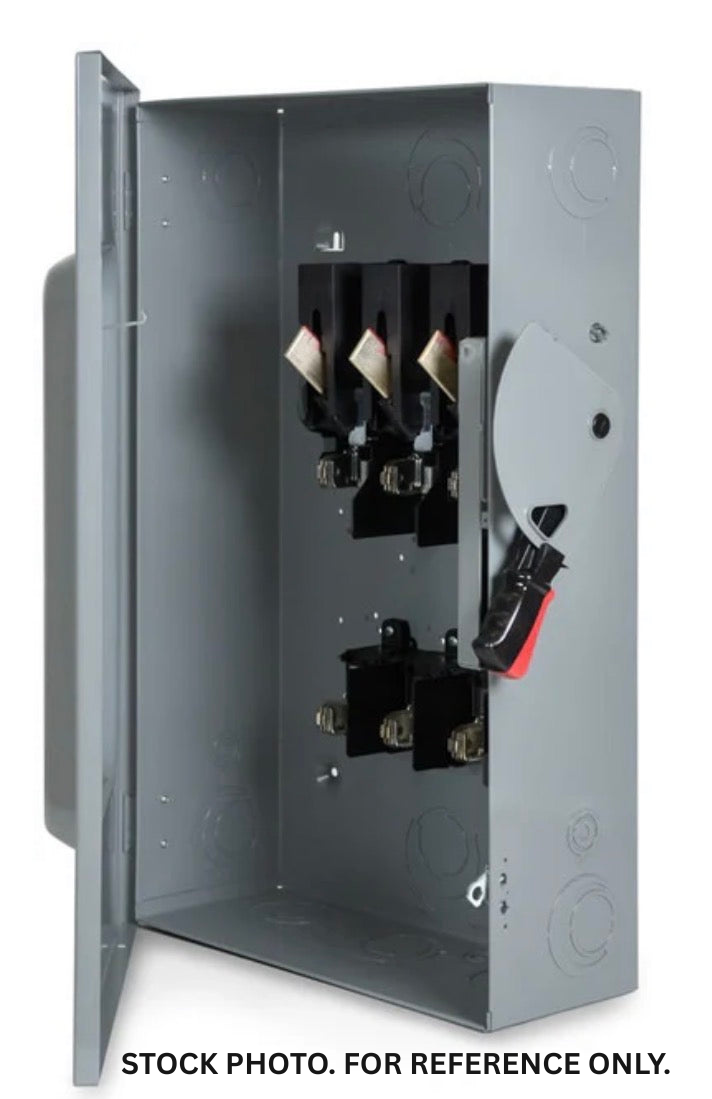

A heavy duty fusible safety switch from Square D by Schneider Electric, model H364RB, Series F05. Rated at 200 amperes and 600 volts AC/DC, this 3-pole, 3-wire single-throw disconnect is housed in a NEMA Type 3R galvannealed steel enclosure rated rainproof and sleet/ice proof for indoor and outdoor use. Short circuit current rating is 10kA with Class H or K fuses and 200kA with Class R, J, or L fuses. Lug-type terminals accept wire sizes from #6 to 250 AWG/kcmil for both copper and aluminum conductors. The unit features a quick-make, quick-break operating mechanism and a dual cover interlock. Handle is color-coded for on/off indication. Surface mount installation. Factory-installed neutral is not included. Fuses are not included. UL listed. Made in the USA. Dimensions per published specifications: 29.25 in. height, 18.63 in. width, 8.5 in. depth. Suitable for heavy commercial and industrial power distribution and disconnect applications. The F Series is designed to a mechanical endurance rating significantly exceeding NEMA KS-1 and UL 98 requirements. Photos include the actual item packaging and label. Any product-style image shown is for reference only. Buyer will receive the new-in-box Square D H364RB Heavy Duty Safety Switch shown and described.
Stock # 0526-02191
