Square D Heavy Duty Safety Switch HU361RB 600V

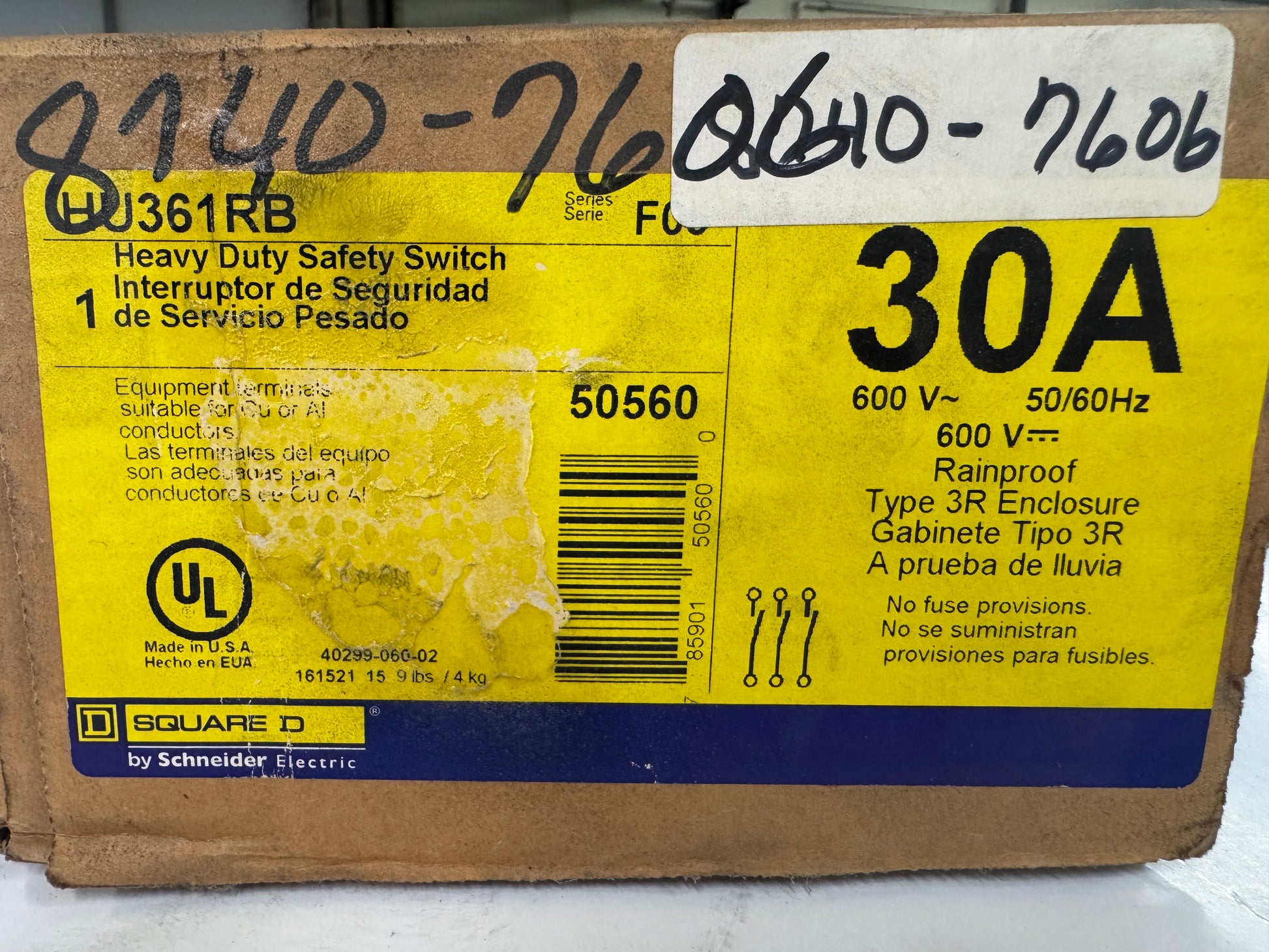

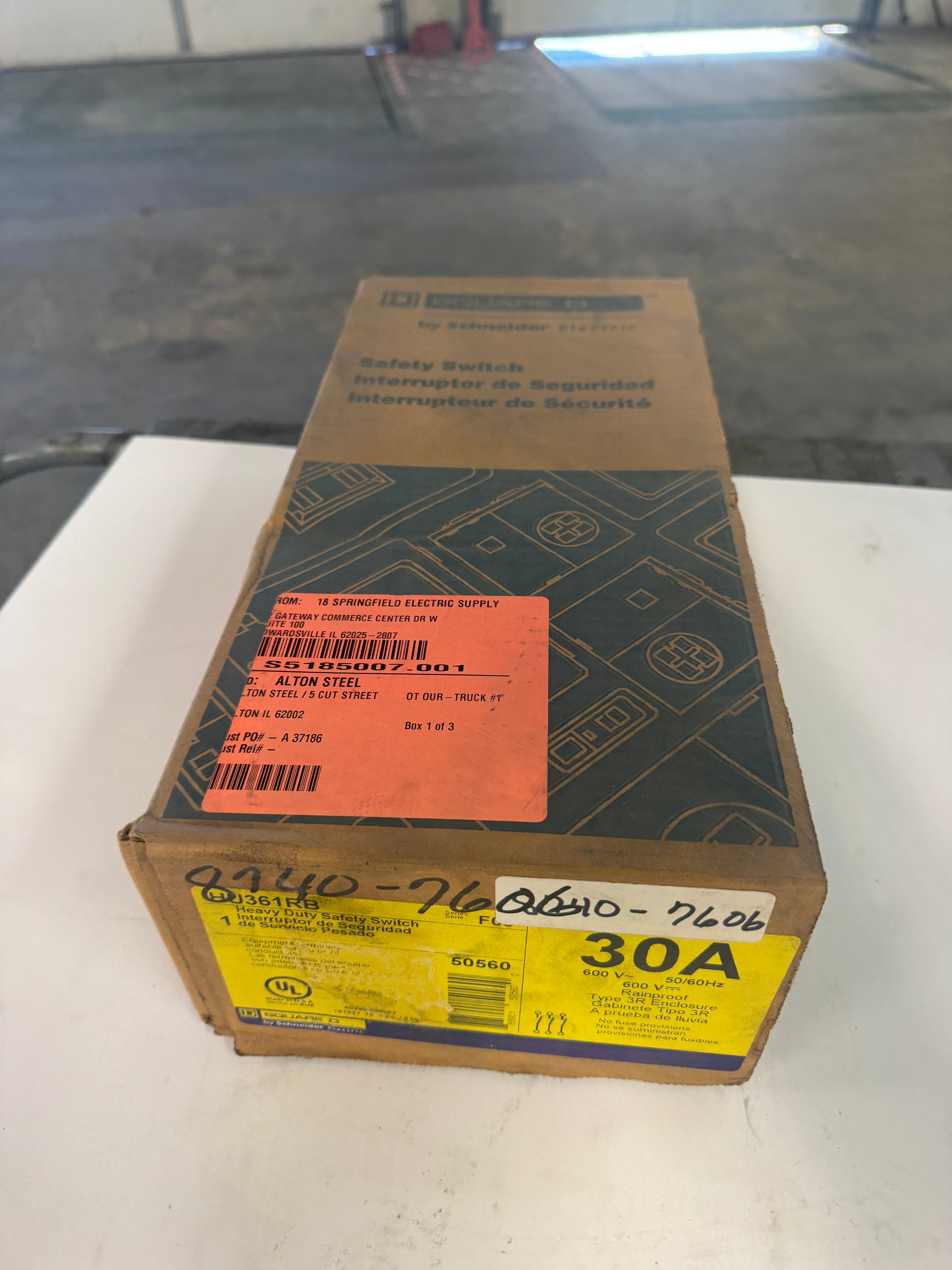

The Square D HU361RB is a heavy duty non fusible safety switch rated for 30 amps and 600VAC/DC, supplied in factory packaging. This 3 pole, 3 wire single throw disconnect is part of Schneider Electric's F Series heavy duty line and is housed in a NEMA Type 3R rainproof enclosure suitable for outdoor installation. Equipment terminals accept copper or aluminum conductors, and the unit accepts bolt on hub provisions at the top of the enclosure for conduit entry. Rated for 30 HP at 600VAC three phase service, the switch features a quick make, quick break operating mechanism, dual cover interlock, and a color coded indicator handle. The galvannealed steel enclosure measures 14.8 inches in height, 7.6 inches in width, and 4.9 inches in depth per manufacturer published specifications. Short circuit current rating is 200kA per Schneider Electric documentation. The unit is UL listed and labeled Made in USA. No fuse provisions are included on this non fusible model. Applications include service entrance disconnects, motor isolation, equipment lockout points, and branch circuit disconnects in commercial and industrial facilities where outdoor or wet location service is required. Series F05 identification appears on the carton label along with the 50560 catalog reference and 0785901505600 UPC. Product is shown in original Square D branded carton with intact factory labeling.

Stock # 0526-02267
