Square D Heavy Duty Safety Switch VH221N 240V
Square D Heavy Duty Safety Switch VH221N 240V
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: VH221N
Stock #: 0526-02276

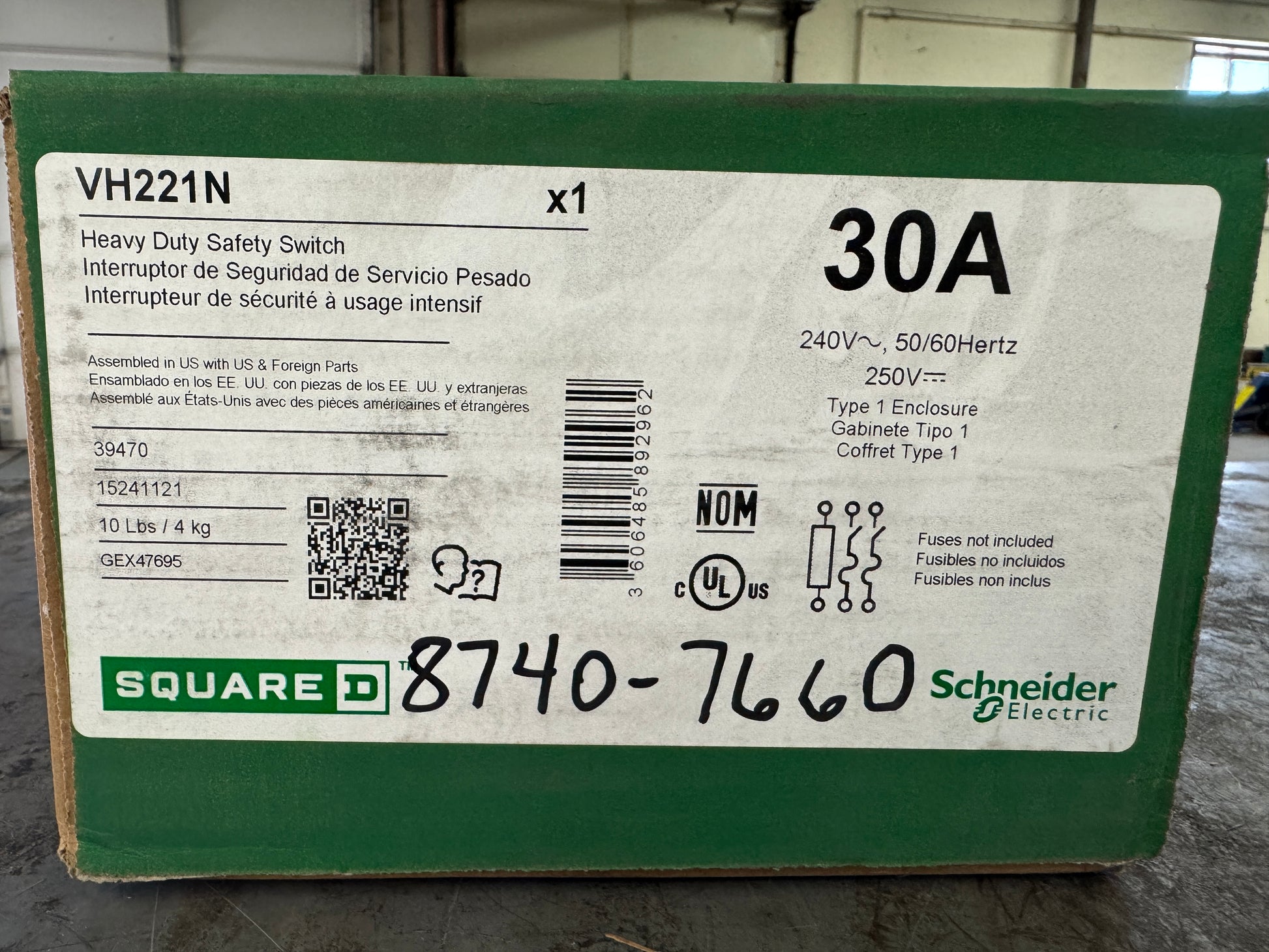

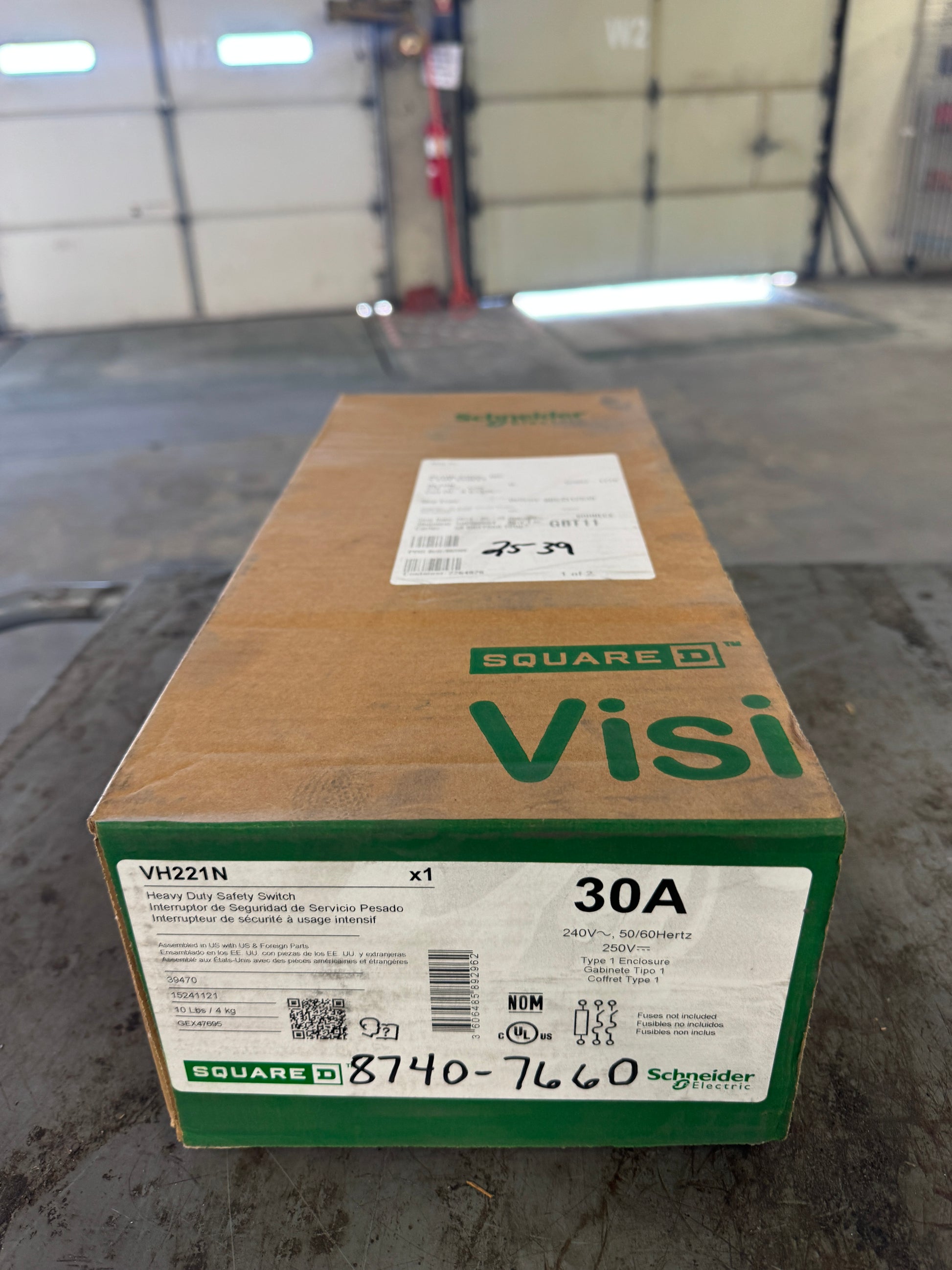

The Square D VH221N is a VisiPacT heavy duty fusible safety switch rated at 30A, 240VAC and 250VDC, with 2 poles and a factory installed solid neutral. The unit ships in its original Schneider Electric retail packaging marked with part number VH221N, catalog reference 8740-7660, and the box label data 39470 and 15241121. Construction is a Type 1 steel enclosure intended for indoor surface mount applications, with a factory installed viewing window for visual blade position verification. The mechanism uses a quick make, quick break operating action with a dual cover interlock and a color coded indicator handle. As shipped, the switch accepts class H, K, and R fuse types and can be field modified to accept class J fuses. Fuses are not included. Short circuit rating is 10kA or 200kA depending on the fuse class installed. The device carries UL listing and NOM certification per the markings on the carton label. Typical applications include lockout line of sight disconnect duty and circuit isolation in commercial and industrial power distribution. The VisiPacT line covers 30A through 200A ratings up to 240V and 600V, with this configuration sized for branch circuit and motor disconnect service on single phase 240V systems. MPN VH221N. Shipping weight per the carton label is 10 lbs.
Stock # 0526-02276
