Square D Heavy Duty Safety Switch VH361AWKGL 600V
Square D Heavy Duty Safety Switch VH361AWKGL 600V
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:

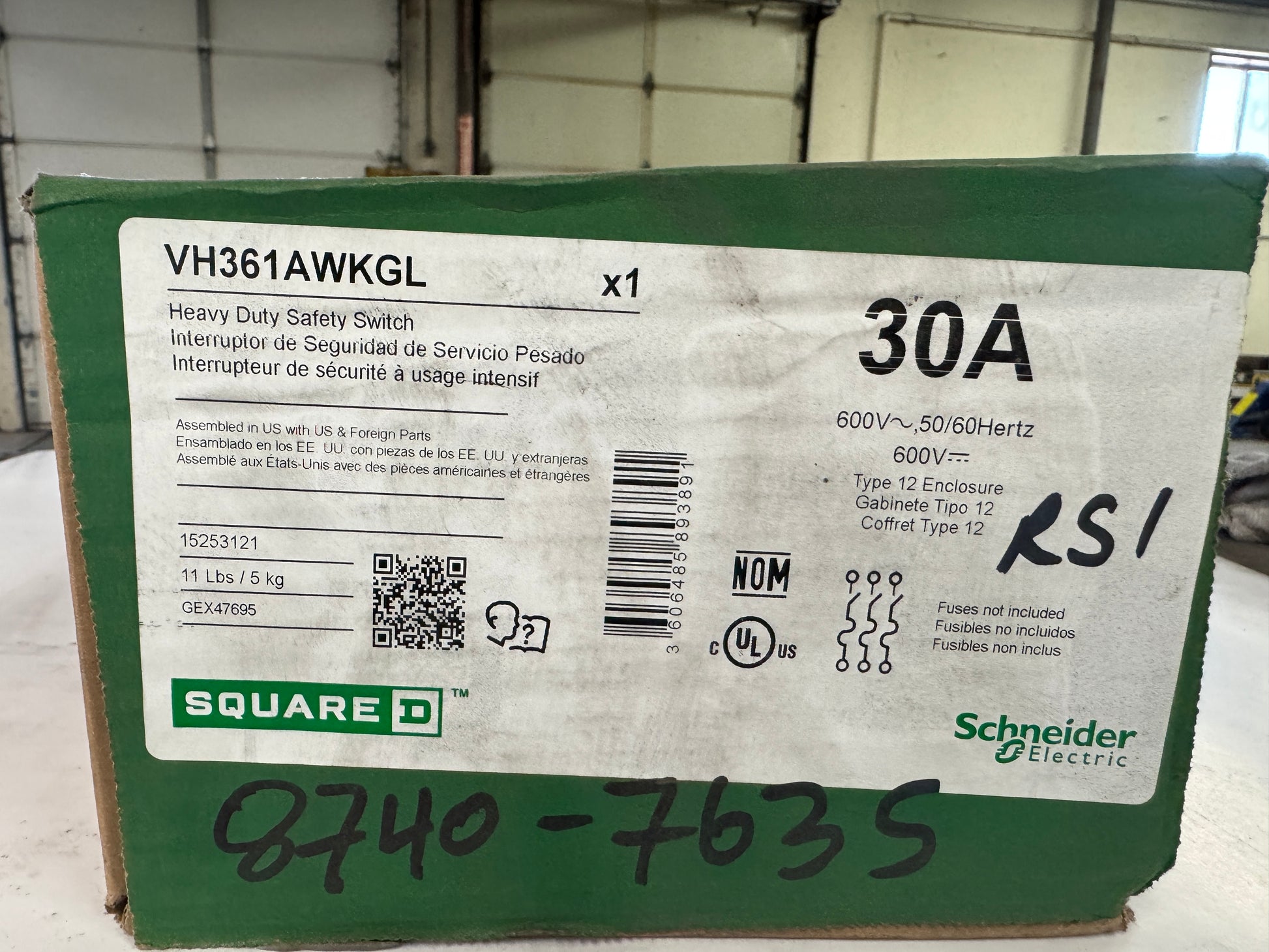

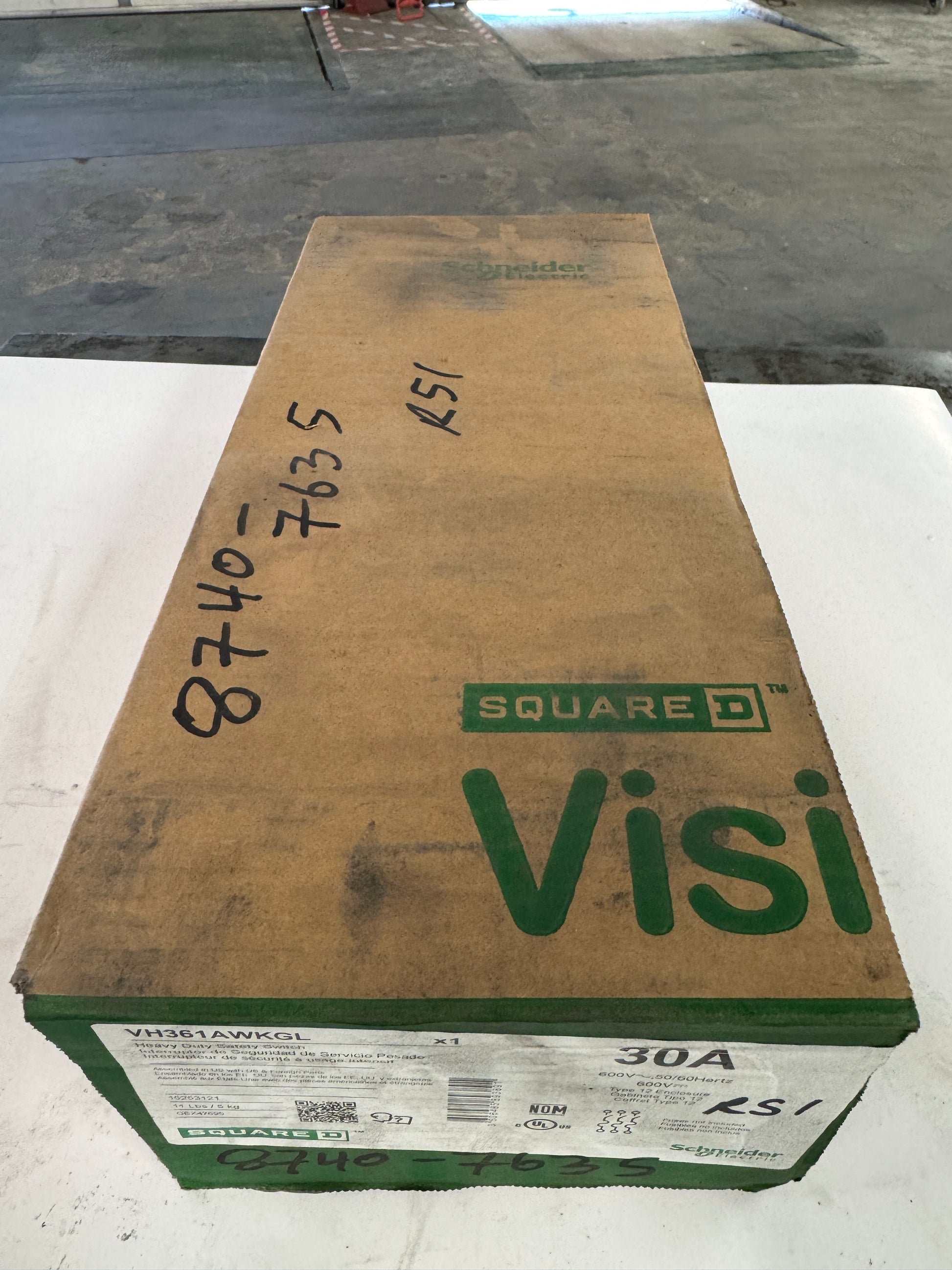

Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: VH361AWKGL
Stock #: 0526-02268
The Square D VH361AWKGL is a VisiPacT heavy duty fusible safety switch rated for 30 amps at 600 VAC and 600 VDC, 50/60 Hz operation. This three pole disconnect features a Type 12 galvannealed steel enclosure designed for indoor industrial environments where protection against dust and dripping non corrosive liquids is required. A factory installed viewing window allows visual confirmation of blade position without opening the enclosure, and a color coded indicator handle provides clear on and off status.
Manufactured by Schneider Electric under the Square D brand, this fusible disconnect accepts H, K, and R class fuses as shipped and can be field modified to accept Class J fuses. The unit ships without fuses installed. Short circuit current rating is 10 kA or 200 kA depending on the fuse class selected. The switch is designed for surface mounting and includes factory installed ground lugs.
Mechanical features include a quick make, quick break operating mechanism and a dual cover interlock that prevents the door from being opened while the switch is in the on position. The handle is padlockable in the off position for lockout tagout compliance. Wire range accommodates AWG 14 through AWG 6 copper and AWG 12 through AWG 6 aluminum conductors. The switch carries UL98 listing and complies with NEMA KS1 standards under UL files E2875 and E154828.
Catalog number VH361AWKGL is suitable for service entrance applications and is rated for 5 HP at 480 VAC and 7.5 HP at 600 VAC on three phase motors with standard fuse classes. Country of origin is the United States.
Stock # 0526-02268
