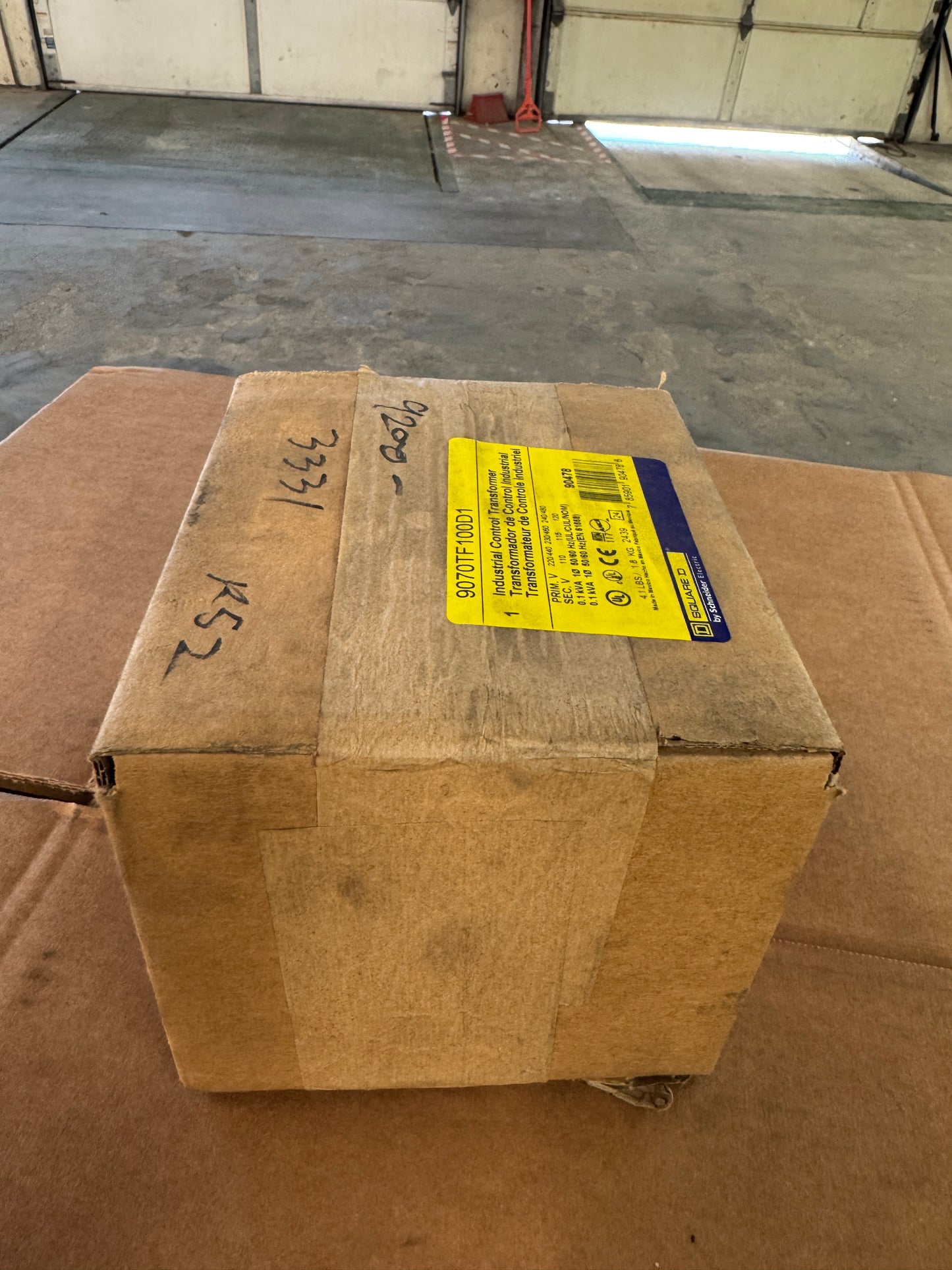

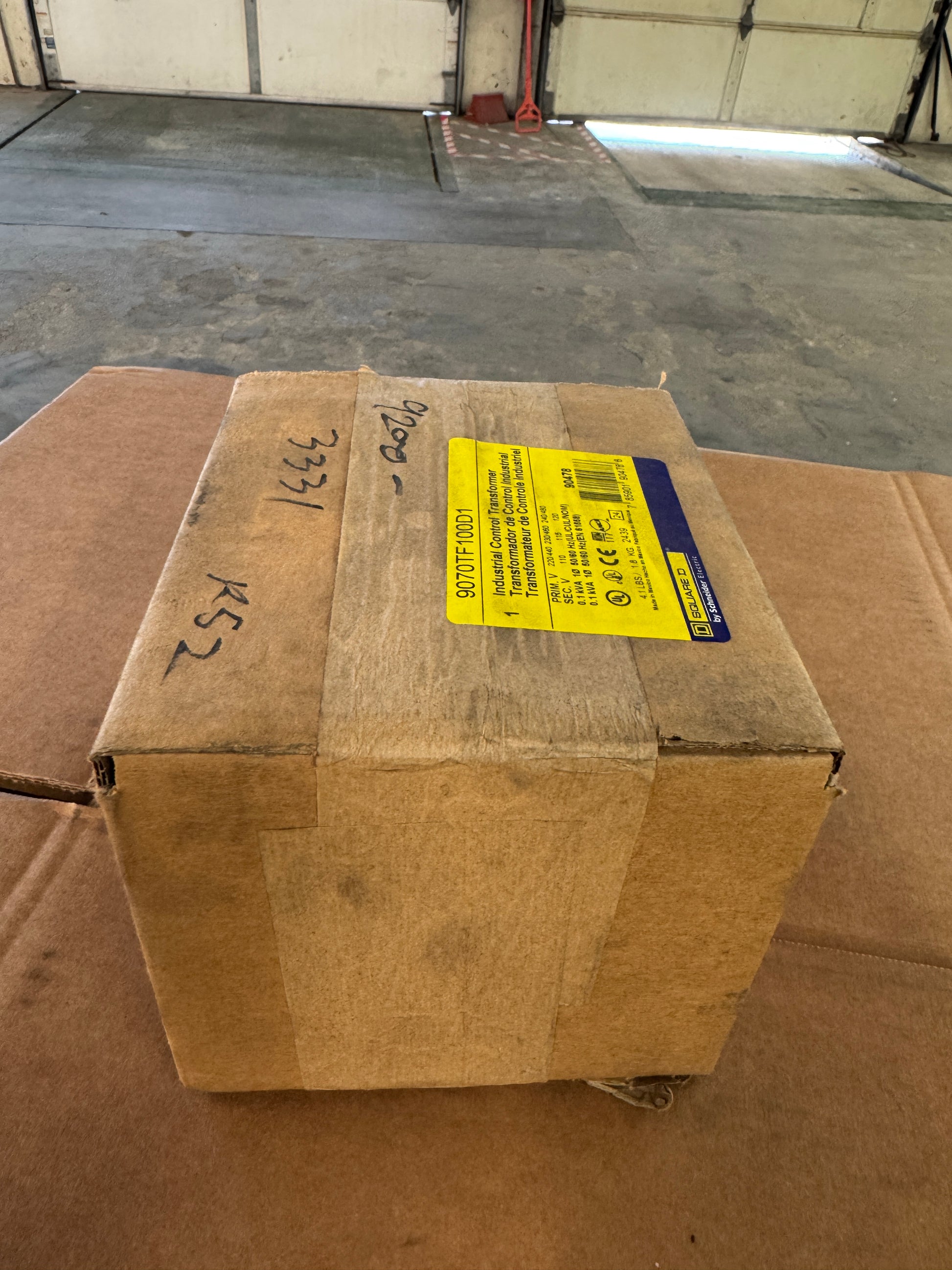

Square D 9070TF100D1 Industrial Control Transformer Factory Sealed

$400.00 USD

Sale Sold out

✓ 30-day returns on every item — return policy

ConditionFactory Sealed MPN9070TF100D1 Stock #0526-02316

30-day returns on every item. Photos reflect the actual item’s current condition — see our return policy and condition guide.

Shipping Estimate

⚡ Same-day shipping available — order by 11 am CT ($100 add-on at checkout)

✓ Free domestic UPS Ground shipping — applied automatically at checkout.

Same-Day Available
Real support team
Secure checkout

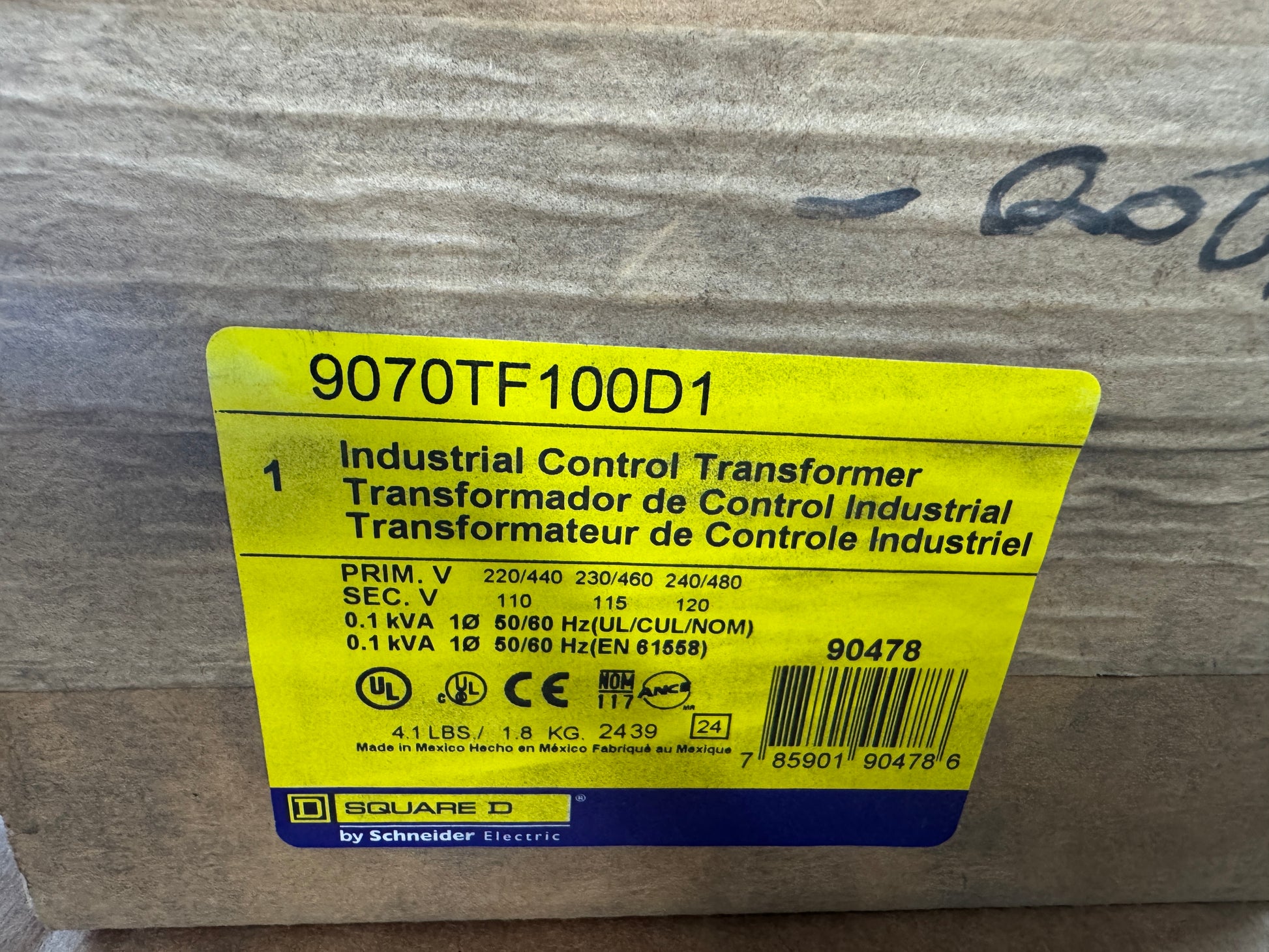

Rated at 100 VA with a 240/480 VAC primary and 120 VAC secondary, the Square D 9070TF100D1 is a Type TF single phase industrial control transformer manufactured by Schneider Electric. The unit supports multiple primary voltage taps of 220/440, 230/460, and 240/480 VAC and corresponding secondary outputs of 110, 115, and 120 VAC at 50/60 Hz, providing flexibility across North American and international control circuit applications. This transformer is part of the Square D Class 9070 Type TF series, which integrates pre wired primary and secondary fuse blocks mounted on top of the transformer housing. The fuse block configuration matches the footprint of the standard Type T units and reduces panel space required for separate overcurrent protection. The 9070TF100D1 carries UL, cUL, CE, and NOM 117 certifications and complies with EN 61558. Nameplate weight is listed at 4.1 lbs (1.8 kg). The transformer is built for machine tool control circuits, panel builder applications, and OEM machinery where stable secondary voltage is required for energizing contactors, starters, solenoids, and control relays during high inrush events. Low impedance windings support voltage regulation under transient loads. The MPN 9070TF100D1 is widely cross referenced in panel build documentation and is interchangeable with equivalent Type TF 100 VA units from the Schneider Electric Square D catalog. Country of origin per the nameplate is Mexico. The unit is supplied in a factory sealed Square D shipping carton with the original yellow product label intact.

Stock # 0526-02316
