Square D Industrial Control Transformer 9070TF150D1 m02315

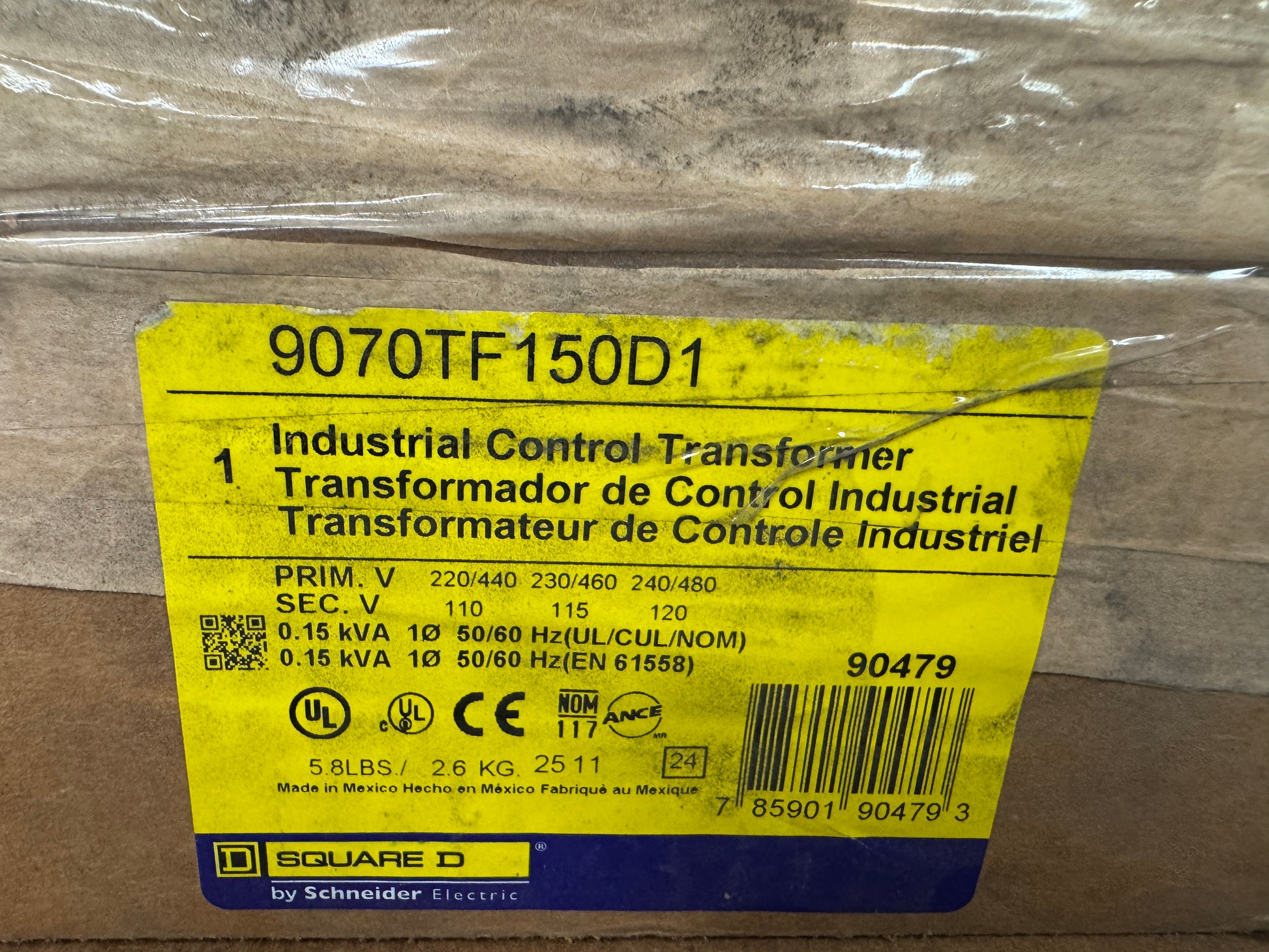

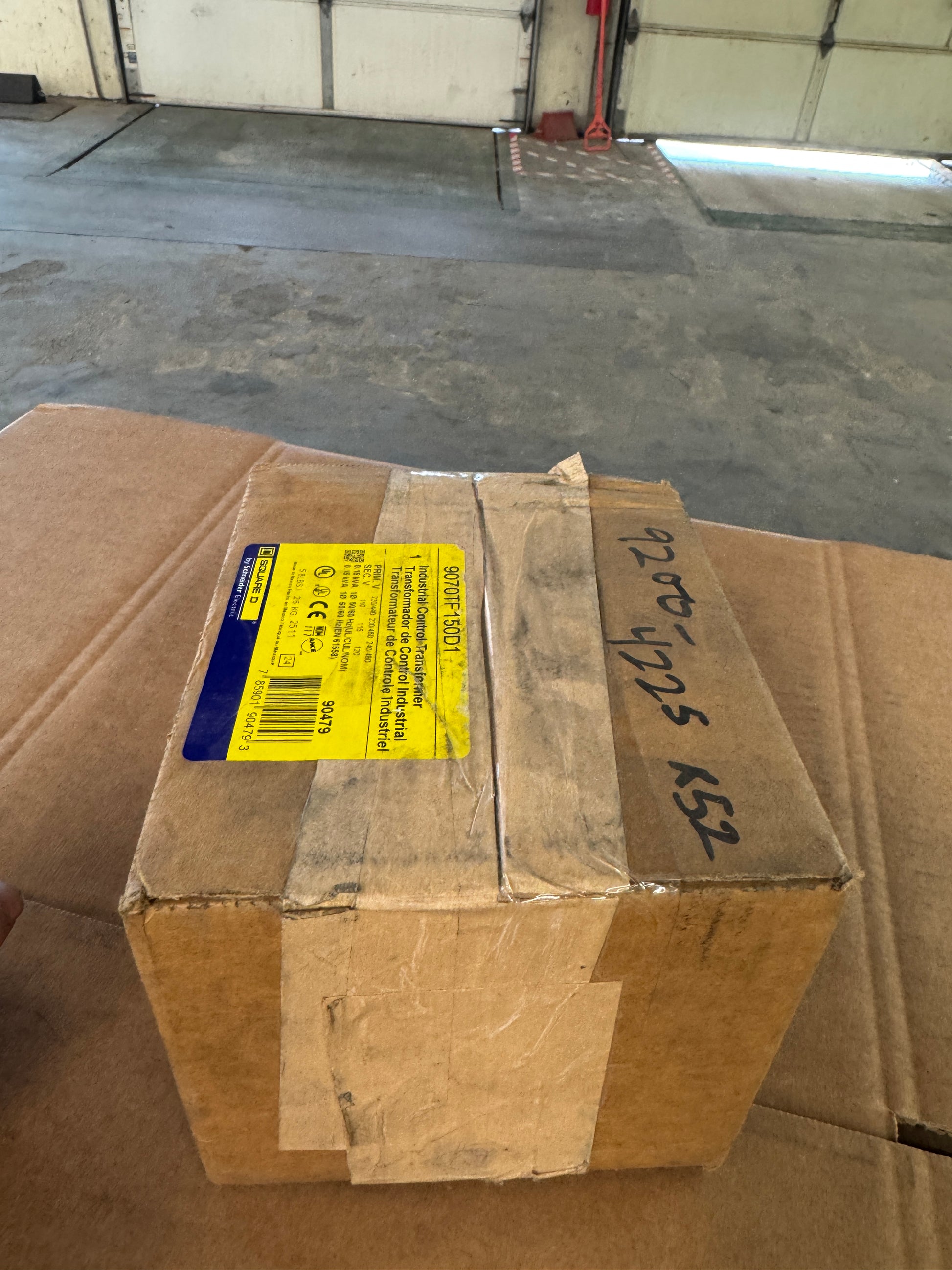

The Square D 9070TF150D1 is a single phase industrial control transformer rated at 0.15 kVA (150 VA), manufactured under the Schneider Electric brand. Multi tap primary voltage options include 220/440, 230/460, and 240/480 VAC, with corresponding secondary outputs of 110, 115, and 120 VAC. Frequency rating is 50/60 Hz. The unit is part of the Class 9070 Type TF family, which combines a Type T open style control transformer with factory installed primary and secondary fuse blocks mounted on top of the assembly. Fuse blocks are rated for 30 Amp and accept 1-1/2 x 13/32 fuses, with primary fuse blocks designed for rejection style 200,000 AIC fuses. Construction features include low impedance windings for voltage regulation under inrush conditions associated with contactors, starters, solenoids, and relays. The encapsulated coil supports panel wire routing. Approvals include UL, cUL, CE, and NOM 117 ANCE certifications, with compliance to EN 61558. The unit ships in original Square D factory packaging, UPC 785901904793, internal reference 90479, with a stated unit weight of 5.8 lbs (2.6 kg). Country of origin Mexico. Applications include machine control panels, OEM machinery, motor control circuits, and step down power for 120 V control circuits from 240 or 480 V three phase plant power. Compatible with Schneider Electric Class 9070 mounting hardware and the Type T and Type EOF footprint family.

Stock # 0526-02315
