Square D Industrial Pressure Switch 9012 GAW-26 600 VAC
Square D Industrial Pressure Switch 9012 GAW-26 600 VAC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 9012 GAW-26
Stock #: 0526-02324

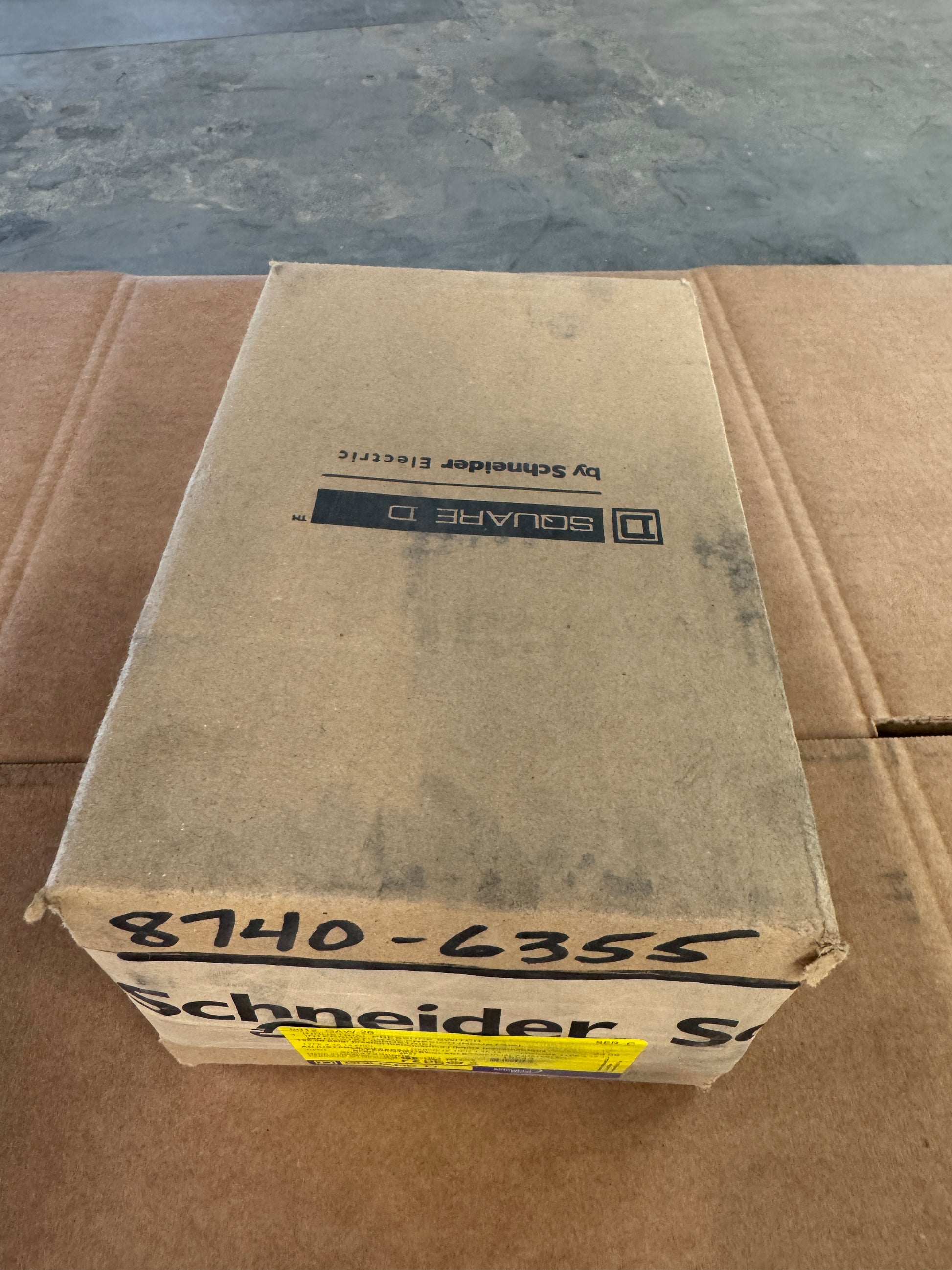

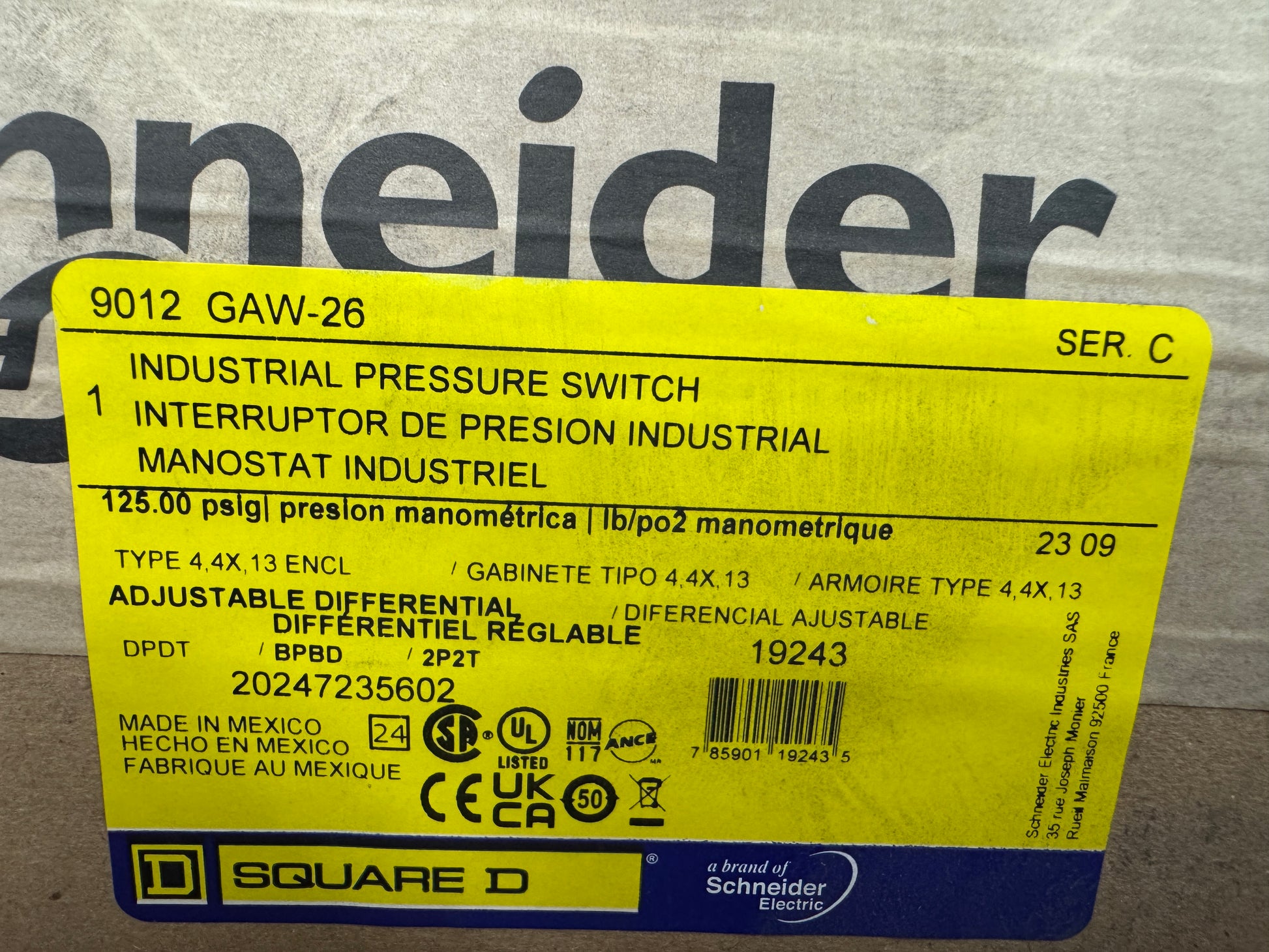

The Square D 9012 GAW-26 is an industrial pressure switch manufactured by Schneider Electric, identified as Series C with date code 23 09 and serial number 20247235602. The nameplate lists a setpoint of 125.00 psig and confirms a DPDT (BPBD / 2P2T) contact configuration with adjustable differential. The 9012 GAW family is rated for a 5 to 250 psig adjustable scale with two thresholds and a maximum allowable pressure of 750 psig, per manufacturer published data. Contact ratings cover 120 to 600 VAC at A600 designation, with make and break ratings of 7200 VA and 720 VA respectively. The unit ships in factory packaging marked 8740 6355 and carries the original Square D yellow nameplate label.
This device is built into a NEMA Type 4, 4X, and 13 enclosure suitable for indoor and outdoor watertight, dust tight, oil tight, and corrosion resistant environments. The housing is constructed of die cast aluminum alloy with zinc plated steel flange material. Process connection is a 1/4 inch 18 NPTF port for fluid pressure media. Approvals visible on the label include CSA, UL Listed, NOM ANCE 117, CE, and UKCA. Country of manufacture is Mexico.
Common applications for the 9012G series include compressor control, hydraulic and pneumatic system monitoring, machine tool pressure regulation, and process control in industrial environments. Cross references include catalog numbers 9012GAW26, 9012 GAW 26, and 9012-GAW-26. The Schneider Electric reference 19243 also appears on the label.
Stock # 0526-02324
