Square D Industrial Pressure Switch 9012 GCW-2 480V AC

$425.00 USD

Sale Sold out

ConditionFactory Sealed MPN9012 GCW-2 Stock #0526-02325

Photos reflect current condition. Items differing from description may be eligible for return or refund — see our condition guide.

Shipping Estimate

Estimated package weight: 5.0 lbs

Select your state above for a shipping estimate.

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

The Square D 9012 GCW-2 is an industrial pressure switch from the 9012G series, manufactured by Schneider Electric. Configured with SPDT contacts and an adjustable differential, this unit covers an operating range of 90 to 2900 psig with a maximum rated pressure of 1500.00 psig as marked on the carton label. The device is designed for control circuit applications in pneumatic and hydraulic systems, where it monitors line pressure and signals downstream equipment when set thresholds are reached or maintained.

Electrical ratings include 480V AC operation through screw clamp terminals, with form Z snap action silver nickel contacts providing reliable switching across both normally open and normally closed positions. The enclosure is rated NEMA Type 4, 4X, and 13, suitable for environments requiring protection against water, dust, oil, and corrosive atmospheres. A 1/4 inch 18 NPTF pressure port serves as the process connection, and the housing is constructed from die cast aluminum alloy 380. Internal construction includes a zinc plated stainless steel piston with a Viton diaphragm operator.

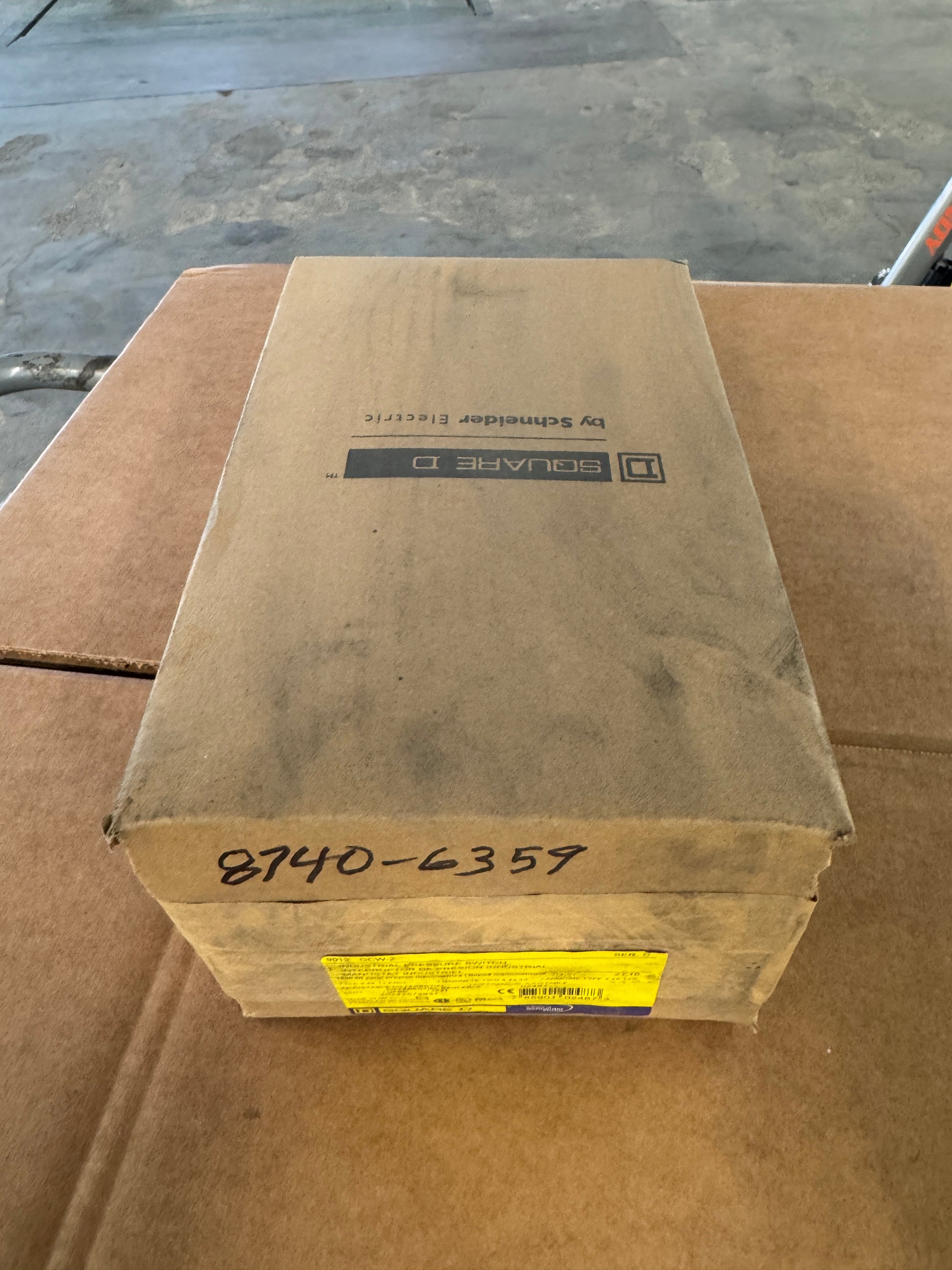

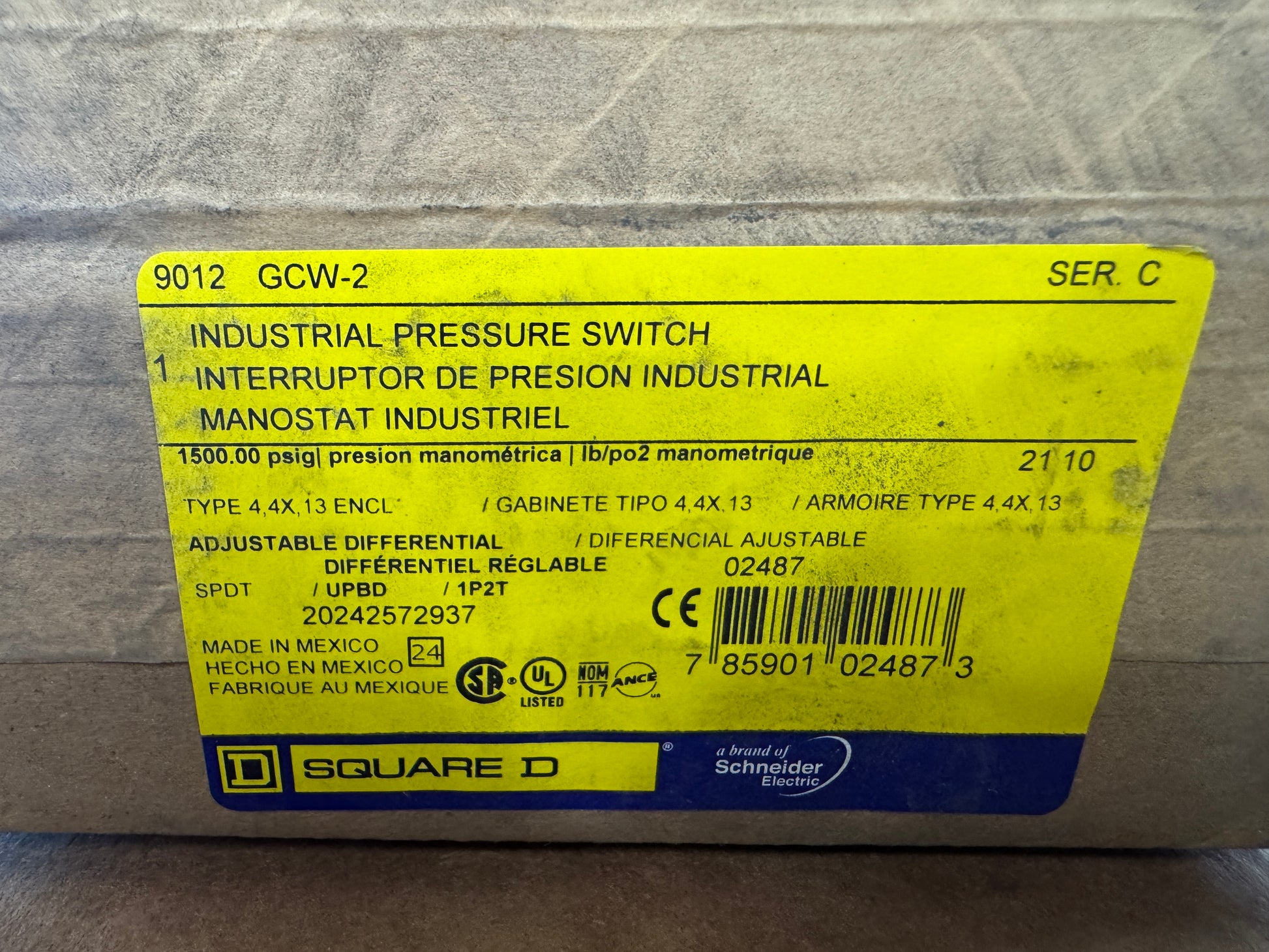

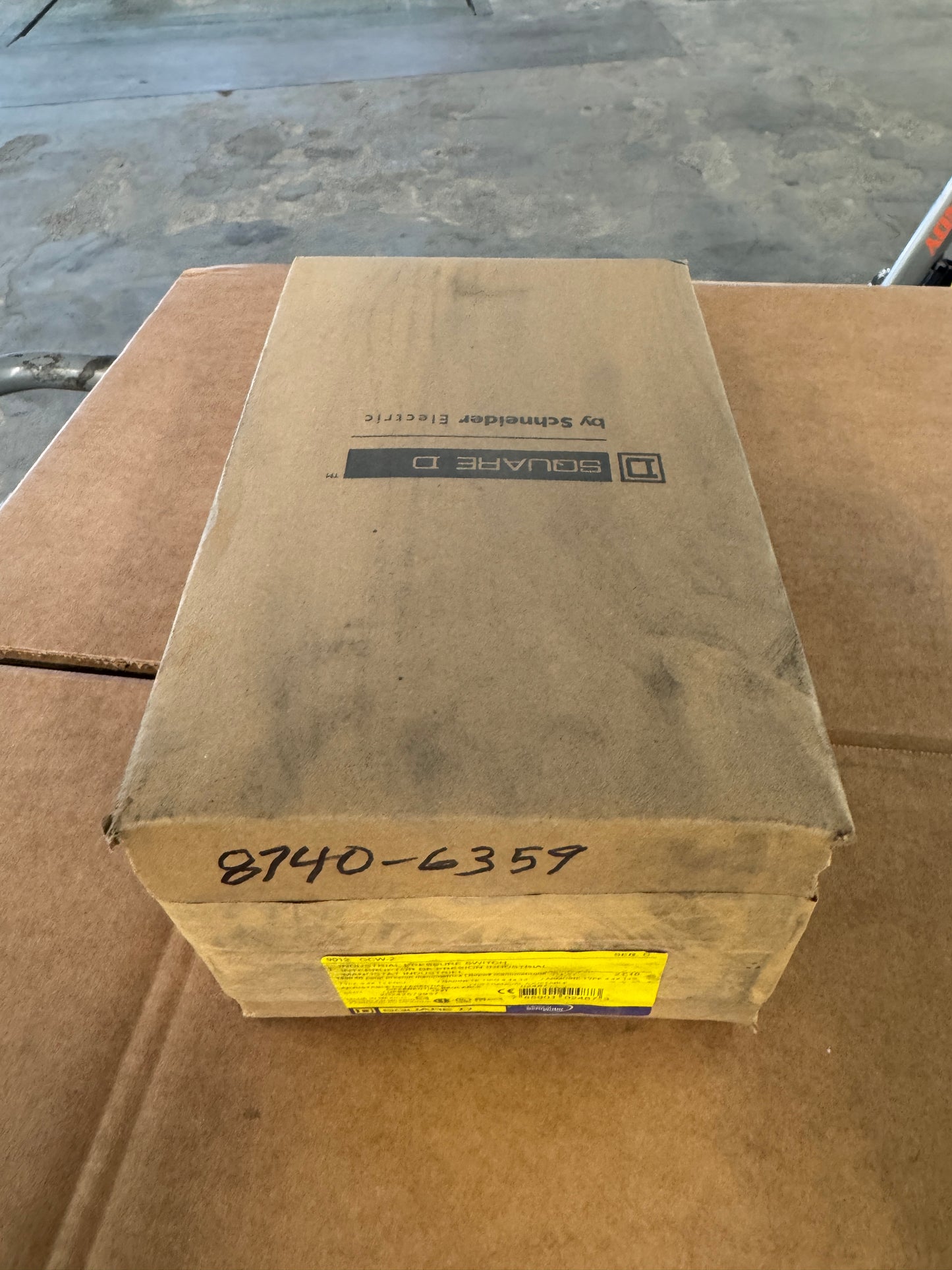

Markings on the carton include catalog 9012 GCW-2, Series C, date code 21 10, form 02487, and UPBD / 1P2T option designations. Approvals include UL Listed, CSA, CE, and NOM 117 ANCE. Country of origin is Mexico. The unit ships in original Square D factory packaging. Common applications include compressors, hydraulic power units, machine tool control panels, lubrication systems, and OEM packaged equipment requiring a Schneider Electric pressure switch with adjustable differential capability.

Stock # 0526-02325
