Sterling Electric AC Motor J0104FFA0884A - 10 HP 1800 RPM
Sterling Electric AC Motor J0104FFA0884A - 10 HP 1800 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

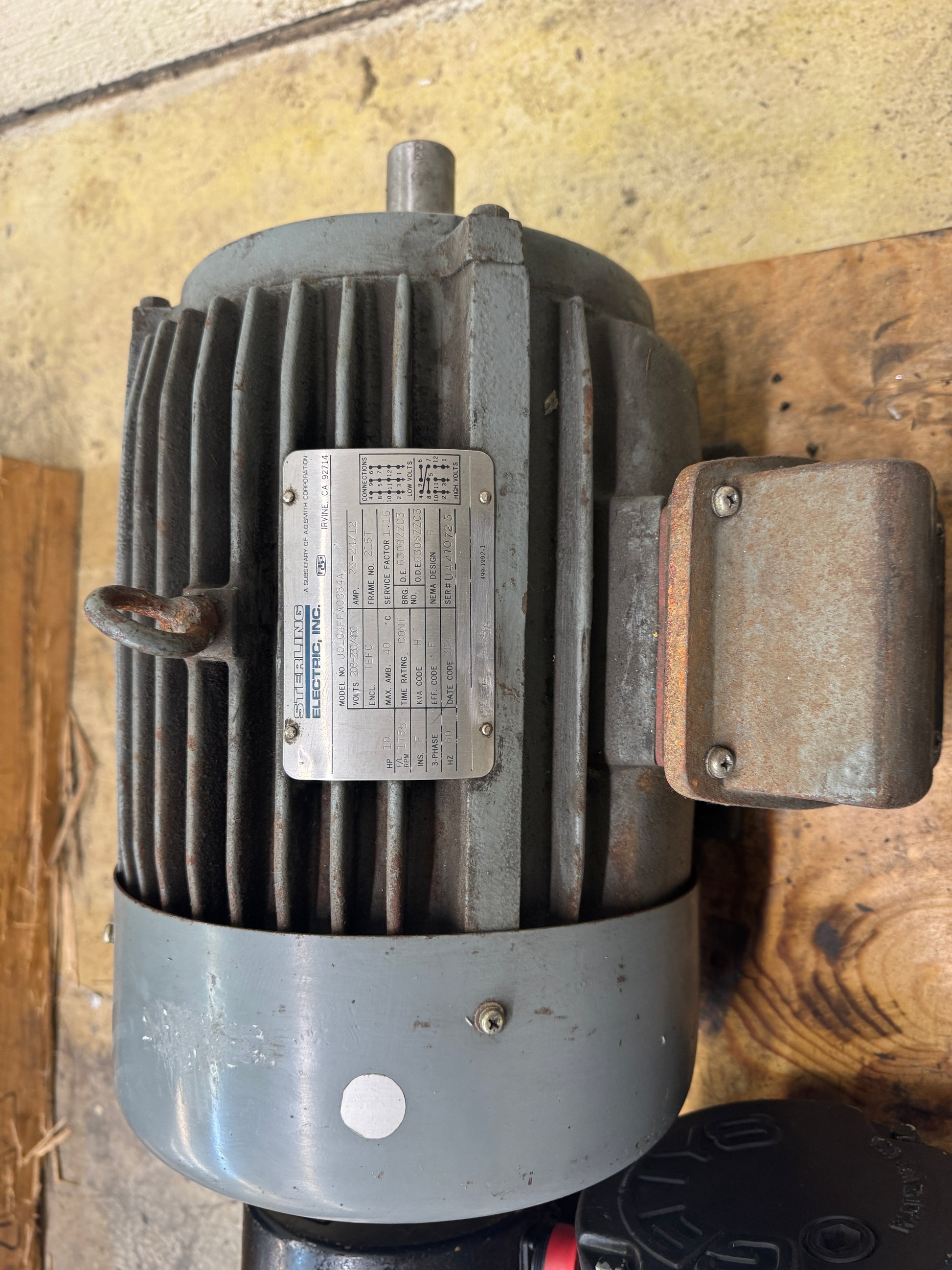

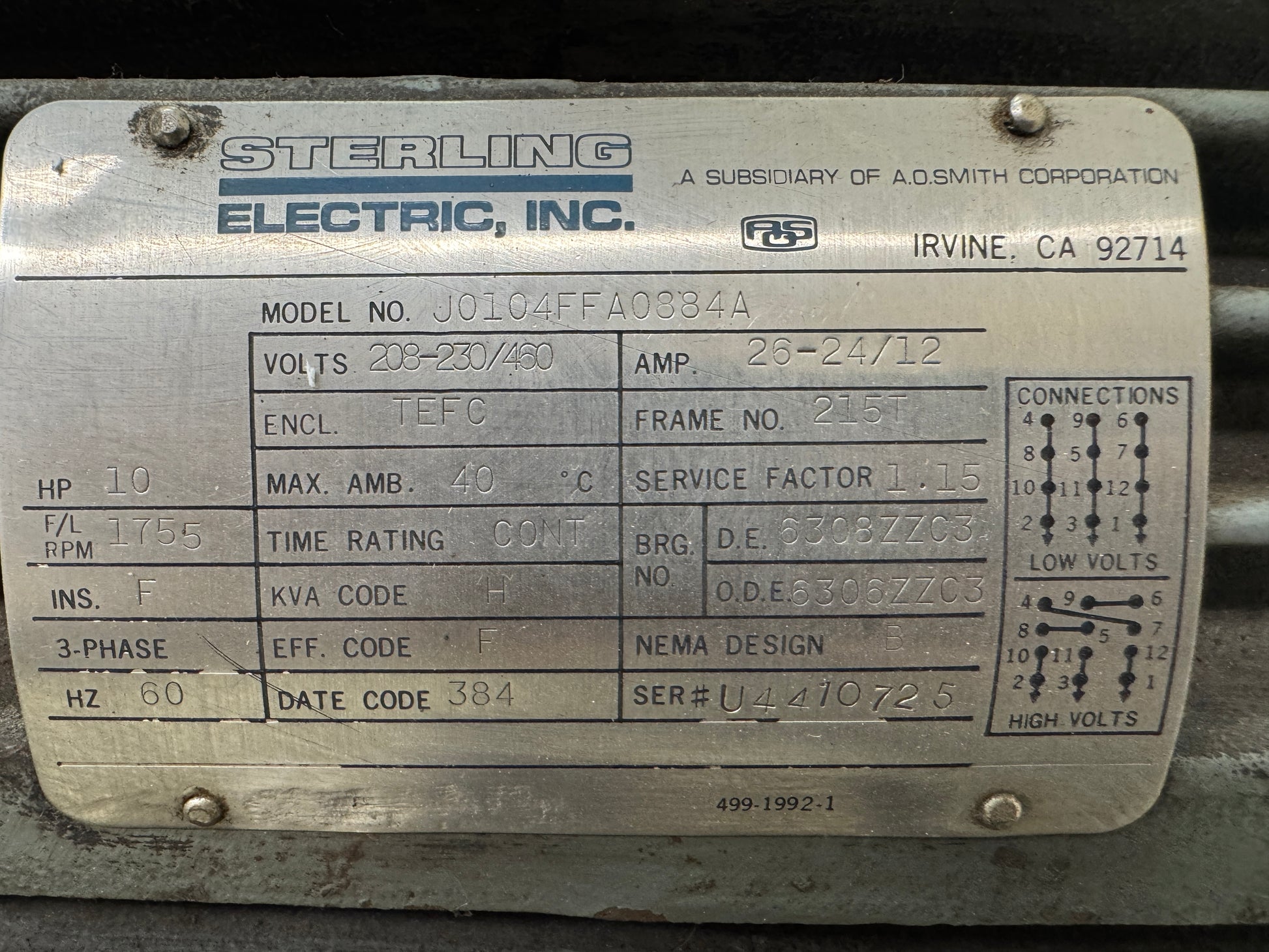

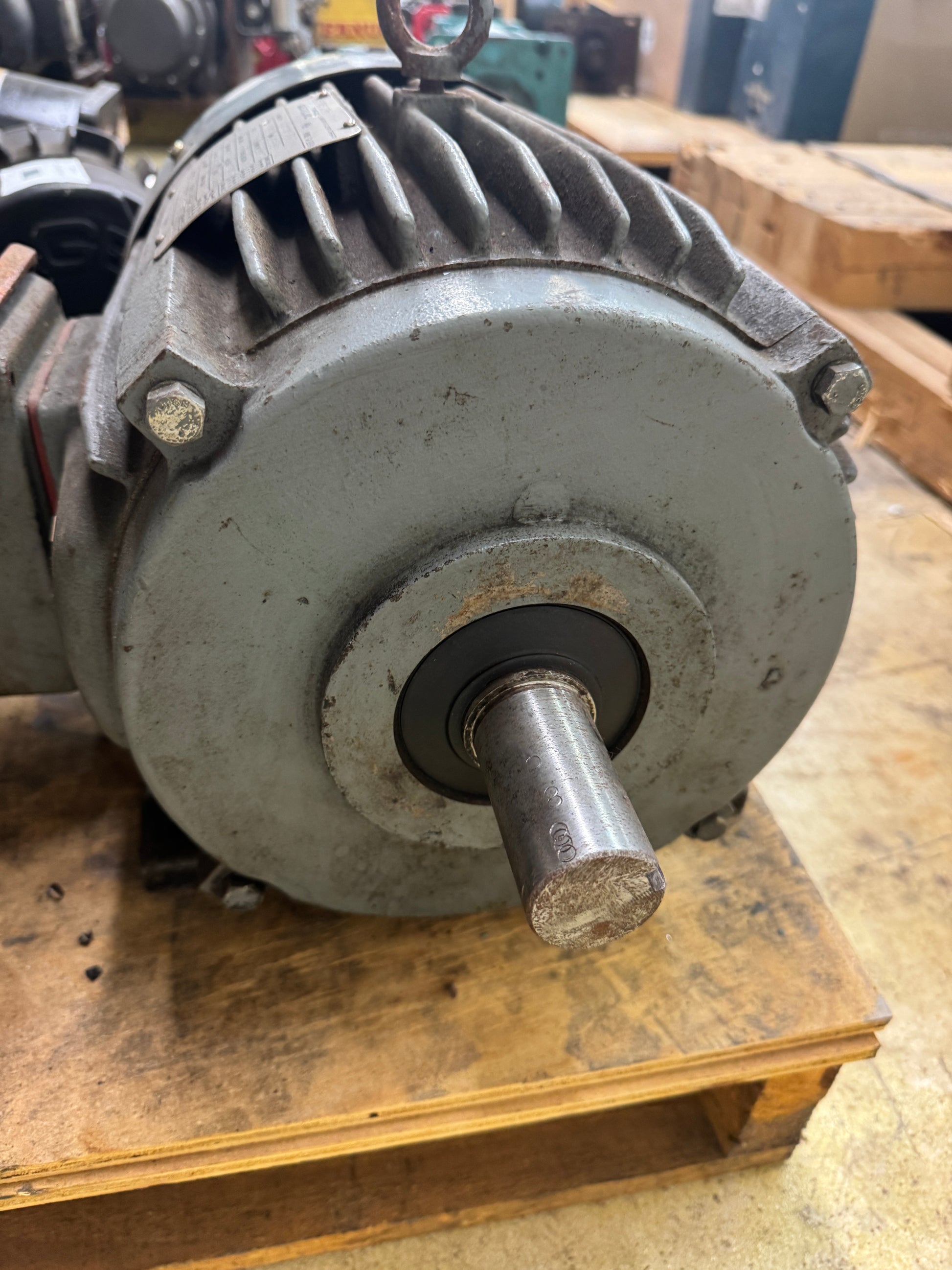

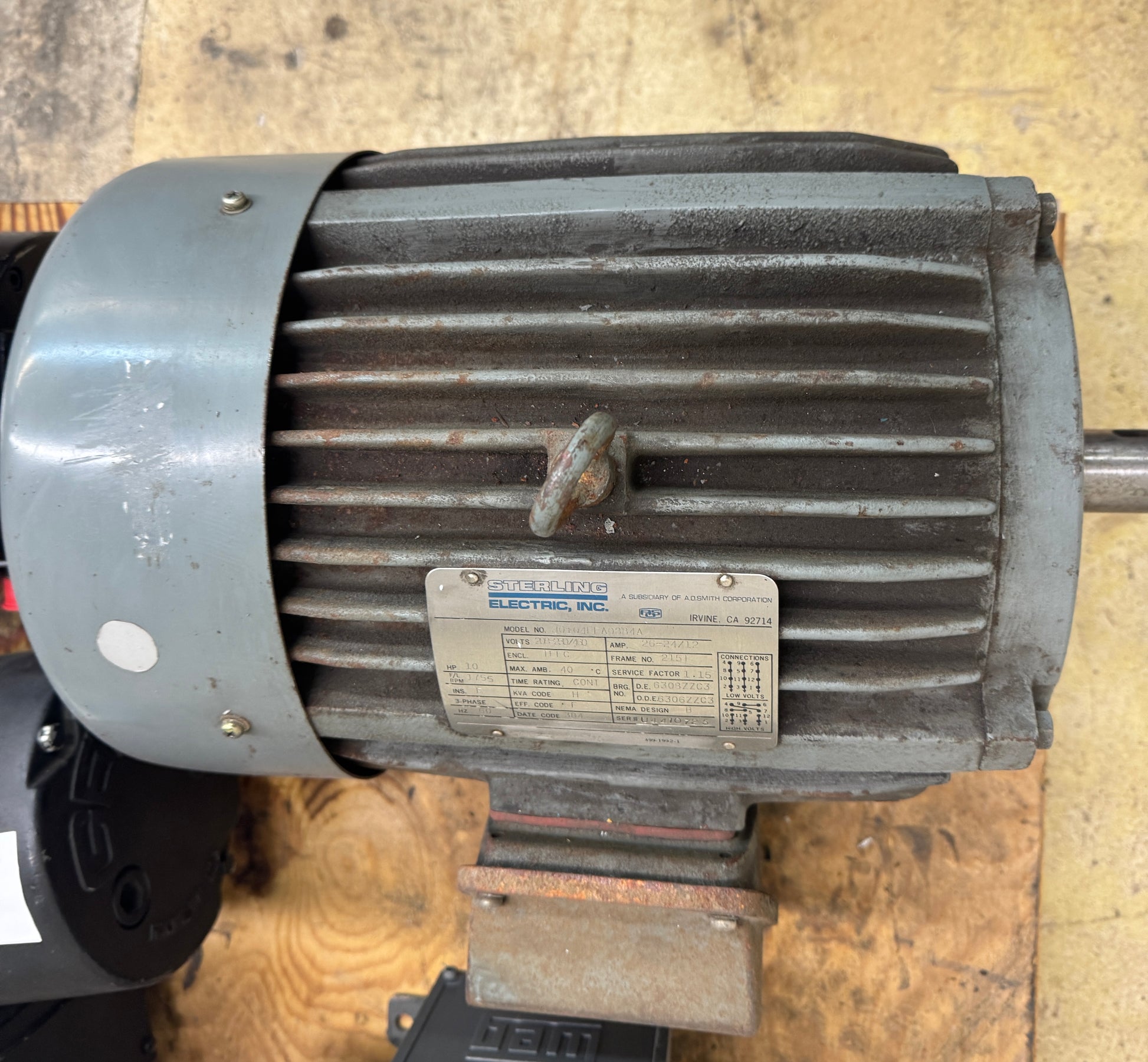

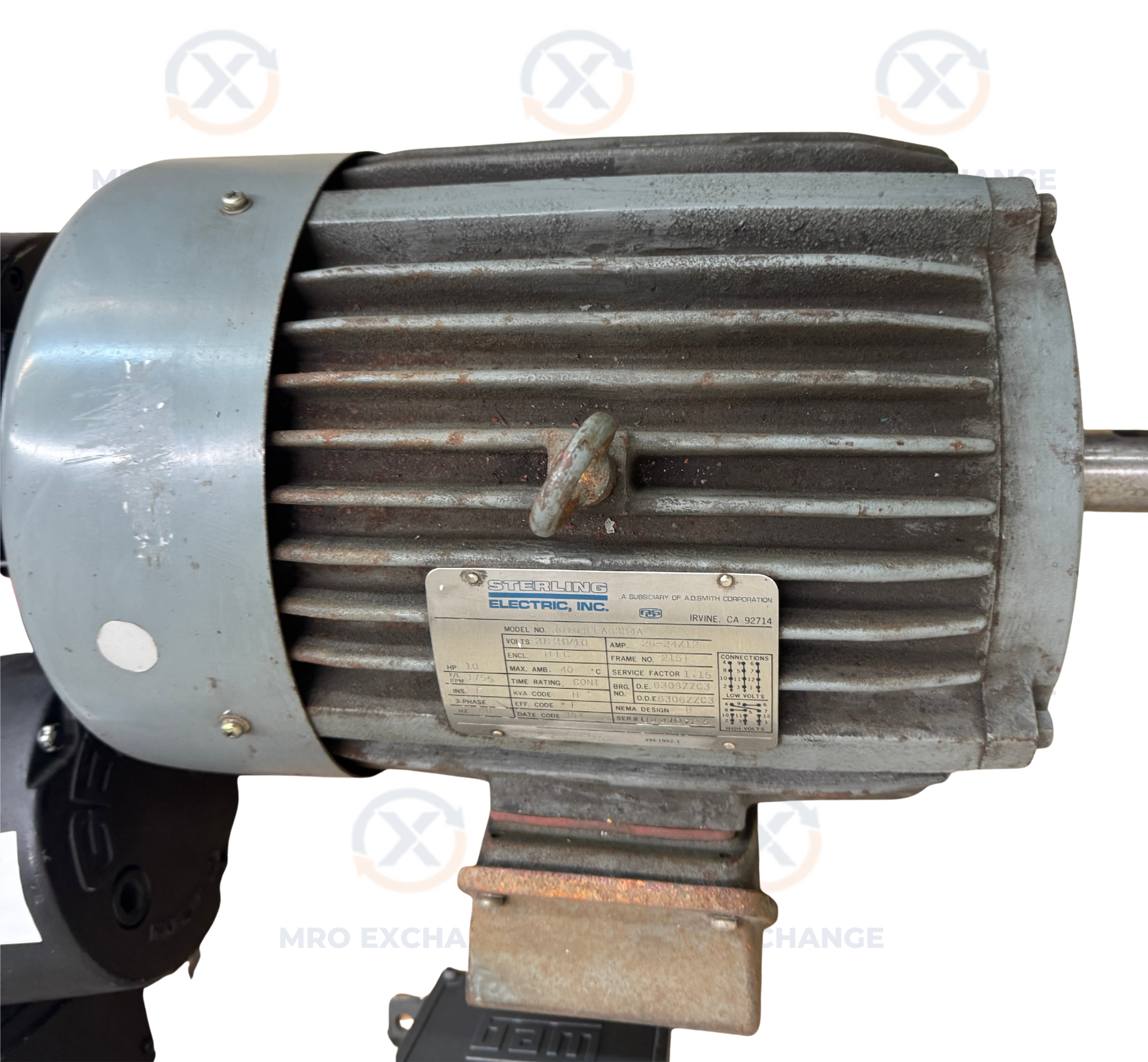

Used in pumps, compressors, conveyors, and general industrial machinery, the Sterling Electric J0104FFA0884A is a 10 HP, three-phase AC motor built to NEMA 215T frame dimensions. Manufactured by Sterling Electric, Inc. of Irvine, California, a subsidiary of A.O. Smith Corporation, this motor carries a TEFC (Totally Enclosed Fan Cooled) enclosure rated for continuous duty in ambient temperatures up to 40 degrees C. Nameplate data confirms operation at 208-230/460V, 60 Hz, with full-load current ratings of 26-24/12 amps and a full-load speed of 1755 RPM. Insulation class F, KVA code H, service factor 1.15, and NEMA Design B are all confirmed on the nameplate. Drive-end bearing is part number 6308ZZC3 and opposite drive-end bearing is 6306ZZC3. Serial number U4410725 and date code 384 are visible on the nameplate. The wiring diagram on the nameplate shows low-voltage and high-voltage connection configurations for 230V and 460V operation respectively. Photos show a cast iron frame with standard foot-mount base and a keyed output shaft. Surface wear and light oxidation consistent with prior industrial service are visible on the housing exterior.
Stock # 0426-01209
