Tamagawa Seiki OSE1024-3-15 (TS1508N263) 5V DC Optical Shaft Encoder New

$750.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

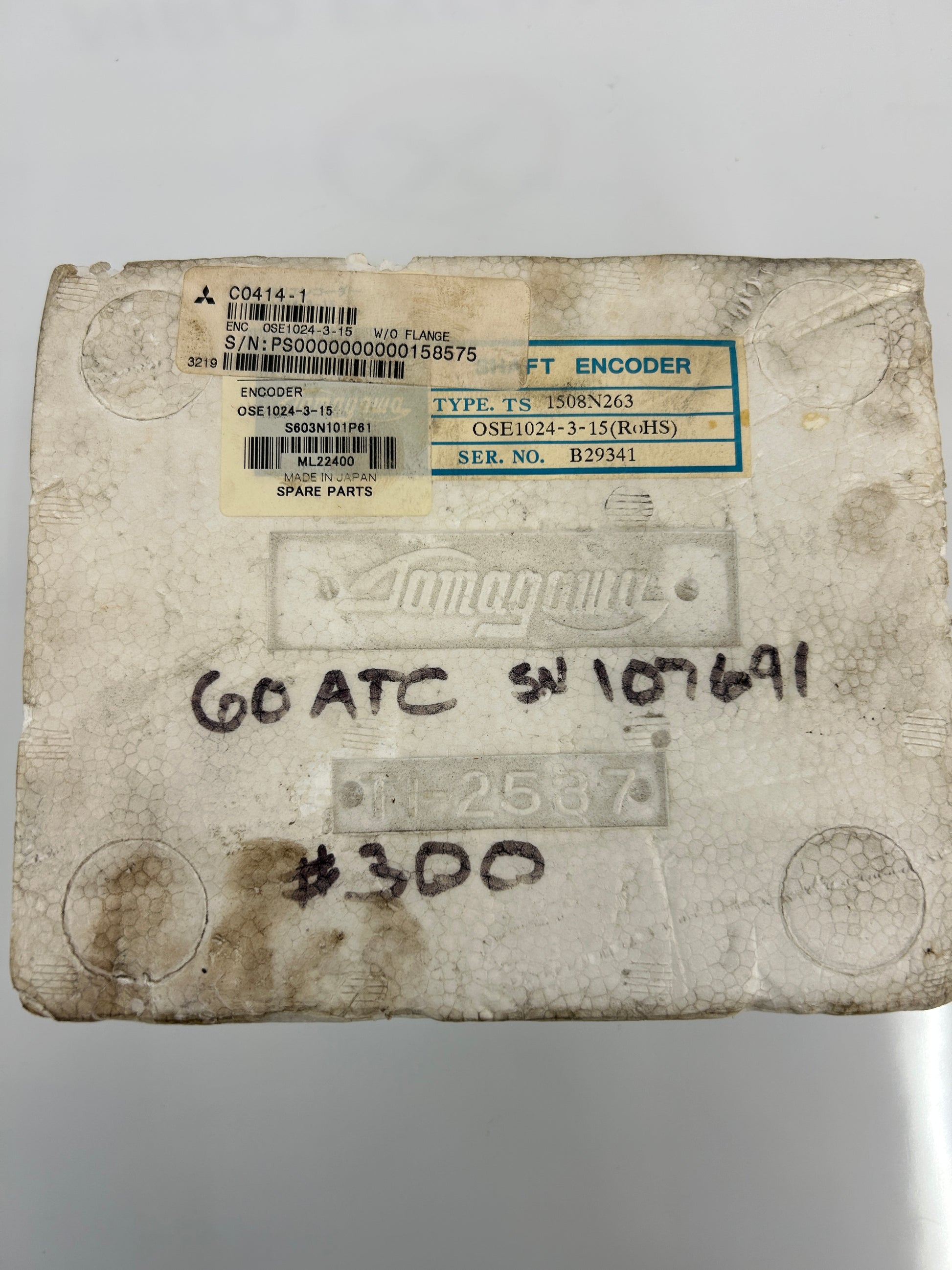

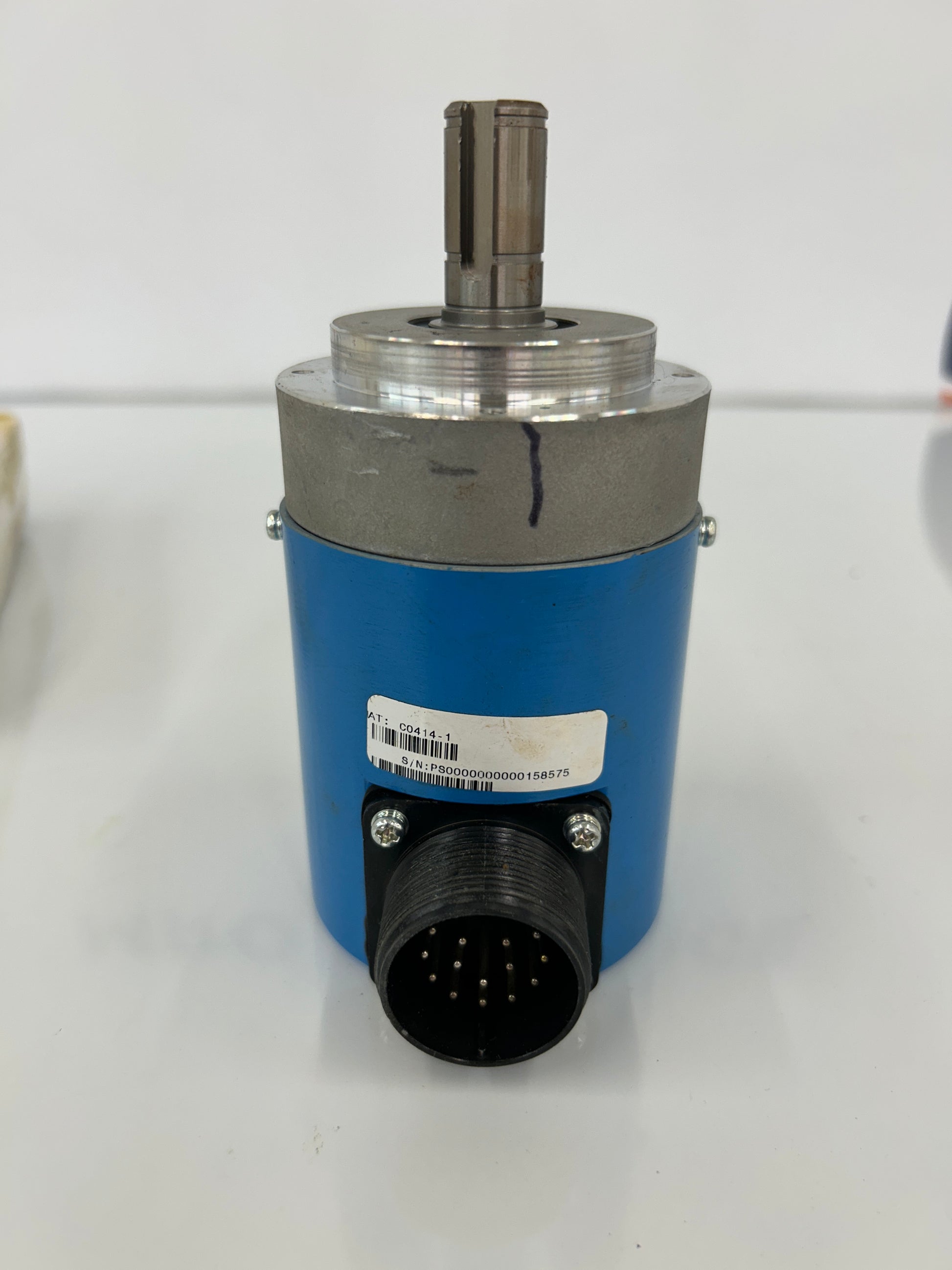

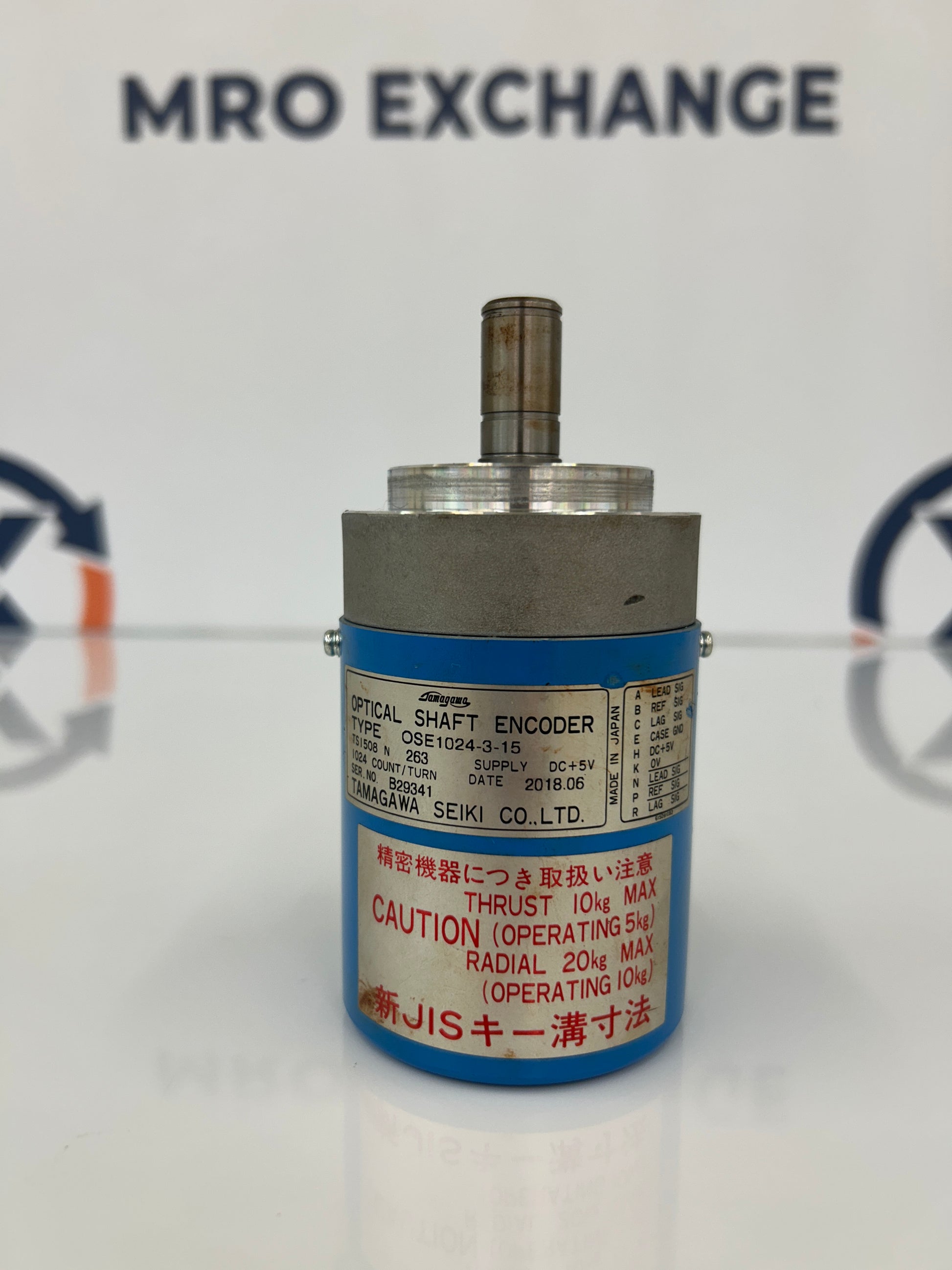

The Tamagawa Seiki OSE1024-3-15 is an optical shaft incremental encoder manufactured in Japan and supplied as a Mitsubishi spare part under reference C0414-1. The unit carries type designation TS1508N263 and serial number B29341, with a manufacturing date code of 2018.06. This encoder is rated at 1024 counts per turn with a 5V DC supply, and the nameplate lists output signals for Lead, Reference, Lag, Case Ground, and DC+5V on pin assignments A, B, C, E, H, K, N, and P. The housing nameplate specifies maximum thrust load of 10 kg with a 5 kg operating limit, and maximum radial load of 20 kg with a 10 kg operating limit. The OSE1024-3-15 is commonly installed as feedback for spindle and main axis applications on Mitsubishi CNC platforms and is interchangeable with related references including OSE1024-3-15-68, OSE-1024-3-15, and Tamagawa TS1508 series N variants. The unit features a keyed solid shaft mounting interface, a robust steel and aluminum housing, and a multi-pin circular connector for signal output. The encoder retains its original Tamagawa Seiki spare parts packaging and Mitsubishi spare parts labeling at the time of intake. Part number references visible on the packaging include OSE1024-3-15, S603N101P61, and ML22400. This encoder is suitable as a direct replacement for installed OSE1024-3-15 units across Mitsubishi machining centers, lathes, and related industrial automation systems requiring 1024 count incremental optical feedback.

Stock # 0226-040
