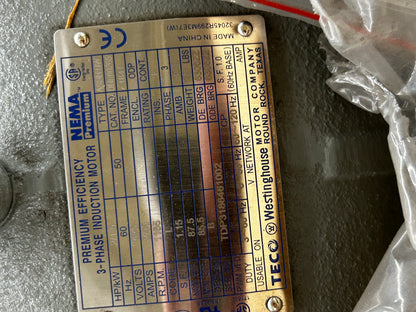

TECO Westinghouse 3 Phase Induction Motor DH1P0265 - 3 HP 1800 RPM
TECO Westinghouse 3 Phase Induction Motor DH1P0265 - 3 HP 1800 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability

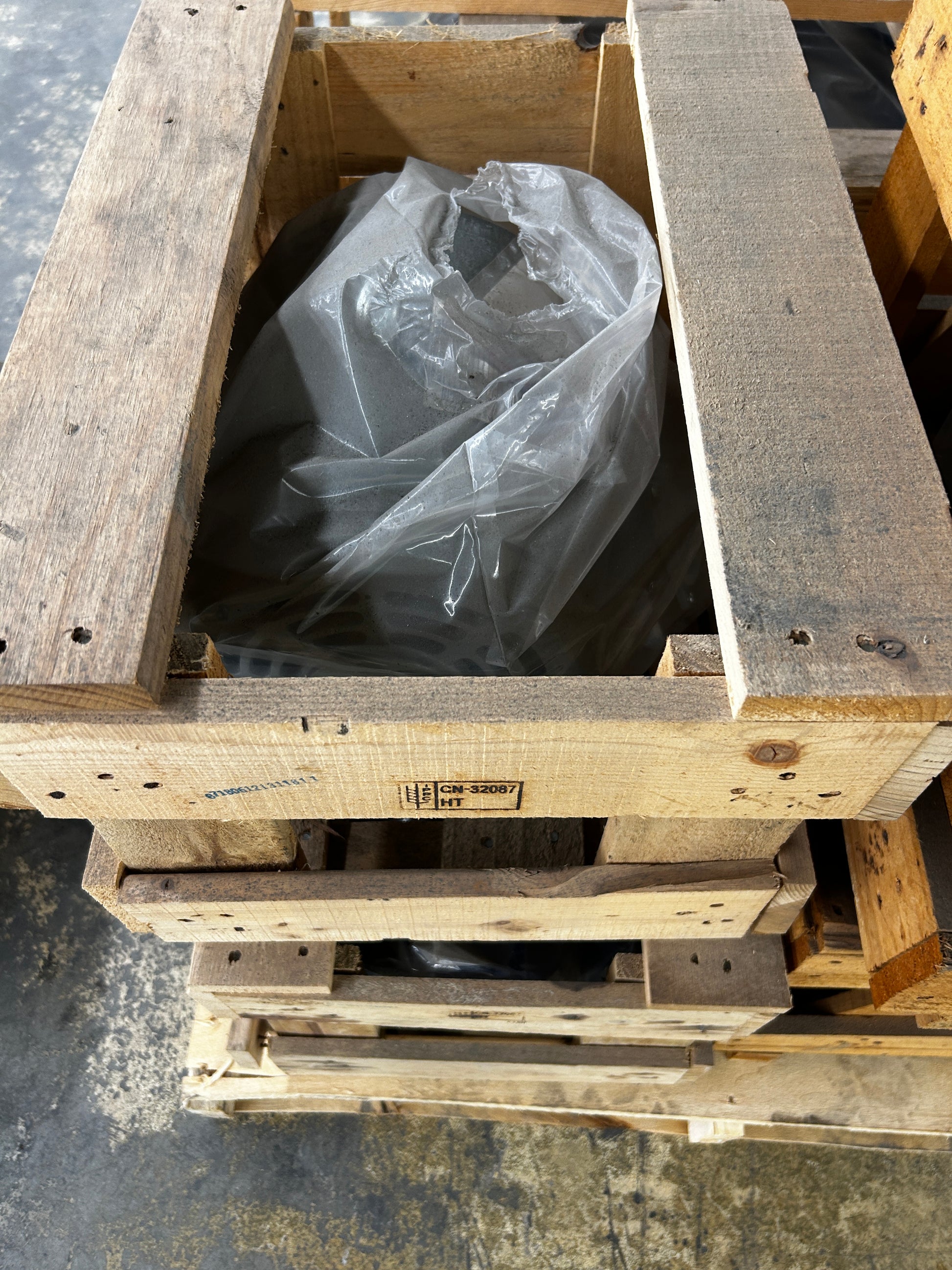

- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Factory Sealed
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: DH1P0265
Stock #: Stock # 0626-01718

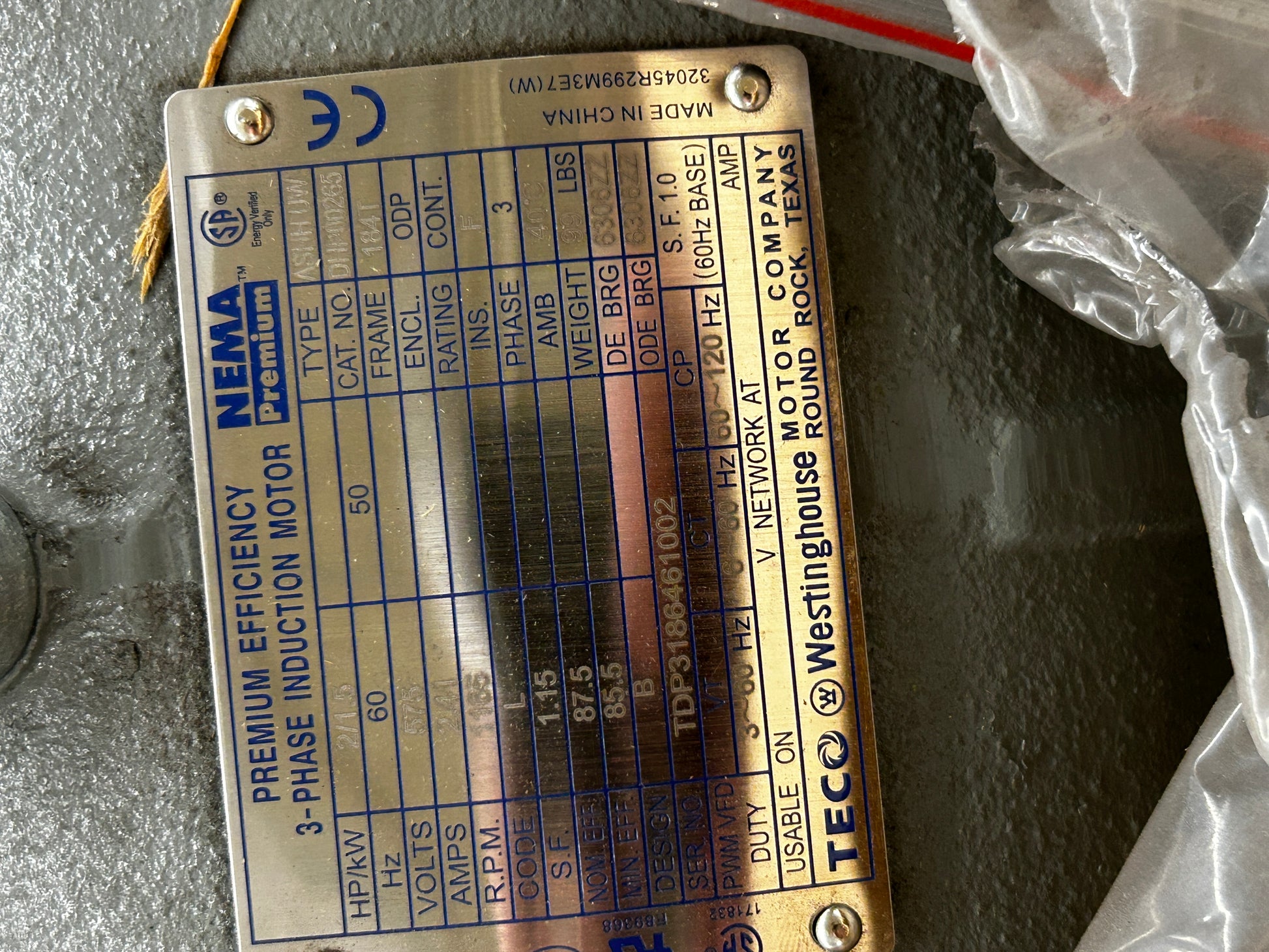

Product Specifications
- Manufacturer: TECO Westinghouse
- MPN / Model: DH1P0265
- Product Type: 3 Phase Induction Motor
- Type: ASIH UW
- Horsepower: 3 HP
- Frequency: 60 Hz / 50 Hz
- Voltage: 575 V
- Amperage: 18 Amp
- Speed: 1800 RPM
- Phase: 3
- Frame: 184T
- Enclosure: ODP
- Rating: CONT.
- Insulation Class: F
- Service Factor: 1.15
- Design: B
- Code: L
- Nominal Efficiency: 87.5
- Ambient: 40 C
- Weight: 99 LBS
- DE Bearing: 6306ZZ
- ODE Bearing: 6306ZZ
- Efficiency: NEMA Premium
- Serial Number: TDP3186461002
Product Description
This TECO Westinghouse premium efficiency three phase induction motor is identified by catalog number DH1P0265, type ASIH UW. It is rated at 3 HP with a 184T frame, ODP enclosure, and 575 V supply drawing 18 Amp at 1800 RPM. The motor operates at 60 Hz or 50 Hz, three phase, with Class F insulation, a 1.15 service factor, and Design B construction. Manufacturer published data lists a nominal efficiency of 87.5, a 40 C ambient rating, 6306ZZ bearings on both the drive end and opposite drive end, and a 99 LBS weight. The unit carries serial number TDP3186461002 and is marked NEMA Premium. Buyers matching an exact TECO Westinghouse catalog number for replacement, spare inventory, or maintenance sourcing can use the DH1P0265 identifier and the 184T frame and 575 V ratings to compare this motor to their existing equipment.
