TECO Westinghouse AC Motor 4MRCEC - 20 HP 1800 RPM
TECO Westinghouse AC Motor 4MRCEC - 20 HP 1800 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Factory Sealed
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 4MRCEC
Stock #: Stock # 0626-01711
Product Specifications
- Manufacturer: TECO-Westinghouse Motor Company
- Series: MAX-VS
- Product Type: Vertical High Thrust AC Motor
- Type: 4MRCEC
- Frame: 256VP IP22
- Horsepower / kW: 20 HP / 15 kW
- Voltage: 230/460 V
- Amperage: 46.8/23.4 A
- Phase: 3
- Frequency: 60 Hz
- Speed: 1755 RPM
- Service Factor: 1.15
- Enclosure: WPI
- Insulation Class: F
- Ambient Temperature: 40°C
- Design: B
- Rating: Continuous
- Nominal Efficiency: 91.0%
- Minimum Efficiency: 89.5%
- S.F. 1.0 Amperage (60 Hz Base): 51.7 A
- Upper Bearing: 7311BE
- Lower Bearing: 6309ZZC3
- Weight: 348 LB
- Serial Number: XD E618A301001
- Condition: Surplus / Untested
Product Description

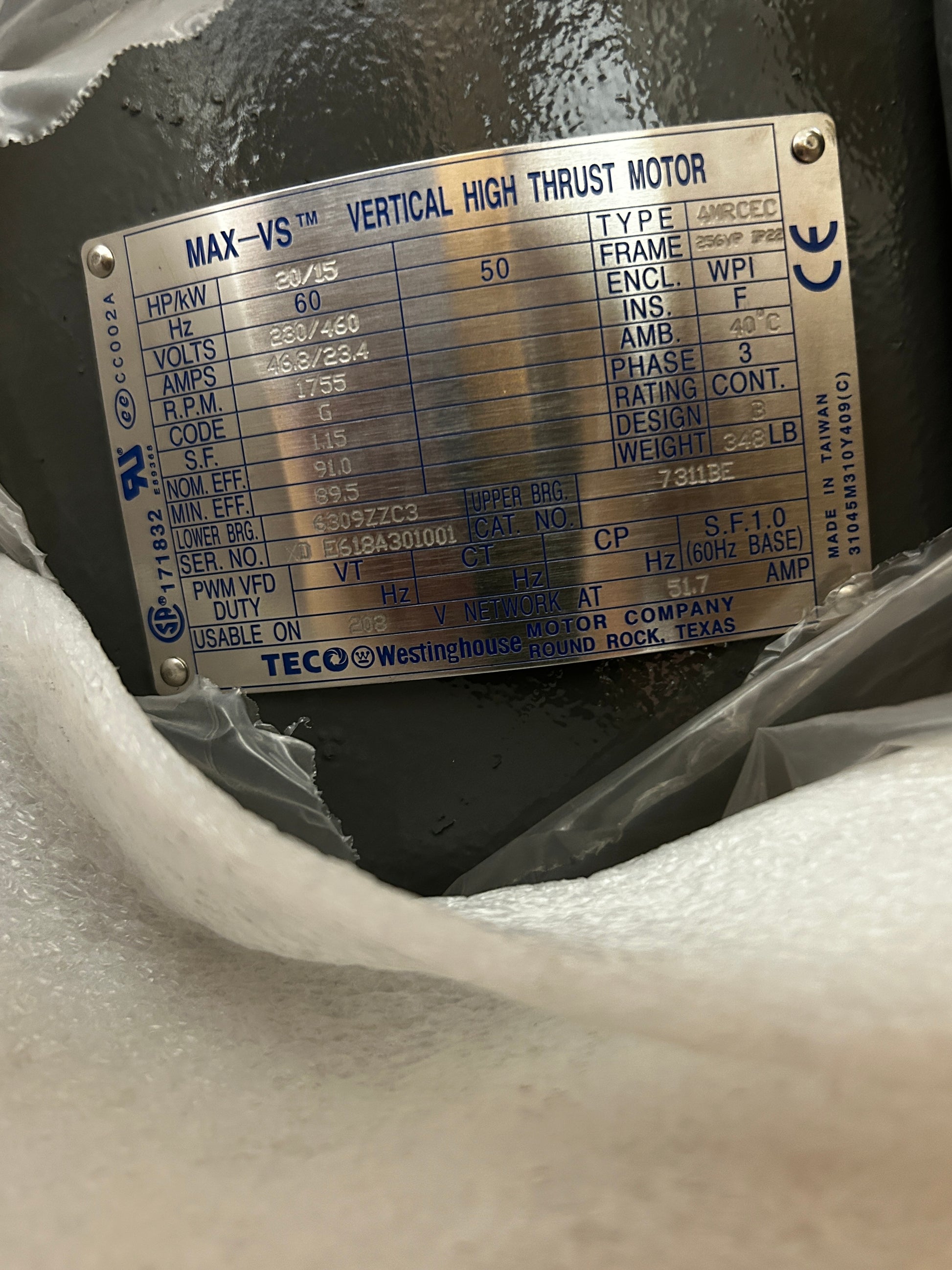

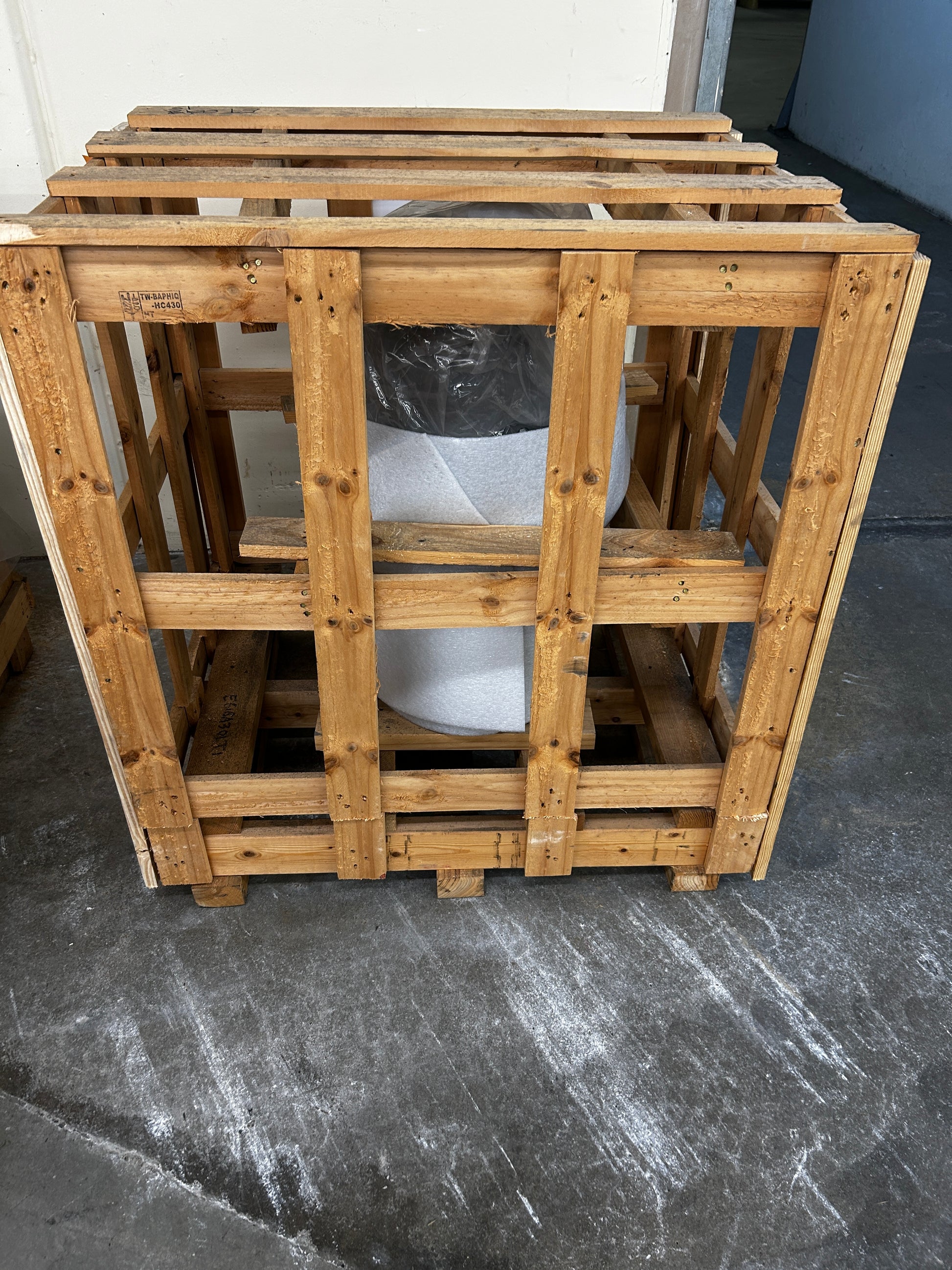

TECO-Westinghouse MAX-VS series vertical high thrust AC motor, Type 4MRCEC, Frame 256VP IP22. Nameplate-confirmed ratings include 20 HP / 15 kW output, 230/460 V three-phase 60 Hz input, 1755 RPM, and continuous duty rating. Insulation Class F with a 40°C ambient rating and a 1.15 service factor. Enclosure is WPI. Nominal efficiency is 91.0%. Upper bearing 7311BE and lower bearing 6309ZZC3 are confirmed on the nameplate. Serial number XD E618A301001. The motor is wrapped in foam and plastic and crated, consistent with surplus new or stored condition. Listed as Surplus / Untested.
