TECO Westinghouse AC Motor RD0034C - 3 HP 1800 RPM
TECO Westinghouse AC Motor RD0034C - 3 HP 1800 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Factory Sealed
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: RD0034C
Stock #: Stock # 0626-01719
Product Specifications
- Manufacturer: TECO Westinghouse
- MPN / Model: RD0034C
- Type: ASGHCF40C
- Product Type: Rolled Steel ODP Premium AC Motor
- Output: 3 HP, 2.2 kW
- RPM: 1755
- Voltage: 230/460 V
- Amperage: 8.60/4.30 A
- Phase: 3
- Frequency: 60 Hz
- Frame: 182TC
- Poles: 4
- Insulation Class: F
- Enclosure: ODP (Open Drip Proof)
- Design: B
- Code: K
- Service Factor: 1.15
- Nominal Efficiency: 89.5
- Ambient: 40 C
- Bearings: DE 6205ZZC3, NDE 6205ZZC3
- Serial Number: XBP316A530004
Product Description
TECO Westinghouse catalog number RD0034C is a 3 HP rolled steel ODP Premium AC induction motor, type ASGHCF40C, built to a NEMA 182TC frame. It runs at 1755 RPM on a 4 pole, 3 phase design with a dual voltage rating of 230/460 V and a full load current of 8.60/4.30 A at 60 Hz.

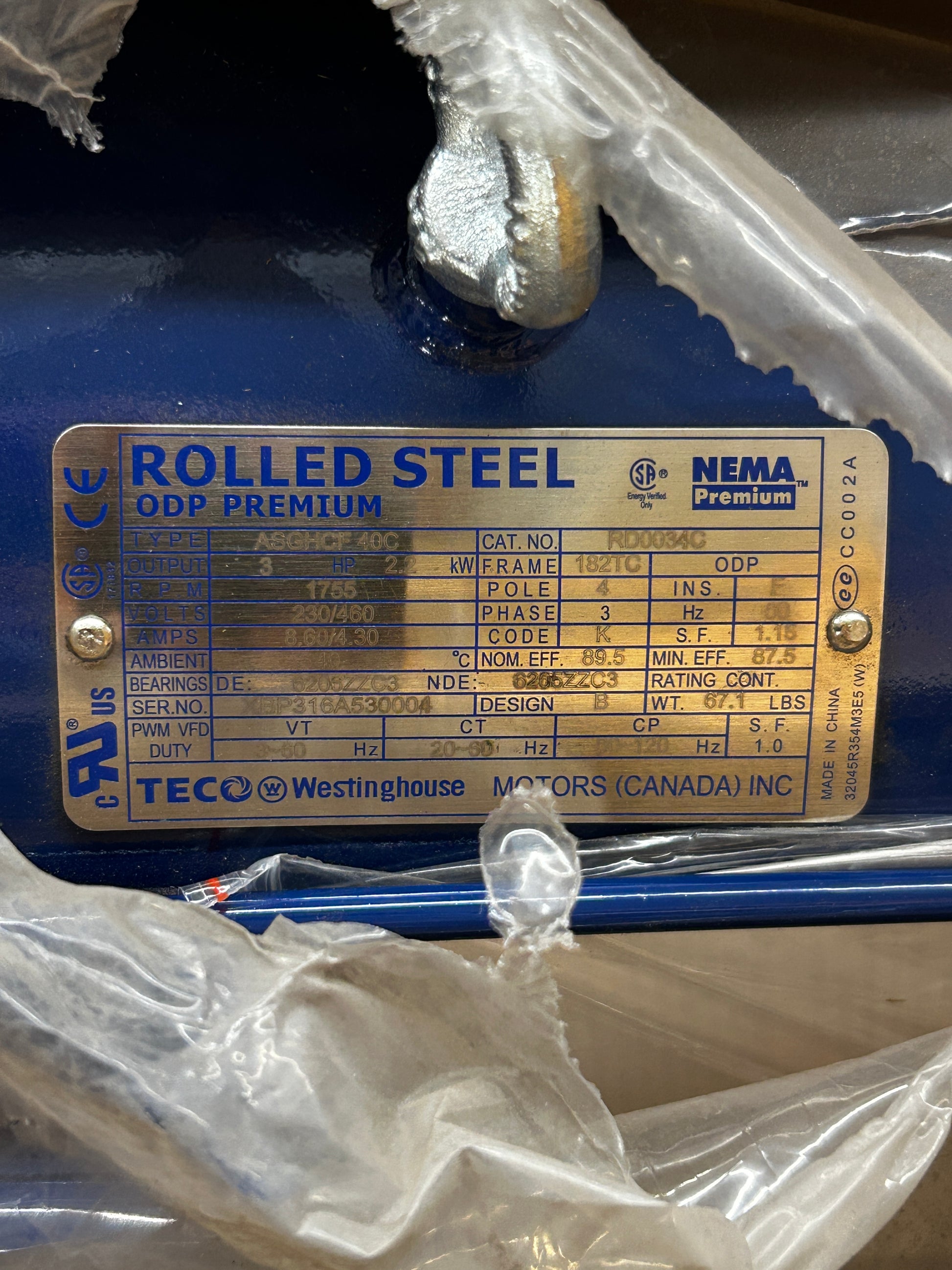

The motor carries an open drip proof (ODP) enclosure, Class F insulation, NEMA Design B characteristics, and a 1.15 service factor, with a nominal efficiency of 89.5 percent. It uses 6205ZZC3 bearings on both the drive end and non drive end and is rated for continuous duty at a 40 C ambient. The nameplate identifies serial number XBP316A530004 and indicates PWM VFD duty capability across variable torque, constant torque, and constant power ranges. Buyers can match the exact TECO Westinghouse catalog number RD0034C and the 182TC frame to confirm fit for replacement or spare inventory in 3 HP, 1800 RPM class general purpose applications.
