TECO Westinghouse Single Phase Motor BSGS3910B - 1 HP
TECO Westinghouse Single Phase Motor BSGS3910B - 1 HP
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods

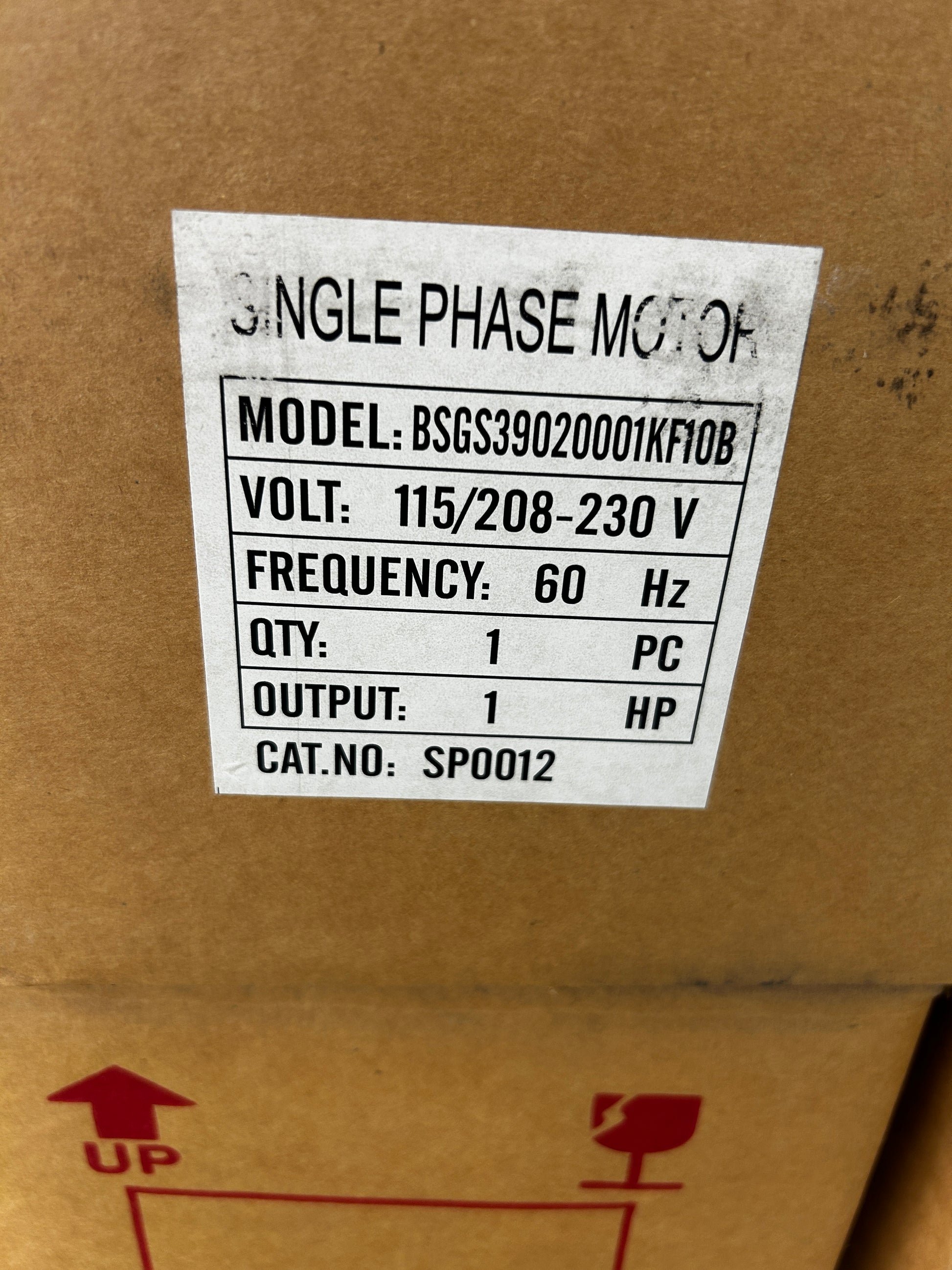

Condition: Factory Sealed
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: BSGS3910B
Stock #: Stock # 0626-01722

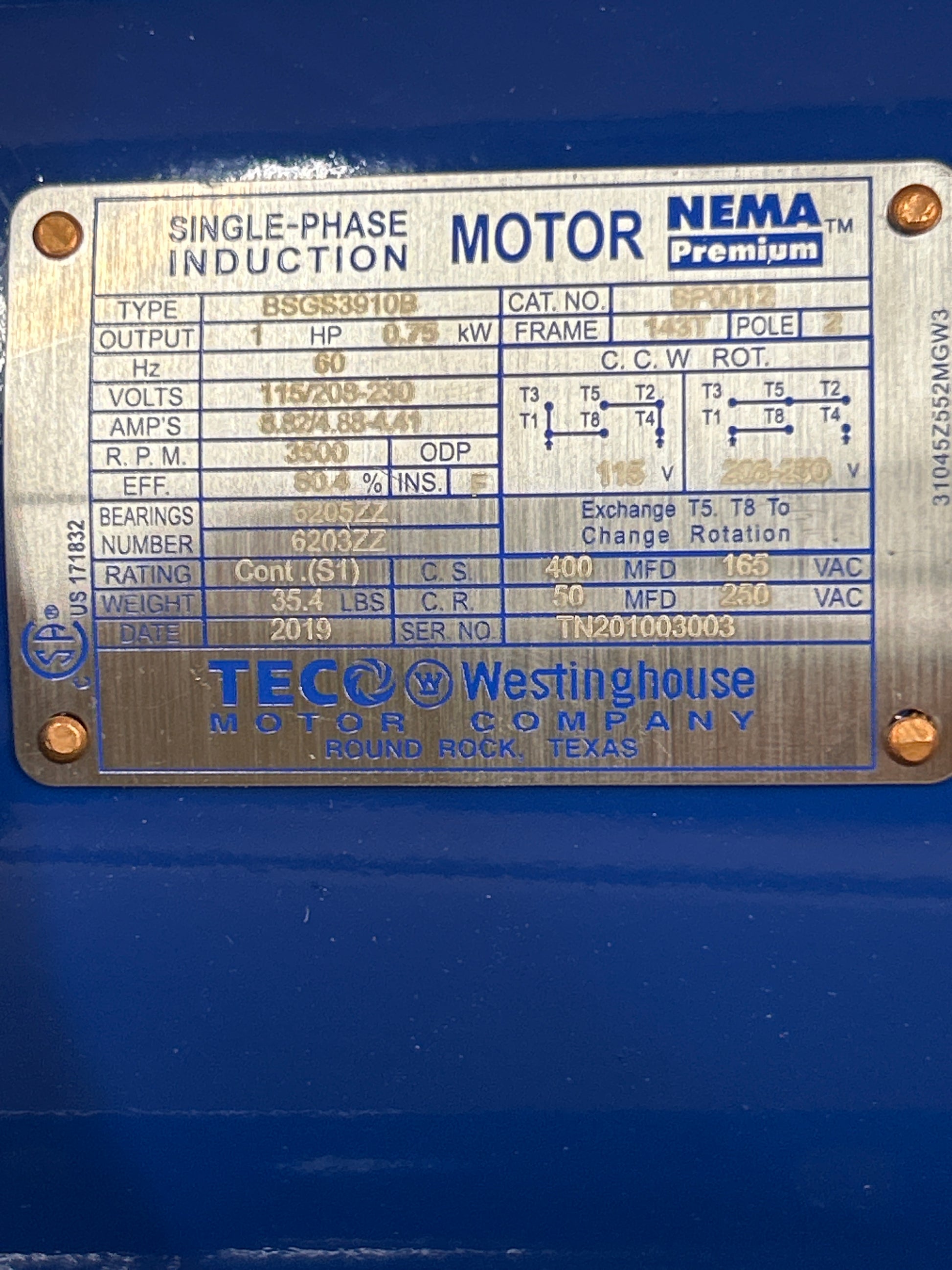

Product Specifications
- Manufacturer: TECO Westinghouse
- MPN / Model: BSGS3910B
- Catalog Number: SP0012
- Product Type: Single Phase Induction Motor
- Output: 1 HP, 0.75 kW
- Voltage: 115/208 to 230 V
- Phase: Single Phase
- Frequency: 60 Hz
- Amps: 8.82/4.88 to 4.41
- Speed: 3500 RPM
- Frame: 143T
- Poles: 2
- Enclosure Rating: ODP
- Efficiency: 60.4 percent
- Insulation Class: F
- Bearings: 6205ZZ, 6203ZZ
- Duty Rating: Continuous (S1)
- Serial Number: TN201003003
Product Description
TECO Westinghouse model BSGS3910B is a single phase induction motor rated at 1 HP (0.75 kW) with a NEMA 143T frame and 2 pole, 3500 RPM construction. It operates on 115/208 to 230 V at 60 Hz with an ODP (open drip proof) enclosure and Class F insulation. The motor carries catalog number SP0012 and serial number TN201003003, with 6205ZZ and 6203ZZ bearings and a continuous (S1) duty rating. Buyers matching a TECO Westinghouse single phase 1 HP motor can use the model number, catalog number, and frame size to compare this unit to their existing equipment or sourcing requirements.
