THK Linear Guide Rail Assembly HSR35B2SSC0S+1000LH-IIGC(C) 35 mm Rail Width, 1000 mm Rail Length, 2-Block Assembly
THK Linear Guide Rail Assembly HSR35B2SSC0S+1000LH-IIGC(C) 35 mm Rail Width, 1000 mm Rail Length, 2-Block Assembly
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: HSR35B2SSC0S
Stock #: 0226-00787

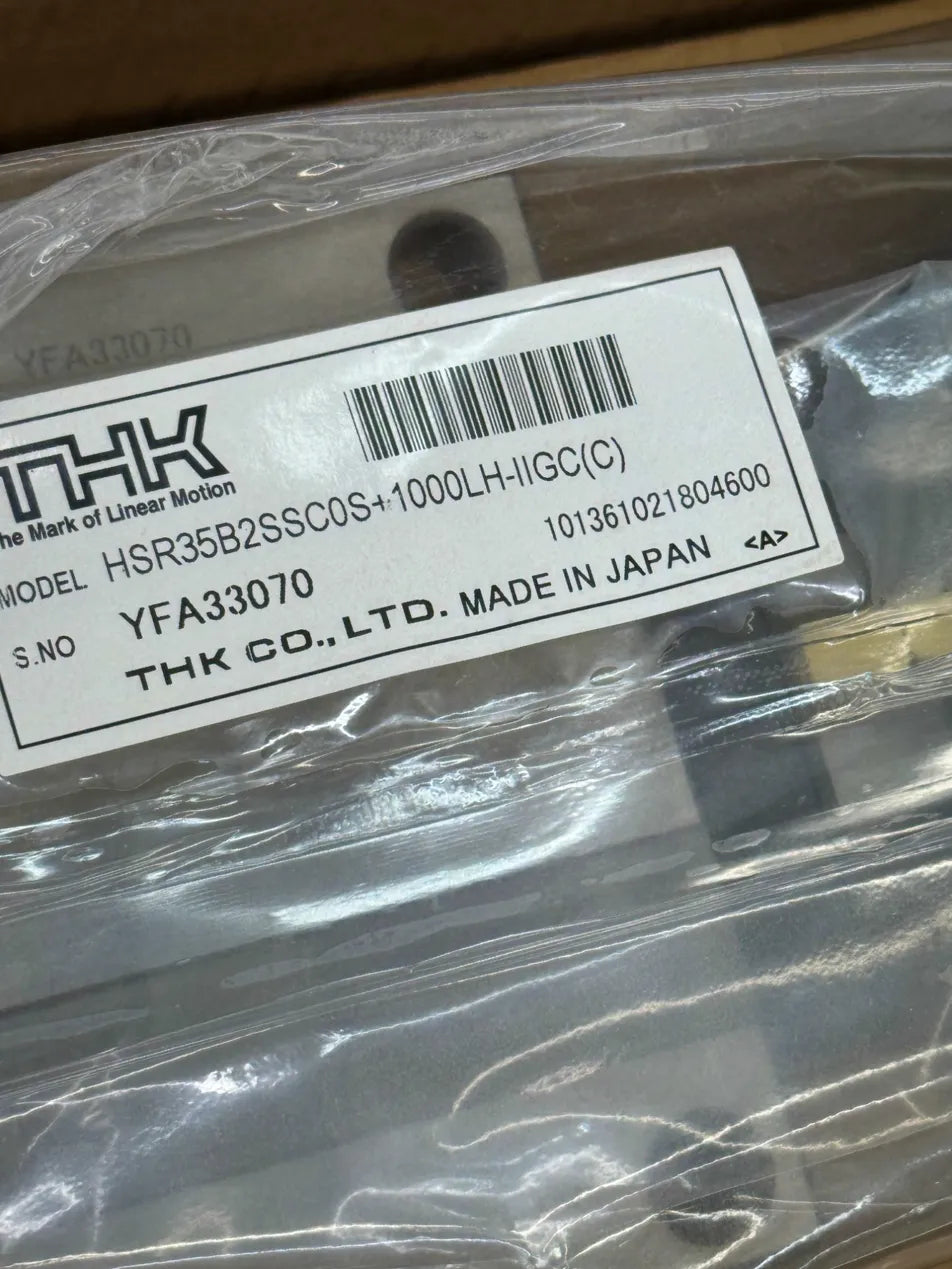

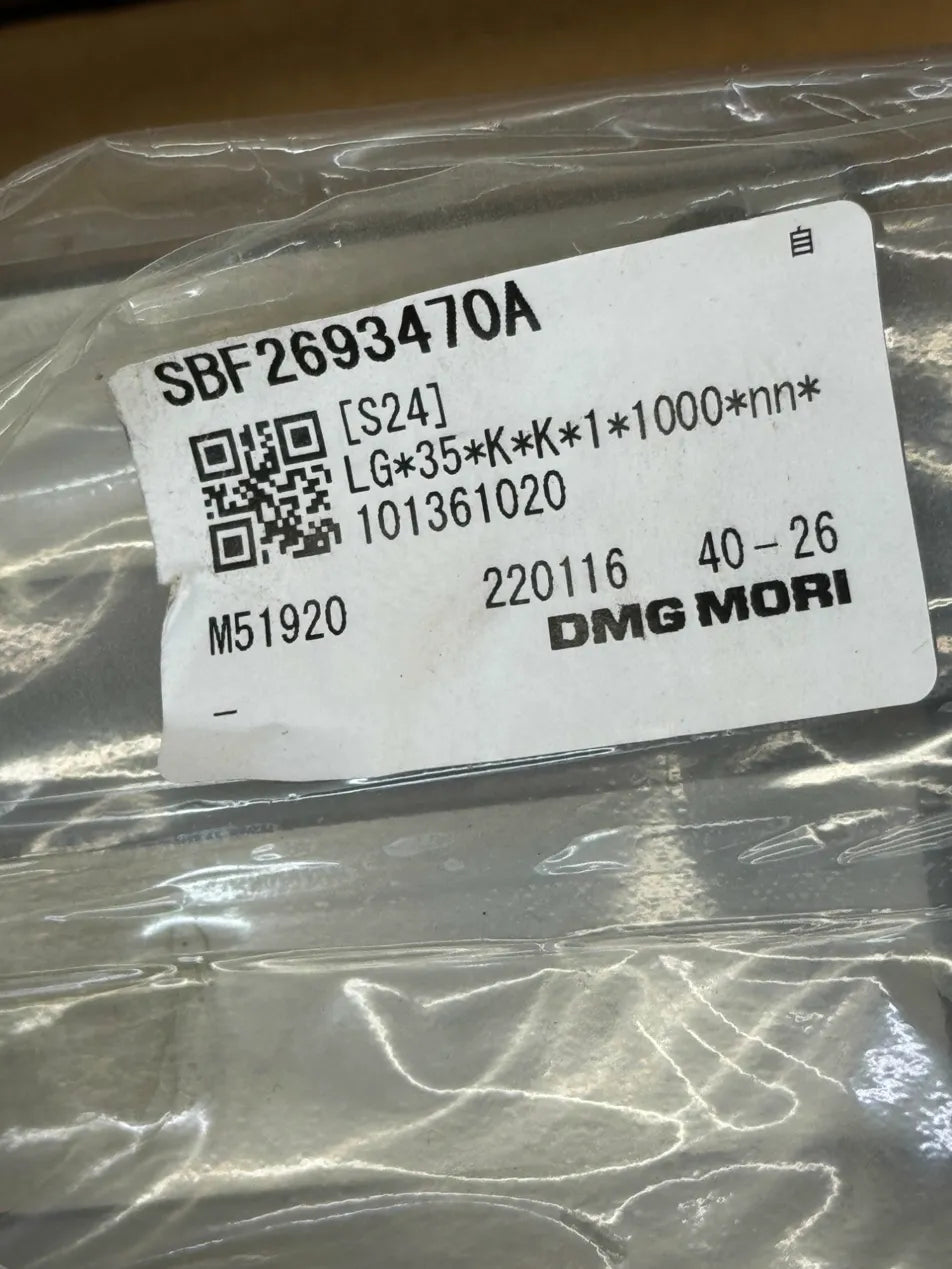

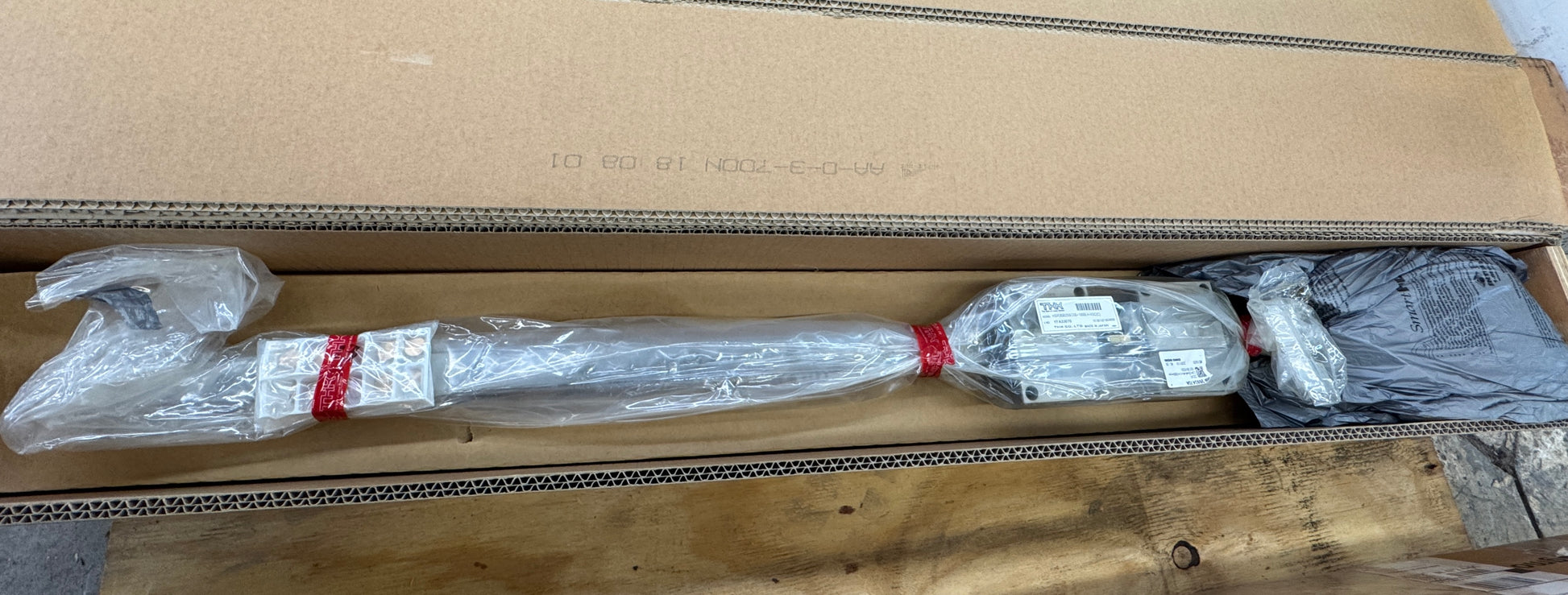

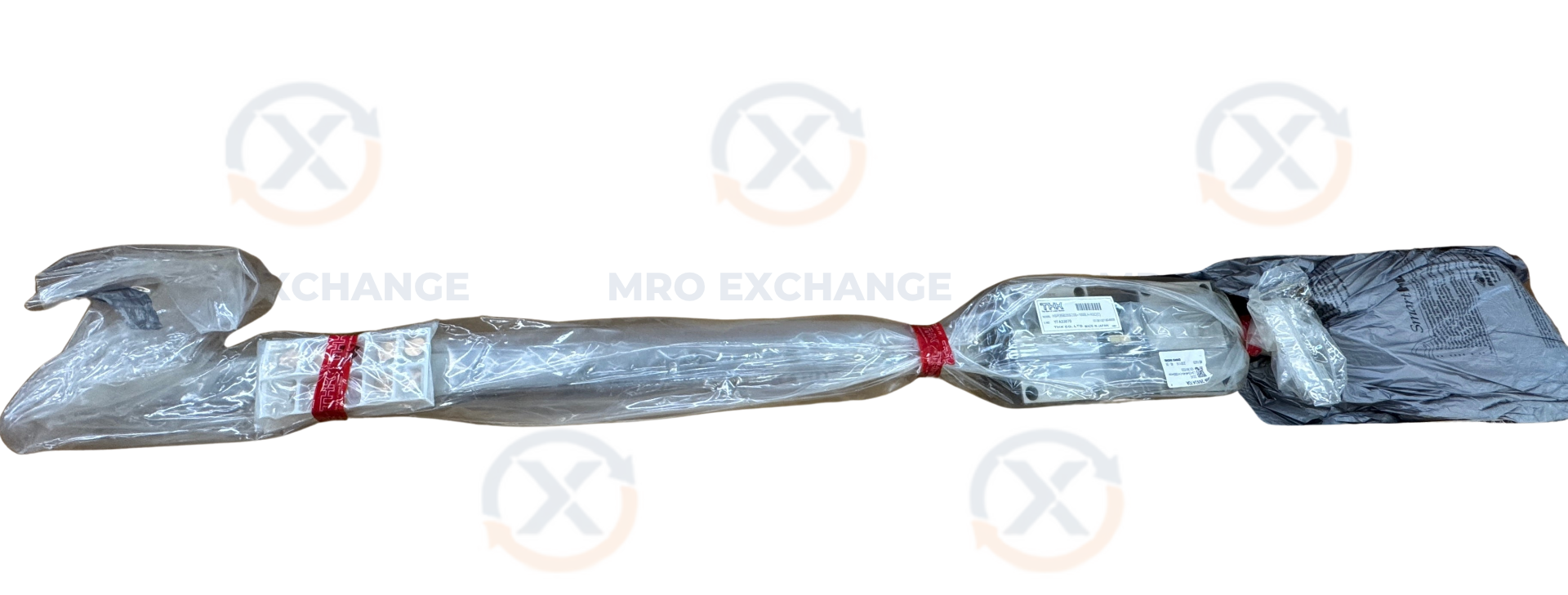

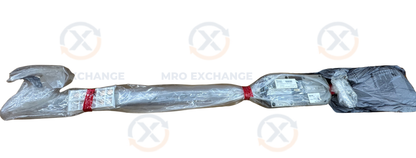

The THK HSR35B2SSC0S+1000LH-IIGC(C) is a complete LM Guide assembly consisting of a 1000mm precision ground steel rail and two HSR35B carriage blocks. This assembly was packaged as a DMG Mori OEM spare part under internal reference number SBF2693470A, confirming its intended application in DMG Mori CNC machining centers. The HSR35 series is THK's globally recognized standard linear guide line, utilizing four rows of recirculating balls set at a 45-degree contact angle to distribute radial, reverse radial, and lateral loads uniformly across all four directions. The 35mm rail cross-section provides high rigidity in a compact profile. The B-type block designation indicates a standard-length carriage, and the 2SSC0S suffix confirms two blocks are pre-mounted on the rail. The IIGC(C) suffix indicates a normal clearance class with standard grease lubrication applied. Rail serial number YFA33070 is present on the nameplate label. The assembly was manufactured in Japan by THK Co., Ltd. Compatible replacement applications include axis feed systems in DMG Mori vertical and horizontal machining centers as well as other CNC equipment using 35mm class THK HSR linear guides. The item is stored in its original factory poly wrap inside the original shipping carton.
Stock # 0226-787
